2004 MINI Hardtop 2 Door Owner's Manual

15
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

INDICATOR AND WARNING LAMPS

Technology that monitors itself
The system runs a check on the indicator
and warning lamps marked by
+

each time
you switch on the ignition. They each light
up once for different periods of time.
If a malfunction should occur in one of
these systems, the corresponding lamp
does not go out after the engine is started
or it lights up while the vehicle is moving.
You will see below the correct way to react
to this.
Red: stop immediately
Battery charge current
+

The battery is no longer being
charged. Indicates a defective alter-
nator drive belt or a problem with the
charge circuit. Please contact the nearest
MINI Dealer.
If this lamp lights up, the power-assist for
steering can be deactivated.
If the drive belt is defective, do not
continue driving. The engine could be
damaged due to overheating. When the
power-assist is deactivated, increased
steering effort is required.
<
Engine oil pressure

+

Stop immediately. Switch off
engine. Check the engine oil and fill
as needed. Please contact the nearest MINI
Dealer.
Do not continue driving; otherwise,
the engine could be damaged
because of inadequate lubrication.
<

Brake warning lamp
+


Lights up although parking brake is
released: check the brake fluid
level. Before driving further, be sure to
comply with the information on pages 86
and 101.
Brake warning lamp for Canadian
models.
With navigation system option:
Coolant temperature warning
lamp in the speedometer
+

Lights up while driving:
Engine is too hot. Switch off the engine
immediately and allow to cool down, also
refer to page 55.

16
INDICATOR AND WARNING LAMPS

Yellow: stop immediately
Flat Tire Monitor
+

Flashes: tire failure.
Reduce speed immediately and
stop the vehicle.
With Run Flat tires:
Carefully reduce the driving speed to below
50 mph / 80 km/h and continue to a safe
location.
In both cases, avoid hard brake applications
and steering maneuvers. Check the tire
inflation pressures.
Conduct in the event of a flat tire, refer to
pages 93, 116, 117, 121.
General information on the system, refer to
page 62.
Red and yellow: continue driving
cautiously
Brake warning light together with
yellow indicator lamp for ABS, CBC,
EBD and ASC/DSC:
The control system ABS, CBC, EBD
and ASC/DSC has failed. Drive cau-
tiously and defensively. Avoid full
brake applications.
Please have the system checked by
your MINI Dealer as soon as possible.
More information on pages 59, 60.
Brake warning lamp together with
the yellow indicator warning lamps
ABS, CBC, EBV and ASC/DSC for
Canadian models.
Red: an important reminder
Brake warning lamp
with parking brake applied.
More information on the parking
brake on page 43.
Brake warning lamp for Canadian
models.
Fasten safety belts
+

Lights up for several seconds or, de-
pending on the version, until after
the safety belts are fastened. A signal
*
also
sounds depending on the version.
More information on page 35.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<
Airbags
+

Please have the system inspected
at your MINI Dealer.
More information on page 65.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<
Bonnet/Tailgate
Lights up when the bonnet and/or
tailgate are open.
More information on pages 27, 95.
Brake pads
Have the condition of the brake
pads checked.
More information on page 86.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<

17
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

INDICATOR AND WARNING LAMPS

Yellow: check as soon as possible
Flat Tire Monitor
+

Stays lit: the system is defective.
Please have the system inspected
at your MINI Dealer.
More information on page 62.
Antilock Brake System (ABS)
+

ABS has been deactivated in
response to system malfunction.
Conventional braking efficiency is avail-
able. Please have the system inspected at
your MINI Dealer.
More information on page 61.
ABS indicator lamp for Canadian
models.
All Season traction Control (ASC)/
Dynamic Stability Control (DSC)
+

Indicator lamp flashes:
System active: drive and braking forces are
regulated.
The indicator lamp stays lit: ASC/DSC
switched off with button or defective. In
the event of a defect: please have the sys-
tem inspected at your MINI Dealer.
More information on pages 59, 60.
Service Engine Soon
+

If the warning lamp comes on
either continuously or intermit-
tently, this indicates a malfunction in the
emissions-related electronic systems.
Although the vehicle remains operational,
you should have the systems checked by
your MINI Dealer at the earliest possible
opportunity.
Service Engine Soon warning lamp
for Canadian models.
Engine electronics
*

+

Malfunction in the engine electron-
ics. You can continue to drive with
reduced engine output or engine speed.
Please have the system inspected at your
MINI Dealer.
Check Gas Cap
*
+

This indicator lamp comes on
when the fuel gas cap is loose or
missing. Close the gas cap tightly:
Refer to page 85.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<

Green: for your information
Turn signal indicators
Flashes when turn signal indicator
is on.
Rapid flashing: the system is defective.
More information on page 49.
Cruise control
Lights up when the cruise control is
activated: operation via the multi-
function steering wheel or multifunction
sports steering wheel.
More information on page 52.
Blue: for your information
High beams
Comes on when the high beams
are on or the headlamp flasher is
actuated.
More information on page 49.

18
MULTIFUNCTION STEERING WHEELS

*
Steering wheels with multifunctions
The control buttons integrated within the
multifunction steering wheel and the mul-
tifunction sports steering wheel have been
designed to allow you to operate a number
of accessories both quickly and safely, with-
out taking your eyes from the road:
>
Some audio source functions
>
Cruise control.

Steering wheel
1Call up and continue cruise control
2Activate/interrupt/deactivate cruise
control
3Store and accelerate cruise control
4Store and decelerate cruise control
Right:
5Volume
6Changing between radio, CD and cas-
sette
Left:
5Operation of:
>
Radio
Press briefly: next/previous station
stored in memory
Extended pressure: station scan
>
CD
Press briefly: jump to next track
Extended pressure: search within cur-
rent title
>Cassette
Press briefly: jump to next track or
stop fast forward
Extended pressure: fast forward/
rewind
If the Wave radio is installed, the
above options for cassette
player operation are not available.<

19
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
MULTIFUNCTION STEERING WHEELS
*

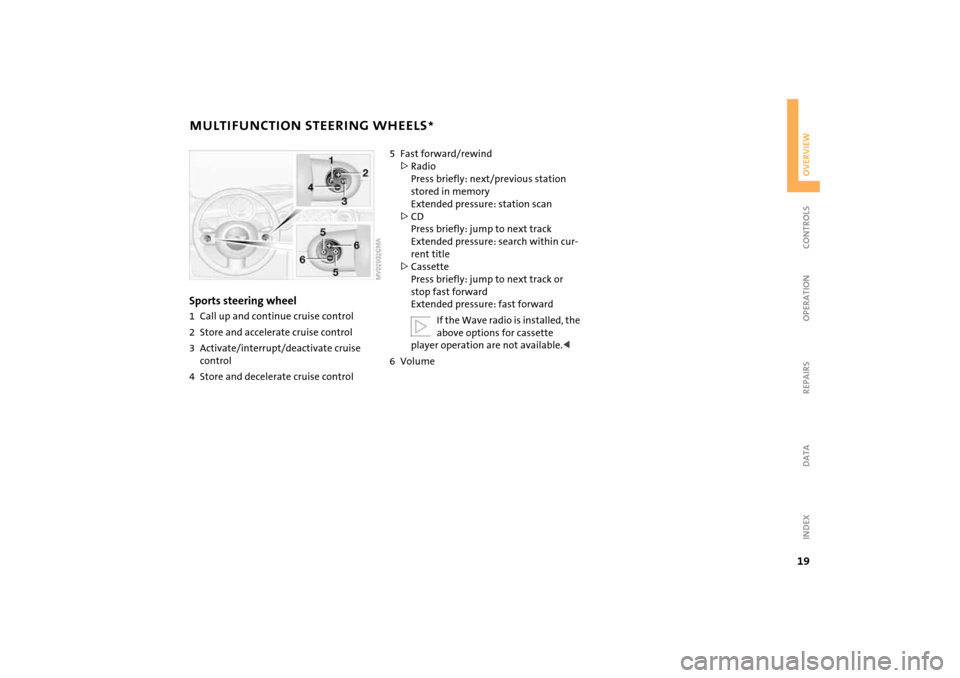

Sports steering wheel
1Call up and continue cruise control
2Store and accelerate cruise control
3Activate/interrupt/deactivate cruise
control
4Store and decelerate cruise control
5Fast forward/rewind
>Radio
Press briefly: next/previous station
stored in memory
Extended pressure: station scan
>CD
Press briefly: jump to next track
Extended pressure: search within cur-
rent title
>Cassette
Press briefly: jump to next track or
stop fast forward
Extended pressure: fast forward
If the Wave radio is installed, the
above options for cassette
player operation are not available.<
6Volume

20

OVERVIEW
CONTROLS
OPERATION, CARE, MAINTENANCE
OWNER SERVICE PROCEDURES
INDEX TECHNICAL DATA
21
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
Controls

22
KEYSThe key set of your MINI consists of three
keys.
1Two master keys with remote control
If the battery is discharged, please
consult your MINI Dealer. For
changing the battery, refer to the next
section.<
2Spare key
For keeping in a safe place, e.g. in your
wallet. This key is not intended for con-
stant use
Changing batteryReplace if it is no longer possible to unlock
the vehicle via the remote control.
Only use a battery of the type speci-
fied on the battery, CR 2032, and
make absolutely sure that it is fitted in the
correct position.<
1. Apply a screwdriver at the recess
2. Use the screwdriver to lever out the
cover.
Return used batteries to a recycling
point or your MINI Dealer.<
Initializing the master key with remote
controlWhen you activate a master key with
remote control – for example a replace-
ment or additional key, or after a battery
change – it must be initialized.
This initialization can be performed in two
ways:
Press button or button , refer to
page 24, four times in succession
or
if the vehicle is unlocked:
1. Switch the ignition on briefly, position 2,
and then off
2. Within 10 seconds, press button
and button , refer to page 24, in suc-
cession.
In the event of a system malfunction,
please contact your MINI Dealer. You
can also obtain replacement keys and bat-
teries there.<
