2004 MERCEDES-BENZ SL55AMG Owner's Manual

32 Getting startedUnlockingUnlocking with KEYLESS-GO*
If your vehicle is equipped with the
KEYLESS-GO function, your vehicle checks
whether the SmartKey with KEYLESS-GO is
valid when you grasp the door handle. If
your SmartKey with KEYLESS-GO is valid,
the doors will unlock and you can open
them.
The function of the SmartKey overrules the
KEYLESS-GO function.

Grasp the door handle.
The turn signal lamps flash once. The
locking knobs on the doors move up.
The SBC brake system is activated.
If the SmartKey with KEYLESS-GO is inside
the vehicle, pressing the KEYLESS-GO
start/stop button on the gear selector le-
ver corresponds to turning the SmartKey
to the various starter switch positions.iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approx. 3 feet
(1 meter) away from the door.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

33 Getting started
Unlocking
1KEYLESS-GO start/stop button
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have the status0 (as with
SmartKey removed).
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.Position 1

Press the KEYLESS-GO start/stop but-
ton once.
This supplies power to some electrical
consumers, such as seat adjustment.Ignition (or Position 2)

Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power to all electrical
consumers. All lamps in the instrument
cluster come on.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 93).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 44).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2)
is switched on


twice, the power supply is again
switched off
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.

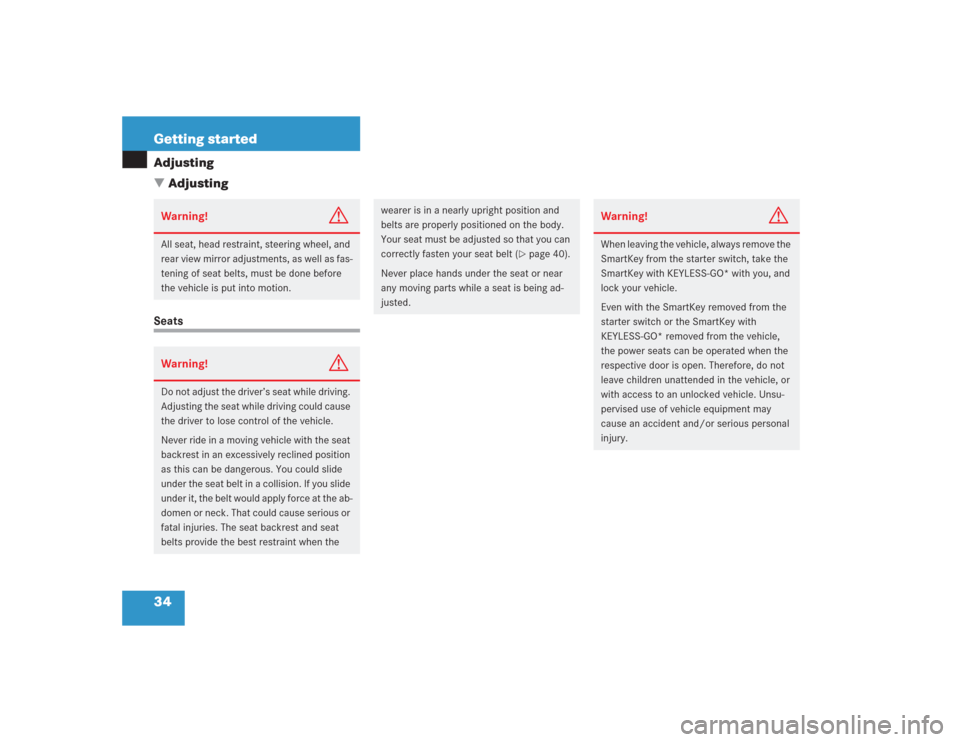

34 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 40).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle.
Even with the SmartKey removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

35 Getting started
Adjusting
Seat adjustment
The seat adjustment switch is located in
the door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft adjustment
6Backrest tilt
Switch on ignition.
or

Open the respective door.Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow 5.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM1

compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
Infants and small children must be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
1BabySmart
TM
is a trademark of Siemens
Automotive Corp.
!When moving the seats, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
The memory function (
page 114) lets
you store the setting for the seat posi-
tion together with the settings for the
steering wheel and the rear view mir-
rors.

36 Getting startedAdjustingSeat cushion tilt
Press the switch up or down in the
direction of arrow3 until your upper
legs are lightly supported.
Seat cushion depth

Press the switch forward or backward
in the direction of arrow4 until your
legs are supported comfortably.
Seat backrest tilt

Press the switch forward or backward
in the direction of arrow6 until your
arms are slightly angled when holding
the steering wheel.
Seat height

Press the switch up or down in the di-
rection of arrow2.Head restraint height

Press the switch up or down in the di-
rection of arrow1.Head restraint tilt
Manually adjust the angle of the head re-
straint.

Push or pull on the lower edge of the
head restraint cushion.
For more information on seats, see “Seats”
(
page 107).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.

37 Getting started
Adjusting
Steering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the lower left of the steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on ignition
or

Open the driver’s door.Adjusting steering column in or out

Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Adjusting steering column up or down

Move stalk up or down in the direction
of arrow2.
Make sure your legs can move freely
and that you have a good view on all
the displays (including malfunction and
indicator lamps) on the instrument
cluster.
For more information, see “Heated steer-
ing wheel* (SL 500, SL 600)”
(
page 220).
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO
* with you and
lock your vehicle.
Even with the SmartKey removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the steering wheel adjustment feature can
be operated when the driver’s door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 114) lets
you store the setting for the steering
wheel together with the settings for the
seat position and the rear view mirrors.

38 Getting startedAdjustingMirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 166).Exterior rear view mirrorThe buttons are located on the lower part
of the center console.
1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view mir-
ror button
3Adjustment button
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.

39 Getting started
Adjusting

Make sure the ignition is switched on.
All the lamps in the instrument cluster
come on.

Press button1 for the left mirror or
button2 for the right mirror.

Push adjustment button3 up, down,
left, or right according to the desired
setting.
For more information, see “Good visibility”
(
page 166).!If an exterior rear view mirror was forc-
ibly pushed forward (hit from the rear)
or forcibly pushed rearward (hit from
the front), reposition it by applying firm
pressure until it snaps into place. The
mirror housing is then properly posi-
tioned and you can adjust the mirror in
the usual manner.iThe memory function (
page 114) lets
you store the setting for the exterior
rear view mirrors together with the set-
tings for the steering wheel and the
seat position.
