2004 MERCEDES-BENZ SL55AMG Owner's Manual

256 OperationEngine compartment
One of the following messages will
subsequently appear in the right multi-
function display:

Engine oil level
OK


Add 1.0 qt. for
max. oil level(Canada:
1.0 l
)


Add 1.5 qts. for
max. oil level(Canada:
1.5 l
)


Add 2.0 qts. for
max. oil level(Canada:
2.0 l
)

If necessary, add engine oil.
For adding engine oil see (
page 257).
For more information on engine oil, see the
“Technical data” section (
page 386) and
(
page 388).
Other display messages
If the SmartKey or the KEYLESS-GO*
start/stop button is not in position2, the
following message will appear:
Ignit. on to measure
engine oil level
Switch on ignition.If you see the message:
Observe waiting time
If engine is at normal operating
temperature, wait five minutes before
repeating the check procedure.

If engine is not yet at normal operating
temperature, wait 30 minutes before
repeating the check procedure.
If you see the message:
Engine oil level
Not when engine on
!

Turn off the engine.

If the engine is at normal operating
temperature, wait five minutes before
checking oil.

If the engine is not yet at normal
operating temperature, you must wait
30 minutes before checking oil.
iIf you want to interrupt the checking
procedure, press thek orj
button on the multifunction steering
wheel.

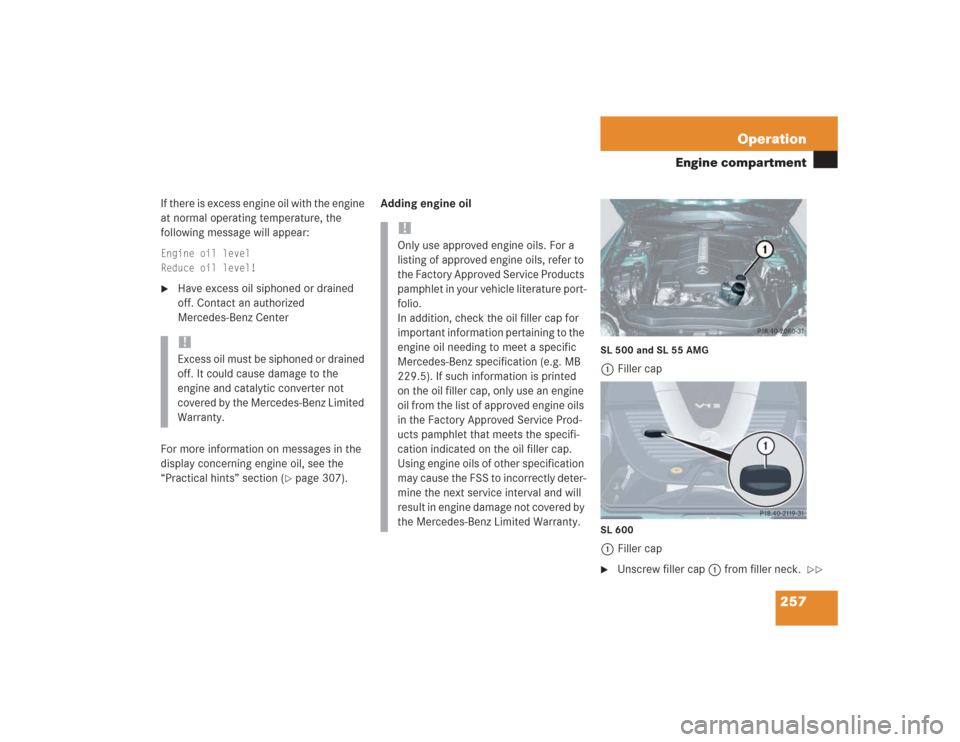

257 Operation
Engine compartment
If there is excess engine oil with the engine
at normal operating temperature, the
following message will appear:Engine oil level
Reduce oil level!
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center
For more information on messages in the
display concerning engine oil, see the
“Practical hints” section (
page 307). Adding engine oil
SL 500 and SL 55 AMG1Filler capSL 6001Filler cap
Unscrew filler cap1 from filler neck.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Only use approved engine oils. For a
listing of approved engine oils, refer to
the Factory Approved Service Products
pamphlet in your vehicle literature port-
folio.
In addition, check the oil filler cap for
important information pertaining to the
engine oil needing to meet a specific
Mercedes-Benz specification (e.g. MB
229.5). If such information is printed
on the oil filler cap, only use an engine
oil from the list of approved engine oils
in the Factory Approved Service Prod-
ucts pamphlet that meets the specifi-
cation indicated on the oil filler cap.
Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.


258 OperationEngine compartment
Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 386) and
(
page 388).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission. Oil level in the ABC system
The oil level in the ABC system does not
need to be checked. If there is visible oil
loss or if malfunction messages appear in
the display, have an authorized
Mercedes-Benz Center check the ABC
system.
Coolant
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
158°F (70°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

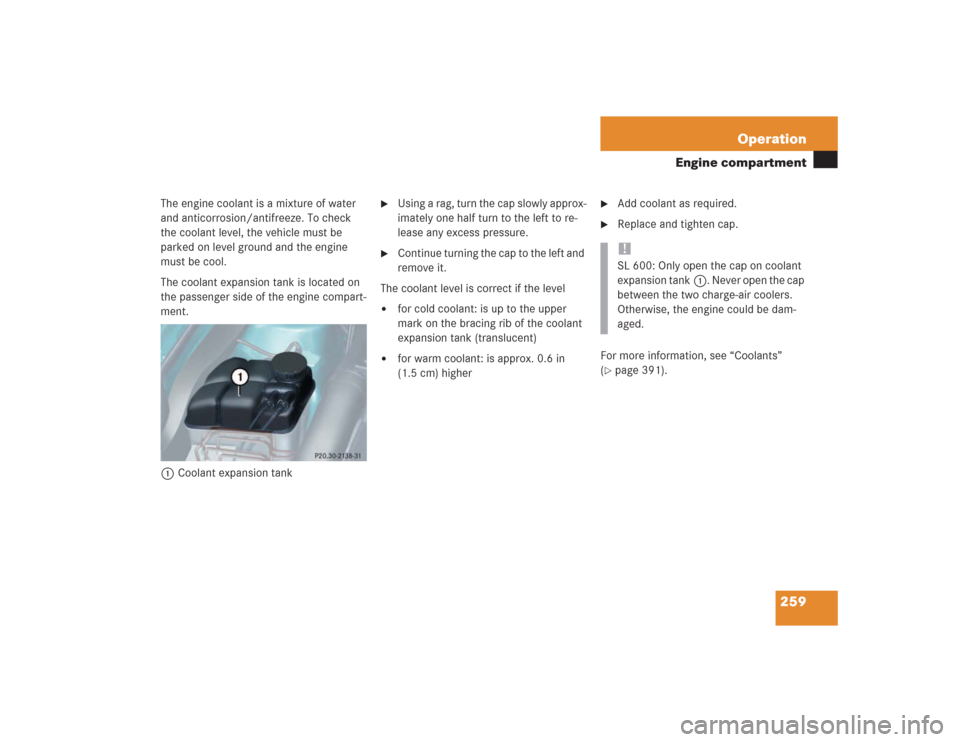

259 Operation
Engine compartment
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank

Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level


for cold coolant: is up to the upper
mark on the bracing rib of the coolant
expansion tank (translucent)


for warm coolant: is approx. 0.6 in
(1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information, see “Coolants”
(
page 391).!SL 600: Only open the cap on coolant
expansion tank1. Never open the cap
between the two charge-air coolers.
Otherwise, the engine could be dam-
aged.

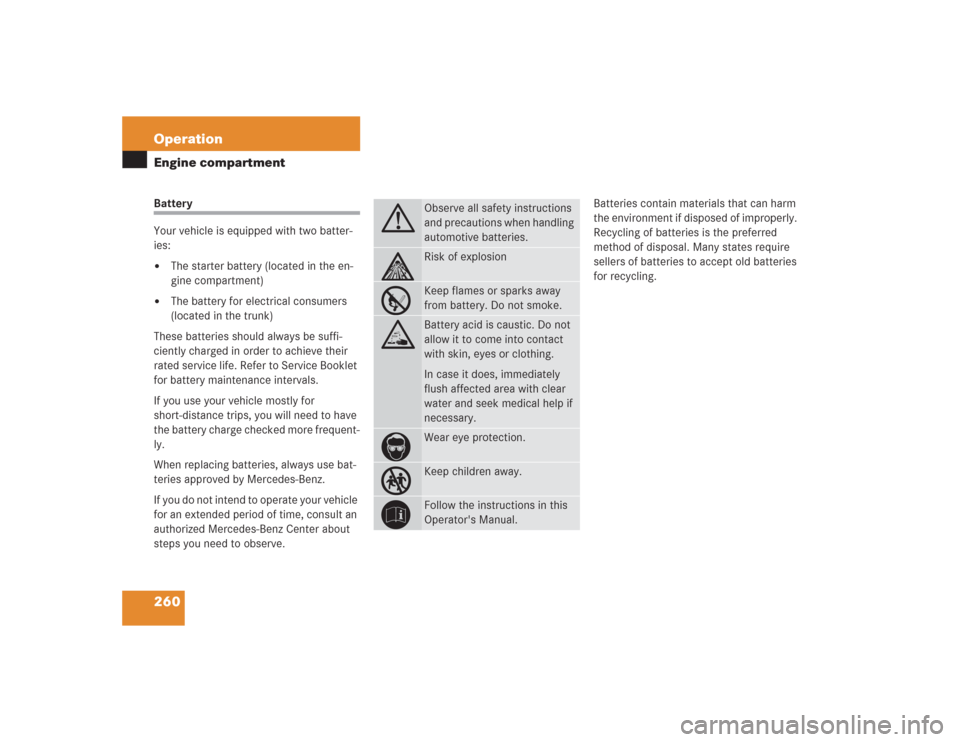

260 OperationEngine compartmentBattery
Your vehicle is equipped with two batter-
ies:

The starter battery (located in the en-
gine compartment)


The battery for electrical consumers
(located in the trunk)
These batteries should always be suffi-
ciently charged in order to achieve their
rated service life. Refer to Service Booklet
for battery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more frequent-
ly.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.

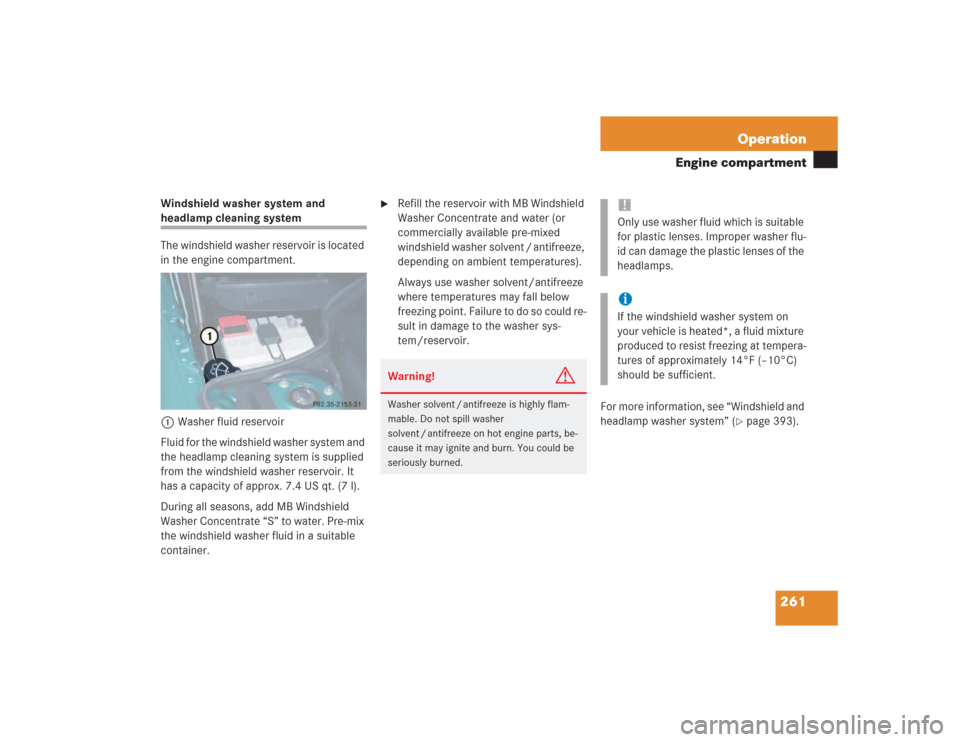

261 Operation
Engine compartment
Windshield washer system and headlamp cleaning system
The windshield washer reservoir is located
in the engine compartment.
1Washer fluid reservoir
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approx. 7.4 US qt. (7 l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Pre-mix
the windshield washer fluid in a suitable
container.

Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available pre-mixed
windshield washer solvent / antifreeze,
depending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could re-
sult in damage to the washer sys-
tem/reservoir.
For more information, see “Windshield and
headlamp washer system” (
page 393).
Warning!
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent / antifreeze on hot engine parts, be-
cause it may ignite and burn. You could be
seriously burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer flu-
id can damage the plastic lenses of the
headlamps.iIf the windshield washer system on
your vehicle is heated*, a fluid mixture
produced to resist freezing at tempera-
tures of approximately 14°F (–10°C)
should be sufficient.

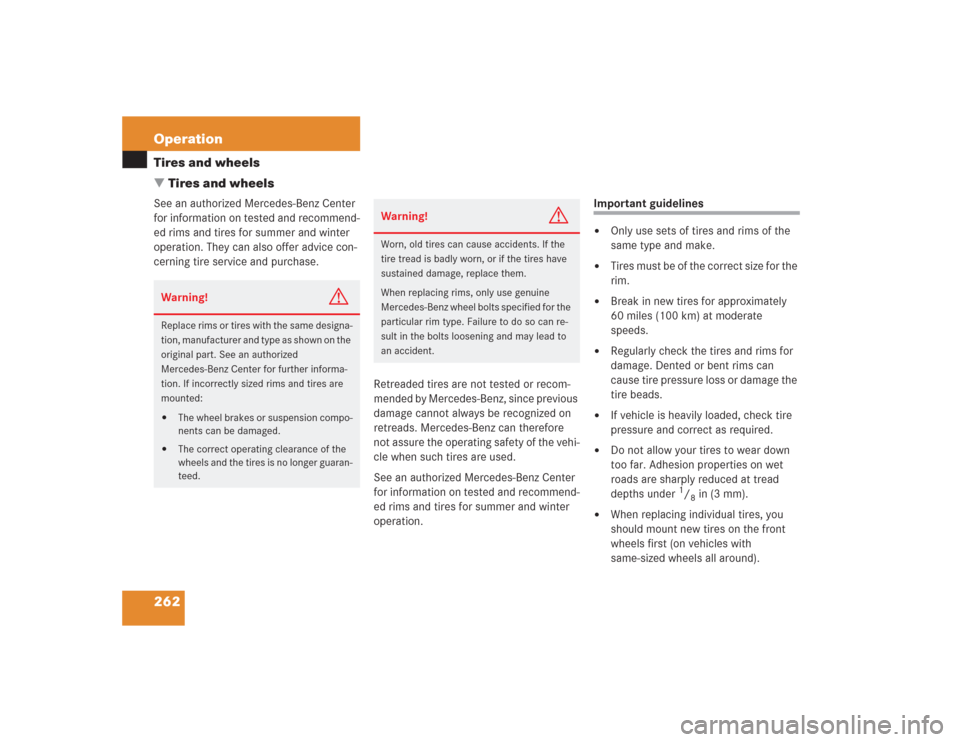

262 OperationTires and wheels
Tires and wheelsSee an authorized Mercedes-Benz Center
for information on tested and recommend-
ed rims and tires for summer and winter
operation. They can also offer advice con-
cerning tire service and purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. Mercedes-Benz can therefore
not assure the operating safety of the vehi-
cle when such tires are used.
See an authorized Mercedes-Benz Center
for information on tested and recommend-
ed rims and tires for summer and winter
operation.
Important guidelines

Only use sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire pressure loss or damage the
tire beads.


If vehicle is heavily loaded, check tire
pressure and correct as required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension compo-
nents can be damaged.


The correct operating clearance of the
wheels and the tires is no longer guaran-
teed.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can re-
sult in the bolts loosening and may lead to
an accident.

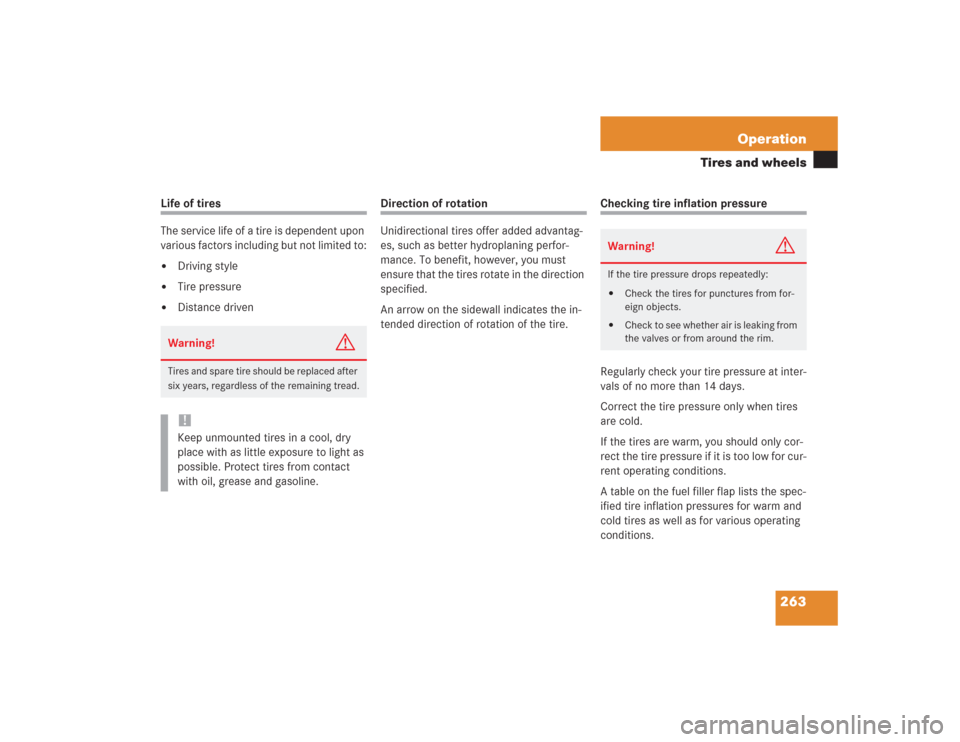

263 Operation
Tires and wheels
Life of tires
The service life of a tire is dependent upon
various factors including but not limited to:

Driving style


Tire pressure


Distance driven
Direction of rotation
Unidirectional tires offer added advantag-
es, such as better hydroplaning perfor-
mance. To benefit, however, you must
ensure that the tires rotate in the direction
specified.
An arrow on the sidewall indicates the in-
tended direction of rotation of the tire.
Checking tire inflation pressure
Regularly check your tire pressure at inter-
vals of no more than 14 days.
Correct the tire pressure only when tires
are cold.
If the tires are warm, you should only cor-
rect the tire pressure if it is too low for cur-
rent operating conditions.
A table on the fuel filler flap lists the spec-
ified tire inflation pressures for warm and
cold tires as well as for various operating
conditions.
Warning!
G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.
Warning!
G
If the tire pressure drops repeatedly:

Check the tires for punctures from for-
eign objects.


Check to see whether air is leaking from
the valves or from around the rim.
