2004 MERCEDES-BENZ SL55AMG Owner's Manual

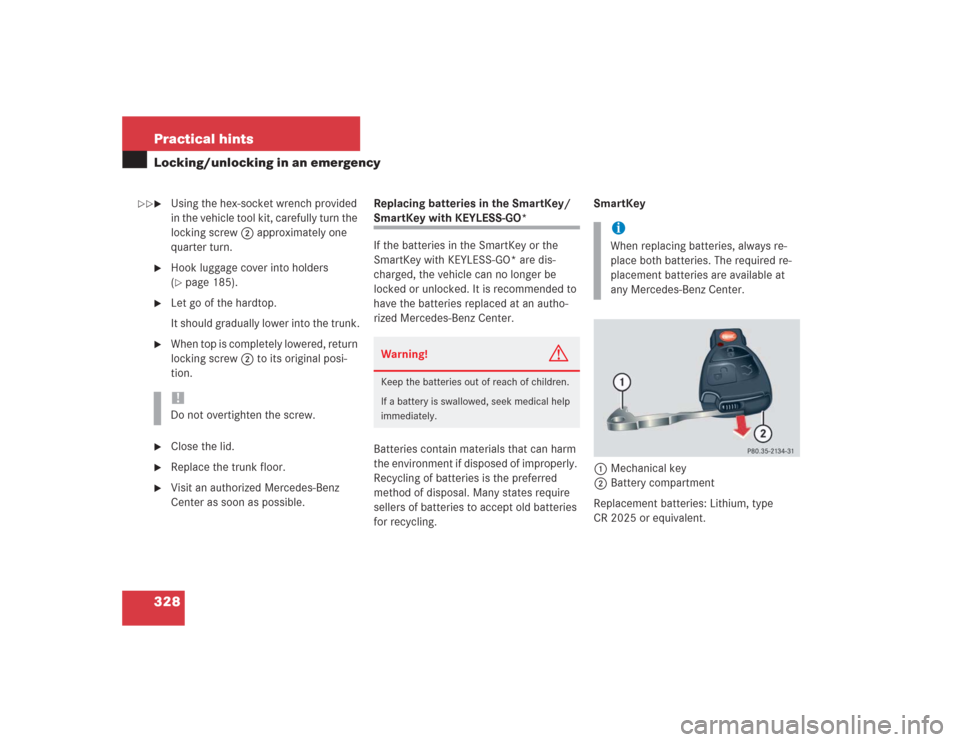

328 Practical hintsLocking/unlocking in an emergency
Using the hex-socket wrench provided
in the vehicle tool kit, carefully turn the
locking screw 2 approximately one
quarter turn.

Hook luggage cover into holders
(page 185).

Let go of the hardtop.
It should gradually lower into the trunk.

When top is completely lowered, return
locking screw 2 to its original posi-
tion.

Close the lid.

Replace the trunk floor.

Visit an authorized Mercedes-Benz
Center as soon as possible.Replacing batteries in the SmartKey/
SmartKey with KEYLESS-GO*
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.SmartKey
1Mechanical key
2Battery compartment
Replacement batteries: Lithium, type
CR 2025 or equivalent.
!Do not overtighten the screw.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen replacing batteries, always re-
place both batteries. The required re-
placement batteries are available at
any Mercedes-Benz Center.

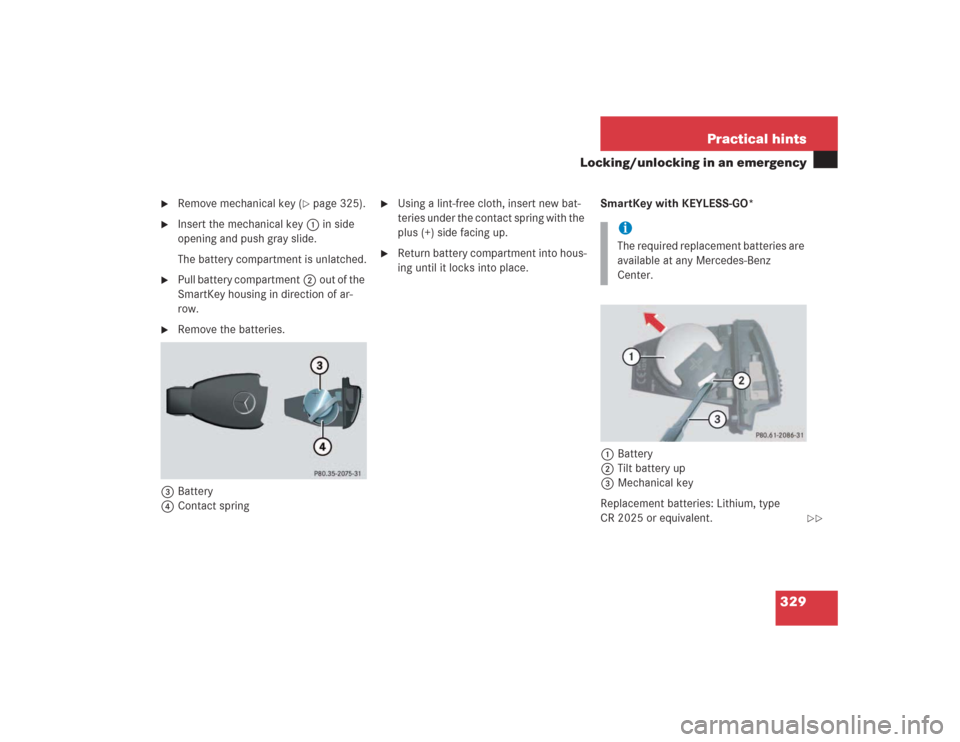

329 Practical hints
Locking/unlocking in an emergency

Remove mechanical key (
page 325).

Insert the mechanical key1in side
opening and push gray slide.
The battery compartment is unlatched.

Pull battery compartment2out of the
SmartKey housing in direction of ar-
row.

Remove the batteries.
3Battery
4Contact spring

Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.SmartKey with KEYLESS-GO*
1Battery
2Tilt battery up
3Mechanical key
Replacement batteries: Lithium, type
CR 2025 or equivalent.
iThe required replacement batteries are
available at any Mercedes-Benz
Center.


330 Practical hintsLocking/unlocking in an emergency
Remove mechanical key (
page 325).

Insert the mechanical key in side open-
ing and push gray slide.
The battery compartment is unlatched.

Pull the battery compartment out of the
SmartKey housing.

Using mechanical key3, apply pres-
sure to position 2.
Battery 1 tilts up slightly.

Pull battery 1 out in direction of ar-
row.

Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.

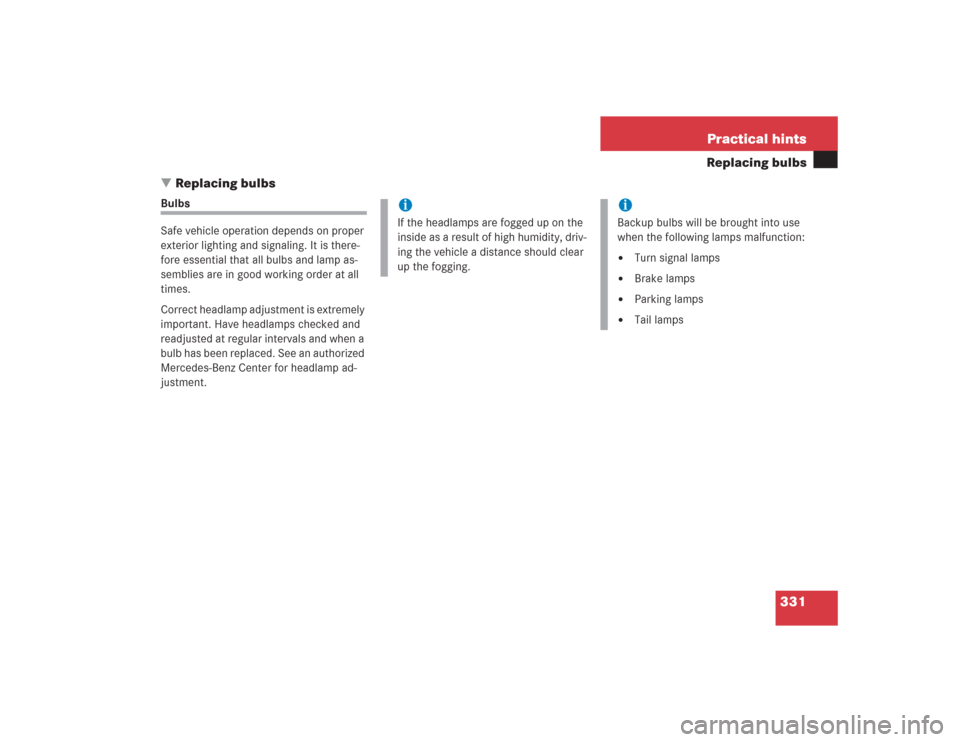

331 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
iIf the headlamps are fogged up on the
inside as a result of high humidity, driv-
ing the vehicle a distance should clear
up the fogging.
iBackup bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps


Brake lamps


Parking lamps


Tail lamps

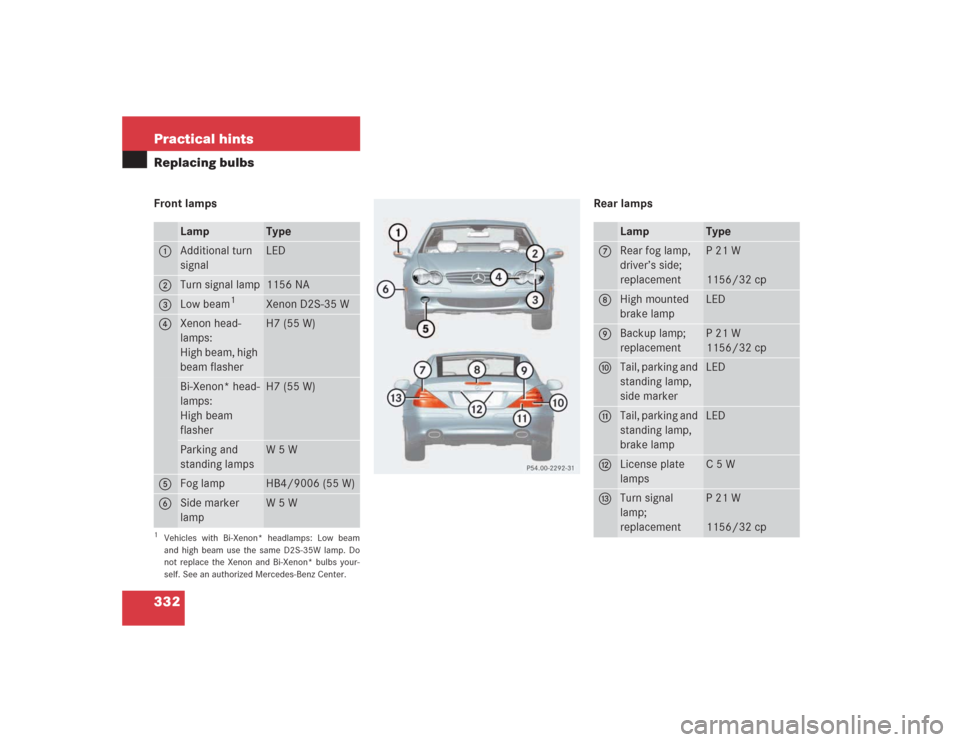

332 Practical hintsReplacing bulbsFront lamps Rear lamps
Lamp
Type
1
Additional turn
signal
LED
2
Turn signal lamp
1156 NA
3
Low beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Xenon and Bi-Xenon* bulbs your-
self. See an authorized Mercedes-Benz Center.
Xenon D2S-35 W
4
Xenon head-
lamps:
High beam, high
beam flasher
H7 (55 W)
Bi-Xenon* head-
lamps:
High beam
flasher
H7 (55 W)
Parking and
standing lamps
W 5 W
5
Fog lamp
HB4/9006 (55 W)
6
Side marker
lamp
W 5 W
Lamp
Type
7
Rear fog lamp,
driver’s side;
replacement
P 21 W
1156/32 cp
8
High mounted
brake lamp
LED
9
Backup lamp;
replacement
P 21 W
1156/32 cp
a
Tail, parking and
standing lamp,
side marker
LED
b
Tail, parking and
standing lamp,
brake lamp
LED
c
License plate
lamps
C 5 W
d
Turn signal
lamp;
replacement
P 21 W
1156/32 cp

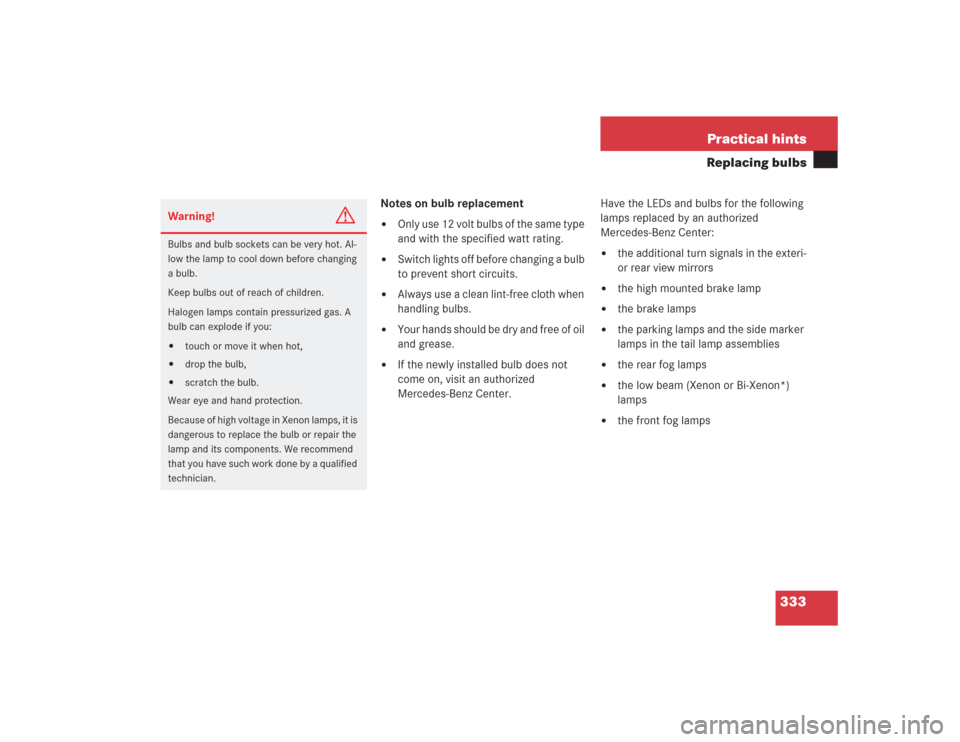

333 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


the additional turn signals in the exteri-
or rear view mirrors


the high mounted brake lamp


the brake lamps


the parking lamps and the side marker
lamps in the tail lamp assemblies


the rear fog lamps


the low beam (Xenon or Bi-Xenon*)
lamps


the front fog lamps
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot,


drop the bulb,


scratch the bulb.
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

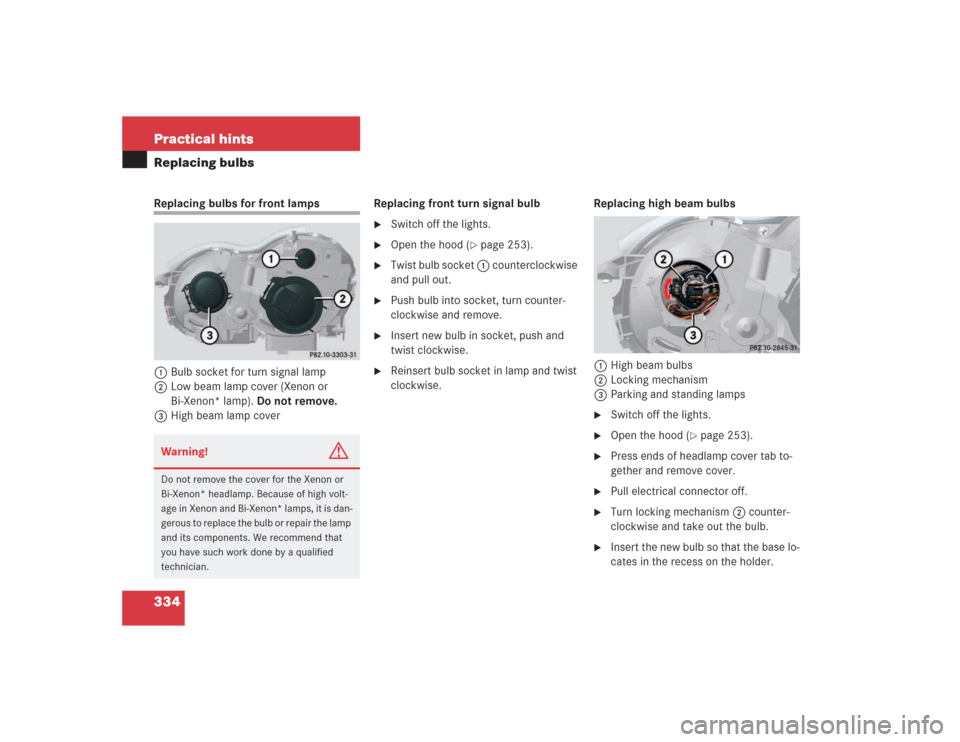

334 Practical hintsReplacing bulbsReplacing bulbs for front lamps
1Bulb socket for turn signal lamp
2Low beam lamp cover (Xenon or
Bi-Xenon* lamp). Do not remove.
3High beam lamp coverReplacing front turn signal bulb

Switch off the lights.

Open the hood (
page 253).

Twist bulb socket 1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.Replacing high beam bulbs
1High beam bulbs
2Locking mechanism
3Parking and standing lamps

Switch off the lights.

Open the hood (
page 253).

Press ends of headlamp cover tab to-
gether and remove cover.

Pull electrical connector off.

Turn locking mechanism 2 counter-
clockwise and take out the bulb.

Insert the new bulb so that the base lo-
cates in the recess on the holder.
Warning!
G
Do not remove the cover for the Xenon or
Bi-Xenon* headlamp. Because of high volt-
age in Xenon and Bi-Xenon* lamps, it is dan-
gerous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.

335 Practical hints
Replacing bulbs

Turn locking mechanism 2 clockwise.

Plug the connector onto the bulb.

Align headlamp cover and click into
place.
Replacing parking and standing lamp
bulbs

Switch off the lights.

Open the hood (
page 253).

Press ends of headlamp cover tab to-
gether and remove cover.

Pull out the bulb socket with the bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align headlamp cover and click into
place.Replacing side marker lamp

Switch off the lights.

Carefully slide lamp towards rear.

Remove front end first.

Twist bulb socket counterclockwise
and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket, push in, and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.
Replacing bulbs for rear lamps
Tail lamp assemblies
1Backup lamp
2Turn signal lamp
3Driver’s side: Rear fog lamp
Passenger’s side: Substitute lamp
Switch off the lights.

Open the trunk lid (
page 99).

Fold trim to side and remove.

Twist bulb socket counterclockwise
and pull out.
iHave the headlamp adjustment
checked regularly.
