2004 MERCEDES-BENZ SL55AMG Owner's Manual

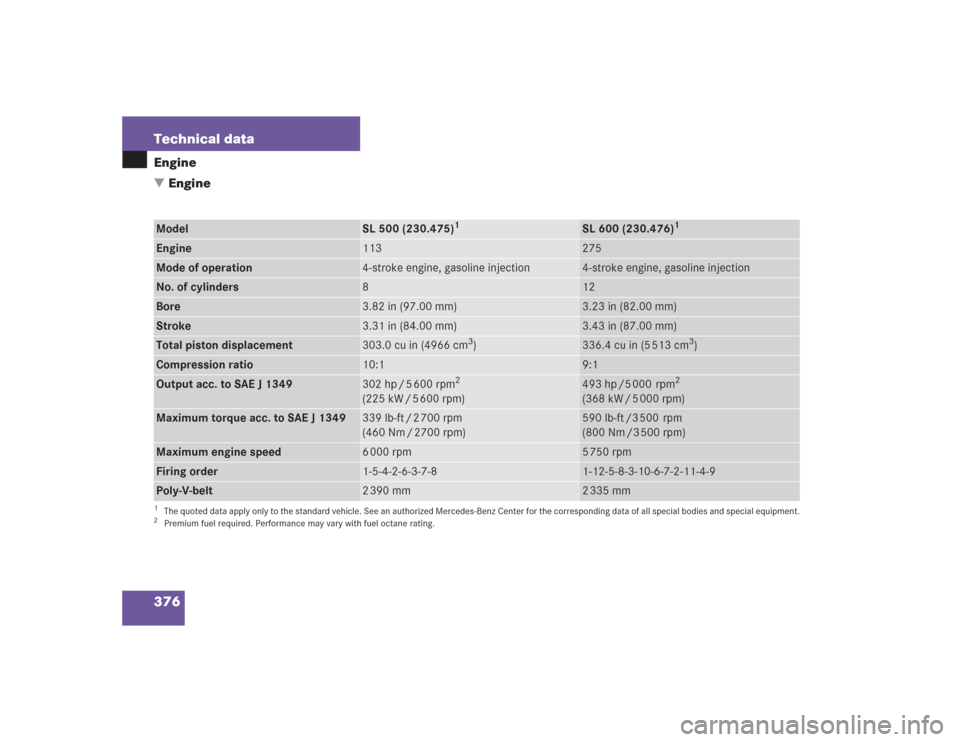

376 Technical dataEngine
EngineModel
SL 500 (230.475)
1
SL 600 (230.476)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.82 in (97.00 mm)
3.23 in (82.00 mm)
Stroke
3.31 in (84.00 mm)
3.43 in (87.00 mm)
Total piston displacement
303.0 cu in (4966 cm
3)
336.4 cu in (5 513 cm
3)
Compression ratio
10:1
9:1
Output acc. to SAE J 1349
302 hp / 5 600 rpm
2
(225 kW / 5 600 rpm)
493 hp /5 000 rpm
2
(368 kW / 5 000 rpm)
Maximum torque acc. to SAE J 1349
339 lb-ft / 2 700 rpm
(460 Nm / 2700 rpm)
590 lb-ft /3 500 rpm
(800 Nm /3 500 rpm)
Maximum engine speed
6000 rpm
5750 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2390 mm
2335 mm
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.2Premium fuel required. Performance may vary with fuel octane rating.

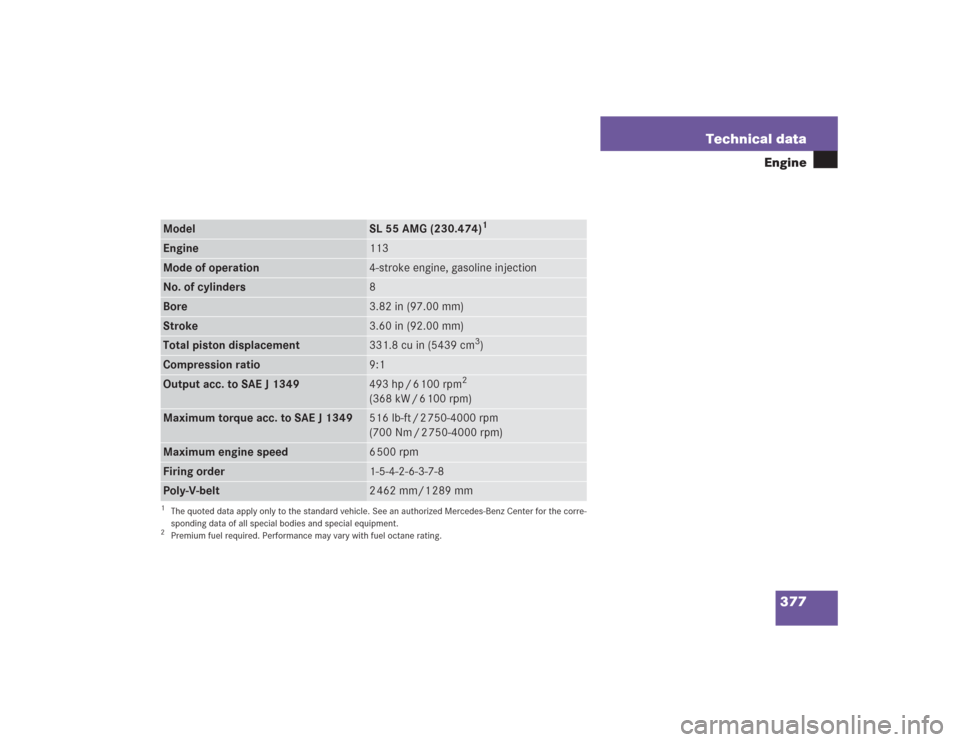

377 Technical data
Engine
Model
SL 55 AMG (230.474)
1
Engine
113
Mode of operation
4-stroke engine, gasoline injection
No. of cylinders
8
Bore
3.82 in (97.00 mm)
Stroke
3.60 in (92.00 mm)
Total piston displacement
331.8 cu in (5439 cm
3)
Compression ratio
9:1
Output acc. to SAE J 1349
493 hp / 6 100 rpm
2
(368 kW / 6 100 rpm)
Maximum torque acc. to SAE J 1349
516 lb-ft / 2 750-4000 rpm
(700 Nm / 2 750-4000 rpm)
Maximum engine speed
6 500 rpm
Firing order
1-5-4-2-6-3-7-8
Poly-V-belt
2 462 mm/1 289 mm
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre-
sponding data of all special bodies and special equipment.2Premium fuel required. Performance may vary with fuel octane rating.

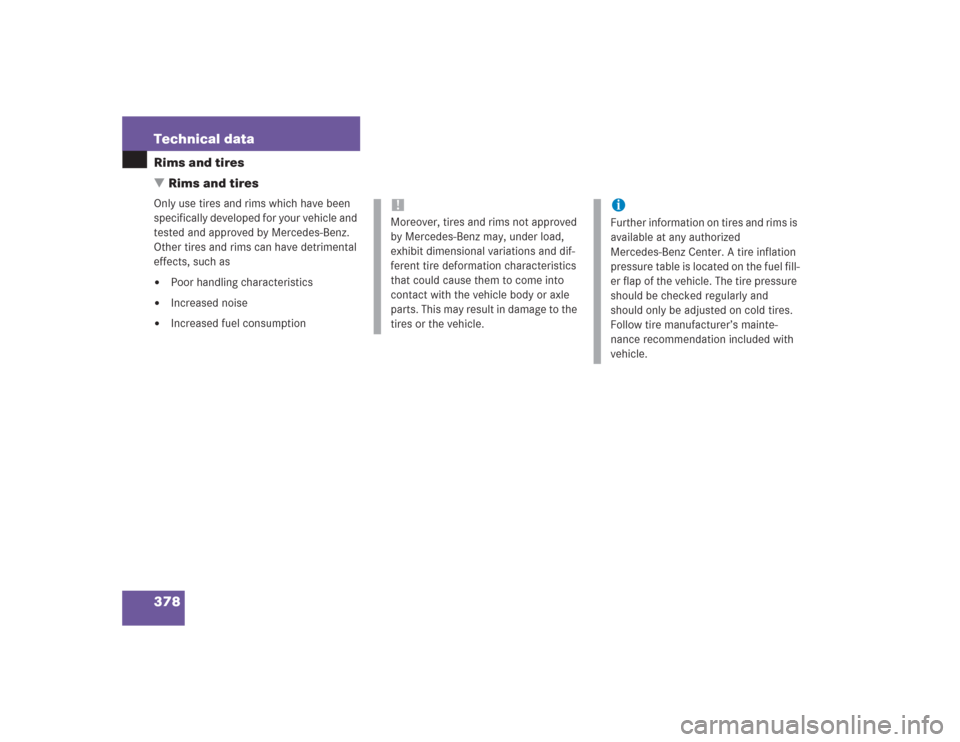

378 Technical dataRims and tires
Rims and tiresOnly use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. This may result in damage to the
tires or the vehicle.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

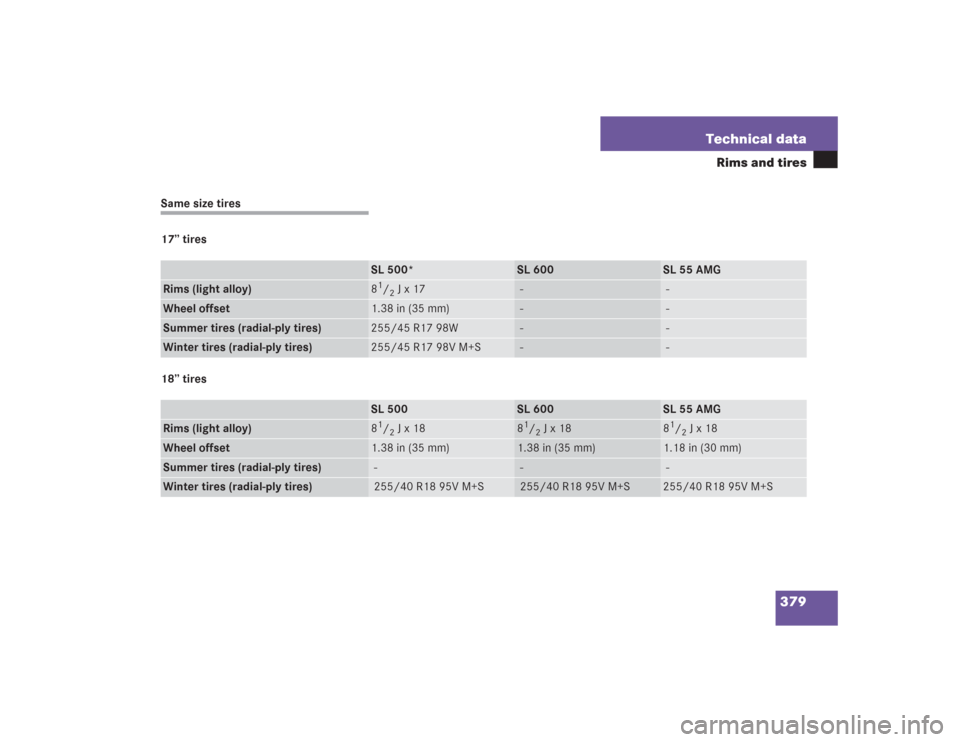

379 Technical data
Rims and tires
Same size tires
17’’ tires
18’’ tires
SL 500*
SL 600
SL 55 AMG
Rims (light alloy)
81/2 J x 17
-
-
Wheel offset
1.38 in (35 mm)
-
-
Summer tires (radial-ply tires)
255/45 R17 98W
-
-
Winter tires (radial-ply tires)
255/45 R17 98V M+S
-
-
SL 500
SL 600
SL 55 AMG
Rims (light alloy)
81/2 J x 18
81/2 J x 18
81/2 J x 18
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
1.18 in (30 mm)
Summer tires (radial-ply tires)
-
-
-
Winter tires (radial-ply tires)
255/40 R18 95V M+S
255/40 R18 95V M+S
255/40 R18 95V M+S

380 Technical dataRims and tiresMixed size tires
SL 500
SL 500 (Sport Package*)
SL 600
SL 600 (Sport Package*)
Front axle:Rims (light alloy)
81/2 J x 18
81/2 J x 18
Wheel offset
1.38 in (35 mm)
1.38 in (35 mm)
Summer tires (radial-ply tires)
255/40 R18 95W
255/40 R18 95Y
Rear axle:Rims (light alloy)
91/2 J x 18
91/2 J x 18
Wheel offset
1.57 in (40 mm)
1.57 in (40 mm)
Summer tires (radial-ply tires)
285/35 R18 97W
1
1Must not be used with snow chains.
285/35 R18 97Y
1

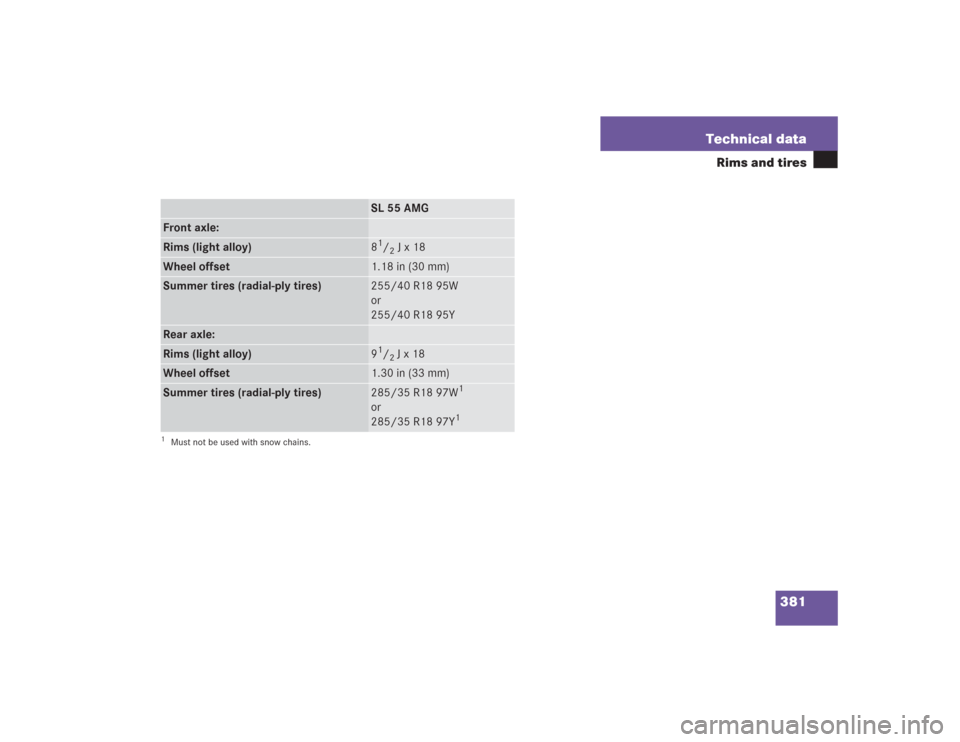

381 Technical data
Rims and tires
SL 55 AMG
Front axle:Rims (light alloy)
81/2 J x 18
Wheel offset
1.18 in (30 mm)
Summer tires (radial-ply tires)
255/40 R18 95W
or
255/40 R18 95Y
Rear axle:Rims (light alloy)
91/2 J x 18
Wheel offset
1.30 in (33 mm)
Summer tires (radial-ply tires)
285/35 R18 97W
1
or
285/35 R18 97Y
1
1Must not be used with snow chains.

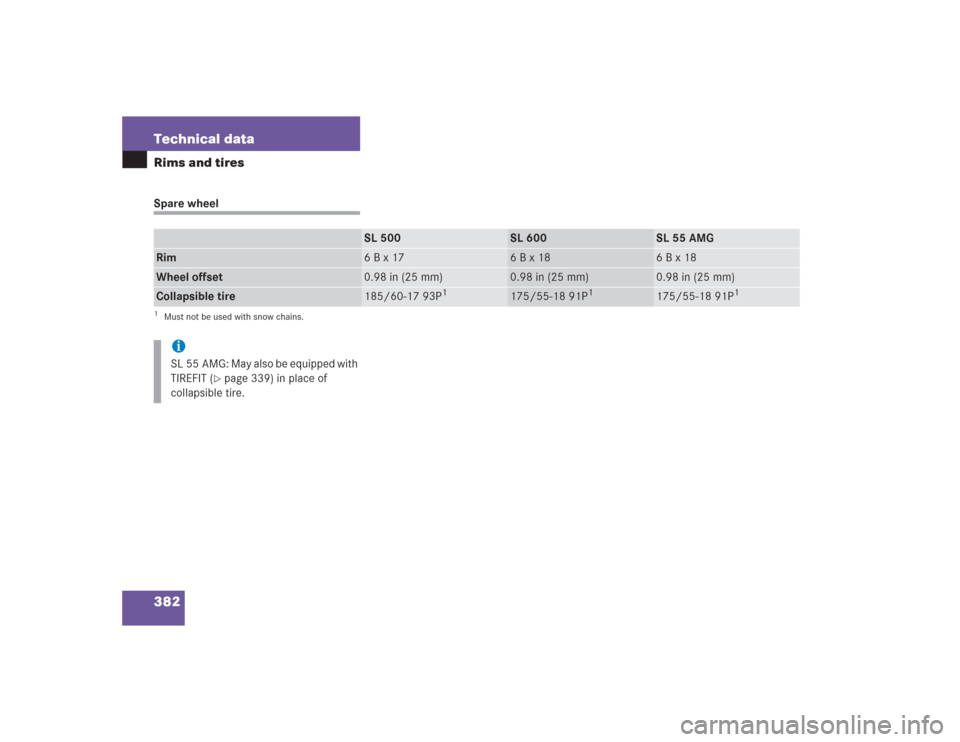

382 Technical dataRims and tiresSpare wheel
SL 500
SL 600
SL 55 AMG
Rim
6 B x 17
6 B x 18
6 B x 18
Wheel offset
0.98 in (25 mm)
0.98 in (25 mm)
0.98 in (25 mm)
Collapsible tire
185/60-17 93P
1
1Must not be used with snow chains.
175/55-18 91P
1
175/55-18 91P
1
iSL 55 AMG: May also be equipped with
TIREFIT (
page 339) in place of
collapsible tire.

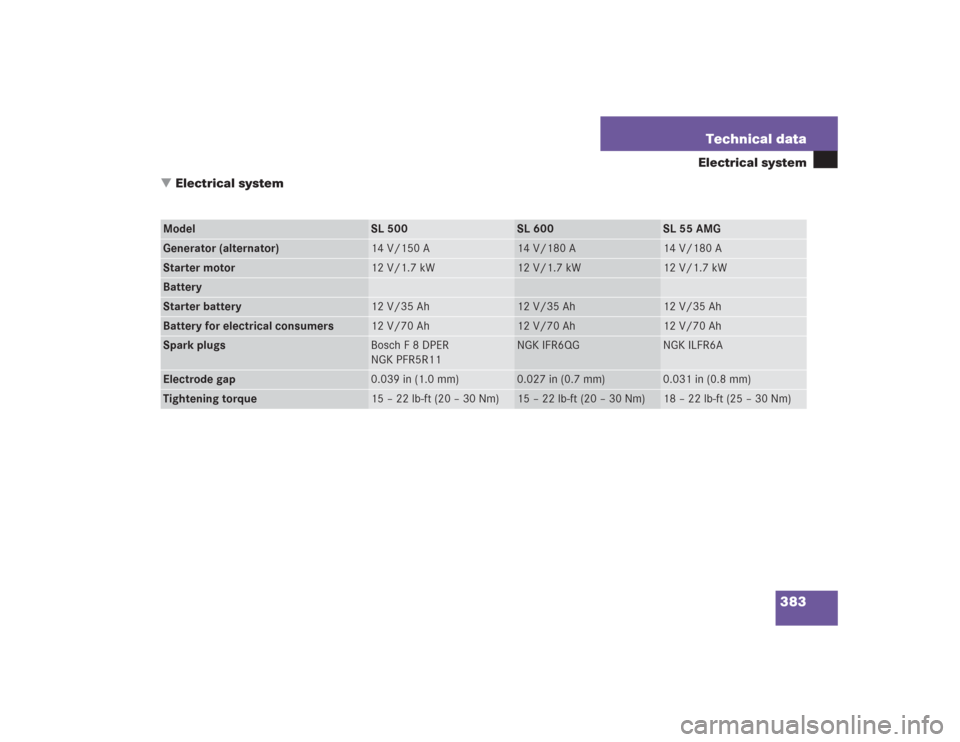

383 Technical data
Electrical system
Electrical system
Model
SL 500
SL 600
SL 55 AMG
Generator (alternator)
14 V/150 A
14 V/180 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
BatteryStarter battery
12 V/35 Ah
12 V/35 Ah
12 V/35 Ah
Battery for electrical consumers
12 V/70 Ah
12 V/70 Ah
12 V/70 Ah
Spark plugs
Bosch F 8 DPER
NGK PFR5R11
NGK IFR6QG
NGK ILFR6A
Electrode gap
0.039 in (1.0 mm)
0.027 in (0.7 mm)
0.031 in (0.8 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)
18 – 22 lb-ft (25 – 30 Nm)
