2004 MERCEDES-BENZ SL55AMG Owner's Manual

184 Controls in detailRetractable hardtop
Retractable hardtopOpening and closing the retractable hardtop
For safety reasons, the retractable hardtop
can only be opened and closed when the
vehicle is standing still.Warning!
G
Before operating the switch for the retract-
able hardtop, make sure that no persons
can be injured by the moving parts (retract-
able roof, roof frame, and trunk lid) due to in-
attention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
tractable hardtop switch. This immediately
interrupts the raising or lowering procedure.
You then can operate the hardtop switch to
raise or lower the hardtop away from the
danger zone.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.!Never sit or place heavy objects on the
rear shelf. Doing so could cause dam-
age to the retractable hardtop and the
rear shelf.
!When opening and closing the retract-
able roof, make sure

there is sufficient clearance for the
hardtop to move up and the trunk
lid to move back


the luggage cover is extended and
closed


the trunk lid is closed


no roof luggage carrier is installed


the outside temperature is above
+5°F (–15°C)
Otherwise the roof and trunk of the ve-
hicle could be damaged.

185 Controls in detail
Retractable hardtop
Luggage cover
The luggage cover is located in the trunk.
1Handle
2Holders
Closing luggage cover
Pull out the luggage cover using
handle1.

Hook the luggage cover into left and
right side holders2.Opening luggage cover

Unhook luggage cover from side hold-
ers.

While holding on to handle1, guide
luggage cover back into its storage
compartment. Opening the retractable hardtop with
the switch
Hardtop switchBefore pulling on the hardtop switch, you
must make sure

the parking brake is engaged
(page 45)


the luggage cover is closed, see Lug-
gage cover


the trunk lid is closed


the ignition is switched on
!To prevent damage to the hardtop or
luggage/cargo when lowering the roof:

Load trunk only to the height of the
luggage cover.


Do not permit luggage/cargo to
push up the closed luggage cover.


Do not load anything on top of or in
front of the luggage cover.


Do not place anything on the shelf
behind the roll bar.

186 Controls in detailRetractable hardtop
Pull up on the hardtop switch as indi-
cated by the arrow until the hardtop is
completely lowered into its trunk stor-
age compartment and the indicator
lamp in the hardtop switch goes out.
The multifunction display will briefly
show the message
K
Vario-Roof open
.Closing the retractable hardtop with
the switch
Before pressing the hardtop switch, you
must make sure


the parking brake is engaged
(page 45)


the luggage cover is closed
(page 185)


the trunk lid is closed


the ignition is switched on

Press the hardtop switch as indicated
by the arrow until the hardtop is com-
pletely closed and locked and the indi-
cator lamp in the hardtop switch goes
out.
The multifunction display will briefly
show the message
+
Vario-Roof Closed
.
iBe sure that the roof is dry before you
open it. Otherwise water may enter the
trunk interior.
Warning!
G
If the retractable hardtop is not fully opened
or closed, a warning will sound after 15 sec-
onds, pressure in the hardtop’s hydraulic
system will drop and the hardtop will lower.
Be sure to keep the hardtop switch pulled or
pressed until the hardtop is fully opened or
closed. The hydraulic pump will then shut
off.
To prevent possible accidents, drive the ve-
hicle only with the hardtop either completely
closed and locked, or fully lowered into its
storage compartment.

187 Controls in detail
Retractable hardtop
Locking the retractable hardtop after
raising/lowering
If the retractable hardtop is not properly
locked, lock it as described below.Unlocked status noticed when stopped

Switch on ignition.

To lock the hardtop in its fully closed
position, press hardtop switch forward.
The message
+
Vario-Roof Closed
appears in
the multifunction display.
or:

To lock the hardtop in its fully opened
position, pull up on the hardtop switch.
The message K
Vario-Roof Open

appears in the multifunction display.
Unlocked status noticed while driving

Stop the vehicle.

Leave the ignition switched on.

To lock the hardtop in its fully closed
position, press hardtop switch forward.
The message
+
Vario-Roof Closed
appears in
the multifunction display.
or:

To lock the hardtop in its fully opened
position, pull up on the hardtop switch.
The message K
Vario-Roof Open

appears in the multifunction display.
Warning!
G
The hardtop is not fully closed and locked or
not fully opened and locked if:

the indicator light in the hardtop switch
remains lit


the message
K
in operation!
is
shown in the multifunction display and
the indicator lamp in the hardtop switch
does not go out


the indicator lamp flashes and a warning
sounds for 10 seconds and the message K
Lock Vario-Roof
is shown in
the multifunction display when starting
to drive
Warning!
G
Stop the vehicle and lock the hardtop before
continuing to drive. You could otherwise en-
danger yourself and others.

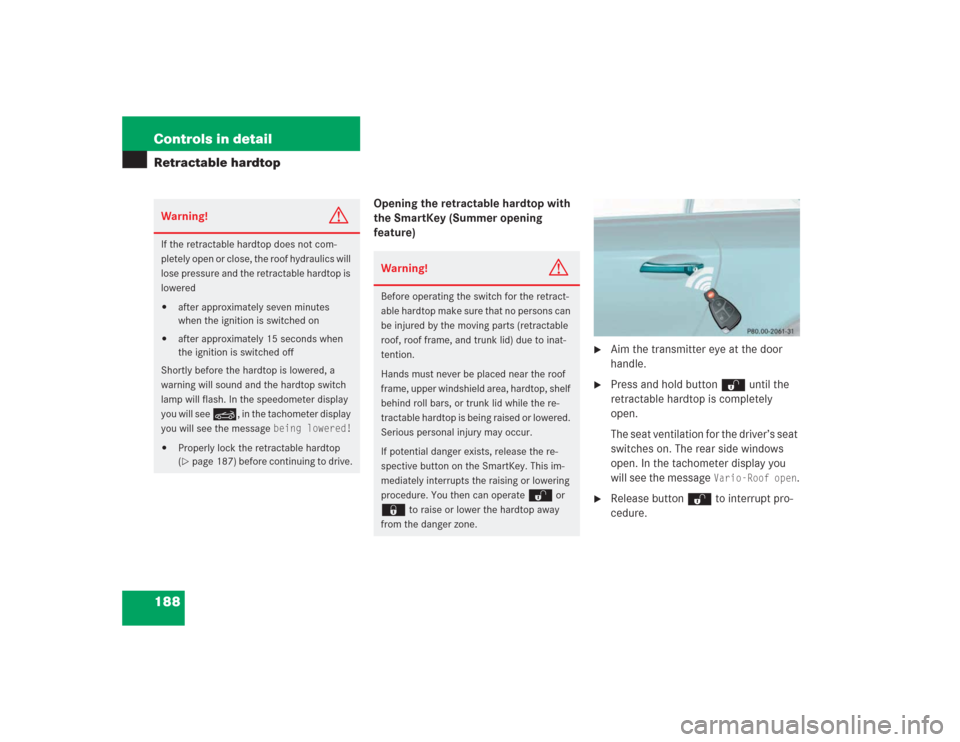

188 Controls in detailRetractable hardtop
Opening the retractable hardtop with
the SmartKey (Summer opening
feature)

Aim the transmitter eye at the door
handle.

Press and hold button Πuntil the
retractable hardtop is completely
open.
The seat ventilation for the driver’s seat
switches on. The rear side windows
open. In the tachometer display you
will see the message
Vario-Roof open
.

Release button Πto interrupt pro-
cedure.
Warning!
G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered

after approximately seven minutes
when the ignition is switched on


after approximately 15 seconds when
the ignition is switched off
Shortly before the hardtop is lowered, a
warning will sound and the hardtop switch
lamp will flash. In the speedometer display
you will see
K
, in the tachometer display
you will see the message
being lowered!


Properly lock the retractable hardtop
(page 187) before continuing to drive.
Warning!
G
Before operating the switch for the retract-
able hardtop make sure that no persons can
be injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate
Œ
or
‹
to raise or lower the hardtop away
from the danger zone.

189 Controls in detail
Retractable hardtop
Closing the retractable hardtop with
the SmartKey (Convenience feature)
Aim the transmitter eye at the door
handle.

Press and hold button ‹ until the
retractable hardtop is completely
closed.
The retractable hardtop and the side
windows close. In the tachometer dis-
play you will see the message Vario-Roof closed
.Problems when operating the
retractable hardtop
Indicator lamp in the retractable hard-
top switch is flashing
Several problems may cause the indicator
lamp in the hardtop switch to flash when
activated:


The luggage cover in the trunk is not
closed.
Close the luggage cover in the
trunk.


The trunk lid is open.
Close the trunk lid.


The battery voltage is too low.
Start engine and let run while acti-
vating switch.


The hardtop drive system has shut it-
self down. For safety reasons, no more
than five consecutive attempts may be
made to raise or lower the hardtop.
After about ten minutes you may
again attempt to open or close the
retractable hardtop again.
If the indicator lamp in the retractable
hardtop switch flashes when starting off or
while driving and you hear a warning sound
for a maximum of 10 seconds, the retract-
able hardtop is not locked.

Properly lock the retractable hardtop
(page 187) before continuing to
drive.
If the indicator lamp continues to flash af-
ter you have carried out the above actions,
there is a malfunction.

Have the retractable hardtop system
checked at an authorized
Mercedes-Benz Center.
Warning!
G
If the retractable hardtop does not com-
pletely open or close a warning sounds and
the retractable hardtop switch flashes. In
the speedometer display you will see
K
,
in the tachometer display you will see the
message
being lowered!
. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the retractable hardtop
(
page 187) before continuing to drive.

190 Controls in detailRetractable hardtopIndicator lamp in the retractable hard-
top switch lights when vehicle is
stopped
If the indicator lamp in the retractable
hardtop switch lights while the vehicle is
standing still and the switch was not acti-
vated, then the retractable hardtop is not
locked.
Properly lock the retractable hardtop
(page 187) before continuing to
drive.
The retractable hardtop will not lock
There is a malfunction in the retractable
hardtop system.

Notify an authorized Mercedes-Benz
Center.Wind screen
The wind screen deflects drafts away from
the driver and passenger when the hardtop
is lowered. It is stored in a separate stor-
age bag.
Installing

Leave the wind screen folded and place
it on the roll bar.1Guide tabs

Slide the wind screen into the roll bar
until the guide taps on each side latch
underneath the roll bar. Make sure the
fastening straps do not get caught.

Raise the roll bar slightly (
page 69).
Warning!
G
The wind screen can restrict the driver’s vi-
sion to the rear of the vehicle. To prevent a
possible accident when visibility is limited
(e.g. in darkness), the upper part of the wind
screen should be folded back.

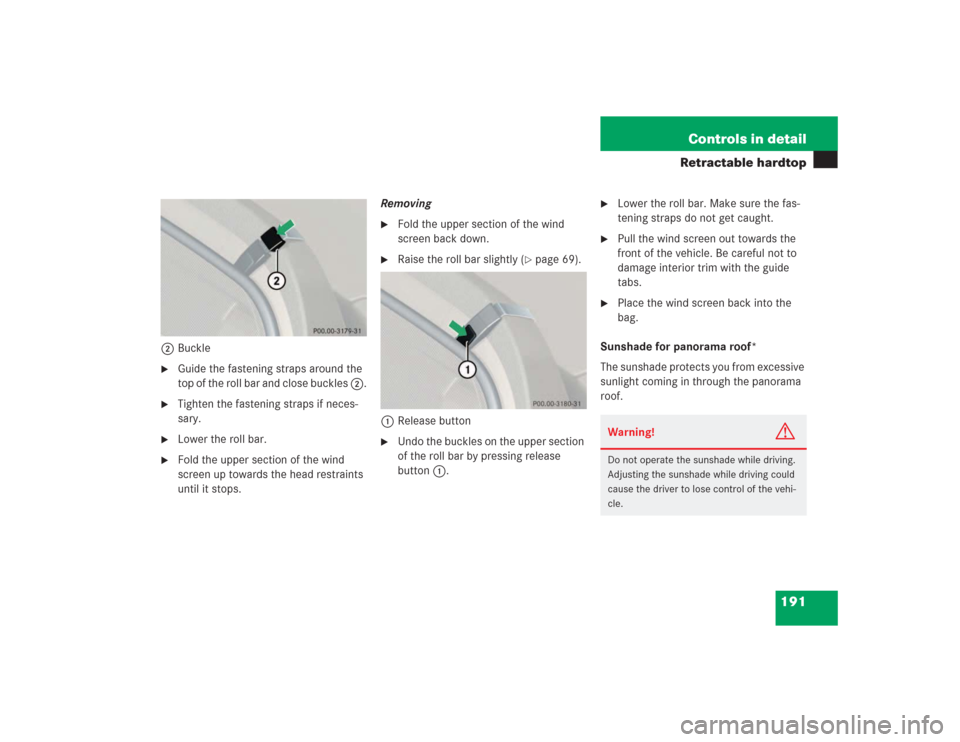

191 Controls in detail
Retractable hardtop
2Buckle
Guide the fastening straps around the
top of the roll bar and close buckles 2.

Tighten the fastening straps if neces-
sary.

Lower the roll bar.

Fold the upper section of the wind
screen up towards the head restraints
until it stops.Removing

Fold the upper section of the wind
screen back down.

Raise the roll bar slightly (
page 69).
1Release button

Undo the buckles on the upper section
of the roll bar by pressing release
button1.

Lower the roll bar. Make sure the fas-
tening straps do not get caught.

Pull the wind screen out towards the
front of the vehicle. Be careful not to
damage interior trim with the guide
tabs.

Place the wind screen back into the
bag.
Sunshade for panorama roof*
The sunshade protects you from excessive
sunlight coming in through the panorama
roof.Warning!
G
Do not operate the sunshade while driving.
Adjusting the sunshade while driving could
cause the driver to lose control of the vehi-
cle.
