2004 MERCEDES-BENZ SL55AMG Owner's Manual

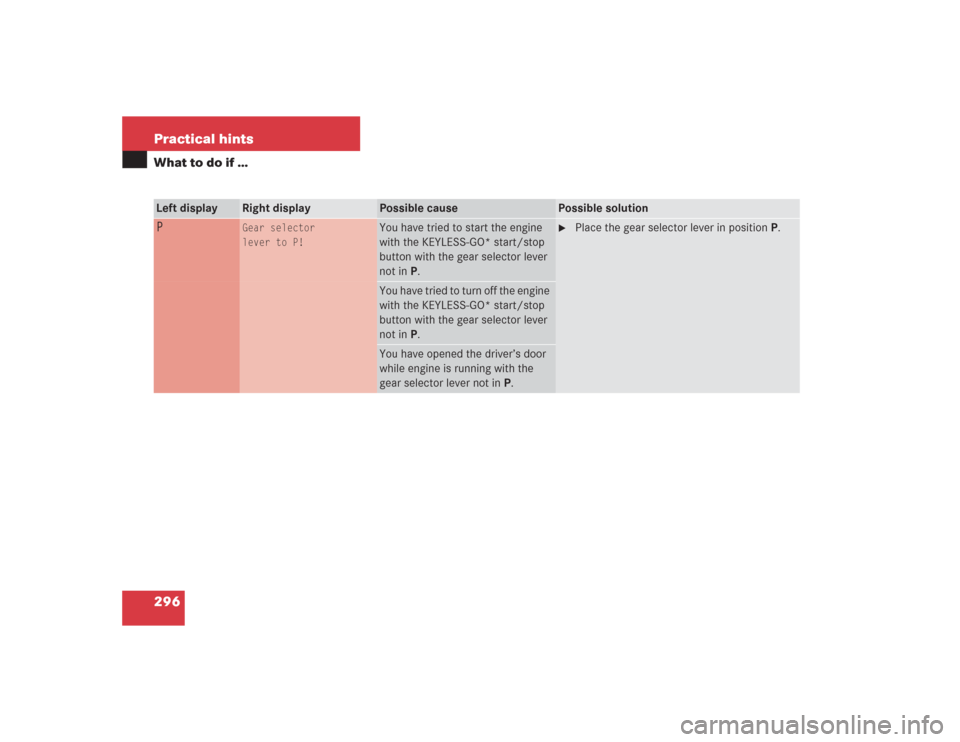

296 Practical hintsWhat to do if …Left display
Right display
Possible cause
Possible solution
P
Gear selector
lever to P!
You have tried to start the engine
with the KEYLESS-GO* start/stop
button with the gear selector lever
not in P.

Place the gear selector lever in position P.
You have tried to turn off the engine
with the KEYLESS-GO* start/stop
button with the gear selector lever
not in P.You have opened the driver’s door
while engine is running with the
gear selector lever not in P.

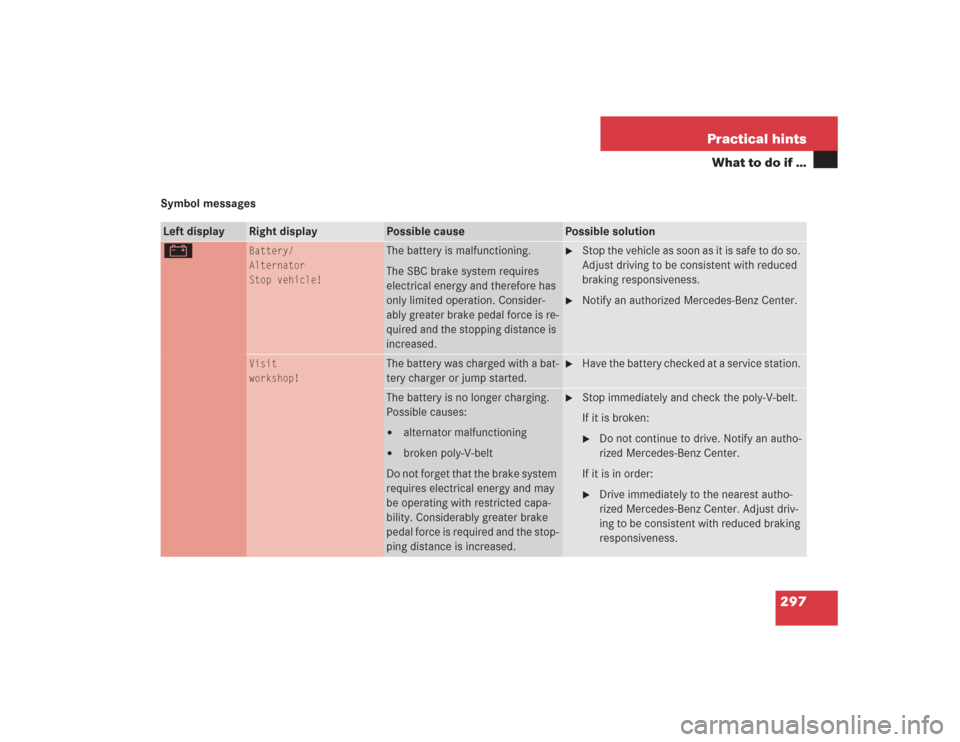

297 Practical hints
What to do if …
Symbol messagesLeft display
Right display
Possible cause
Possible solution
#
Battery/
Alternator
Stop vehicle!
The battery is malfunctioning.
The SBC brake system requires
electrical energy and therefore has
only limited operation. Consider-
ably greater brake pedal force is re-
quired and the stopping distance is
increased.

Stop the vehicle as soon as it is safe to do so.
Adjust driving to be consistent with reduced
braking responsiveness.

Notify an authorized Mercedes-Benz Center.
Visit
workshop!
The battery was charged with a bat-
tery charger or jump started.

Have the battery checked at a service station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may
be operating with restricted capa-
bility. Considerably greater brake
pedal force is required and the stop-
ping distance is increased.

Stop immediately and check the poly-V-belt.
If it is broken:
Do not continue to drive. Notify an autho-
rized Mercedes-Benz Center.
If it is in order:

Drive immediately to the nearest autho-
rized Mercedes-Benz Center. Adjust driv-
ing to be consistent with reduced braking
responsiveness.

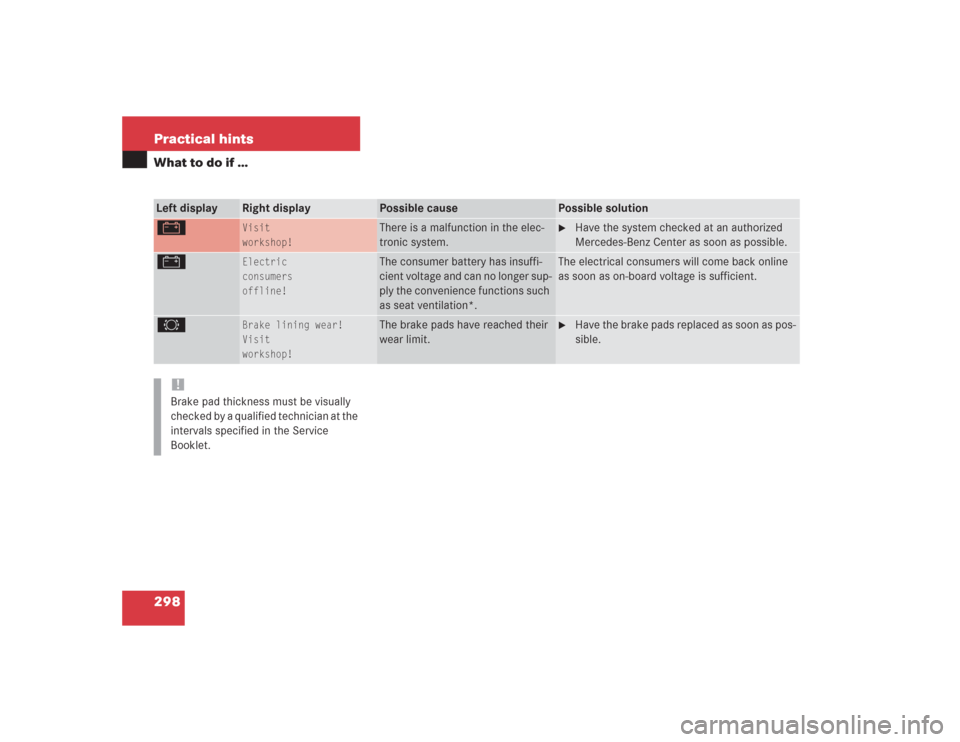

298 Practical hintsWhat to do if …Left display
Right display
Possible cause
Possible solution
#
Visit
workshop!
There is a malfunction in the elec-
tronic system.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
#
Electric
consumers
offline!
The consumer battery has insuffi-
cient voltage and can no longer sup-
ply the convenience functions such
as seat ventilation*.
The electrical consumers will come back online
as soon as on-board voltage is sufficient.
2
Brake lining wear!
Visit
workshop!
The brake pads have reached their
wear limit.

Have the brake pads replaced as soon as pos-
sible.
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Service
Booklet.

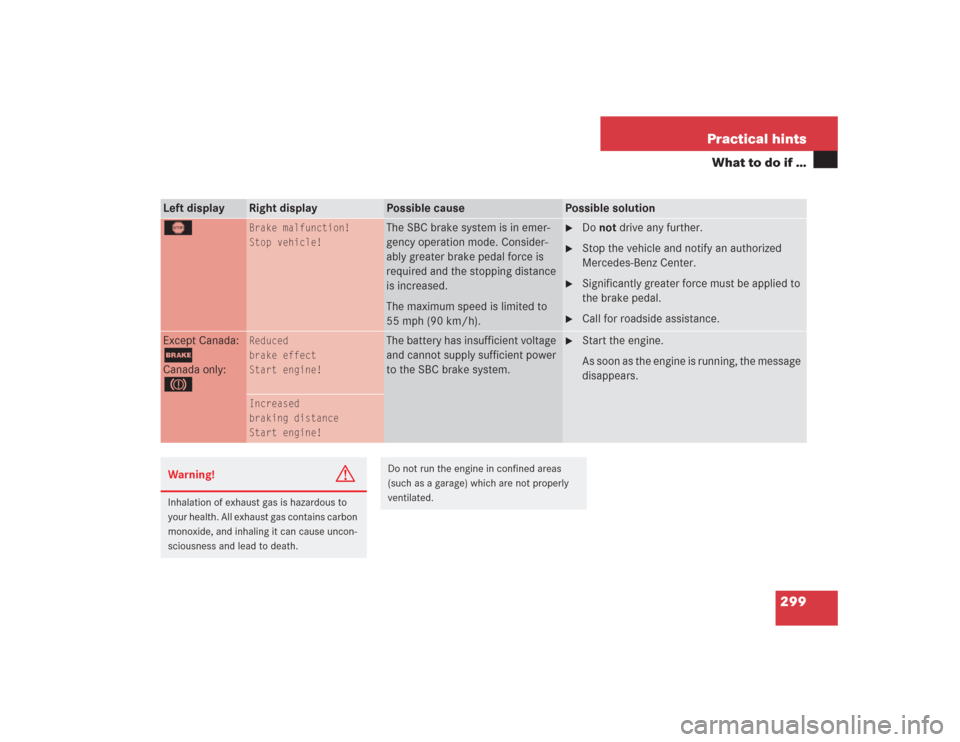

299 Practical hints
What to do if …
Left display
Right display
Possible cause
Possible solution
T
Brake malfunction!
Stop vehicle!
The SBC brake system is in emer-
gency operation mode. Consider-
ably greater brake pedal force is
required and the stopping distance
is increased.
The maximum speed is limited to
55 mph (90 km/h).

Do not drive any further.

Stop the vehicle and notify an authorized
Mercedes-Benz Center.

Significantly greater force must be applied to
the brake pedal.

Call for roadside assistance.
Except Canada:;Canada only:3
Reduced
brake effect
Start engine!
The battery has insufficient voltage
and cannot supply sufficient power
to the SBC brake system.

Start the engine.
As soon as the engine is running, the message
disappears.
Increased
braking distance
Start engine!
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated.

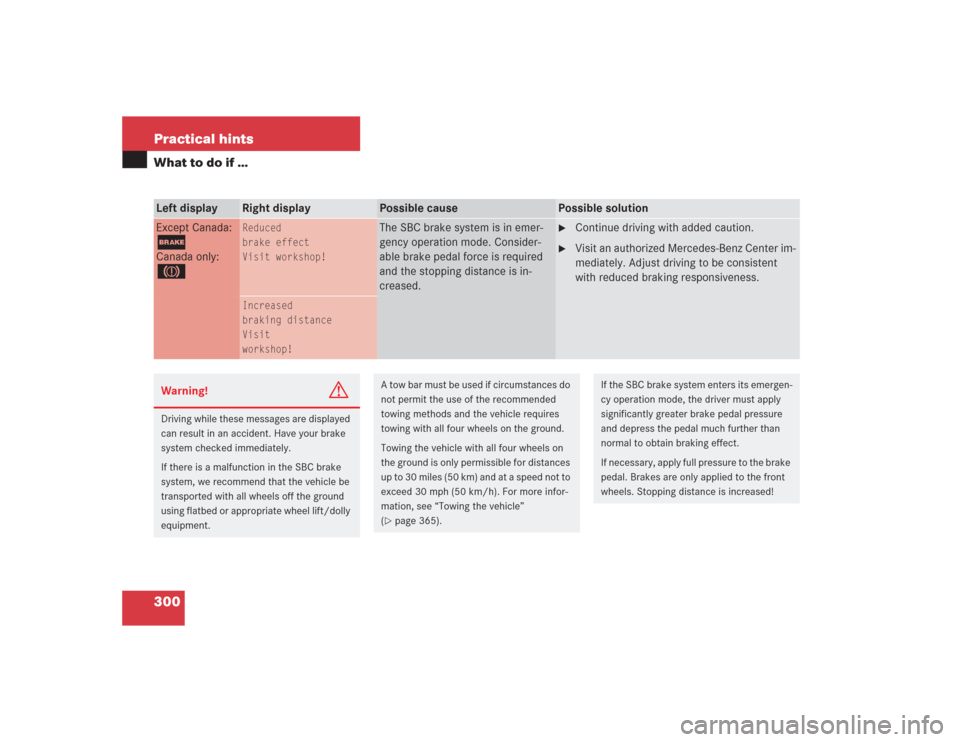

300 Practical hintsWhat to do if …Left display
Right display
Possible cause
Possible solution
Except Canada:;Canada only:3
Reduced
brake effect
Visit workshop!
The SBC brake system is in emer-
gency operation mode. Consider-
able brake pedal force is required
and the stopping distance is in-
creased.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center im-
mediately. Adjust driving to be consistent
with reduced braking responsiveness.
Increased
braking distance
Visit
workshop!
Warning!
G
Driving while these messages are displayed
can result in an accident. Have your brake
system checked immediately.
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(page 365).
If the SBC brake system enters its emergen-
cy operation mode, the driver must apply
significantly greater brake pedal pressure
and depress the pedal much further than
normal to obtain braking effect.
If necessary, apply full pressure to the brake
pedal. Brakes are only applied to the front
wheels. Stopping distance is increased!

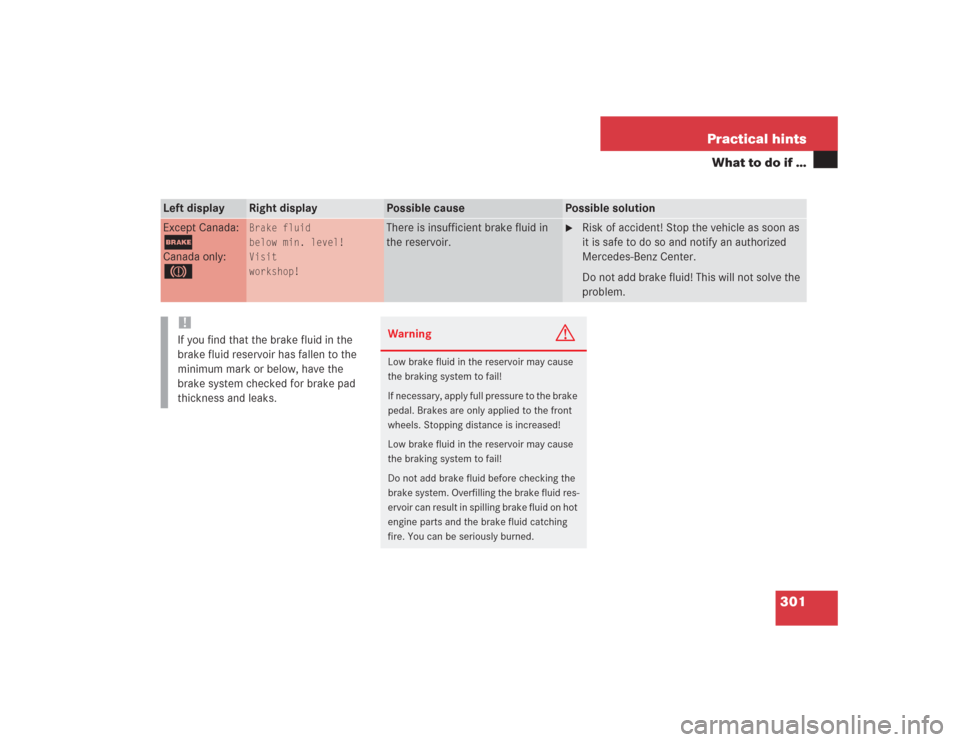

301 Practical hints
What to do if …
Left display
Right display
Possible cause
Possible solution
Except Canada:;Canada only:3
Brake fluid
below min. level!
Visit
workshop!
There is insufficient brake fluid in
the reservoir.

Risk of accident! Stop the vehicle as soon as
it is safe to do so and notify an authorized
Mercedes-Benz Center.
Do not add brake fluid! This will not solve the
problem.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
Warning
G
Low brake fluid in the reservoir may cause
the braking system to fail!
If necessary, apply full pressure to the brake
pedal. Brakes are only applied to the front
wheels. Stopping distance is increased!
Low brake fluid in the reservoir may cause
the braking system to fail!
Do not add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.

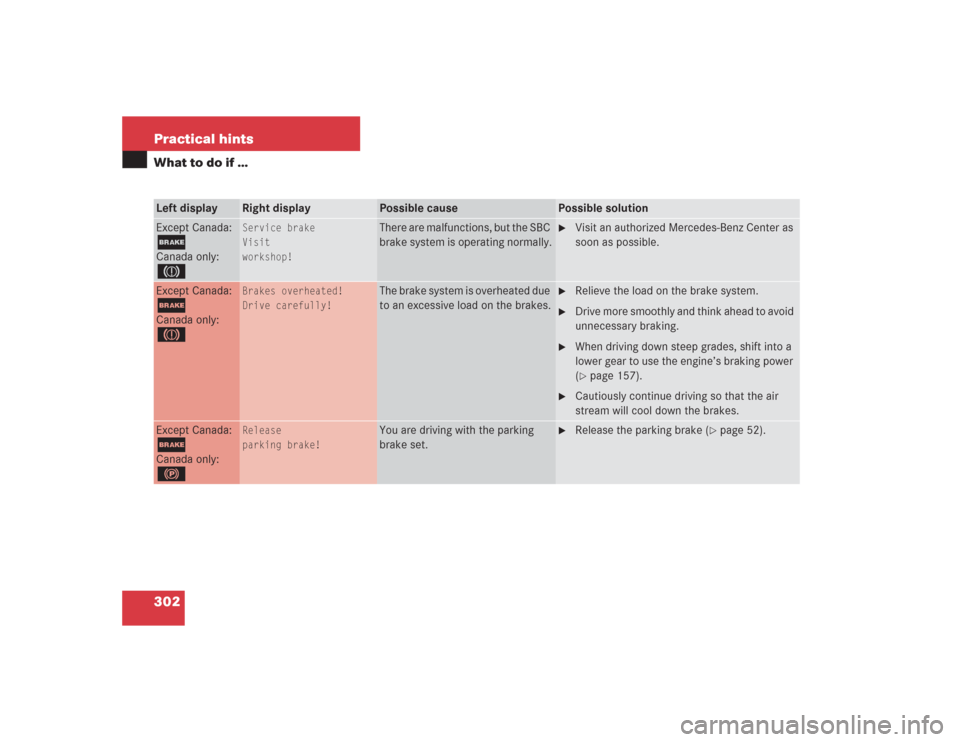

302 Practical hintsWhat to do if …Left display
Right display
Possible cause
Possible solution
Except Canada:;Canada only:3
Service brake
Visit
workshop!
There are malfunctions, but the SBC
brake system is operating normally.

Visit an authorized Mercedes-Benz Center as
soon as possible.
Except Canada:;Canada only:3
Brakes overheated!
Drive carefully!
The brake system is overheated due
to an excessive load on the brakes.

Relieve the load on the brake system.

Drive more smoothly and think ahead to avoid
unnecessary braking.

When driving down steep grades, shift into a
lower gear to use the engine’s braking power
(page 157).

Cautiously continue driving so that the air
stream will cool down the brakes.
Except Canada:;Canada only:!
Release
parking brake!
You are driving with the parking
brake set.

Release the parking brake (
page 52).

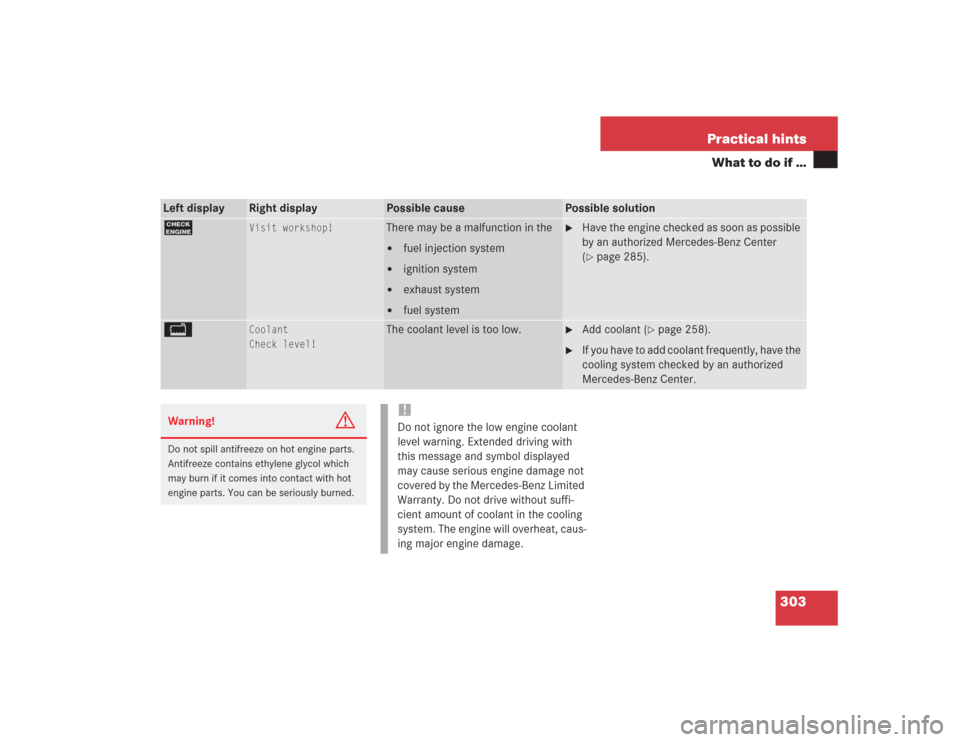

303 Practical hints
What to do if …
Left display
Right display
Possible cause
Possible solution
?
Visit workshop!
There may be a malfunction in the

fuel injection system


ignition system


exhaust system


fuel system

Have the engine checked as soon as possible
by an authorized Mercedes-Benz Center
(page 285).
B
Coolant
Check level!
The coolant level is too low.

Add coolant (
page 258).

If you have to add coolant frequently, have the
cooling system checked by an authorized
Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the low engine coolant
level warning. Extended driving with
this message and symbol displayed
may cause serious engine damage not
covered by the Mercedes-Benz Limited
Warranty. Do not drive without suffi-
cient amount of coolant in the cooling
system. The engine will overheat, caus-
ing major engine damage.
