2004 MERCEDES-BENZ E55AMG Owner's Manual

25 At a glance
Center console
Center console
Upper part
Item
Page
1
Automatic climate control*
184
2
COMAND system, see sep-
arate operating instruc-
tions
3
Seat heater*, front passen-
ger side
113
4
Electronic Stability Pro-
gram (ESP) control switch
78
5
Central locking switch
107
6
Opening/closing button
for storage tray or CD
changer*, see separate op-
erating instructions
243
7
Rear seat head restraints
switch, folding down
110
Item
Page
8
Rear window sunshade*
78
9
Seat heater*, driver’s side
113
a
Hazard warning flasher
switch
123
b
PASSENGER AIRBAG OFF
indicator lamp
67

26 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
246
2
KEYLESS-GO* start/stop
button
33
3
Selector lever for automat-
ic transmission
43,
161
4
Parking assist (Parktronic
system)* deactivation
switch
229
5
Adaptive damping system
(ADS)* switch
226
Item
Page
6
Vehicle level control
switch*
227
7
Thumbwheel for setting
distance for Distronic*
221
8
Distance warning func-
tion* on/off switch
222
9
Program mode selector for
automatic transmission
164

27 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
125
2
Automatic interior lighting
124
3
Front interior lighting
on/off
124
4
Temperature sensor
5
Right reading lamp on/off
124
6
Sliding/pop-up roof* or
panorama sliding/pop-up
roof*
201,
205
Item
Page
7
Tele Aid (emergency call
system) button
250
8
Rear view mirror
168
9
Reading lamps
124
a
Garage door opener
258
b
Tow-away alarm button
85
c
Ambient lighting
147
d
Interior lighting
e
Left reading lamp on/off
125

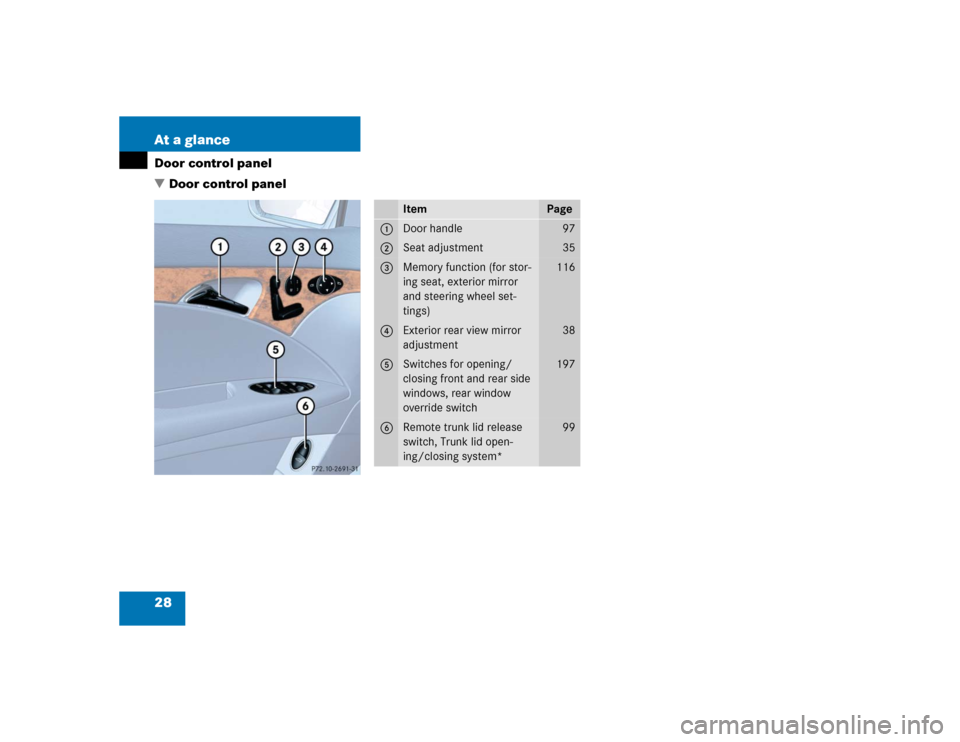

28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
97
2
Seat adjustment
35
3
Memory function (for stor-
ing seat, exterior mirror
and steering wheel set-
tings)
116
4
Exterior rear view mirror
adjustment
38
5
Switches for opening/
closing front and rear side
windows, rear window
override switch
197
6
Remote trunk lid release
switch, Trunk lid open-
ing/closing system*
99

29 Getting started
Unlocking
Adjusting
Driving
Parking and locking

30 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.
Unlocking
Unlocking with the SmartKeySmartKey 1‹Lock button
2ŠUnlock button for trunk lid
3ŒUnlock button
4ÂPanic button (
page 73)

Press unlock button Πon the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The SBC brake system is activated.

Get in the vehicle and insert the
SmartKey in the starter switch.
More information can be found in the
“Controls in detail” section (
page 88).

31 Getting started
Unlocking
Starter switch positionsStarter switch0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Do
not leave children unattended in the vehicle,
or with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!If the SmartKey cannot be turned, the
battery may not be sufficiently
charged.

Check the battery and charge it
if necessary (
page 287).

Get a jump start (
page 378).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.

32 Getting startedUnlockingUnlocking with KEYLESS-GO*
If you have the KEYLESS-GO function, your
vehicle checks whether the SmartKey with
KEYLESS-GO is valid when you pull the
door handle. If your SmartKey is valid, the
doors will unlock, and you can open them.
The function of the SmartKey overrules the
KEYLESS-GO function.

Pull the door handle.
The turn signal lamps flash once. The
locking knobs on the doors move up.
The SBC brake system is activated.
If the SmartKey is inside the vehicle, press-
ing the KEYLESS-GO start/stop button on
the gear selector lever corresponds to
turning the SmartKey to the various starter
switch positions.iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the door.
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
