2004 MERCEDES-BENZ E55AMG Owner's Manual

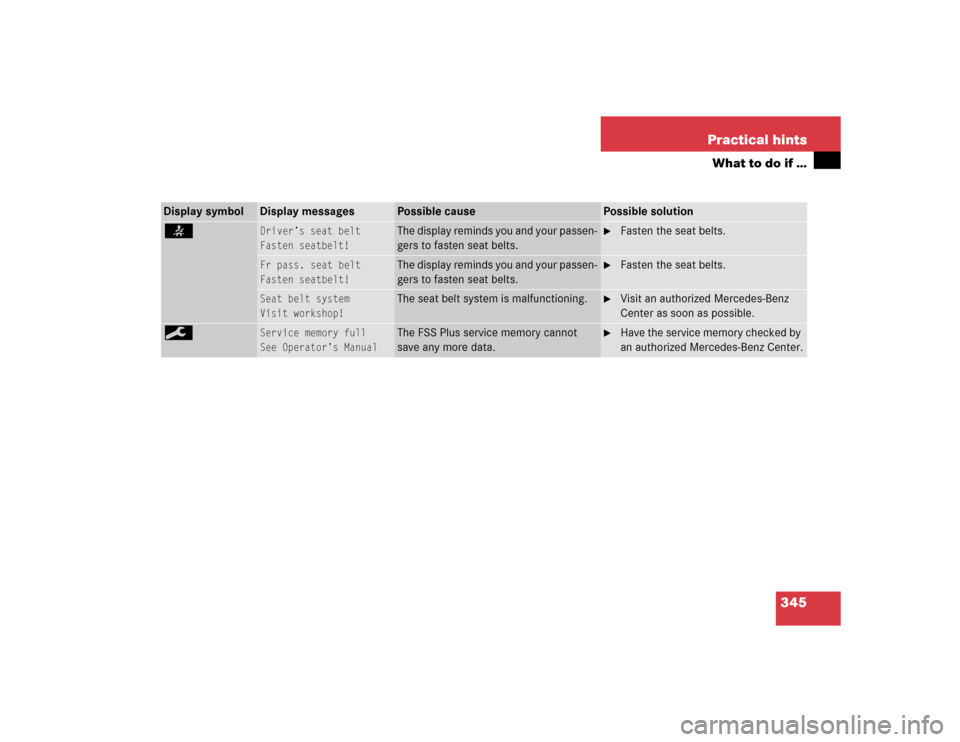

345 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
<
Driver’s seat belt
Fasten seatbelt!
The display reminds you and your passen-
gers to fasten seat belts.

Fasten the seat belts.
Fr pass. seat belt
Fasten seatbelt!
The display reminds you and your passen-
gers to fasten seat belts.

Fasten the seat belts.
Seat belt system
Visit workshop!
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
9
Service memory full
See Operator’s Manual
The FSS Plus service memory cannot
save any more data.

Have the service memory checked by
an authorized Mercedes-Benz Center.

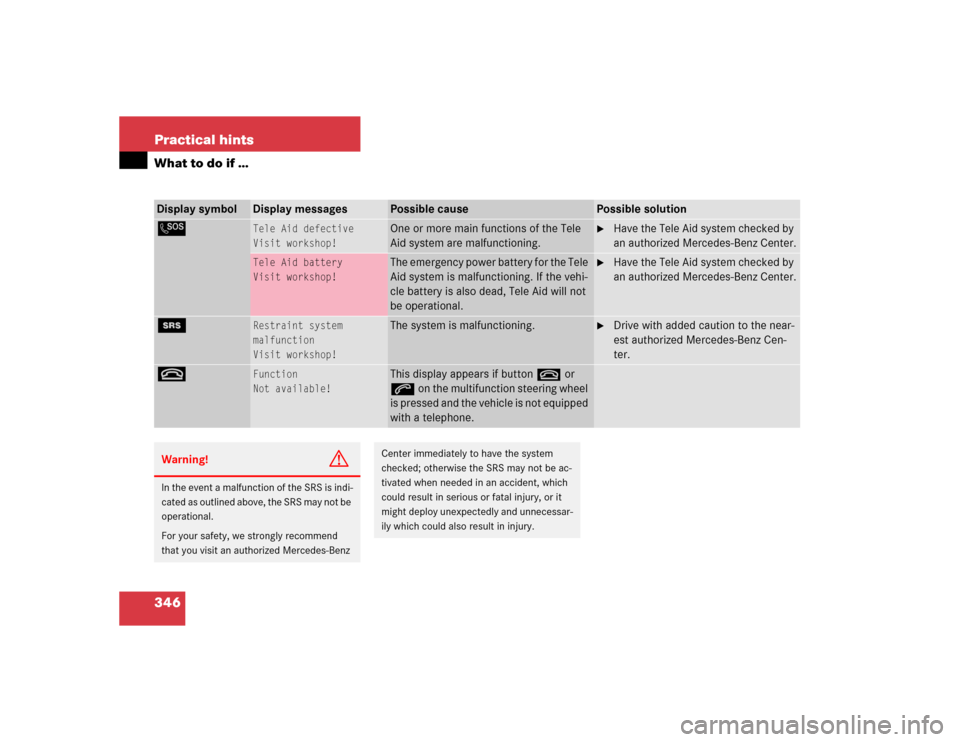

346 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
L
Tele Aid defective
Visit workshop!
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
Tele Aid battery
Visit workshop!
The emergency power battery for the Tele
Aid system is malfunctioning. If the vehi-
cle battery is also dead, Tele Aid will not
be operational.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
malfunction
Visit workshop!
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
t
Function
Not available!
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be ac-
tivated when needed in an accident, which
could result in serious or fatal injury, or it
might deploy unexpectedly and unnecessar-
ily which could also result in injury.

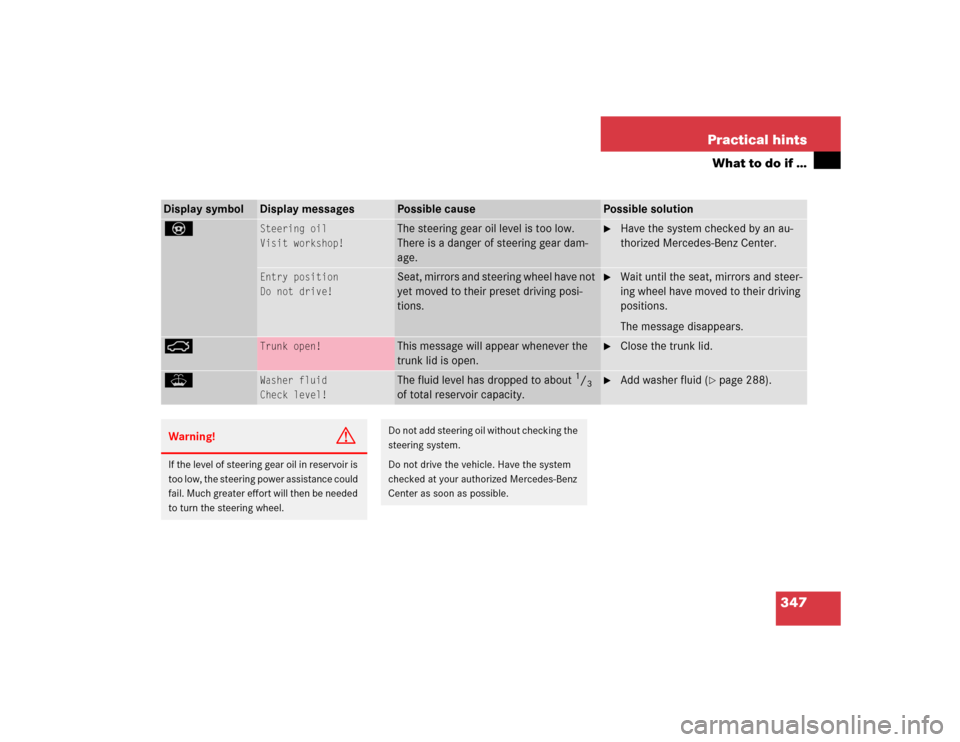

347 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
_
Steering oil
Visit workshop!
The steering gear oil level is too low.
There is a danger of steering gear dam-
age.

Have the system checked by an au-
thorized Mercedes-Benz Center.
Entry position
Do not drive!
Seat, mirrors and steering wheel have not
yet moved to their preset driving posi-
tions.

Wait until the seat, mirrors and steer-
ing wheel have moved to their driving
positions.
The message disappears.
Ê
Trunk open!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
Washer fluid
Check level!
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 288).
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at your authorized Mercedes-Benz
Center as soon as possible.

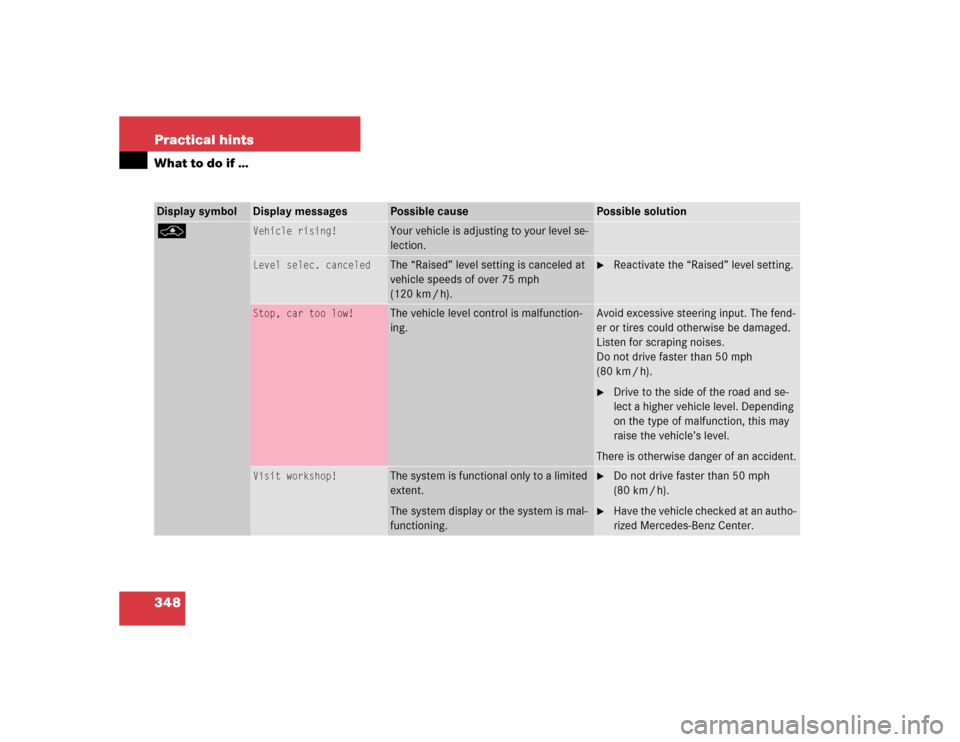

348 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
@
Vehicle rising!
Your vehicle is adjusting to your level se-
lection.
Level selec. canceled
The “Raised” level setting is canceled at
vehicle speeds of over 75 mph
(120 km / h).

Reactivate the “Raised” level setting.
Stop, car too low!
The vehicle level control is malfunction-
ing.
Avoid excessive steering input. The fend-
er or tires could otherwise be damaged.
Listen for scraping noises.
Do not drive faster than 50 mph
(80 km / h).
Drive to the side of the road and se-
lect a higher vehicle level. Depending
on the type of malfunction, this may
raise the vehicle’s level.
There is otherwise danger of an accident.
Visit workshop!
The system is functional only to a limited
extent.
The system display or the system is mal-
functioning.

Do not drive faster than 50 mph
(80 km / h).

Have the vehicle checked at an autho-
rized Mercedes-Benz Center.

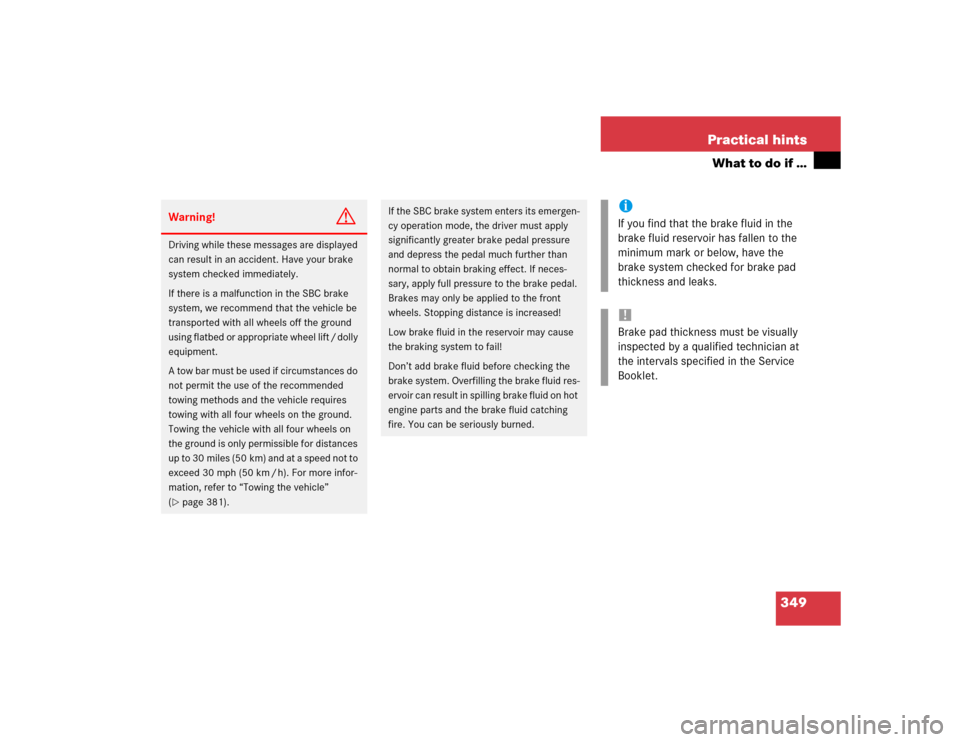

349 Practical hints
What to do if …
Warning!
G
Driving while these messages are displayed
can result in an accident. Have your brake
system checked immediately.
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift / dolly
equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
u p t o 3 0 m i l e s ( 5 0 k m ) a n d a t a s p e e d n o t t o
exceed 30 mph (50 km / h). For more infor-
mation, refer to “Towing the vehicle”
(page 381).
If the SBC brake system enters its emergen-
cy operation mode, the driver must apply
significantly greater brake pedal pressure
and depress the pedal much further than
normal to obtain braking effect. If neces-
sary, apply full pressure to the brake pedal.
Brakes may only be applied to the front
wheels. Stopping distance is increased!
Low brake fluid in the reservoir may cause
the braking system to fail!
Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
iIf you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.!Brake pad thickness must be visually
inspected by a qualified technician at
the intervals specified in the Service
Booklet.

350 Practical hintsWhere will I find ...?
Where will I find ...?First aid kit
The first aid kit is in the storage compart-
ment at the front edge of the front passen-
ger seat.
Pull tab1 upward.

Fold the covering forward.

Remove the first aid kit.
Vehicles with TIREFIT kit (E 55 AMG)
The TIREFIT kit is located under the trunk
floor.
Lift the trunk floor and engage the han-
dle in the upper edge of trunk.

Remove the luggage box (
page 351).
1Vehicle tool kit and jack
2Electric air pump
3TIREFIT kit
Spare wheel
The spare wheel is located under the trunk
floor.
Lift the trunk floor and engage the han-
dle in the upper edge of trunk.

Remove the luggage box (
page 351).
1Vehicle tool kit
Wheel bolt wrench
Jack
2Spare wheel
iCheck expiration dates and contents
for completeness at least once a year
and replace missing / expired items.

351 Practical hints
Where will I find ...?
Removing the spare wheel
Turn luggage bowl counterclockwise.

Remove spare wheel2.
Storing the spare wheel

Place spare wheel2 in wheel well.

Turn luggage bowl clockwise to its stop
to secure the spare wheel.Minispare wheel
In the case of a flat tire, you may tempo-
rarily use the Minispare wheel when ob-
serving the following restrictions:


Do not exceed a vehicle speed of
50 mph (80 km / h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.More information can be found in the
“Technical data” section (
page 396).
Luggage box
Remove luggage box
1Fastening clip
2Luggage box
Turn fastening clips1 to the left up-
wards from fastening bolts.

Lift luggage box in the area of the fas-
tening bolts and remove it from trunk.
!Always lower trunk floor before closing
trunk lid.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and replaced with a regular
road wheel as quickly as possible.

352 Practical hintsWhere will I find ...?Install luggage box
Insert luggage box into trunk so that
fastening clips are in line with fastening
bolts.

Push front edge of luggage box in direc-
tion of arrow under cover of trunk sill.

Press fastening clips onto fastening
bolts until they lock into place.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor
(page 350).
The vehicle tool kit includes:


One towing eye bolt


One wheel wrench


One alignment bolt


One fuse extractor


Spare fuses
