385 Practical hintsFuses
Fuses
Fuse box in passenger compartment
1CoverOpening

Pull cover1 open with a screwdriver
or similar tool.

Remove cover1 rearward.
Closing

Attach cover1 in the front.

Fold cover1 in until it engages.
2Cover
3Catches

Turn catches3 anti-clockwise and re-
move cover2.Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
Spare fuses
Spare fuses are found in the vehicle tool kit
in the trunk.
Fuse extractor
The fuse extractor is found in the vehicle
tool kit in the trunk.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
iOnly install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

386

387 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information

388 Technical dataSpare parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

389 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information Booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Car Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control System
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories Warranties, copies of
which are available at any authorized Mer-
cedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information Booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

390 Technical dataIdentification labels

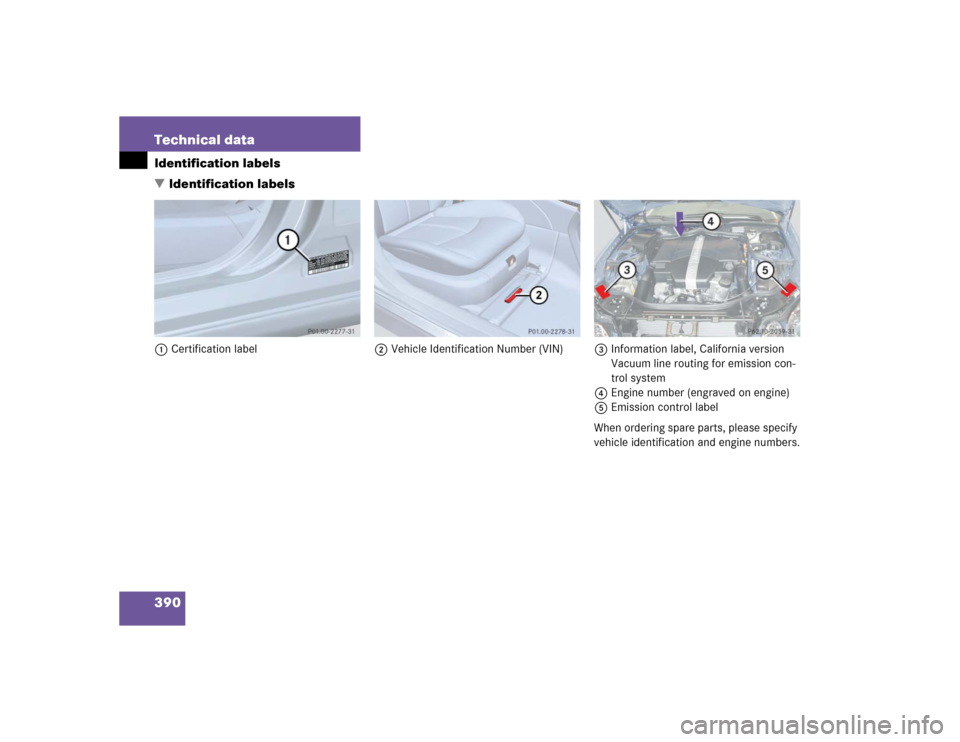

Identification labels1Certification label2Vehicle Identification Number (VIN)3Information label, California version
Vacuum line routing for emission con-
trol system
4Engine number (engraved on engine)
5Emission control label
When ordering spare parts, please specify
vehicle identification and engine numbers.

391 Technical data
Layout of poly-V-belt drive

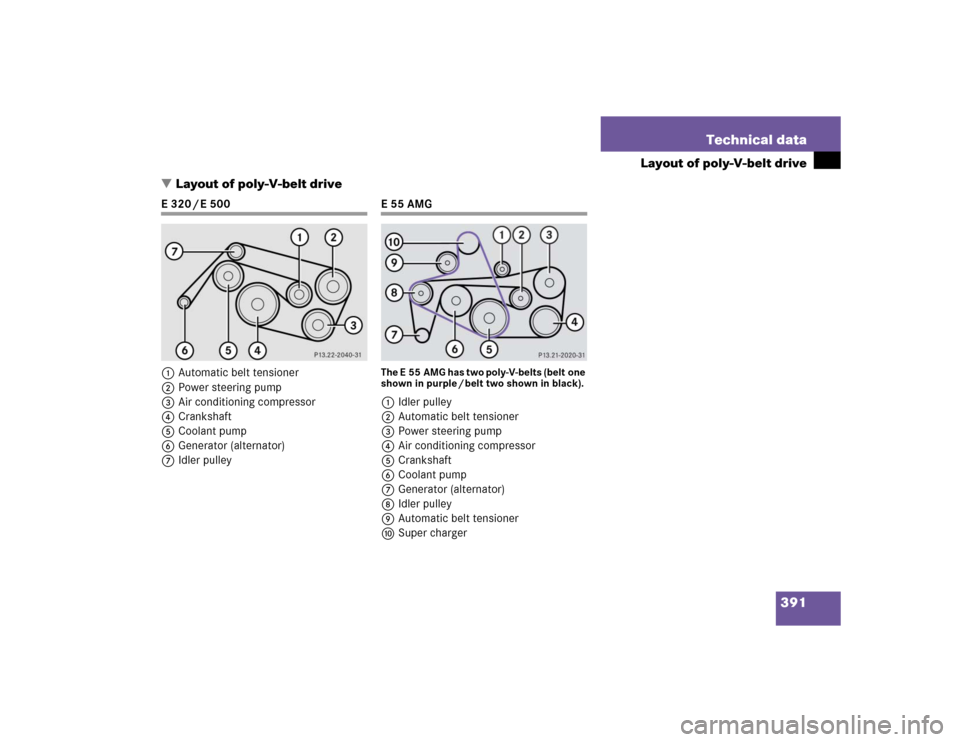

Layout of poly-V-belt drive
E320/E500
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
E55AMGThe E 55 AMG has two poly-V-belts (belt one
shown in purple / belt two shown in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSuper charger

392 Technical dataEngine
EngineModel
E 320 (211.065
1)
E 320 4MATIC (211.082
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 500 (211.070
1)
E 500 4MATIC (211.083
1)
Engine
112
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
195.2 cu.in. (3199 cm
3)
303.0 cu.in. (4966 cm
3)
Compression ratio
10:1
10:1
Output acc. to SAE J 1349
221 hp / 5600 rpm
(165 kW / 5600 rpm)
302 hp / 5600 rpm
(225 kW / 5600 rpm)
Maximum torque acc. to SAE J 1349
232 lb-ft / 3000 rpm-4800 rpm
(315 Nm / 3000 rpm-4800 rpm)
339lb-ft/2700rpm-4250rpm
(460 Nm / 2700 rpm-4250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2390 mm
2390 mm
