2004 MERCEDES-BENZ E55AMG Owner's Manual

177 Controls in detail
Climate control
The climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the au-
tomatic or manual mode. The system cools
or heats the interior depending on the se-
lected interior temperature and the cur-
rent outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the AC
OFF
mode is selected
(
page 182).
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burns or frostbite to unprotected skin
in the immediate area of the air vents. Al-
ways keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary change the air flow
using the air distribution controls
(page 176) to direct the air away from the
footwell air vents.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval. A
clogged filter will reduce the air volume
to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.

178 Controls in detailClimate controlSetting the temperature
Use temperature controls1 and6 to
separately adjust the air temperature on
each side of the passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C).
Increasing
Turn the temperature control1 or6
slightly to the right.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.Decreasing

Turn the temperature control1 or6
slightly to the left.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Adjusting air distribution
Adjusting manually
Use air distribution control4
(page 176) to adjust the air distribution.

Press the Ubutton.
The indicator lamp on the Ubutton
goes out.

Press air distribution rocker switch4
(page 176) until the display shows
the desired setting.
The current air distribution appears in
the air distribution display9.
Adjusting automatically

Press the Ubutton.
The indicator lamp on the button
comes on. The air distribution and vol-
ume is adjusted automatically.
Symbol
Function
a
Directs air through the center,
side and rear passenger com-
partment air vents
Z
Directs air to the windows
X
Directs air into the entire
vehicle interior
Y
Directs air to the footwells

179 Controls in detail
Climate control
Adjusting center air vents:
The thumbwheels for left2 and right6
center air vents are automatically posi-
tioned for optimum interior airflow. In this
position, center air vent4 and adjustable
left and right center vents3 and5 are
fully opened.
Heating:
Only in manual mode is it possible to lower
the temperature in the headroom by regu-
lating the cold-airflow using
thumbwheel7 (
page 174).Windshield fogged on the outside

Switch the windshield wipers on
(page 48).

Press the Ubutton.
The indicator lamp on the button
comes on.
Adjusting air volume
Adjusting manually
Five blower speeds are available.
Press
to decrease orQ to in-
crease air volume to the desired level.
The
Auto
display disappears and the
automatic mode is switched off. The
selected blower speed is shown in the
display.Adjusting automatically

Press the U button.
The air volume is adjusted automatical-
ly.
Defrosting
Activating
Press buttonP.
The indicator lamp on the button
comes on.
or

Switch off air recirculation, if selected.
Press buttonO.
The indicator lamp on the button goes
out.iThese settings should only be selected
for a short time.


180 Controls in detailClimate control
Close center air vents.

Open left and right side air vents and
adjust side air vents upwards.
Deactivating

Press buttonP.
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press buttonO.
The indicator lamp on the button
comes on.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
iThe air recirculation mode is activated
automatically at high outside tempera-
tures.
If you have turned off the air condition-
ing (
page 182) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.


181 Controls in detail
Climate control
Deactivating
Press buttonO.
The indicator lamp on the button goes
out.
The air recirculation mode is deactivated
automatically:


after five minutes if the outside temper-
ature is below approximately 41°F
(5°C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5°C)At outside temperatures above 79°F
(26°C), the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
Deactivating the climate control sys-
tem
Deactivating
Press button M (
page 176).
Reactivating

Press button M again(
page 176).
or

Press any button on the climate control
panel (
page 176).
Warning!
G
Never operate the windows and
sliding / pop-up roof* or panorama
sliding / pop-up roof* if there is the possibil-
ity of anyone being harmed by the opening
or closing procedure.
In case the procedure causes potential dan-
ger:
Vehicles with sliding/pop-up roof: The pro-
cedure for the windows can be immediately
halted by pressing or pulling the respective
window switch. The procedure for the slid-
ing/pop-up roof can be immediately halted
by moving the switch for the sliding/pop-up
roof in any direction.
The closing of the side windows and the slid-
ing/pop-up roof can be reversed by again
pressing and holding theO button.
Vehicles with panorama sliding/pop-up
roof: The procedure for the windows and
panorama sliding/pop-up roof can be imme-
diately halted by releasing theO button.
iIf you keep buttonO pressed, the
side windows and sliding / pop-up
roof* or panorama sliding / pop-up
roof* will return to their previous posi-
tion.

182 Controls in detailClimate controlAir conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.
Press button± (
page 176).
The indicator lamp on the button±
comes on.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press± again (
page 176).
The indicator lamp on the button±
goes out.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Residual heat and ventilation*
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position0or1, or remove it from
the starter switch.

Press buttonT (
page 176).
The indicator lamp on buttonT
comes on.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the air conditioning cannot be turned
on again, this indicates that the air con-
ditioning is losing refrigerant. The com-
pressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

183 Controls in detail
Climate control
Deactivating
Press buttonT (
page 176).
The indicator lamp on buttonT
goes out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting 1 regardless of the air distribu-
tion control setting.

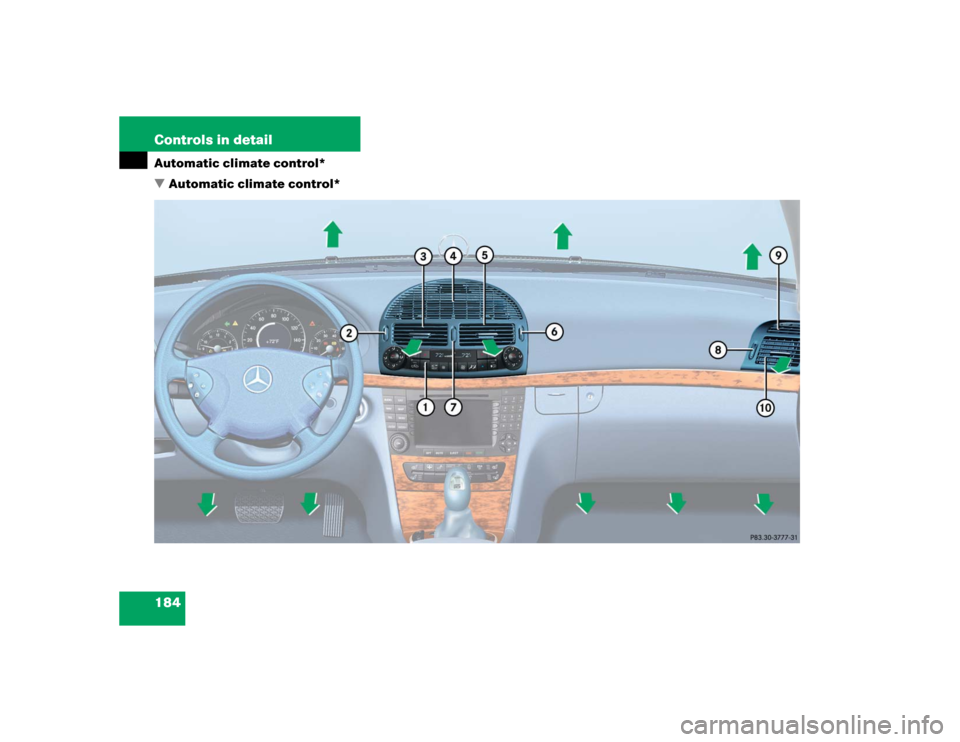

184 Controls in detailAutomatic climate control*
Automatic climate control*
