2004 Hyundai H-1 (Grand Starex) Owner's Manual

4
CORROSION PREVENTION AND APPEARANCE CARE
37
4
IN CASE OF EMERGENCY
37FUSE PANEL DESCRIPTION
G200B01P-GAT MINIBUS/VAN Engine Compartment (Diesel Engine)
G200A01P
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. AMPE-
RAGES
120A80A 30A30A30A40A30A 40A30A 30A 40A 50A
15A/20A
10A30A10A 10A 10A15A 10A 10A15A CIRCUIT PROTECTED
Generator
Glow relay, Glow control module (D4BB) ABS control module
Blower relay
Rear blower relay Fuse 16, 25, 26
Condenser fan main relay, Condenser fan relay (LOW)
Ignition switch, Generator, Start relay, COMP. Fuse, I/C FAN Fuse, ECU Fuse. ABS control module
Power window relay, Siren relay
Tail lamp relay, Head lamp relay
Front fog lamp relay, Horn relay, Power connector
Inter cooler fan relay, Air temperature switch/Windshield glass defogger
A/C compressor relay
Main power relay (D4CB), Engine control relay, Fuel pump relay(Gasoline)
Illuminations, Left rear combination lamp, Left license lamp
Illuminations, Right rear combination lamp, Right license lamp
Left/Right horn
Front fog lamp switch, Left /Right front fog lampLeft head lamp
Right head lamp, Instrument cluster
Hazard relay, Fuse 23, 24
ALT
GLOW ABS
FR HTR
RR HTR DEF.
C/FAN
IGN
ABS P/W
TAIL
BATT
I/C FAN/FR HTD COMP.
ECU
T/LP(LH) T/LP(LH) HORN
FOG
H/LP(LH)
H/LP(RH)
FUSIBLE
LINK
FUSE
DESCRIPTION
POWER CONNECTOR

44IN CASE OF EMERGENCY
38

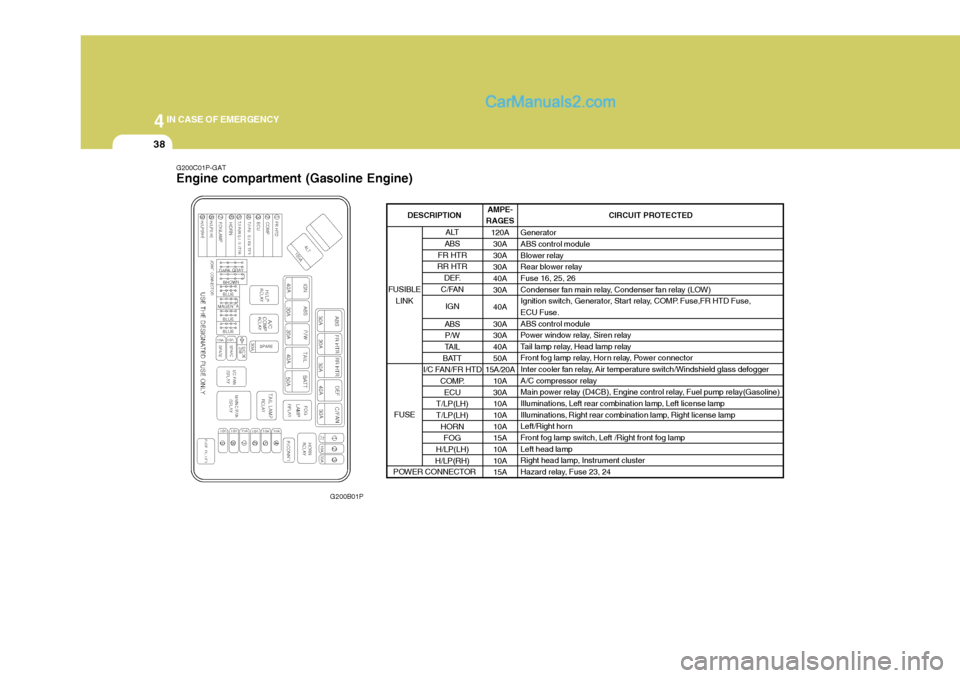

G200C01P-GAT Engine compartment (Gasoline Engine)
G200B01P AMPE-
RAGES
120A30A 30A30A40A30A 40A30A 30A 40A 50A
15A/20A
10A30A10A 10A 10A15A 10A 10A15A CIRCUIT PROTECTED
GeneratorABS control module
Blower relay
Rear blower relayFuse 16, 25, 26
Condenser fan main relay, Condenser fan relay (LOW)
Ignition switch, Generator, Start relay, COMP. Fuse,FR HTD Fuse,ECU Fuse. ABS control module
Power window relay, Siren relay
Tail lamp relay, Head lamp relay
Front fog lamp relay, Hor n relay, Power connector
Inter cooler fan relay, Air temperature switch/Windshield glass defogger
A/C compressor relay
Main power relay (D4CB), Engine control relay, Fuel pump relay(Gasoline)
Illuminations, Left rear combination lamp, Left license lamp
Illuminations, Right rear combination lamp, Right license lamp
Left/Right horn
Front fog lamp switch, Left /Right front fog lamp Left head lamp
Right head lamp, Instrument cluster
Hazard relay, Fuse 23, 24
ALT
ABS
FR HTR
RR HTR
DEF.
C/FAN
IGN
ABS P/W
TAIL
BATT
I/C FAN/FR HTD
COMP.ECU
T/LP(LH) T/LP(LH) HORNFOG
H/LP(LH)
H/LP(RH)
FUSIBLE
LINK
FUSE
DESCRIPTION
POWER CONNECTOR

4
CORROSION PREVENTION AND APPEARANCE CARE
39
4
IN CASE OF EMERGENCY
39
G200D01P-GAT Inner Panel
G200D01PFUSE
1 23 4 56 7 8 9
10 11 12 13 14 15161718 19 20 CIRCUIT PROTECTED
Power outside mirror switch
Audio, Digital clock, Cigarette lighter, Multi-meter, A/T shift & key lock control module
Power outletHeater control module, Mode actuator
Front wiper & Washer
Rear wiper & Washer
Left front/rear sunroof relay, PTC heater relay, Fuel filter heater relay, Thermo sensor,
Hear lamp relay, Condenser fan main relay, HLLD switch, Inter cooler fan relay
ETACM, Power & hold switch, Front wiper relay, Seat belt tension reducer, Blower relay,
Overhead blower relay, Outside mirror defogger relay, Rear window defogger relay,
Rear blower relay, Rear blower main switch, Rear blower sub switch
Rear fog lamp relay
Seat warmer switch
Instrument clusterSRS control module
ABS control module, Neutral switch, Back-up lamp switch, Vehicle speed sensor, Fuel
water sensor, Fuel filter switch, Fuel filter heater, Transaxle range switch, Instrument
cluster, TCM, Stop lamp switch, A/T shift & Key lock control module, G-Sensor, Overdrive
switch, A/T shift lever
Hazard switch
ETACM, ECM (D4BH), ECM (D4CB), Immobilizer control module, Idle-up control module
Rear window defogger relay
Left front sunroof relay
Left rear sunroof relay
Data link connector, Heater control module, Outside mirror defogger relay
Stop lamp switchAMPERAGES 10A 15A15A10A20A15A 10A 10A 10A 10A10A10A 10A10A 10A25A20A20A10A15A

44IN CASE OF EMERGENCY
40

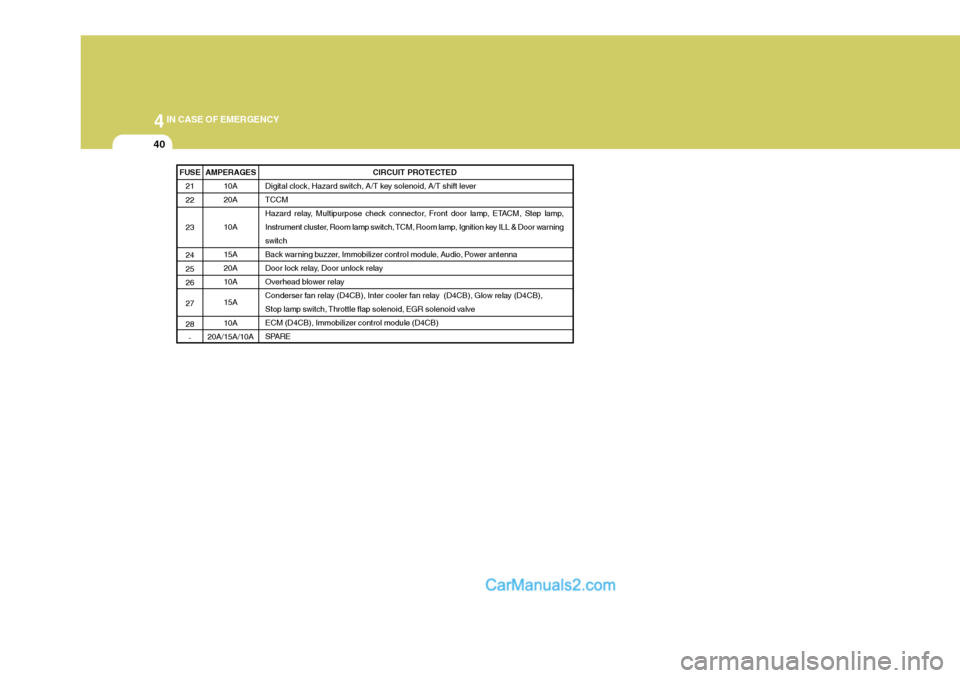

FUSE21 22 23 24 2526 27 28- CIRCUIT PROTECTED
Digital clock, Hazard switch, A/T key solenoid, A/T shift lever TCCM
Hazard relay, Multipurpose check connector, Front door lamp, ETACM, Step lamp,
Instrument cluster, Room lamp switch, TCM, Room lamp, Ignition key ILL & Door warning
switch
Back warning buzzer, Immobilizer control module, Audio, Power antenna
Door lock relay, Door unlock relay
Overhead blower relay
Conderser fan relay (D4CB), Inter cooler fan relay (D4CB), Glow relay (D4CB),
Stop lamp switch, Throttle flap solenoid, EGR solenoid valve
ECM (D4CB), Immobilizer control module (D4CB)
SPARE
AMPERAGES 10A 20A 10A15A 20A10A 15A10A
20A/15A/10A

4
CORROSION PREVENTION AND APPEARANCE CARE
41
4
IN CASE OF EMERGENCY
41
G200E01P-GAT TRUCK Engine Compartment
G200E01P
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. AMPE-
RAGES
10080 303050404030 303030 10 1015 10 1010 15 1010 20 CIRCUIT PROTECTED
Generator
Glow control
Blower control
Power window control
Fog lamp, Horn, Power connector, Fuse 13, 14, 15
Ignition switch, Star t relay, Generator
Tail lamp relay, Head lamp fuse
TCI fuse, Compressor fuse
Condenser fan ABS control moduleABS control module
Idle up fan motor relay
A/C compressor relay
Engine control relay
Left tail lamp, Illumination
Right tail lamp, Illumination
Horn
Fog lamp Left head lamp Right head lampFuse 23, 24
LABEL ALT
GLOW
HTR
P/WINDOW
BATT
IGN
TAIL A/C
C/FAN ABS.1
ABS.2
TCI
COMP ECU
TAIL (LH)
TAIL (RH)
HORN
FOG
H/LP (LH)
H/LP (RH)DESCRIP- TION
FUSIBLE LINK
FUSE
POWER CONNECTOR

44IN CASE OF EMERGENCY
42
G200F01P-GAT Passenger Compartment
G200F01P CIRCUIT PROTECTED
Power outside mirror switch, Cigarette lighter, Digital clock
Audio
DRL, ABS control module, condenser fan relay
Wiper motor, Washer motor
Blower relay, Head lamp relay, Power window relay, Defogger relay, Mode actuator,
Rear fog relay, Head lamp leveling switch, Heater control panel, Left (Right) head
lamp leveling actuator
ECM, Neutral switch, Injection pump, Engine control relay, Intercooler fan relay, EGR
solenoid valve, SRS control module SRS control module
Back-up lamp switch, Vehicle speed sensor, ABS relay, Instrument cluster,
Pre-excitation resistor
Hazard switch
TA C MInstrument cluster
A/C switch
Stop lamp switch
Hazard switch Not used. Not used.Not used.
Defogger relay
Rear fog lamp relay
Left power door lock actuator Not used.
ECM, Start relay
Digital clock, Tachograph, Power antenna, Audio
Instrument cluster, Front (Rear) room lamp, TACM, Door warning switch & Key ill.
AMPERAGES 15A 10A10A 20A 10A 10A 15A10A10A 10A10A 10A 10A10A---
10A10A15A -
10A10A 10A
FUSE
123 4 5 6 7 8 9
10 1112 13 14 1516 17 1819 20 2122 23 24

Washing/Waxing/Polishing ........................................... 5-2
Window Glass .............................................................. 5-3
Chassis and Underbody Protection .............................. 5-3
Engine Compartment .................................................... 5-4Tire............................................................................... 5-5
5
APPEARANCE CARE
5

5APPEARANCE CARE
2APPEARANCE CARE
F010A01P-GAT In order to maintain the value of your vehicle, it is necessary to perform regular maintenance using the properprocedure. Be sure to maintain your vehicle in compliance with any perti- nent environmental pollution controlregulations.Carefully select the materials to beused for washing, etc., to be sure thatthey do not contain corrosives; if in doubt, contact an authorized HYUNDAI dealer for assistance in the selectionof these materials. Do not wash the vehicle in direct sun-
light.
Park the vehicle in the shade and
spray it with water to remove dust.Next, using an ample amount of cleanwater and a vehicle washing brush or sponge, wash the vehicle from top to bottom.
Use a mild vehicle washing soap if
necessary. Rinse thoroughly and wipedry with a soft cloth. After washing the vehicle (including washing in an auto- matic vehicle wash), carefully cleanthe joints and flanges of the doors, hood, etc., where dirt is likely to re- main.
F010C01P-GAT
Waxing
Waxing the vehicle will help preventthe adherence of dust and road chemi-cals to the paintwork. Apply a wax solution after washing the vehicle, and apply wax at least once every threemonths. F010D01P-GAT
Polishing
The vehicles should only be polished if
the paintwork has become stained or lost its luster. Mat-finish parts and plastic bumpers must not be polished;polishing these parts will stain them or damage their finish.
F010E01P-GAT
Wheels
The wheels are painted and, therefore,
require the same care and mainte- nance as the vehicle body.
F010F01P-GAT
Chrome parts
In order to prevent spots and corrosion
of chrome parts, wash with water, drythoroughly, and apply a special protec-tive coating. This should be done move frequently in the winter.
F010B01P-GAT Washing Chemicals contained in the dirt and dust picked up from the road surface can damage the paint coat and body of your vehicle if left in prolonged con-tact.Frequent washing is the best way toprotect your vehicle from this damage. This will also be effective in protecting it from environmental elements suchas rain, snow, salt air, etc.
