2004 Hyundai H-1 (Grand Starex) Owner's Manual

4
CORROSION PREVENTION AND APPEARANCE CARE
29
4
IN CASE OF EMERGENCY
29

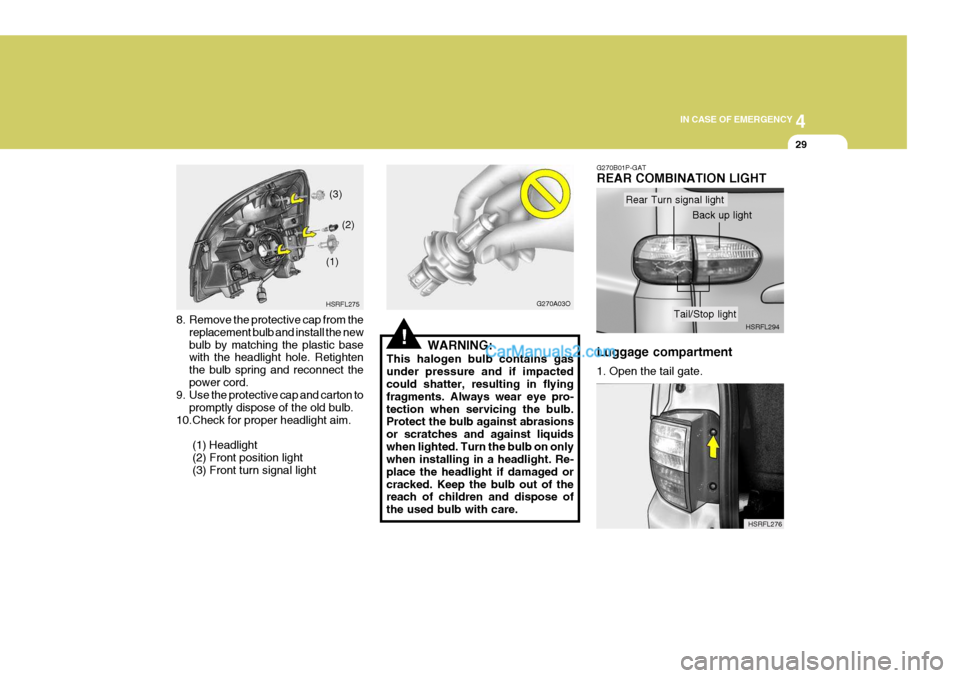

8. Remove the protective cap from the
replacement bulb and install the new bulb by matching the plastic base with the headlight hole. Retighten the bulb spring and reconnect thepower cord.
9. Use the protective cap and carton to
promptly dispose of the old bulb.
10.Check for proper headlight aim.
(1) Headlight(2) Front position light (3) Front turn signal light HSRFL275
(1)
(2)
(3)
!
G270A03O
WARNING:
This halogen bulb contains gas under pressure and if impacted could shatter, resulting in flying fragments. Always wear eye pro-tection when servicing the bulb. Protect the bulb against abrasions or scratches and against liquidswhen lighted. Turn the bulb on only when installing in a headlight. Re- place the headlight if damaged orcracked. Keep the bulb out of the reach of children and dispose of the used bulb with care.
HSRFL276
G270B01P-GAT REAR COMBINATION LIGHT Luggage compartment 1. Open the tail gate.
HSRFL294
Rear Turn signal light
Back up light
Tail/Stop light

44IN CASE OF EMERGENCY
30
3. To replace the rear combination light,
remove it from the bulb holder and install the new bulb.
(1) Back up light
(2) Tail/Stop light HSRFL293
(1)
(2)

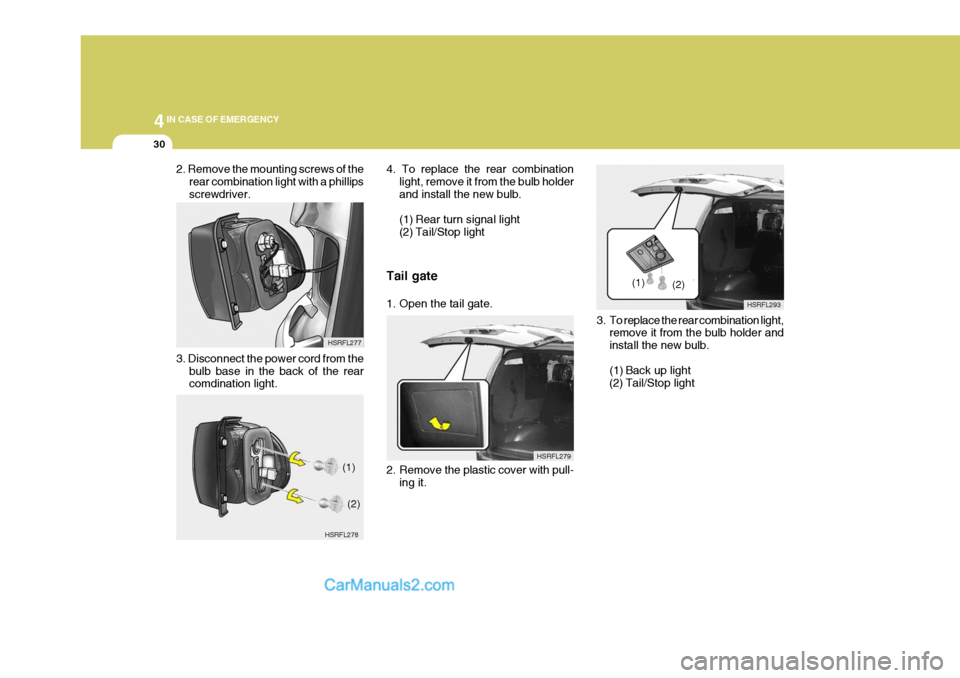

2. Remove the mounting screws of the
rear combination light with a phillips screwdriver. 4. To replace the rear combination
light, remove it from the bulb holderand install the new bulb.
(1) Rear turn signal light
(2) Tail/Stop light
HSRFL277 Tail gate
1. Open the tail gate.
2. Remove the plastic cover with pull-
ing it. HSRFL279
3. Disconnect the power cord from the
bulb base in the back of the rear comdination light.
HSRFL278(1)
(2)

4
CORROSION PREVENTION AND APPEARANCE CARE
31
4
IN CASE OF EMERGENCY
31
HSRFL283

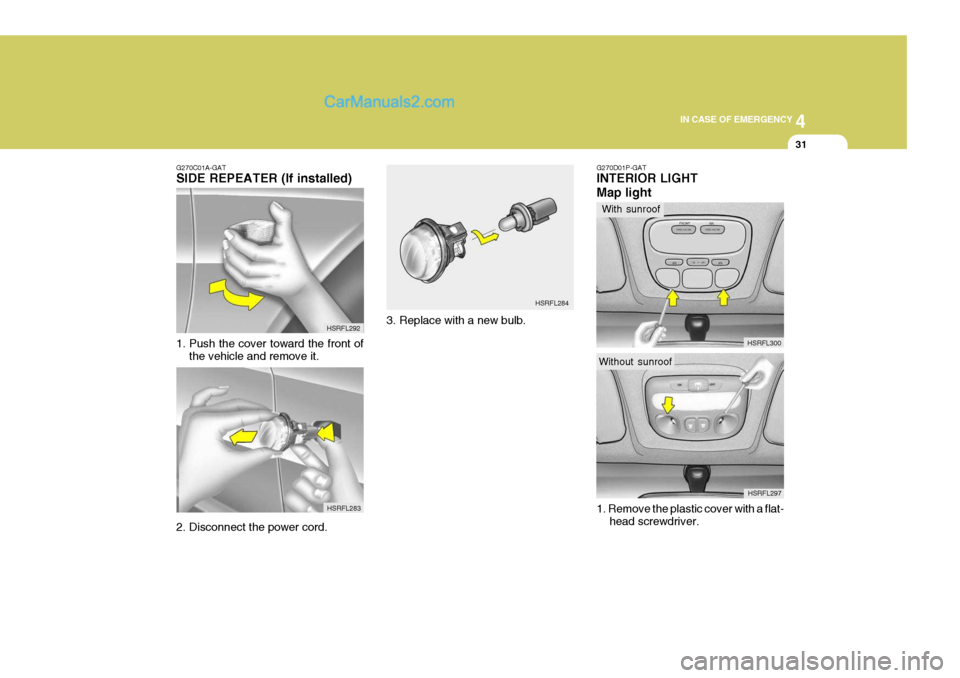

G270C01A-GAT SIDE REPEATER (If installed)
1. Push the cover toward the front of
the vehicle and remove it. HSRFL292
3. Replace with a new bulb. HSRFL284
2. Disconnect the power cord. G270D01P-GAT INTERIOR LIGHT Map light 1. Remove the plastic cover with a flat-
head screwdriver. HSRFL300
HSRFL297
With sunroof
Without sunroof

44IN CASE OF EMERGENCY
32
Without sunroof
HSRFL2902. Replace with a new bulb. HSRFL301
With sunroof
Without sunroof HSRFL291Front Room light
1. Remove the plastic cover with a flat-
head screwdriver. HSRFL298
2. Replace with a new bulb.
HSRFL302
With sunroof
Without sunroof HSRFL303
With sunroof

4
CORROSION PREVENTION AND APPEARANCE CARE
33
4
IN CASE OF EMERGENCY
33
HSRFL285

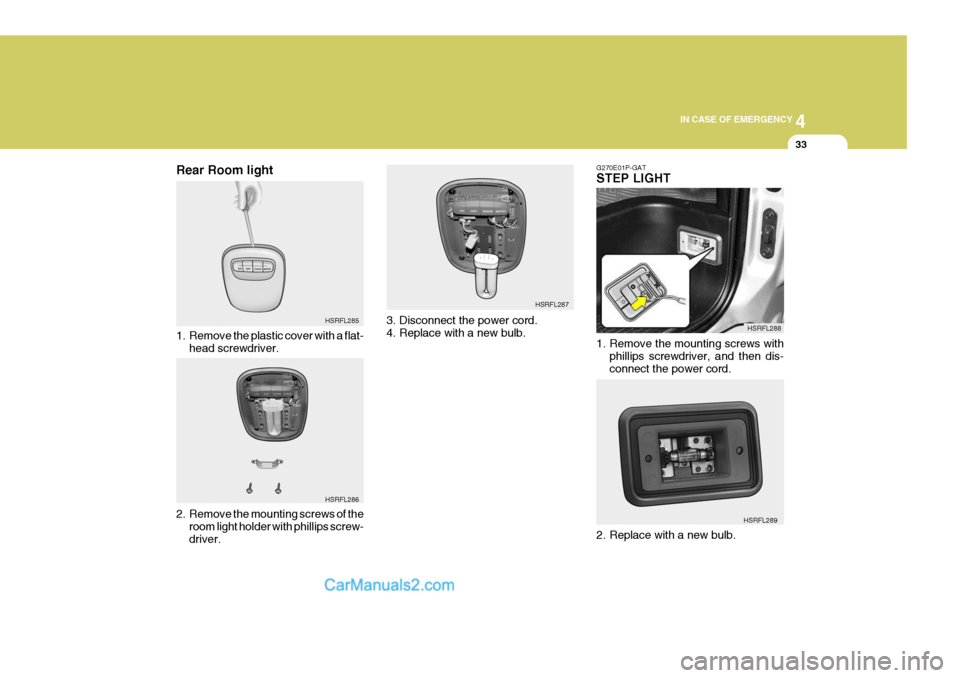

Rear Room light
1. Remove the plastic cover with a flat-
head screwdriver.
HSRFL286
2. Remove the mounting screws of the room light holder with phillips screw- driver. HSRFL287
G270E01P-GAT STEP LIGHT
1. Remove the mounting screws with
phillips screwdriver, and then dis- connect the power cord. HSRFL288
2. Replace with a new bulb. HSRFL289
3. Disconnect the power cord.
4. Replace with a new bulb.

44IN CASE OF EMERGENCY
34
E130F01P-GAT LICENCE-PLATE LIGHT
HSRFL299
Remove the lens mounting screws, remove the lens, then remove the bulbby turning it counterclockwise while pressing it inward. Minbus/Van

4
CORROSION PREVENTION AND APPEARANCE CARE
35
4
IN CASE OF EMERGENCY
35
7
96
Front Rear (Glow type/Fluorescent type)
High/LowTurn signal lightPosition light Map light Room light Wattage
21
16/5(LED) 5
21/5(O/S LAMP) 5(I/S LAMP) 21 165
Part Name
Rear fog lightHigh mounted stop lightLicense plate light Rear combination lightStep light
NO.
6 78 9
10
Part Name
Headlight Front fog lightInteriorSide repeater Door edge warning light
BULB WATTAGE
G280A01P-GAT MINIBUS/VAN
G280A01P
NO.1 234 5 Wattage
60/55 215
55 8
1010 55
1 23
45
Stop/tail light Turn signal light Back up light
810

44IN CASE OF EMERGENCY
36
NO.
4 56 Part Name
Side repeaterRear combination lightLicense plate light Wattage
10 21 21215
G280B01P-GAT TRUCK
G280B01PNO.1 2 3 Part Name
Front fog light Headlight Interior Wattage
55
55/55
215
55
8
1 23
4 65
High/Low Turn signal lightPosition light Map light Room lightStop/tail light Turn signal light Back up light
