B460E01P-GAT REAR SUNROOF The rear sunroof can be electrically opened or closed. To open or to close, press and hold the button located onthe center of the roof panel. Release the button when the sunroof reaches the desired position. As a precautionwhen closing , it stops at a half position before fully closing. Therefore, release the button and then press it again toclose it completely. B460E01P
SUNVISOR
Manual Operation of Sunroof If the sunroof does not electrically op- erate:
1. Remove the plastic cover in the roof panel.
2. Insert the hexagonal head wrench in to the socket. This wrench can be founded in the tool bag at the rightcorner of the vehicle.
3. Turn the wrench clockwise to open
or counter clockwise to close. C340A01L-GAT Your Hyundai is equipped with sunvisors to give the driver and front passenger either frontal or sidewardshade. The sunvisors are installed on both sides. To reduce glare or to shut outdirect rays of the sun, turn the sunvisor down to block the annoyance. A vanity mirror is provided on the backof the sunvisor for the front passenger. (If installed)
Vanity Mirror
C340A01P

2
INSTRUMENTS AND CONTROLS
33ROOF RACK
B630A03P-GAT (Minibus) (If installed) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails and fixing components toadapt roof rack on your vehicle may be obtained from an authorized Hyundai dealer.Hyundai dealers are prepared to pro- vide high quality service that may be required. CAUTION:
o The following specifications are recommended when loadingcargo or luggage.
o Loading cargo or luggage above 80 kg (174 lb) on the roof rackmay damage your vehicle.When you carry large objects, never let them hang over the rear or the sides of your vehicle.
o In case the sunroof is equipped, do not position roof rack loadsthat could interfere with openingof the sunroof.
o To prevent damage or loss of
cargo as you are driving, checknow and then to make sure the luggage carrier and cargo are still securely fastened.
o Always drive your vehicle at a moderate speed.
o To use the roof rails as a roof rack, you must fit the roof rails with two or more crossrails or equivalent.ROOF RACK
80 kg (174 lb)
!
C630A01P
!
NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on theback of each sunvisor. WARNING:
Do not place the sunvisor in such amanner that it obscures visibility of the roadway, traffic or other ob- jects.

2 INSTRUMENTS AND CONTROLS
34MIRROR
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR (If installed) Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flip- ping the tab at the bottom of the mirrortoward you. In the "night" position, the glare of headlights of cars behind you is reduced. HSRFL2321C370A01P-GAT OUTSIDE REAR VIEW MIRROR Manual Type Before driving away, always check that your mirror is positioned so youcan see directly behind you. When using the mirror, always exercise cau- tion when attempting to judge the dis-tance of vehicles behind you. C370B01P-GAT Electric Type (If installed) The outside rear view mirror can be adjusted in any direction to give the maximum rearview vision. The remote control outside rear viewmirror switch controls the adjustments for both right and left door mirror. To adjust the position of either mir- ror:
1. Move the selecting switch to the "R"
or "L" position to activate the adjust- able mechanism for the adjusting door mirror.
2. Adjust mirror angle by depressing the appropriate perimeter switch asillustrated.
HSRFL2319
HSRFL2320

2
INSTRUMENTS AND CONTROLS
35DRINK HOLDER
!
The front drink holder is located on the center facia panel for holding cups or cans in its holes. The drink holder canbe used by pushing it.
B450A04A-AAT Front Drink Holder (If installed)
CAUTION:
Place the drink holder in its closed position when not in use. WARNING:
Do not place anything except drinksin the drink holder. Such objectscan be thrown out, possibly injur- ing persons in the vehicle during sudden braking or in the event of anaccident.
!
B510D01P-AAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, push in the switchfor the rear window defroster. The rearview mirror glass will be heated for defrosting or defogging and will giveyou improved rear vision in inclement weather conditions. Push the switch again to turn the heater off. The out-side rearview mirror heater automati- cally turns itself off after 20 minutes. B380A01P
HSRFL2318
B450A02P-GAT
Rear Drink Holder (If installed) The rear drink holder which are used to hold a cup are located on the quarter trim.
B450A01P

2 INSTRUMENTS AND CONTROLS
36
HSRFL2317
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or yourpassengers. Spilled liquids can damage interior trim and electri- cal components.
o Do not place anything except drinks in the drink holder. Suchobjects can be thrown out, pos-sibly injuring persons in the ve- hicle during sudden braking or in the event of an accident.
ASHTRAY
C410A01P-GAT Front ashtray Pull out the front ashtray to open. To remove the ashtray, pull it out while pressing the stubber. C420A02P-GAT Rear ashtray (If installed)
Pull out the rear ashtray downward to open. To remove the ashtray, pull it out while pressing the stubber. GS2025A
Type A

2
INSTRUMENTS AND CONTROLS

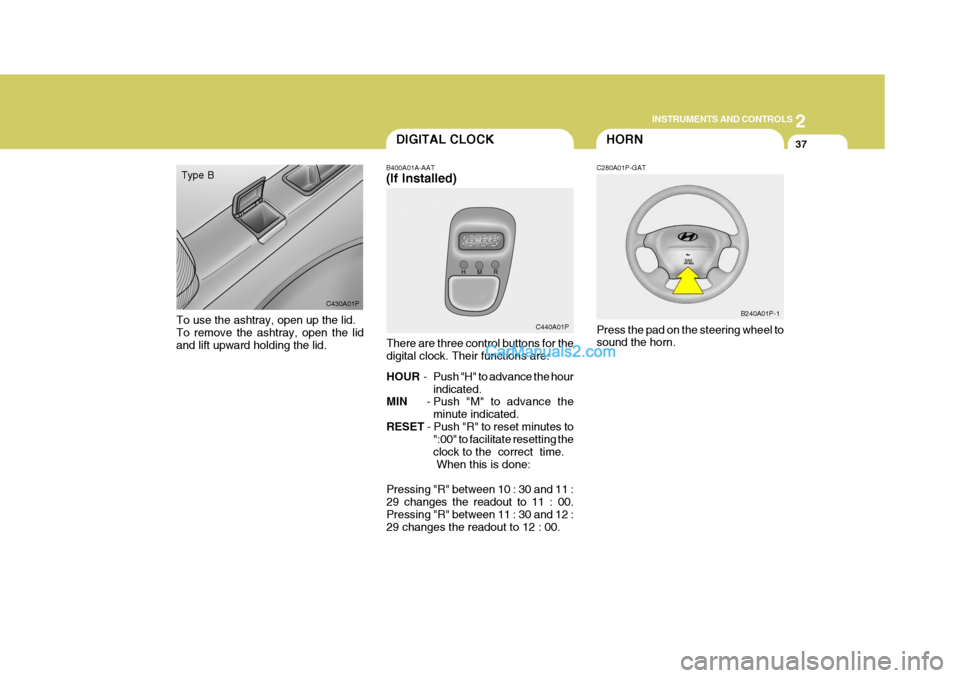

37DIGITAL CLOCK
B400A01A-AAT (If Installed)
There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour
indicated.
MIN - Push "M" to advance the
minute indicated.
RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done:
Pressing "R" between 10 : 30 and 11 :29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00. C440A01PHORN
C280A01P-GAT Press the pad on the steering wheel to sound the horn. B240A01P-1
C430A01P
Type B
To use the ashtray, open up the lid.To remove the ashtray, open the lid and lift upward holding the lid.

2 INSTRUMENTS AND CONTROLS
38HEATING AND COOLING CONTROL
B710A01P-GAT
(If Installed)
1. Side Ventilator
2. Center Ventilator
3. Windshield Defrost Nozzle B710B01S-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. The di- rection of air flow from the vents in thecenter of the dashboard is adjustable. To control the direction of the air flow, move the knob in the center of the ventup-and-down and side-to-side. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change the direction of the air flow, move theknob in the center of the vent up-and- down and side-to-side. The vents are opened when the vent knob is movedto " " position. The vents are closed when the vent knob is moved to " ". Keep these vents clear of any obstruc-tions.
HSRFL002

2
INSTRUMENTS AND CONTROLS
39
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents. HSRFL670
HEATING AND VENTILATION
C610A01P-GAT Rotary and push button type
Lever type C610A01P
C660A01P B670D01P-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboardoutlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost airposition.
B670E01A-AAT Temperature Control This control is used to adjust the de- gree of heating or cooling desired.
There are four controls for the heatingand cooling system. They are:
1. Temperature Control
2. Air Flow Control
3. Air Intake Control
4. Fan Speed Control
1
2
3 4
12
