2004 CHEVROLET MALIBU Owners Manual

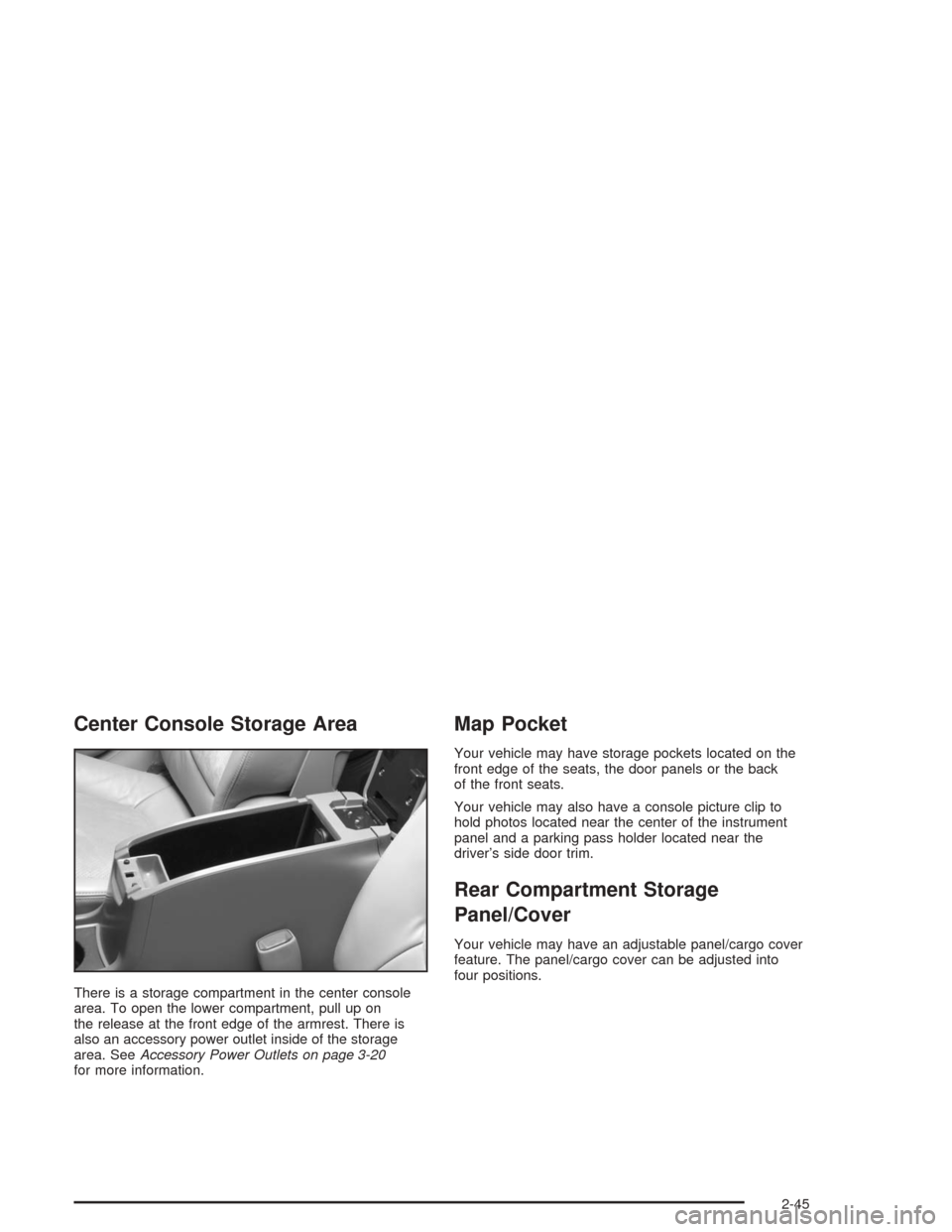

Center Console Storage Area
There is a storage compartment in the center console
area. To open the lower compartment, pull up on
the release at the front edge of the armrest. There is
also an accessory power outlet inside of the storage
area. SeeAccessory Power Outlets on page 3-20
for more information.
Map Pocket
Your vehicle may have storage pockets located on the
front edge of the seats, the door panels or the back
of the front seats.
Your vehicle may also have a console picture clip to
hold photos located near the center of the instrument
panel and a parking pass holder located near the
driver’s side door trim.
Rear Compartment Storage
Panel/Cover
Your vehicle may have an adjustable panel/cargo cover
feature. The panel/cargo cover can be adjusted into
four positions.
2-45

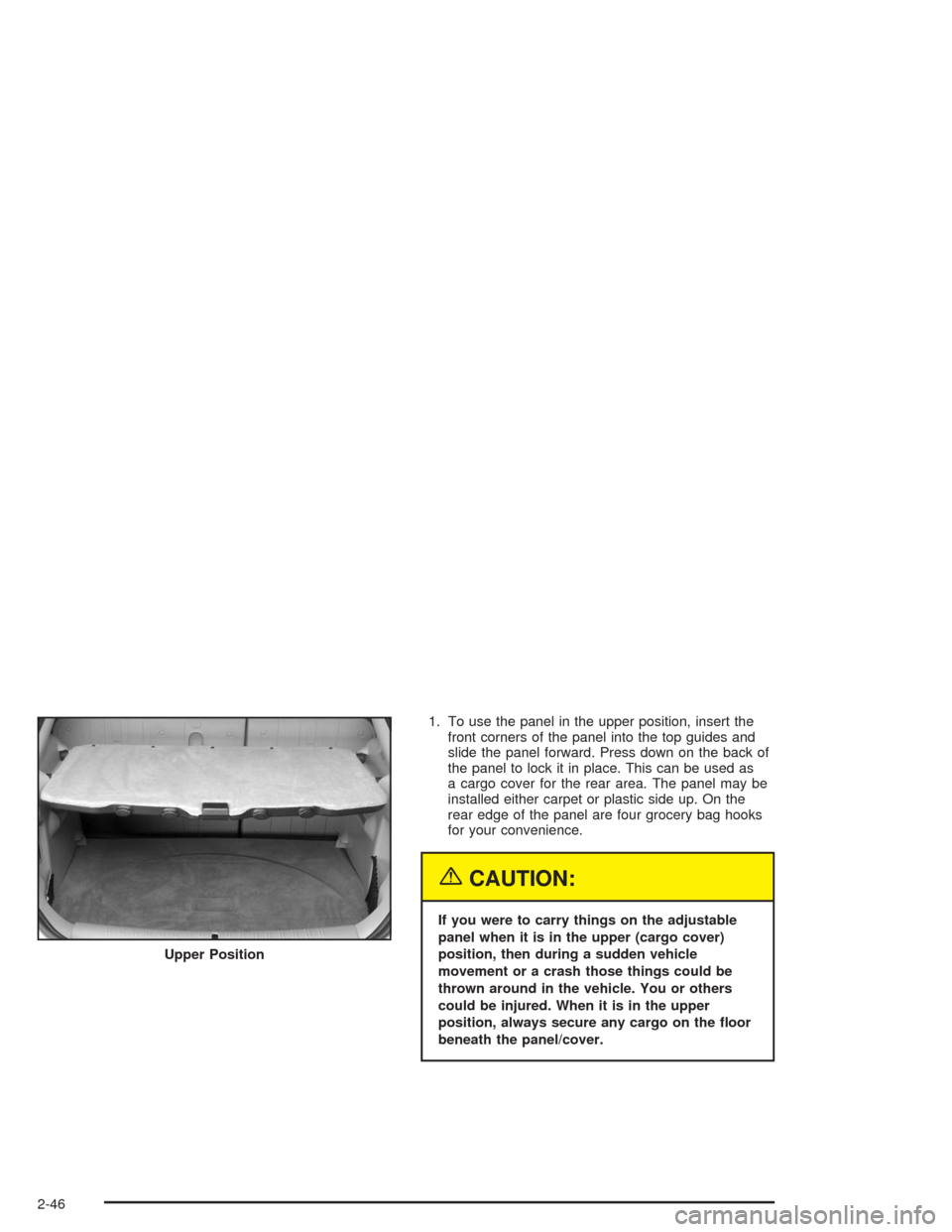

1. To use the panel in the upper position, insert the
front corners of the panel into the top guides and
slide the panel forward. Press down on the back of
the panel to lock it in place. This can be used as
a cargo cover for the rear area. The panel may be
installed either carpet or plastic side up. On the
rear edge of the panel are four grocery bag hooks
for your convenience.
{CAUTION:
If you were to carry things on the adjustable
panel when it is in the upper (cargo cover)
position, then during a sudden vehicle
movement or a crash those things could be
thrown around in the vehicle. You or others
could be injured. When it is in the upper
position, always secure any cargo on the oor
beneath the panel/cover. Upper Position
2-46

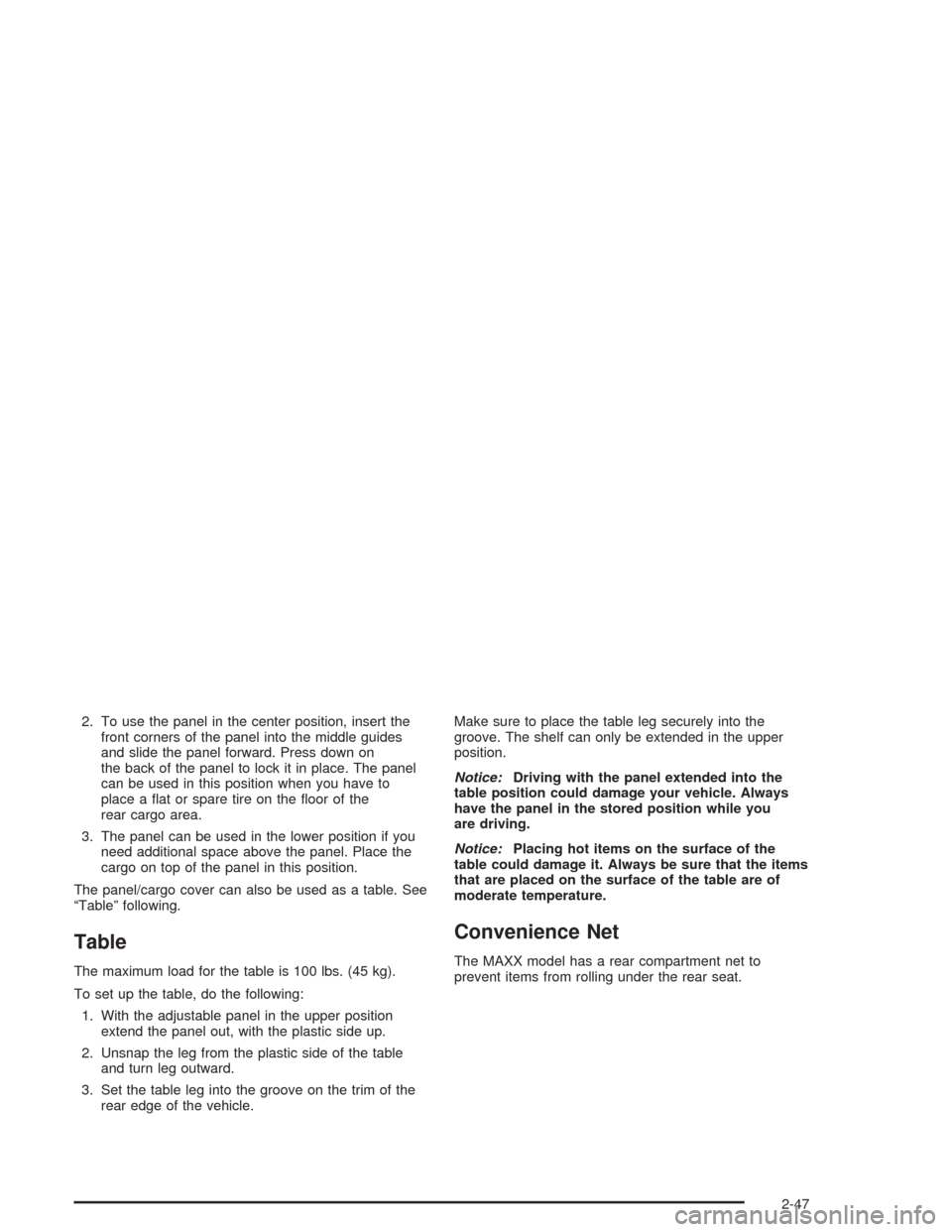

2. To use the panel in the center position, insert the
front corners of the panel into the middle guides
and slide the panel forward. Press down on
the back of the panel to lock it in place. The panel
can be used in this position when you have to
place a at or spare tire on the oor of the
rear cargo area.
3. The panel can be used in the lower position if you
need additional space above the panel. Place the
cargo on top of the panel in this position.
The panel/cargo cover can also be used as a table. See
“Table” following.
Table
The maximum load for the table is 100 lbs. (45 kg).
To set up the table, do the following:
1. With the adjustable panel in the upper position
extend the panel out, with the plastic side up.
2. Unsnap the leg from the plastic side of the table
and turn leg outward.
3. Set the table leg into the groove on the trim of the
rear edge of the vehicle.Make sure to place the table leg securely into the
groove. The shelf can only be extended in the upper
position.
Notice:Driving with the panel extended into the
table position could damage your vehicle. Always
have the panel in the stored position while you
are driving.
Notice:Placing hot items on the surface of the
table could damage it. Always be sure that the items
that are placed on the surface of the table are of
moderate temperature.
Convenience Net
The MAXX model has a rear compartment net to
prevent items from rolling under the rear seat.
2-47

Sunroof
If your vehicle has this
feature, the switch is
located on the overhead
console between the
sun visors. The sunroof
will only operate when the
ignition is in ACC or
ON or while in retained
accessory power.
The sunroof can be opened to a vent position or it can
be express-opened all of the way.
To open the sunroof to the vent position, you must rst
open the sunshade by hand. Then push the back
edge of the switch and release it.To fully open the sunroof, push the back edge of the
switch again and release it.
In both the vent and fully open positions, the air ow
can be adjusted for driving comfort by pushing and
holding the forward edge of the switch until the sunroof
moves to the desired position.
To close the sunroof, push the forward edge of the
switch and hold it until the sunroof is closed. The sunroof
will stop if the switch is released during operation.
Remember to close the sunshade by hand.
The sunroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
Notice:If you force the sunshade forward of the
sliding glass panel, damage will occur and the
sunroof may not open or close properly. Always
close the glass panel before closing the sunshade.
2-48

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-7
Horn.............................................................3-7
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-8
Exterior Lamps.............................................3-14
Interior Lamps..............................................3-19
Accessory Power Outlets...............................3-20
Climate Controls............................................3-21
Climate Control System.................................3-21
Automatic Climate Control System...................3-25
Outlet Adjustment.........................................3-30
Warning Lights, Gages, and Indicators............3-31
Instrument Panel Cluster................................3-32
Speedometer and Odometer...........................3-33
Tachometer.................................................3-33
Safety Belt Reminder Light.............................3-34
Air Bag Readiness Light................................3-34
Charging System Light..................................3-35
Brake System Warning Light..........................3-36
Anti-Lock Brake System
Warning Light...........................................3-37
Enhanced Traction System
Warning Light...........................................3-37
Enhanced Traction System Active Light............3-38Engine Coolant Temperature Warning Light......3-38
Engine Coolant Temperature Gage..................3-39
Malfunction Indicator Lamp.............................3-39
Oil Pressure Light.........................................3-42
Security Light...............................................3-43
Cruise Control Light......................................3-43
Service Vehicle Soon Light............................3-44
Fuel Gage...................................................3-44
Driver Information Center (DIC).......................3-45
DIC Operation and Displays...........................3-46
DIC Warnings and Messages.........................3-50
Audio System(s).............................................3-52
Setting the Time for Radios without Radio
Data Systems (RDS)..................................3-52
Setting the Time for Radios with Radio Data
Systems (RDS).........................................3-53
Radio with CD (Base Level)...........................3-53
Radio with CD (Up Level)..............................3-58
Radio with Cassette and CD..........................3-69
Radio with Six-Disc CD.................................3-82
Rear Seat Entertainment System....................3-96
Rear Seat Audio (RSA)
(Without Entertainment System).................3-111
Rear Seat Audio (RSA)
(With Entertainment System).....................3-113
Theft-Deterrent Feature................................3-115
Section 3 Instrument Panel
3-1

Audio Steering Wheel Controls......................3-115
DVD Distortion............................................3-116
Radio Reception.........................................3-116
Care of Your Cassette Tape Player...............3-117
Care of Your CDs and DVDs........................3-118
Care of Your CD and DVD Player.................3-118Cleaning Your DVD Player...........................3-118
Cleaning the Video Screen...........................3-118
Fixed Mast Antenna (MAXX Only).................3-118
Backglass Antenna (Sedan Only)..................3-119
XM™ Satellite Radio Antenna System............3-119
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
3-4
