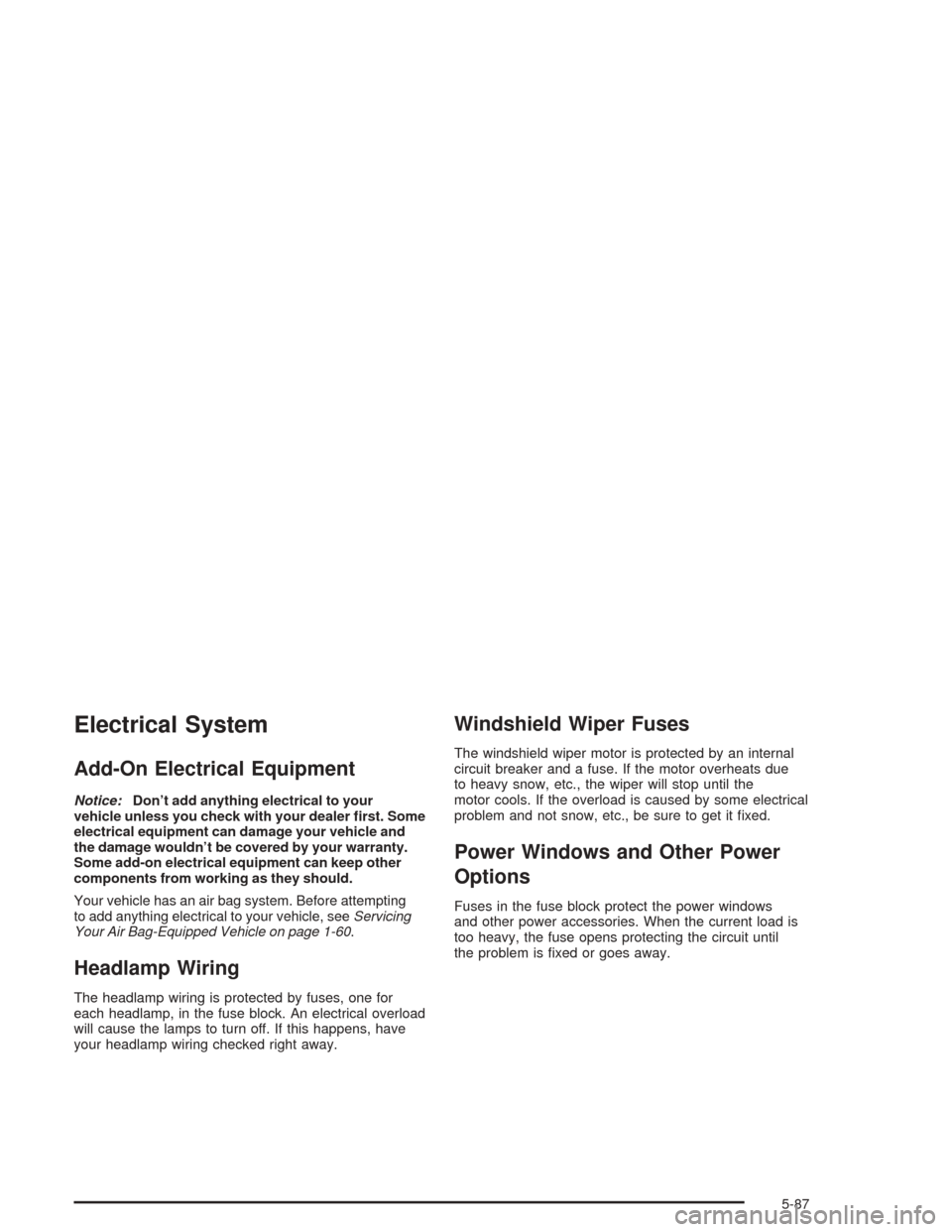

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your
vehicle unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system. Before attempting
to add anything electrical to your vehicle, seeServicing
Your Air Bag-Equipped Vehicle on page 1-60.
Headlamp Wiring
The headlamp wiring is protected by fuses, one for
each headlamp, in the fuse block. An electrical overload
will cause the lamps to turn off. If this happens, have
your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due
to heavy snow, etc., the wiper will stop until the
motor cools. If the overload is caused by some electrical
problem and not snow, etc., be sure to get it xed.
Power Windows and Other Power
Options
Fuses in the fuse block protect the power windows
and other power accessories. When the current load is
too heavy, the fuse opens protecting the circuit until
the problem is xed or goes away.
5-87

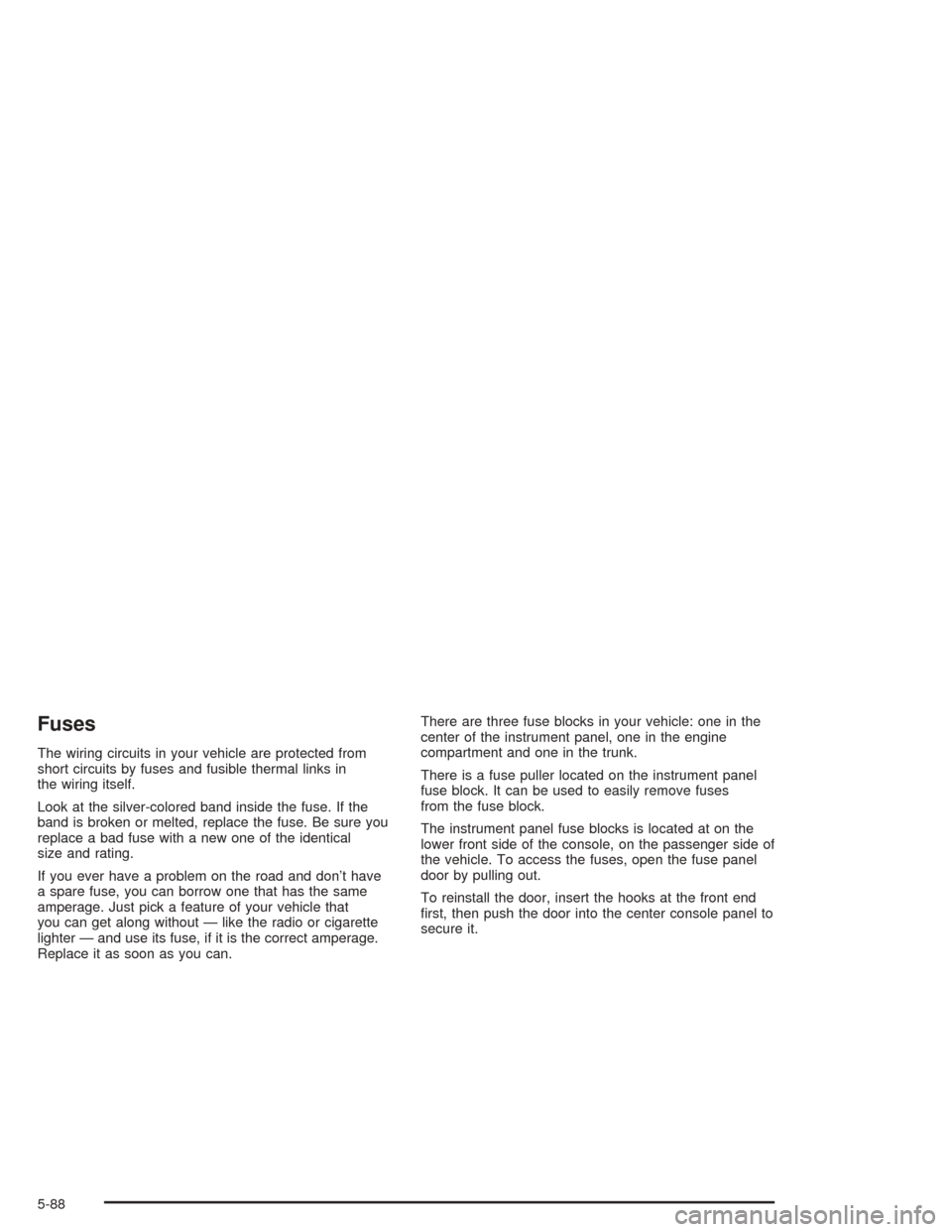

Fuses
The wiring circuits in your vehicle are protected from
short circuits by fuses and fusible thermal links in
the wiring itself.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick a feature of your vehicle that
you can get along without — like the radio or cigarette
lighter — and use its fuse, if it is the correct amperage.
Replace it as soon as you can.There are three fuse blocks in your vehicle: one in the
center of the instrument panel, one in the engine
compartment and one in the trunk.
There is a fuse puller located on the instrument panel
fuse block. It can be used to easily remove fuses
from the fuse block.
The instrument panel fuse blocks is located at on the
lower front side of the console, on the passenger side of
the vehicle. To access the fuses, open the fuse panel
door by pulling out.
To reinstall the door, insert the hooks at the front end
rst, then push the door into the center console panel to
secure it.
5-88

Instrument Panel Fuse Block
Fuses Usage
POWER
MIRRORSPower Mirrors

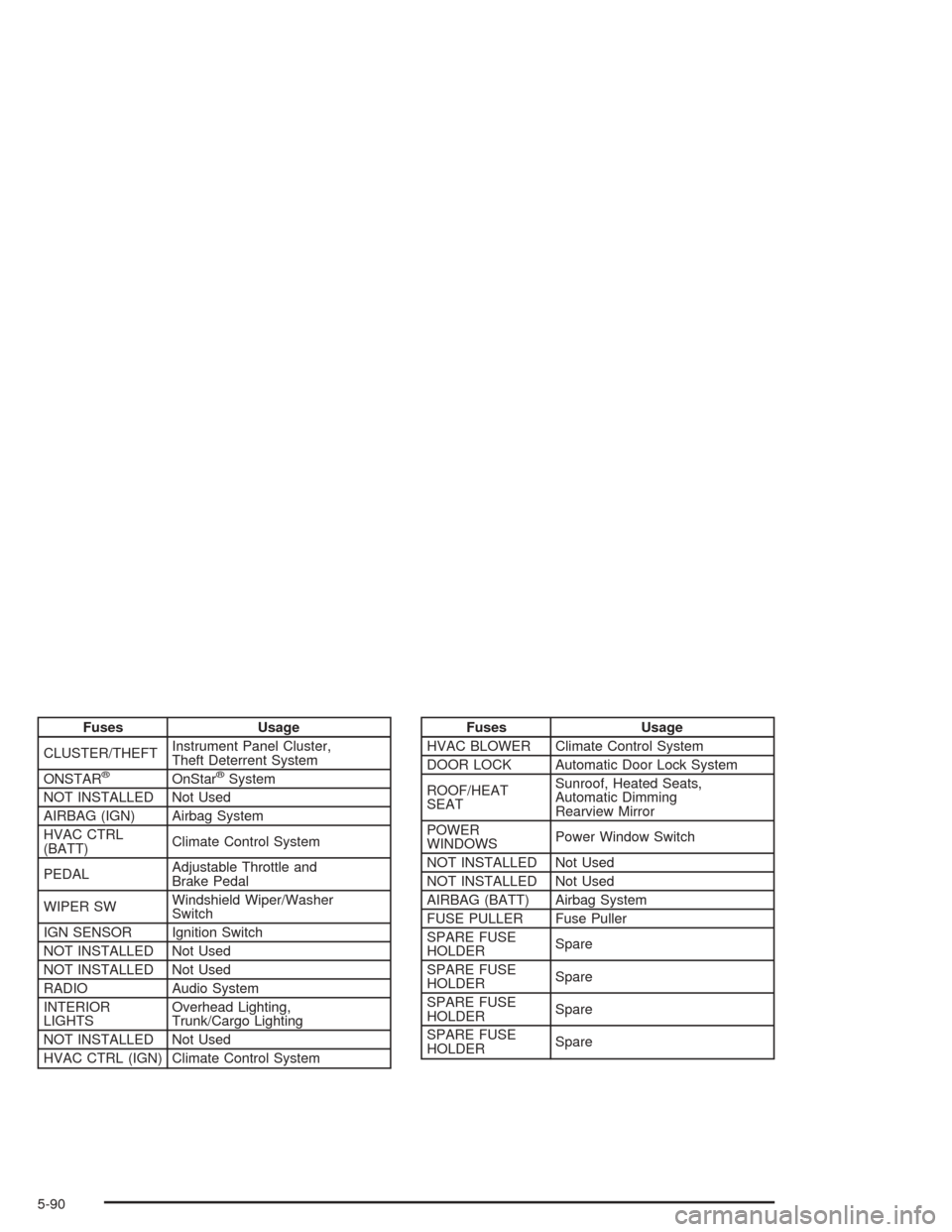

EPS Electric Power SteeringFuses Usage
RUN/CRANKCruise Control, Electronic
Range Select
HVAC BLOWER
HIGH (Relay)Climate Control System
5-89

Fuses Usage
CLUSTER/THEFTInstrument Panel Cluster,
Theft Deterrent System
ONSTAR
®OnStar®System
NOT INSTALLED Not Used
AIRBAG (IGN) Airbag System
HVAC CTRL
(BATT)Climate Control System
PEDALAdjustable Throttle and
Brake Pedal
WIPER SWWindshield Wiper/Washer
Switch
IGN SENSOR Ignition Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR
LIGHTSOverhead Lighting,
Trunk/Cargo Lighting
NOT INSTALLED Not Used
HVAC CTRL (IGN) Climate Control System
Fuses Usage
HVAC BLOWER Climate Control System
DOOR LOCK Automatic Door Lock System
ROOF/HEAT
SEATSunroof, Heated Seats,
Automatic Dimming
Rearview Mirror
POWER
WINDOWSPower Window Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag System
FUSE PULLER Fuse Puller
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
5-90

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.
SeeEngine Compartment Overview on page 5-14for more information on location.
Fuses Usage
1 A/C CLU
2 Electronic Throttle Control
3 Ignition ModuleFuses Usage
4 Transmission
5 Fuel Injectors
6 EMISSION 1
5-91

Fuses Usage
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13Powertrain Control
Module (Batt)
14 Windshield Wiper
15 Anti-Lock Brake System
16Powertrain Control
Module (IGN 1)
17 Cooling Fan 1
18 Cooling Fan 2
19 RUN RELAY
20 IBCM 1
21 IBCM (R/C)
22 RBEC 1
23 RBEC 2
24 Anti-lock Brake System
25 IBCM 2Fuses Usage
26 STARTER
27 (DIODE) Windshield Wiper
41 Electric Power Steering
42 (Resistor) Brake Lamp Diagnostic
Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode
30 Cooling Fan 2
31 STARTER
32 RUN/CRANK Ignition
33 POWERTRAIN
34 A/C CLUTCH
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
5-92

Rear Compartment Fuse BlockThe rear compartment fuse block is located in the trunk
of the vehicle. Access the fuse block through the
trunk panel on the driver’s side of the rear cargo area.
5-93

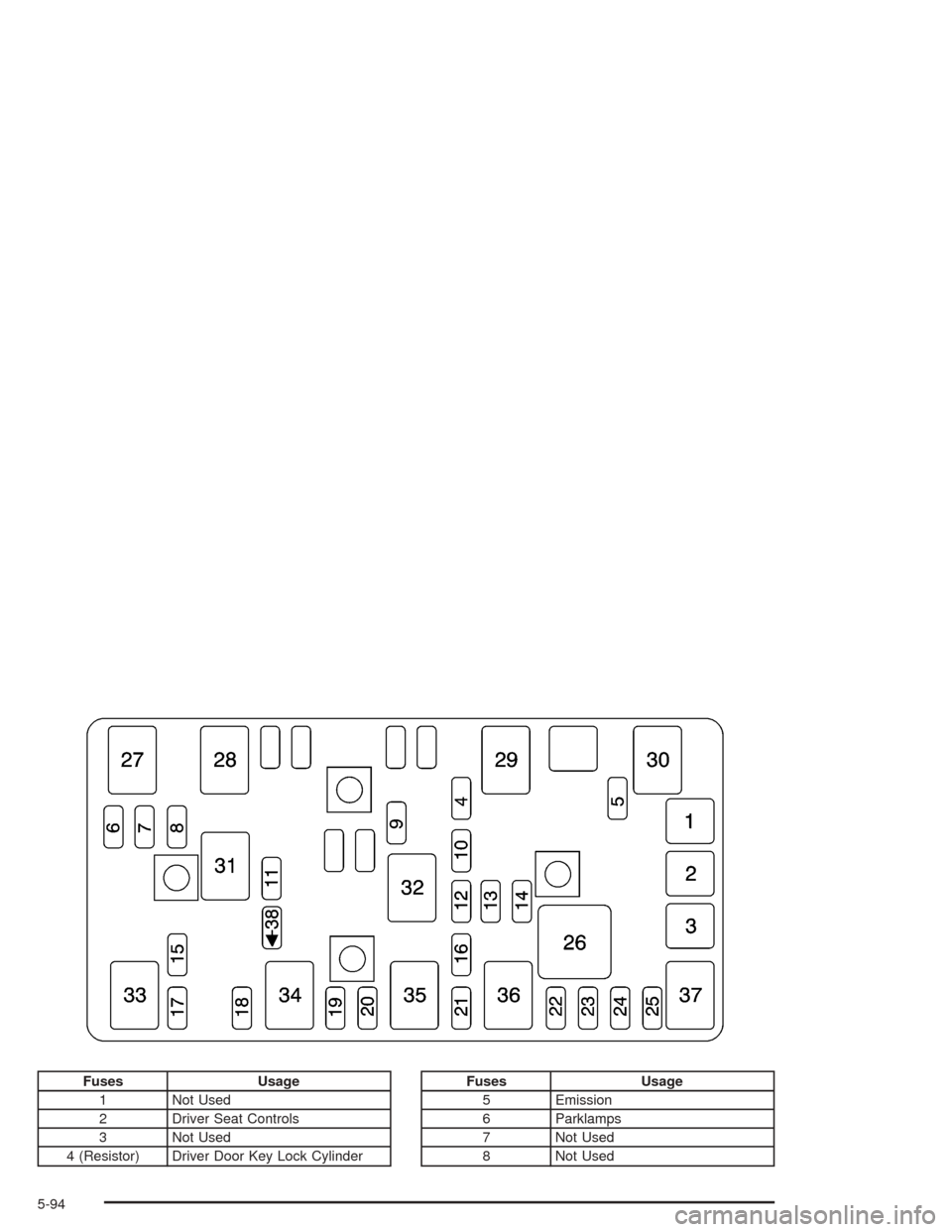

Fuses Usage
1 Not Used
2 Driver Seat Controls
3 Not Used
4 (Resistor) Driver Door Key Lock CylinderFuses Usage
5 Emission
6 Parklamps
7 Not Used
8 Not Used
