2004 CHEVROLET CORVETTE Owners Manual

You can use the key to lock and unlock the console. Do
not leave the key in the lock, or it could be damaged
when the driver sits down.
The fuel filler door release button and accessory power
outlet are located inside the center console.
Floor Mats
The floor mats are specially designed to remain in
position under your feet and out of reach of the
accelerator pedal. The driver’s side floor mat is held in
place by two locator hooks and the passenger’s
side is held in place by one.
Be sure that the driver’s side floor mat is properly
placed on the floor so that it does not block the
movement of the accelerator pedal.
How to Remove and Replace the
Floor Mats
To remove the floor mats,
pull up on the rear of the
mat to disconnect from
the locator hooks.
To reinstall the floor mats, line up the openings in the
floor mat over the locator hooks and push down
into place.
2-41

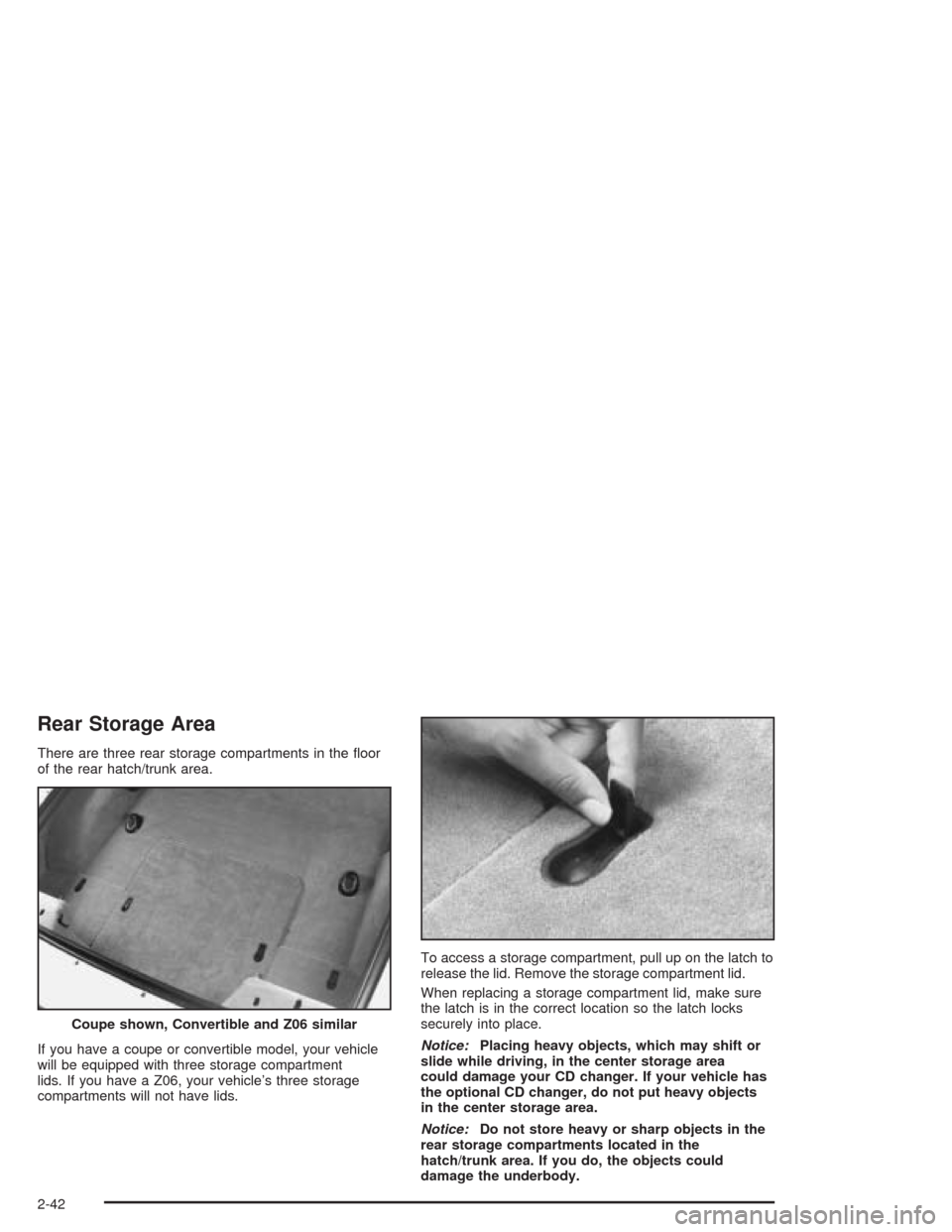

Rear Storage Area
There are three rear storage compartments in the floor
of the rear hatch/trunk area.
If you have a coupe or convertible model, your vehicle
will be equipped with three storage compartment
lids. If you have a Z06, your vehicle’s three storage
compartments will not have lids.To access a storage compartment, pull up on the latch to
release the lid. Remove the storage compartment lid.
When replacing a storage compartment lid, make sure
the latch is in the correct location so the latch locks
securely into place.
Notice:Placing heavy objects, which may shift or
slide while driving, in the center storage area
could damage your CD changer. If your vehicle has
the optional CD changer, do not put heavy objects
in the center storage area.
Notice:Do not store heavy or sharp objects in the
rear storage compartments located in the
hatch/trunk area. If you do, the objects could
damage the underbody. Coupe shown, Convertible and Z06 similar
2-42

Convenience Net
If your vehicle has this feature you will see it on the
back wall of the rear area of the vehicle.
Put small loads, like grocery bags, in the net. It can help
keep them from falling over during sharp turns or
quick starts and stops. The convenience net is not for
larger, heavier loads.
You can unhook the net and place it in one of the rear
storage compartments when you are not using it.
On coupe models only, a plastic storage bag has also
been provided.
Cargo Cover
If your vehicle has this feature, the security shade can
provide hidden storage in the rear area of the vehicle.
The shade is also helpful in blocking the glare from the
removable roof when it is stored in the rear
compartment.
Using the Cargo Cover
1. Hook the elastic loops
on the front corners (A)
of the shade to the
T-nuts located on the
front corners of the rear
hatch frame.
2. Hook the elastic loops on the rear corners (B) of the
shade to the hooks recessed inside the rear hatch
frame, near the rear corners.
2-43

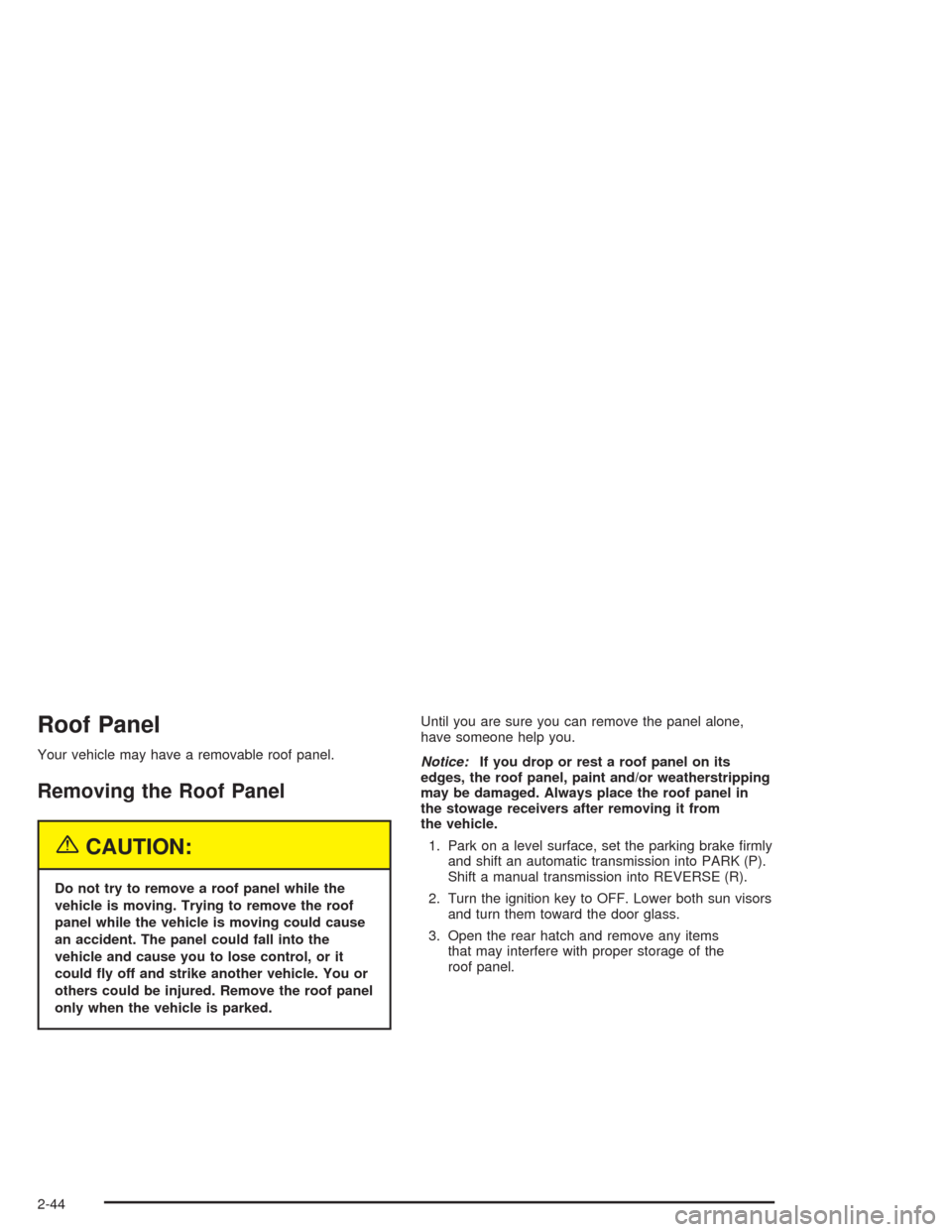

Roof Panel
Your vehicle may have a removable roof panel.
Removing the Roof Panel
{CAUTION:
Do not try to remove a roof panel while the
vehicle is moving. Trying to remove the roof
panel while the vehicle is moving could cause
an accident. The panel could fall into the
vehicle and cause you to lose control, or it
could y off and strike another vehicle. You or
others could be injured. Remove the roof panel
only when the vehicle is parked.Until you are sure you can remove the panel alone,
have someone help you.
Notice:If you drop or rest a roof panel on its
edges, the roof panel, paint and/or weatherstripping
may be damaged. Always place the roof panel in
the stowage receivers after removing it from
the vehicle.
1. Park on a level surface, set the parking brake firmly
and shift an automatic transmission into PARK (P).
Shift a manual transmission into REVERSE (R).
2. Turn the ignition key to OFF. Lower both sun visors
and turn them toward the door glass.
3. Open the rear hatch and remove any items
that may interfere with proper storage of the
roof panel.
2-44

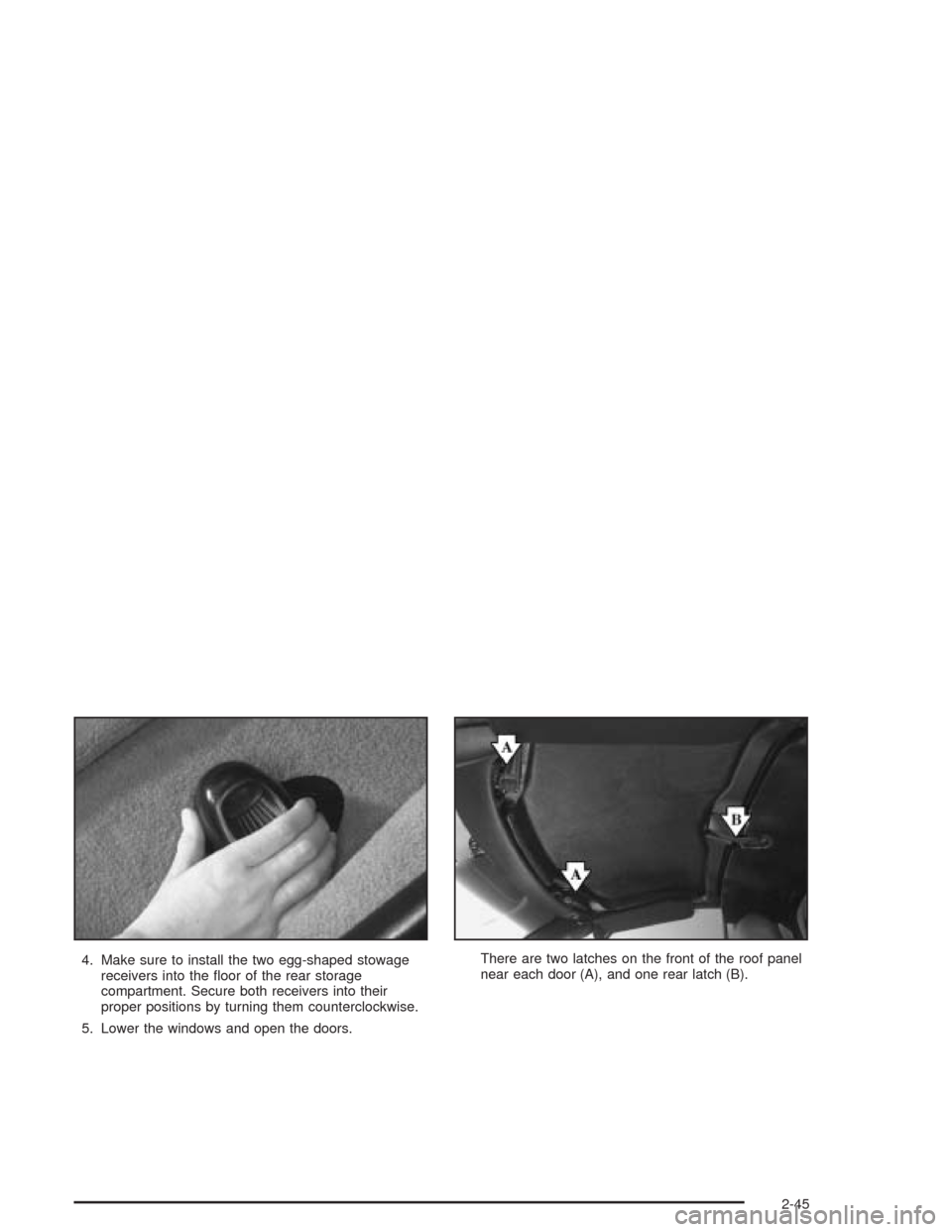

4. Make sure to install the two egg-shaped stowage
receivers into the floor of the rear storage
compartment. Secure both receivers into their
proper positions by turning them counterclockwise.
5. Lower the windows and open the doors.There are two latches on the front of the roof panel
near each door (A), and one rear latch (B).
2-45

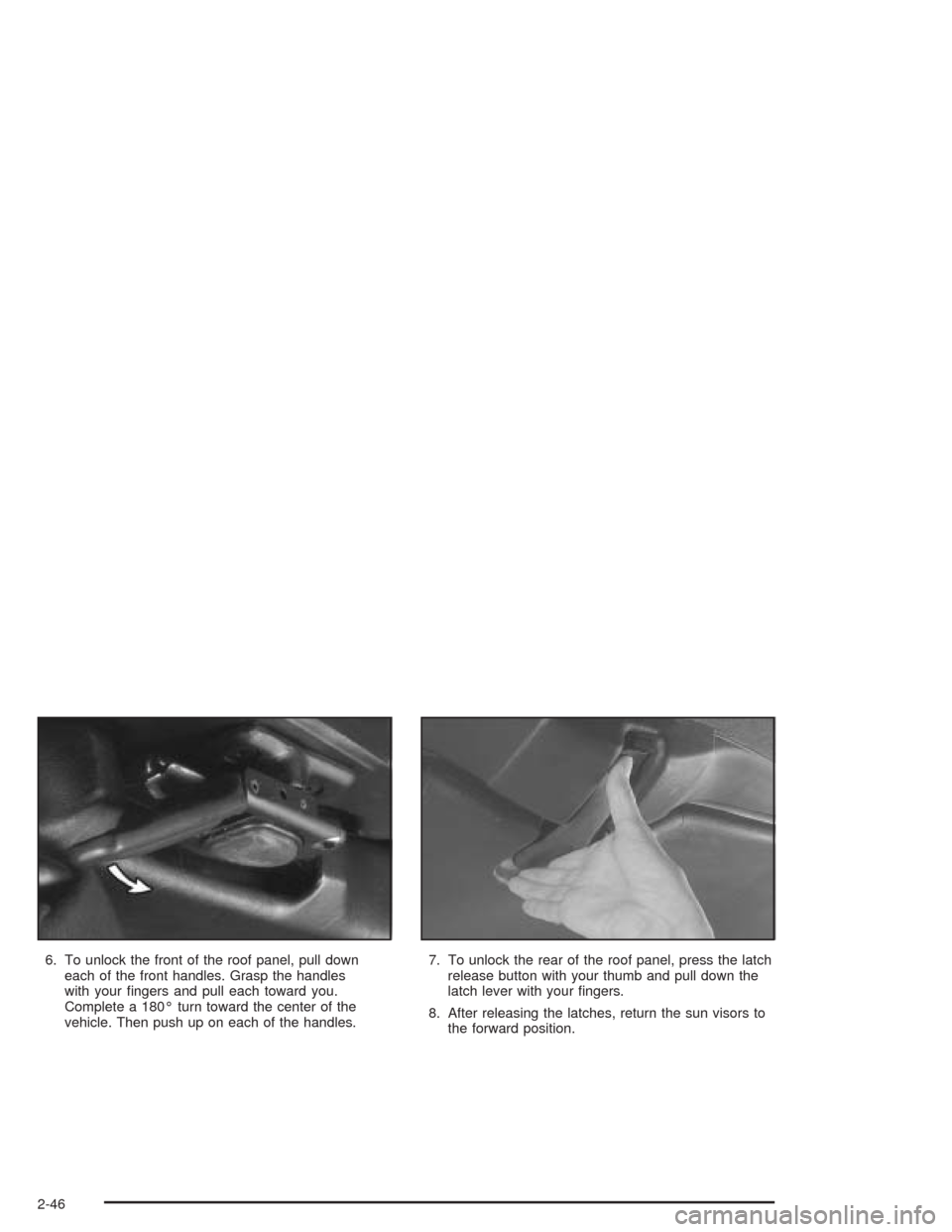

6. To unlock the front of the roof panel, pull down
each of the front handles. Grasp the handles
with your fingers and pull each toward you.
Complete a 180° turn toward the center of the
vehicle. Then push up on each of the handles.7. To unlock the rear of the roof panel, press the latch
release button with your thumb and pull down the
latch lever with your fingers.
8. After releasing the latches, return the sun visors to
the forward position.
2-46

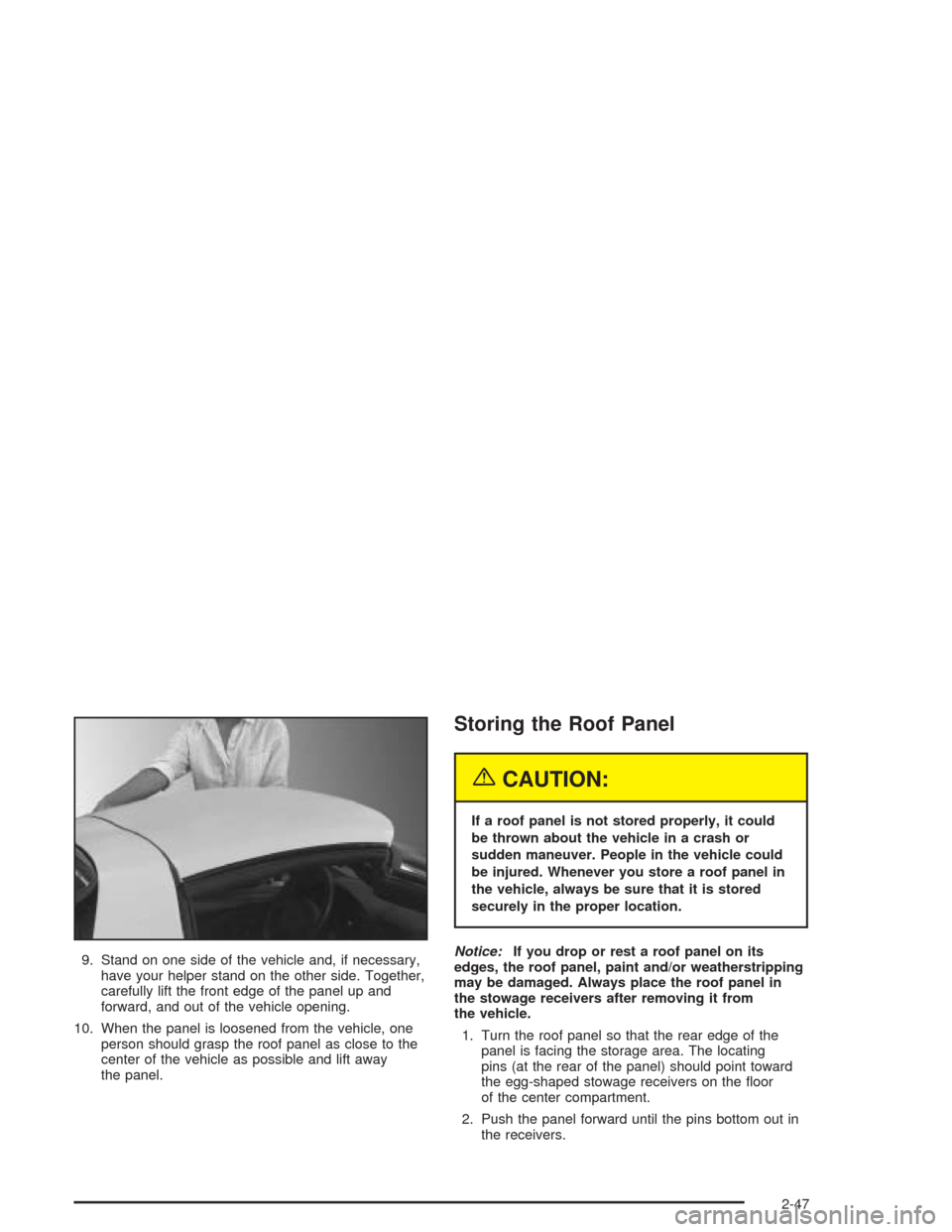

9. Stand on one side of the vehicle and, if necessary,
have your helper stand on the other side. Together,
carefully lift the front edge of the panel up and
forward, and out of the vehicle opening.
10. When the panel is loosened from the vehicle, one
person should grasp the roof panel as close to the
center of the vehicle as possible and lift away
the panel.
Storing the Roof Panel
{CAUTION:
If a roof panel is not stored properly, it could
be thrown about the vehicle in a crash or
sudden maneuver. People in the vehicle could
be injured. Whenever you store a roof panel in
the vehicle, always be sure that it is stored
securely in the proper location.
Notice:If you drop or rest a roof panel on its
edges, the roof panel, paint and/or weatherstripping
may be damaged. Always place the roof panel in
the stowage receivers after removing it from
the vehicle.
1. Turn the roof panel so that the rear edge of the
panel is facing the storage area. The locating
pins (at the rear of the panel) should point toward
the egg-shaped stowage receivers on the floor
of the center compartment.
2. Push the panel forward until the pins bottom out in
the receivers.
2-47

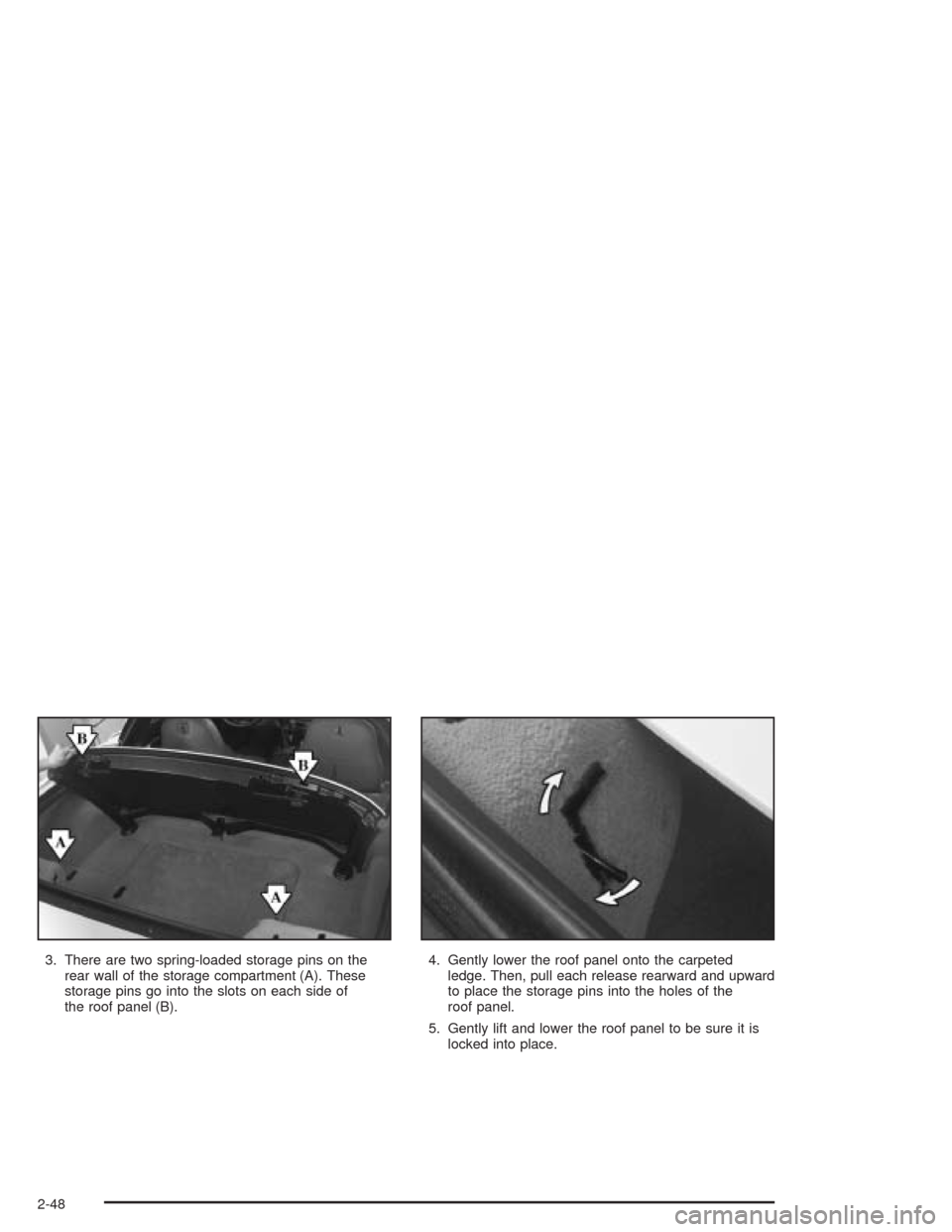

3. There are two spring-loaded storage pins on the
rear wall of the storage compartment (A). These
storage pins go into the slots on each side of
the roof panel (B).4. Gently lower the roof panel onto the carpeted
ledge. Then, pull each release rearward and upward
to place the storage pins into the holes of the
roof panel.
5. Gently lift and lower the roof panel to be sure it is
locked into place.
2-48
