2004 BMW MOTORRAD K 1200 GT Rider's Manual (in English)

15
General information and controls
11
AB
Toggling between time/
ambient-temperature
reading
• Switch on the ignition
• Briefly press BC-button 1

Note:
Use a ball-point pen or similar in-
strument to press button A or B.
Toggling between
°C and °F
• Switch off the ignition
• Press and hold down button B
• Switch on the ignition
• Hold down button B for
approximately 3 seconds
longer
Display, ambient temperature
10k4101g3.fm Seite 15 Donnerstag, 27. Mai 2004 5:30 17

16
General information and controls
1

Note:
With automatic cruise control,
speed can be controlled in the
range between 40 and 180 km/h
(25 and 112 mph).
When the motorcycle is at a
standstill and – ignition OFF –
the system is switched off and
the stored road speed is can-
celled.
Telltale light, cruise control
yellow off.
On a motorcycle fitted with
BMW Integral ABS, the cruise-
control system is not operation-
al if the brake light is defective
(general warning light red


ON
68).
OEOptional extra
 Warning:
Do not engage cruise control
when:
– Riding on twisty roads with poor forward vision
– Heavy traffic does not enable
you to maintain a constant
road speed
– Riding on wet, unpaved or dirty roads
The motorcycle might exceed
your chosen cruise control
speed if the engine's braking
effect is insufficient on a down-
hill gradient. It could also drop
below this speed when you
ride uphill.
For safety reasons, always
keep both hands on the
handlebars.
Cruise controlOE
10k41bkg3.book Seite 16 Donnerstag, 27. Mai 2004 5:30 17

17
General information and controls
1
Switching on the system• Move switch1 to ON
– Red telltale light 2 in
switch is on
Setting road speed • Briefly press button 3 in SET
direction
– Telltale light, cruise control
yellow on.

Note:
The motorcycle maintains and
memorises your current cruis-
ing speed.
OEOptional extra
Cruise controlOE
1
3
2
10k41bkg3.book Seite 17 Donnerstag, 27. Mai 2004 5:30 17

18
General information and controls
1
Step-by-step acceleration• Push button1 in SET
direction
– Memorised road speed increases by approx. 2 km/h
(1 mph)

Note:
Every subsequent time you
push button 1 in the SET direc-
tion, road speed increases by a
further 2 km/h (1 mph).
Stepless
acceleration
• Push and hold button 1 in
SET direction
– The motorcycle accelerates
steadily, even though you do
not manually open the throttle
• Release button 1
– The motorcycle maintains and memorises your current cruis-
ing speed
OEOptional extra
Cruise controlOE
1
10k41bkg3.book Seite 18 Donnerstag, 27. Mai 2004 5:30 17

19
General information and controls
1
Decelerating• Push and hold button1 in RES
direction
– The motorcycle decelerates steadily, even though you do
not manually close the throttle

Note:
Every subsequent time you push
the button in the RES direction,
road speed decreases by a
further 2 km/h (1 mph).
Switching off the system• Move switch 3 to OFF
– The cruise control system switches off immediately
– Red indicator light 2 and the
yellow cruise control light
are off


Temporary override
When you actuate the: –brakes
–clutch
– throttle twistgrip (close the throttle)
the cruise control system is
briefly switched off
– Indicator light, cruise control yellow off
– Red indicator light 2 on
• Push button 1 in the RES
direction
– The motorcycle returns to and maintains the cruising speed
stored in memory
– Indicator light, cruise control
yellow on.
OEOptional extra
Cruise controlOE
1
3
2
10k41bkg3.book Seite 19 Donnerstag, 27. Mai 2004 5:30 17

20
General information and controls
1
Adjusting footrest plate
 Warning:
If a footrest is repositioned,
the footrest on the other side
of the motorcycle must be
moved to the same height.
Adjust the gearshift lever to
suit the new footrest position.
 Attention:
For a sporting riding style, both
footrest plates should be in the
upper position.
 Warning:
Make sure that lines and cables
are correctly routed.
Do not damage electric wiring.
Always tighten socket-head
screws 1 and 2 to the specified
torque.
If you do not have a suitable
torque wrench, have the foot-
rest plates and gearshift lever
adjusted by a specialist work-
shop, preferably an authorised
BMW motorcycle dealer.
10k41bkg3.book Seite 20 Donnerstag, 27. Mai 2004 5:30 17

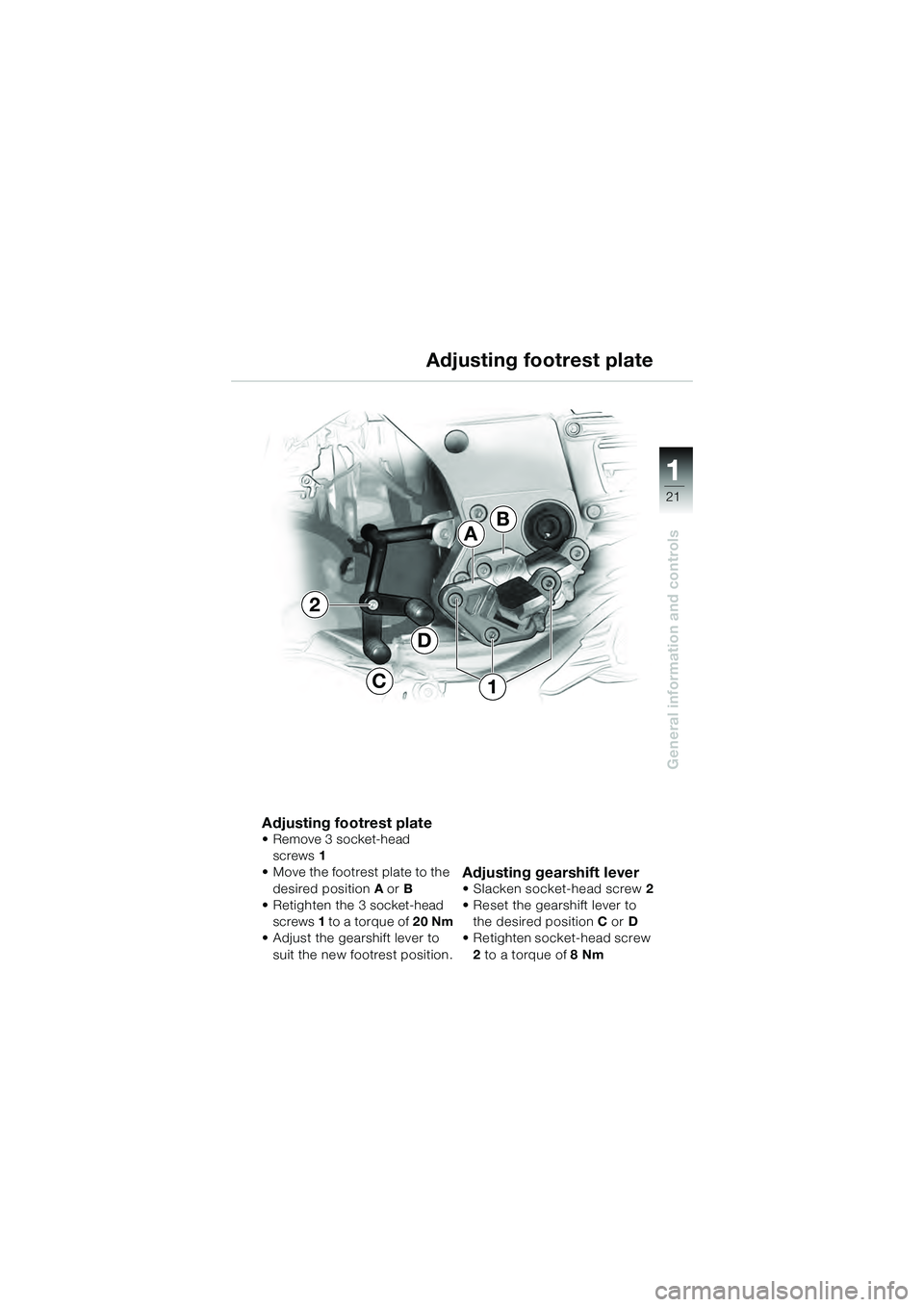

21
General information and controls
1
Adjusting footrest plate• Remove 3 socket-head screws 1
• Move the footrest plate to the
desired position A or B
• Retighten the 3 socket-head
screws 1 t o a tor qu e of 20 Nm
• Adjust the gearshift lever to
suit the new footrest position.
Adjusting gearshift lever• Slacken socket-head screw 2
• Reset the gearshift lever to
the desired position C or D
• Retighten socket-head screw
2 to a torque of 8Nm
Adjusting footrest plate
2
AB
D
C1
10k41bkg3.book Seite 21 Donnerstag, 27. Mai 2004 5:30 17

22
General information and controls
1
Removing seat:• Turn key1 in the seat lock to
position A and hold it in this
position
• Pull the seat to the rear and up into the 1st stage C of the
locking mechanism.
• Remove the seat
– Toolkit is accessible
– Fuses are accessible
– Coolant expansion tank is accessible
Adjusting seat:– The seat can be moved to 2 positions:
E = high D = low
 Attention:
When installing the seat, make
sure that it is firmly located.
•Turn key 1 in the seat lock to
position A and hold it in this
position
• Pull the seat to the rear and up into the 1st stage C of the
locking mechanism.
Seat
A
1
B
C
10k41bkg3.book Seite 22 Donnerstag, 27. Mai 2004 5:30 17
