2004 BMW MOTORRAD K 1200 GT cruise control

2
Introduction
i

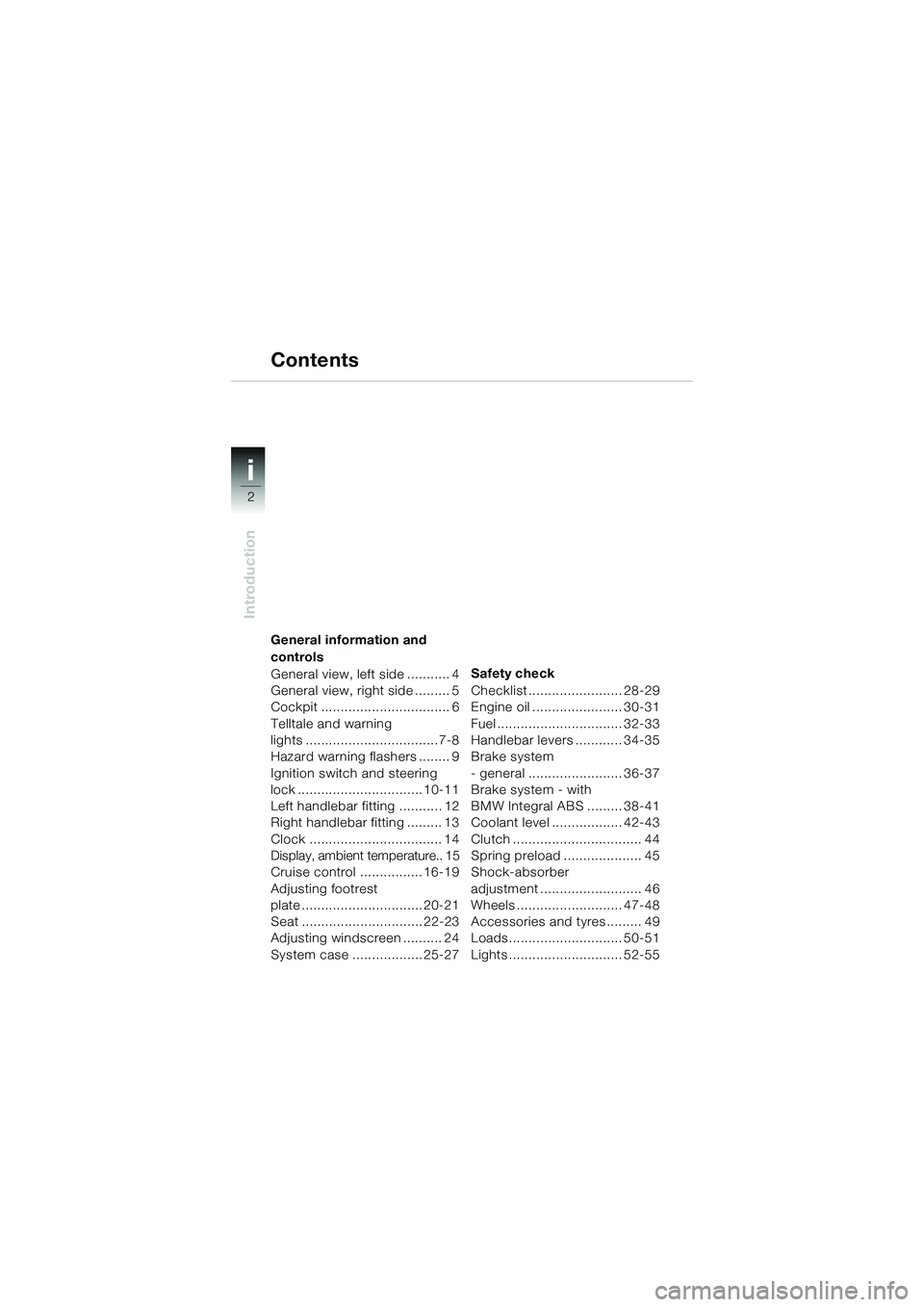

General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning
lights .................................. 7-8
Hazard warning flashers ........ 9
Ignition switch and steering
lock ................................ 10-11
Left handlebar fitting ........... 12
Right handlebar fitting ......... 13
Clock .................................. 14
Display, ambient temperature.. 15
Cruise control ................ 16-19
Adjusting footrest
plate ............................... 20-21
Seat ............................... 22-23
Adjusting windscreen .......... 24
System case .................. 25-27Safety check
Checklist ........................ 28-29
Engine oil ....................... 30-31
Fuel ................................ 32-33
Handlebar levers ............ 34-35
Brake system
- general ........................ 36-37
Brake system - with
BMW Integral ABS ......... 38-41
Coolant level .................. 42-43
Clutch ................................. 44
Spring preload .................... 45
Shock-absorber
adjustment .......................... 46
Wheels ........................... 47-48
Accessories and tyres......... 49
Loads............................. 50-51
Lights ............................. 52-55
Contents
10k41bkg3.book Seite 2 Donnerstag, 27. Mai 2004 5:30 17

7
General information and controls
1
1Telltale light, left turn indica-
tor repeater green


2 Warning light ABS
red
 (
68)
3 Warning light, general
red

(
68)
4 Telltale light, neutral telltale
light green
 (
66)
5 Telltale light, cruise control
yellow
OE (
16-19)
OEOptional extra
*
n depending on national-market
specification
6 Telltale light, right turn indi-
cator green

7 Display, time/ambient tem-
perature,
buttons A andB: set clock/
toggle °C - °F (

14-15)
8 Gear indicator
( ) Number in parentheses

page number for description
Telltale and warning lights
78
6A14B2*35
10k41bkg3.book Seite 7 Donnerstag, 27. Mai 2004 5:30 17

12
General information and controls
1

Warning:
To prevent air from entering
the hydraulic circuit of the
clutch:
• do not turn the fitting on the
handlebar.
1 Switch for cruise control
OE
(
17)
2 Hazard warning flasher
switch (

9)
3 Switch for windscreen
adjustment (

24)
4 Horn push 5
Turn indicator switch, left
•Press
– Turn indicators operate
To switch off turn indicators:
• Self-cancelling while rid-
ing, or press turn-indica-
tor cancel switch 12
(

13)
6 High-beam/low-beam
headlight switch

High-beam headlight
Low-beam headlight

Headlight flasher
OEOptional extra
Left handlebar fitting
123
654
10k4101g3.fm Seite 12 Mittwoch, 9. Juni 2004 3:23 15

16
General information and controls
1

Note:

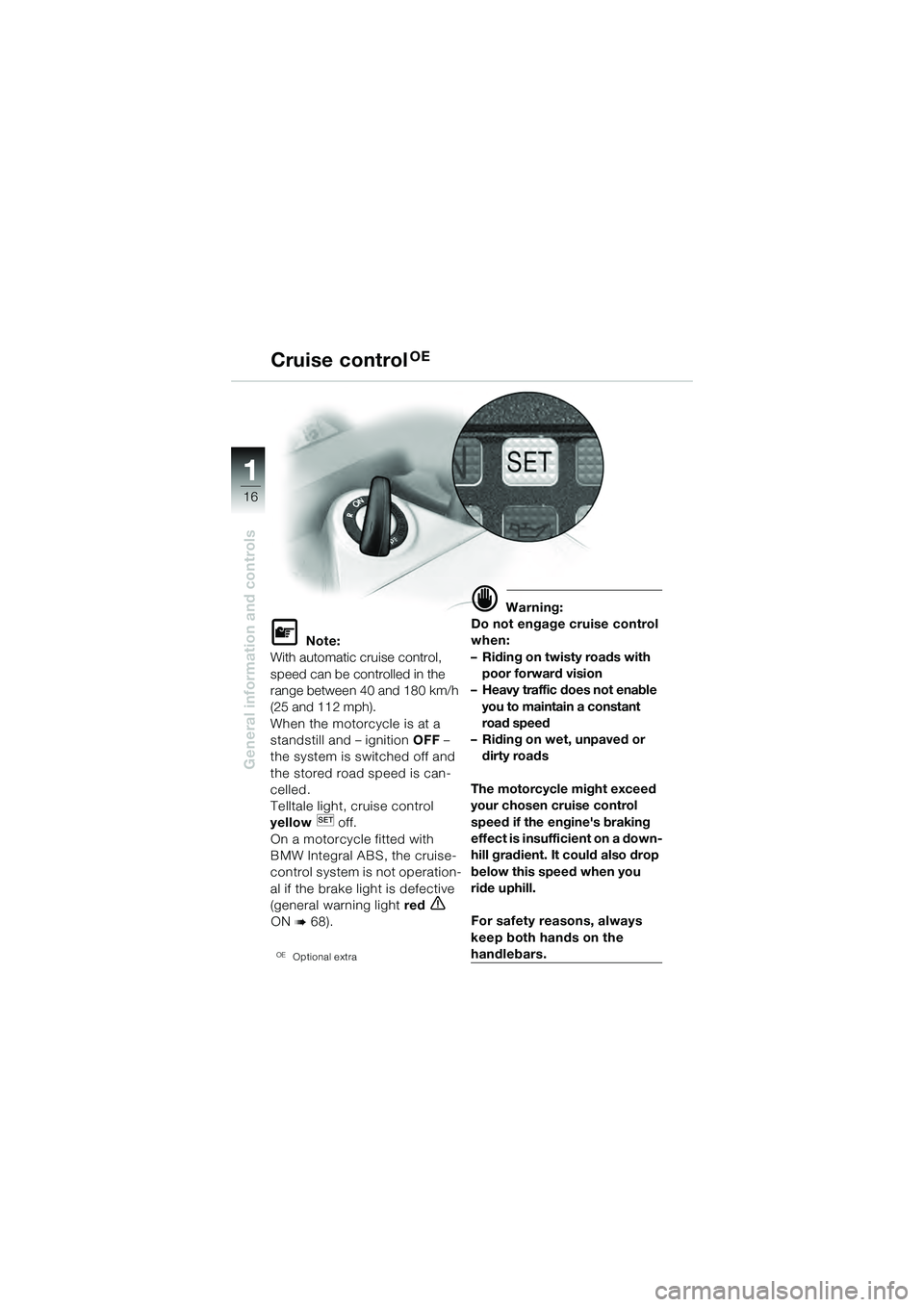

With automatic cruise control,
speed can be controlled in the
range between 40 and 180 km/h
(25 and 112 mph).
When the motorcycle is at a
standstill and – ignition OFF –
the system is switched off and
the stored road speed is can-
celled.
Telltale light, cruise control
yellow off.
On a motorcycle fitted with
BMW Integral ABS, the cruise-
control system is not operation-
al if the brake light is defective
(general warning light red


ON
68).
OEOptional extra
 Warning:
Do not engage cruise control
when:
– Riding on twisty roads with poor forward vision
– Heavy traffic does not enable
you to maintain a constant
road speed
– Riding on wet, unpaved or dirty roads
The motorcycle might exceed
your chosen cruise control
speed if the engine's braking
effect is insufficient on a down-
hill gradient. It could also drop
below this speed when you
ride uphill.
For safety reasons, always
keep both hands on the
handlebars.
Cruise controlOE
10k41bkg3.book Seite 16 Donnerstag, 27. Mai 2004 5:30 17

17
General information and controls
1

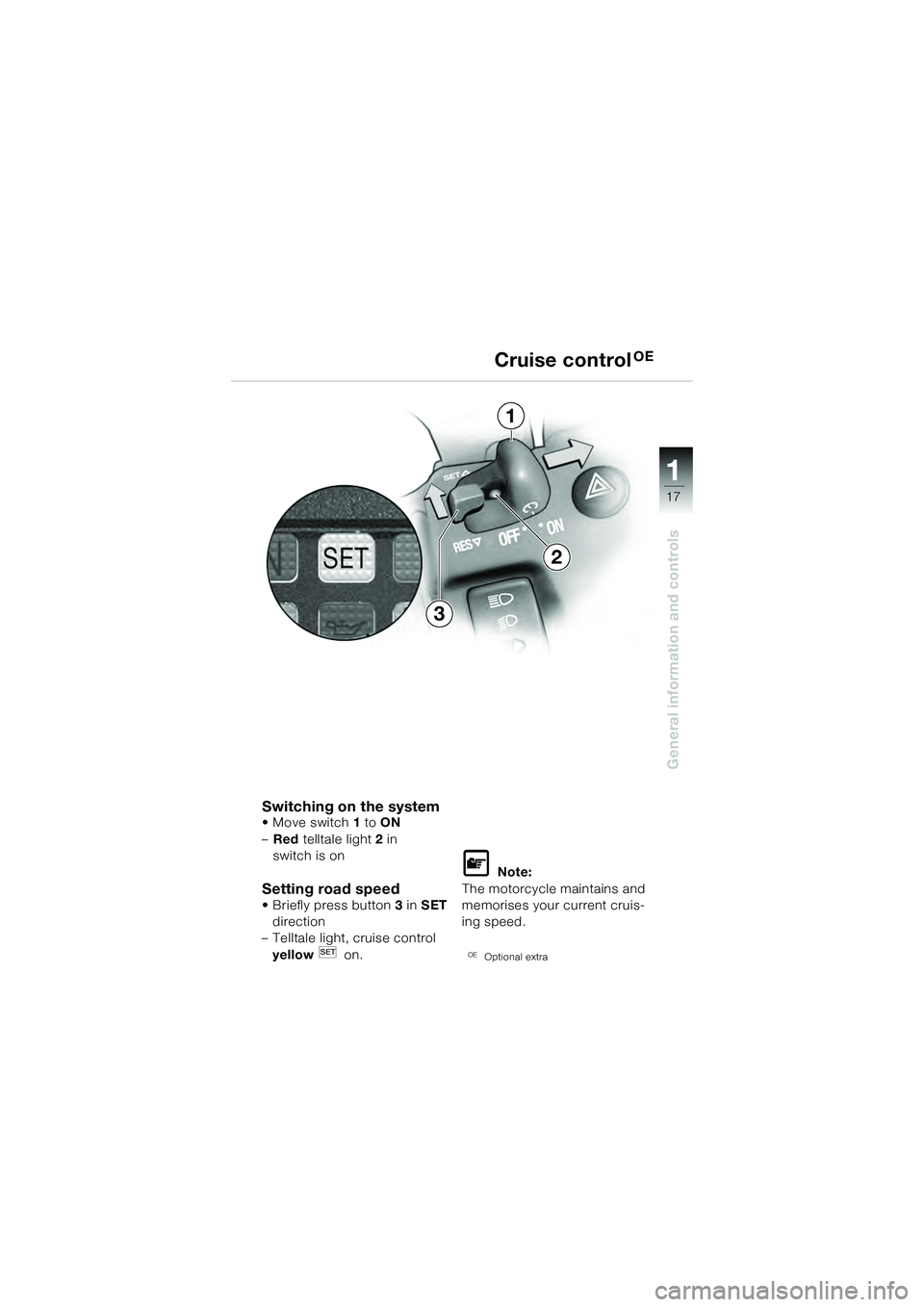

Switching on the system• Move switch1 to ON
– Red telltale light 2 in
switch is on
Setting road speed • Briefly press button 3 in SET
direction
– Telltale light, cruise control
yellow on.

Note:
The motorcycle maintains and
memorises your current cruis-
ing speed.
OEOptional extra
Cruise controlOE
1
3
2
10k41bkg3.book Seite 17 Donnerstag, 27. Mai 2004 5:30 17

18
General information and controls
1

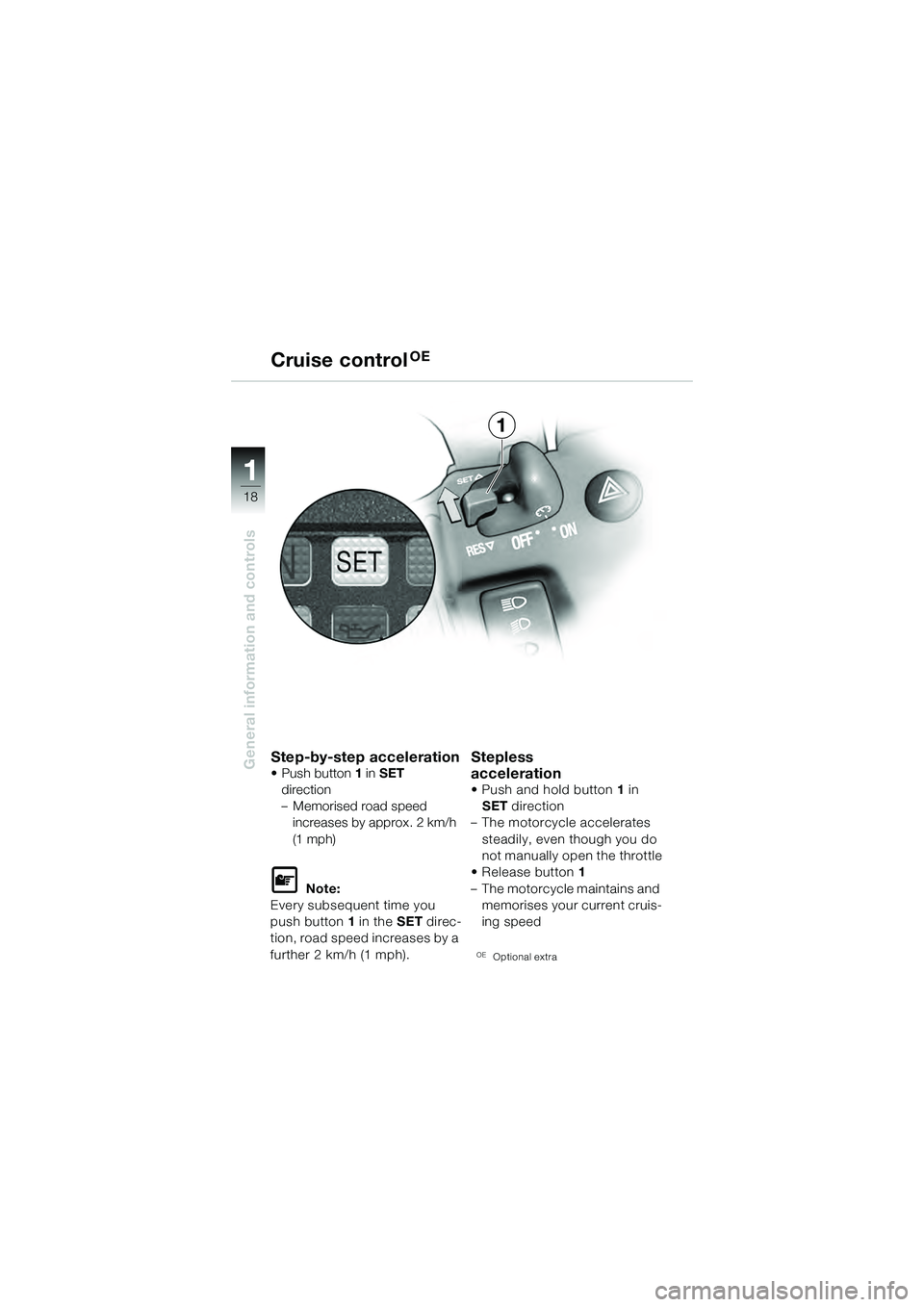

Step-by-step acceleration• Push button1 in SET
direction
– Memorised road speed increases by approx. 2 km/h
(1 mph)

Note:
Every subsequent time you
push button 1 in the SET direc-
tion, road speed increases by a
further 2 km/h (1 mph).
Stepless
acceleration
• Push and hold button 1 in
SET direction
– The motorcycle accelerates
steadily, even though you do
not manually open the throttle
• Release button 1
– The motorcycle maintains and memorises your current cruis-
ing speed
OEOptional extra
Cruise controlOE
1
10k41bkg3.book Seite 18 Donnerstag, 27. Mai 2004 5:30 17

19
General information and controls
1

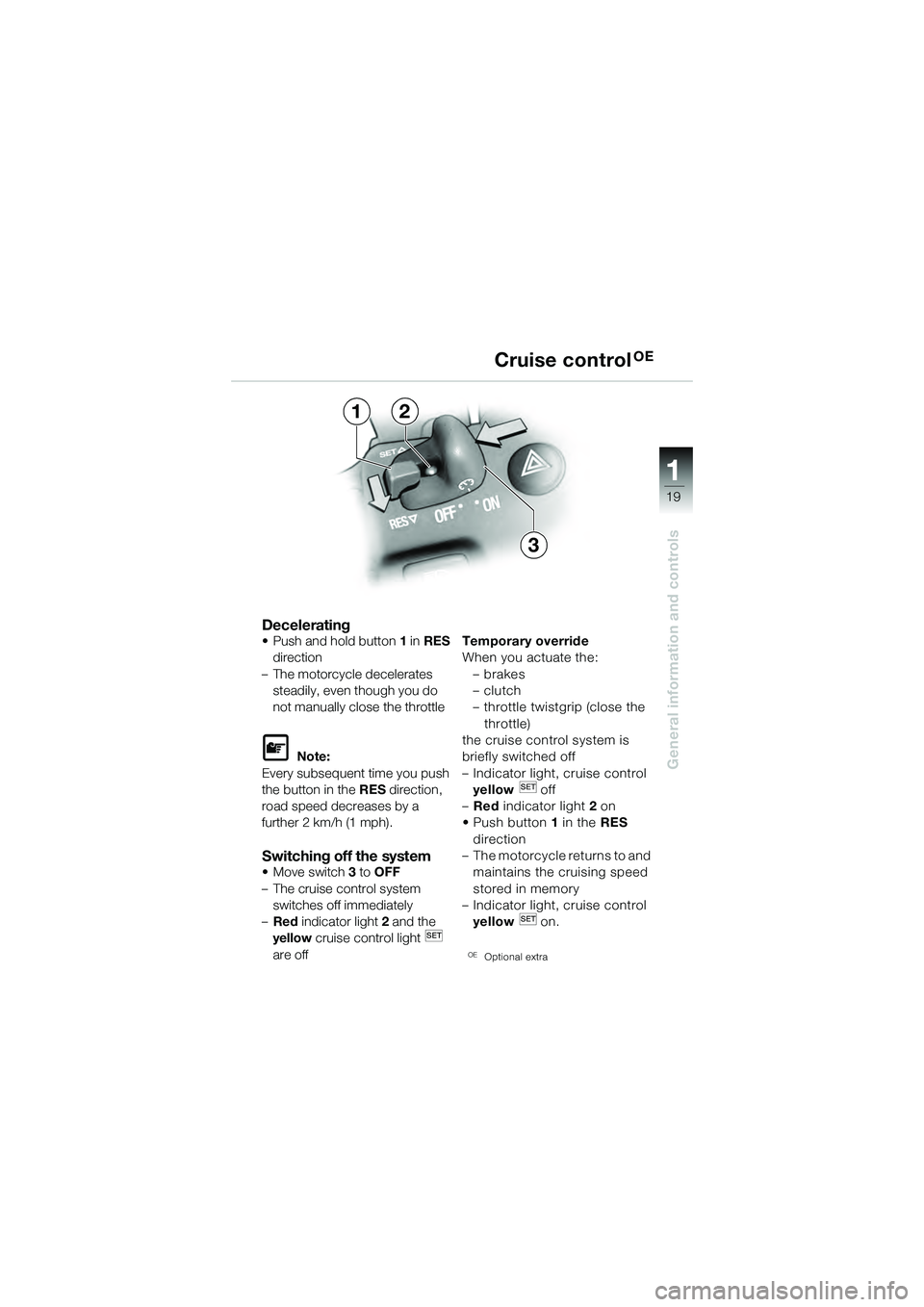

Decelerating• Push and hold button1 in RES
direction
– The motorcycle decelerates steadily, even though you do
not manually close the throttle

Note:
Every subsequent time you push
the button in the RES direction,
road speed decreases by a
further 2 km/h (1 mph).
Switching off the system• Move switch 3 to OFF
– The cruise control system switches off immediately
– Red indicator light 2 and the
yellow cruise control light
are off


Temporary override
When you actuate the: –brakes
–clutch
– throttle twistgrip (close the throttle)
the cruise control system is
briefly switched off
– Indicator light, cruise control yellow off
– Red indicator light 2 on
• Push button 1 in the RES
direction
– The motorcycle returns to and maintains the cruising speed
stored in memory
– Indicator light, cruise control
yellow on.
OEOptional extra
Cruise controlOE
1
3
2
10k41bkg3.book Seite 19 Donnerstag, 27. Mai 2004 5:30 17

3
81
Starting – Riding – Parking
BMW Integral ABS - Troubleshooting
OEOptional extra
Warning light,
generalABS warning
light Malfunctions
OFF ON Only RESIDUAL BRAKING FUNCTION available in both circuits (

77)
OFF Flashes at 1 HzABS not available
Pull-away test not completed (

78)
OFF Flashes at 4 HzOnly RESIDUAL BRAKING FUNCTION
available in both circuits (

77)
Self-diagnosis not completed (
78)
ON OFF Rear light/brake light defective (

Maintenance Instructions, Chapter 2)
Cruise-control systemOE not available.
ON Flashes at 1 HzAt least one brake circuit without
ABS (

80)
ON Flashes at 4 HzAt least one brake circuit in RESIDUAL
BRAKING FUNCTION mode (

77)
Alternate
flashing at
1 Hz Alternate
flashing at
1 HzFluid level in BMW Integral ABS too low.
Check the motorcycle as follows:
– Ignition OFF: is brake pressure OK at
the brake levers?
– Are the brakes acting on both wheels?
– Is the brake system leaktight, no signs of brake fluid escaping?
The brake system is defective if the test
outcome is negative.
Alternate
flashing at
4 Hz Alternate
flashing at
4 HzFluid level in the BMW Integral ABS is too
low, perform the checks listed above.
Only RESIDUAL BRAKING FUNCTION
available in at least one circuit (

77)
 Warning:
Do not ride the motorcycle if you have
any doubts about the dependability of
the brake system.
10k41bkg3.book Seite 81 Donnerstag, 27. Mai 2004 5:30 17
