2004 BMW MOTORRAD K 1200 GT engine

2
Introduction
i
General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning
lights .................................. 7-8
Hazard warning flashers ........ 9
Ignition switch and steering
lock ................................ 10-11
Left handlebar fitting ........... 12
Right handlebar fitting ......... 13
Clock .................................. 14
Display, ambient temperature.. 15
Cruise control ................ 16-19
Adjusting footrest
plate ............................... 20-21
Seat ............................... 22-23
Adjusting windscreen .......... 24
System case .................. 25-27Safety check
Checklist ........................ 28-29
Engine oil ....................... 30-31
Fuel ................................ 32-33
Handlebar levers ............ 34-35
Brake system
- general ........................ 36-37
Brake system - with
BMW Integral ABS ......... 38-41
Coolant level .................. 42-43
Clutch ................................. 44
Spring preload .................... 45
Shock-absorber
adjustment .......................... 46
Wheels ........................... 47-48
Accessories and tyres......... 49
Loads............................. 50-51
Lights ............................. 52-55
Contents
10k41bkg3.book Seite 2 Donnerstag, 27. Mai 2004 5:30 17

5
General information and controls
1
General view, right side
13Luggage rack
14 Brake-fluid reservoir for
front brake (

40)
15 Windscreen, electrically
adjustable (

24)
16 Hand protector, right
17 Engine oil filler neck
(

31)
18 Oil level sight glass, engine
(

31)
19 Leg protector, right
20 VIN 21
Rear suspension strut,
shock-absorber adjuster
(

46)
22 Brake-fluid reservoir for rear
brake (

41)
23 System case, right (

25)
24 Type plate
( ) Number in parentheses

page number for description
13141516
24
23212019181722
10k41bkg3.book Seite 5 Donnerstag, 27. Mai 2004 5:30 17

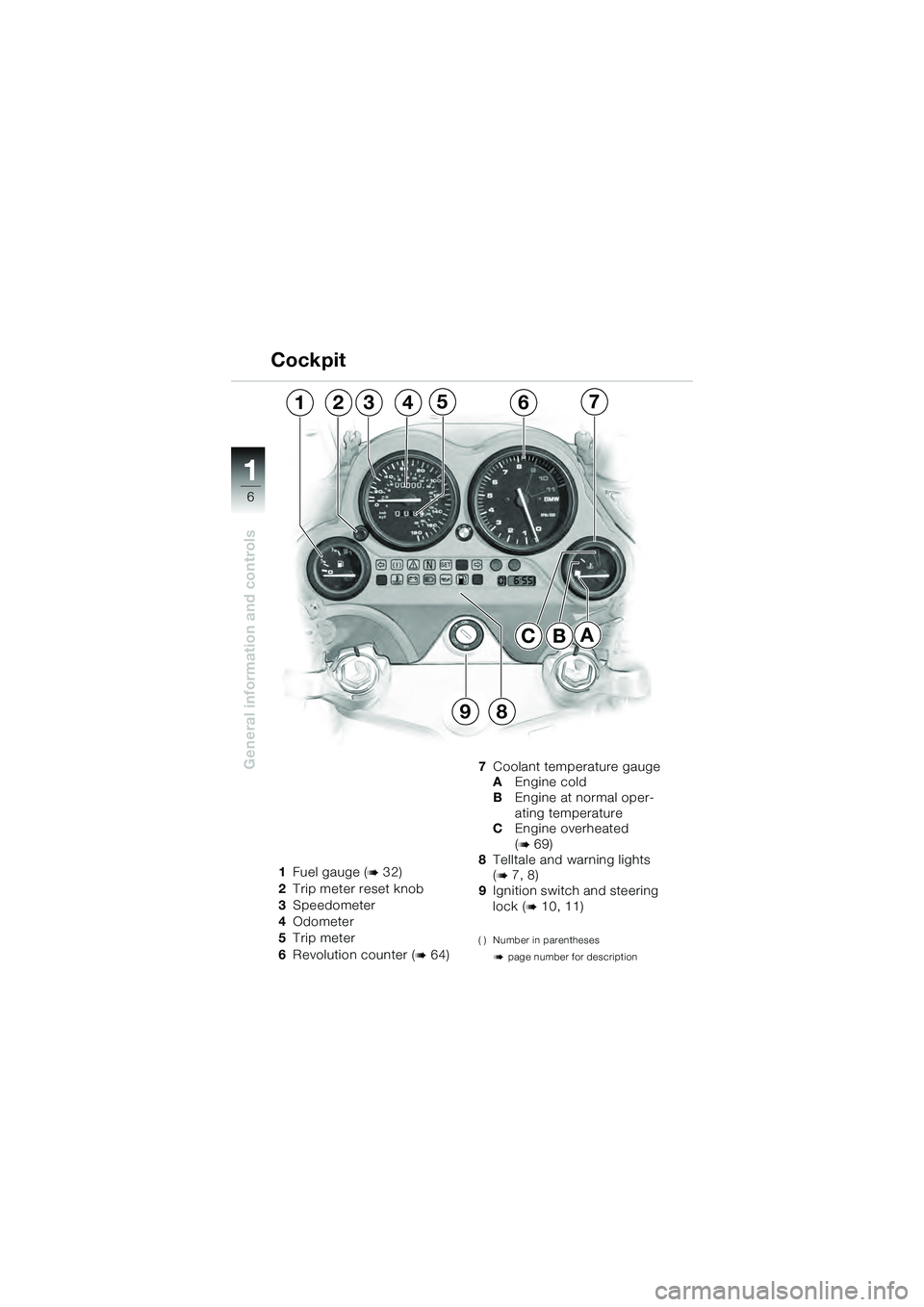

6
General information and controls
1
1Fuel gauge (
32)
2 Trip meter reset knob
3 Speedometer
4 Odometer
5 Trip meter
6 Revolution counter (

64) 7
Coolant temperature gauge
A Engine cold
B Engine at normal oper-
ating temperature
C Engine overheated
(

69)
8 Telltale and warning lights
(

7, 8)
9 Ignition switch and steering
lock (

10, 11)
( ) Number in parentheses

page number for description
Cockpit
CA
1234567
98
B
10k41bkg3.book Seite 6 Donnerstag, 27. Mai 2004 5:30 17

8
General information and controls
1
Telltale and warning lights
1Warning light, coolant tem-
perature
 red (
42, 69)
2 Warning light, battery
charge current red

(
69)
3 Telltale light, high-beam
headlight blue

4 Warning light, engine oil
pressure red
\b (
31, 68) 5
Warning light, fuel level/
when approx. 4 litres
(0.9 gal) left in tank yellow


(
33, 68)
( ) Number in parentheses

page number for description
34512
10k41bkg3.book Seite 8 Donnerstag, 27. Mai 2004 5:30 17

16
General information and controls
1

Note:
With automatic cruise control,
speed can be controlled in the
range between 40 and 180 km/h
(25 and 112 mph).
When the motorcycle is at a
standstill and – ignition OFF –
the system is switched off and
the stored road speed is can-
celled.
Telltale light, cruise control
yellow off.
On a motorcycle fitted with
BMW Integral ABS, the cruise-
control system is not operation-
al if the brake light is defective
(general warning light red


ON
68).
OEOptional extra
 Warning:
Do not engage cruise control
when:
– Riding on twisty roads with poor forward vision
– Heavy traffic does not enable
you to maintain a constant
road speed
– Riding on wet, unpaved or dirty roads
The motorcycle might exceed
your chosen cruise control
speed if the engine's braking
effect is insufficient on a down-
hill gradient. It could also drop
below this speed when you
ride uphill.
For safety reasons, always
keep both hands on the
handlebars.
Cruise controlOE
10k41bkg3.book Seite 16 Donnerstag, 27. Mai 2004 5:30 17

22
29
Safety check
2
For this reason, check the
details in the following sections
before you start the journey:
– Fuel level
– Positions of the handlebar levers
–Brakes
–Brake fluid level
– Clutch fluid level
– Coolant level
– Shock-absorber setting and spring preload
– Wheel rim and tyre condition, tread depth and tyre
pressures
– Load, gross weight
–Lights
– Warning lights and indicator lights with ignition switched
on – Check regularly (every time
you stop for fuel), on the basis
of the following section:
– Engine oil level (every sec- ond/third stop for fuel):
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
motorcycle dealer.
He will provide the necessary
advice and assistance.
Checklist
10k41bkg3.book Seite 29 Donnerstag, 27. Mai 2004 5:30 17

30
Safety check
2
Engine oil
Checking oil levelCheck the oil level at regular
intervals.
Always check the oil level when
the engine is at operating tem-
perature, because the differ-
ence between the oil level
indicated when the engine is at
operating temperature and the
oil level indicated when the
engine is very cold due to
extremely low outdoor temper-
atures (-10 °C/14 °F) can be as
much as 10 mm (0.4 in).
After switching off the engine at
operating temperature, wait at
least 5 minutes for the oil to
drain back into the sump.Checking the oil level after the
engine has been run only briefly
or when it is not properly warm
will falsify the reading and could
lead to the engine being oper-
ated with the wrong quantity of
oil, because cold oil is viscous
and takes longer to drain back
into the sump.

Attention:
To avoid damage to the engine: – Never exceed the maximum
oil level.
– Always keep the level above
the minimum mark.
Always check the oil level with
the motorcycle upright.
• Check the oil level with the engine at its regular operating
temperature
• Check the oil level after the engine has been stopped for
at least 5 minutes
• Make sure that the motorcy-
cle is upright
– Make sure the ground is level and firm
10k41bkg3.book Seite 30 Donnerstag, 27. Mai 2004 5:30 17

22
31
Safety check
2
1
MAXMIN
3
2
• Check the oil level at the sight glass:
MAX Top edge
of marking ring
MIN Bottom edge
of marking ring
– The difference between the two marks is approx. 0.5 litre
(0.88 pint)
• If necessary, remove oil filler
plug 3 and top up the engine
oil through oil filler neck 1 ,
using funnel 2
• Reinstall oil filler plug 3
 Attention:
The red warning light
 (
8)
for engine oil pressure indicates
no (or very little) oil pressure in the
lube-oil system; this light must not
be regarded as an oil level check.
Oil pressure builds up after 1-2
seconds and the warning light
goes out – the red engine oil
pressure warning light
 should
remain off while the engine is
running.
Engine oil
BMW recommends Castrol
10k41bkg3.book Seite 31 Donnerstag, 27. Mai 2004 5:30 17
