2004 BMW MOTORRAD K 1200 GT engine

3
67
Starting – Riding – Parking
BBA
2
1
Starting
 Warning:
Do not allow the engine to idle
unnecessarily or for a lengthy
period when the motorcycle is
at a standstill — risk of overheat-
ing or fire. Ride away immedi-
ately after starting the engine.
Avoid high engine speeds after
a cold start.
 Attention:
If you attempt to start the engine
when the battery is flat, you will
hear the relay chattering. Further
attempts will damage the starter
relay and starter motor. Before
trying again: charge the battery
(

Maintenance Instructions, Chapter 2).

Note:
Do not turn the throttle twistgrip
when starting the engine.
• Press starter pushbutton 2
– The engine starts
• Turn the throttle twistgrip carefully

Note:
At ambient temperatures below
0 °C, pull the lever to disengage
the clutch when starting the en-
gine.
Starting
10k41bkg3.book Seite 67 Donnerstag, 27. Mai 2004 5:30 17

68
Starting – Riding – Parking
3
ABS warning lightThe ABS warning light 1 lights up
if the BMW Integral ABS develops
a fault (

81).
Warning light, general General warning light 2 lights up if
the BMW Integral ABS develops a
fault (

81), or if the tail light or
brake light is defective.
Low fuel levelWhen warning light 3 comes on,
there are still approximately
4 litres (0.9 gal) of fuel in the tank.
Engine oil pressureWarning light 4 goes out above
idle speed.
*n depending on national-market
specification
 Attention:
If warning light 4 comes on dur-
ing the journey, take the follow-
ing action as soon as traffic
conditions permit:
•Declutch
• Operate the kill switch
• Bring the motorcycle safely to
a halt
• Check engine oil level
(

30)
Top up with fresh oil if the oil
level is low. If the warning light
for engine oil pressure lights up
even though the oil level is cor-
rect, it is absolutely essential to
consult a specialist workshop,
preferably an authorised BMW
motorcycle dealer.
Warning lights
1*2
43
10k41bkg3.book Seite 68 Donnerstag, 27. Mai 2004 5:30 17

3
69
Starting – Riding – Parking
Coolant temperatureWarning light5 (red)
goes out when the engine is
started, above idle speed.
 Attention:
If the coolant temperature warn-
ing light 5 comes on, stop the
engine and allow it to cool down.
Check coolant level in the expan-
sion tank (

42).
If the expansion tank is full, but
the warning light remains on, or if
coolant consumption is exces-
sive, consult a specialist work-
shop, preferably an authorised
BMW motorcycle dealer.
Battery charge currentWarning light 6 goes out above
idle speed.
 Attention:
If warning light 6 comes on dur-
ing the journey:
Seek the advice of a specialist
workshop, preferably an author-
ised BMW motorcycle dealer.
Warning lights
65
10k41bkg3.book Seite 69 Donnerstag, 27. Mai 2004 5:30 17

70
Starting – Riding – Parking
3
Engine speedChoose engine speeds in
accordance with the coolant
temperature reading (

6), and
do not use maximum engine
speeds unless the engine has
reached its regular operating
temperature.
In the red zone of the rev. coun-
ter the fuel supply is interrupted
in order to protect the engine,
so that misfiring occurs.

Note:
The governor cuts in at
9,400 rpm.
Load changes
 Warning:
Try not to open or close the
throttle abruptly, particularly
on wet or slippery roads.
Gearshifts

Note:
Never slip the clutch exces-
sively when changing gear.
Vary your speed only by using
the throttle in a suitable gear,
not by slipping the clutch.
The digital cockpit display
shows which gear has been
selected (

7).
Riding, gear shifts
10k41bkg3.book Seite 70 Donnerstag, 27. Mai 2004 5:30 17

3
71
Starting – Riding – Parking

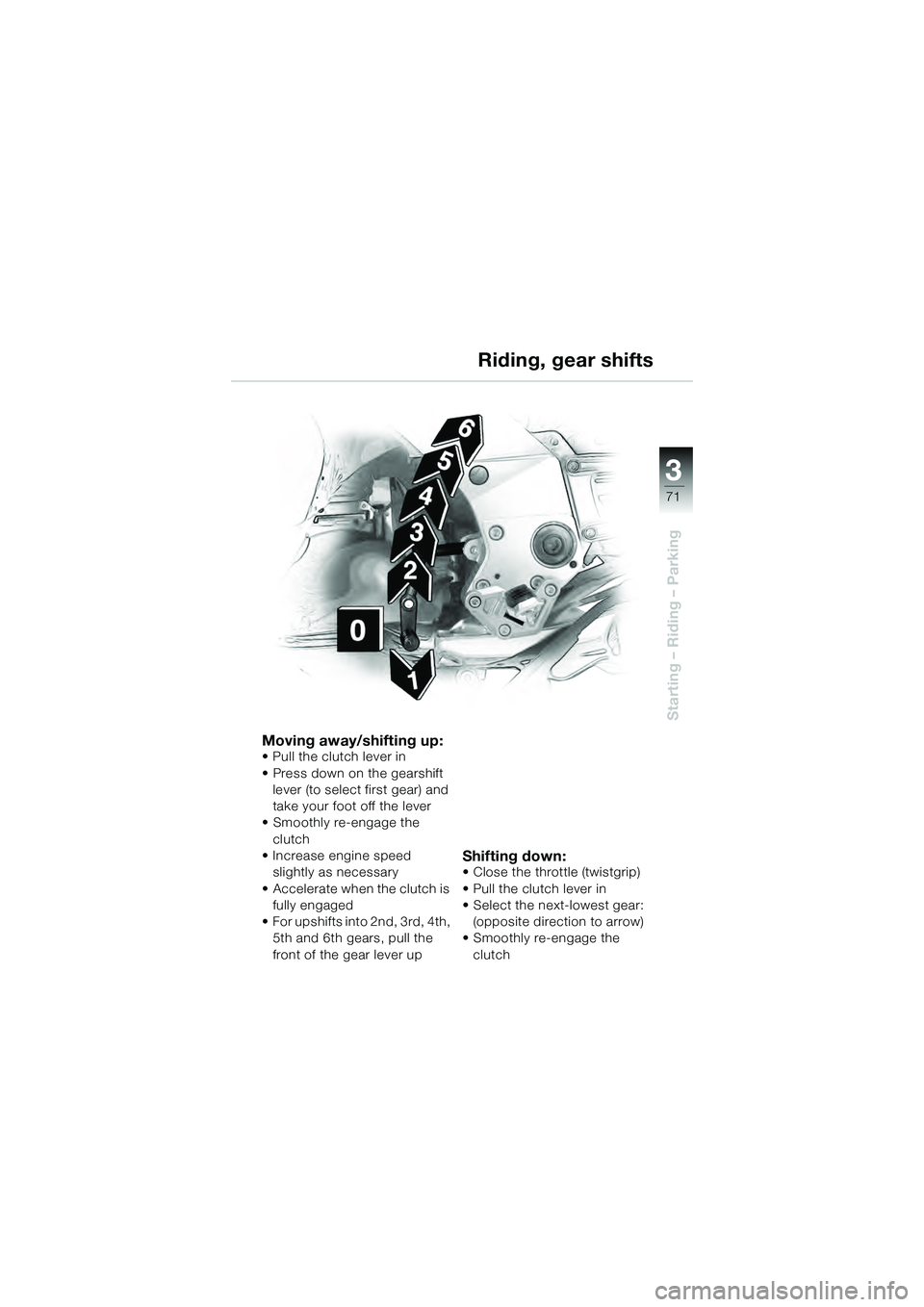

Riding, gear shifts
Moving away/shifting up:• Pull the clutch lever in
• Press down on the gearshift lever (to select first gear) and
take your foot off the lever
• Smoothly re-engage the
clutch
• Increase engine speed slightly as necessary
• Accelerate when the clutch is fully engaged
• For upshifts into 2nd, 3rd, 4th, 5th and 6th gears, pull the
front of the gear lever up
Shifting down:• Close the throttle (twistgrip)
• Pull the clutch lever in
• Select the next-lowest gear:
(opposite direction to arrow)
• Smoothly re-engage the
clutch
10k41bkg3.book Seite 71 Donnerstag, 27. Mai 2004 5:30 17

3
79

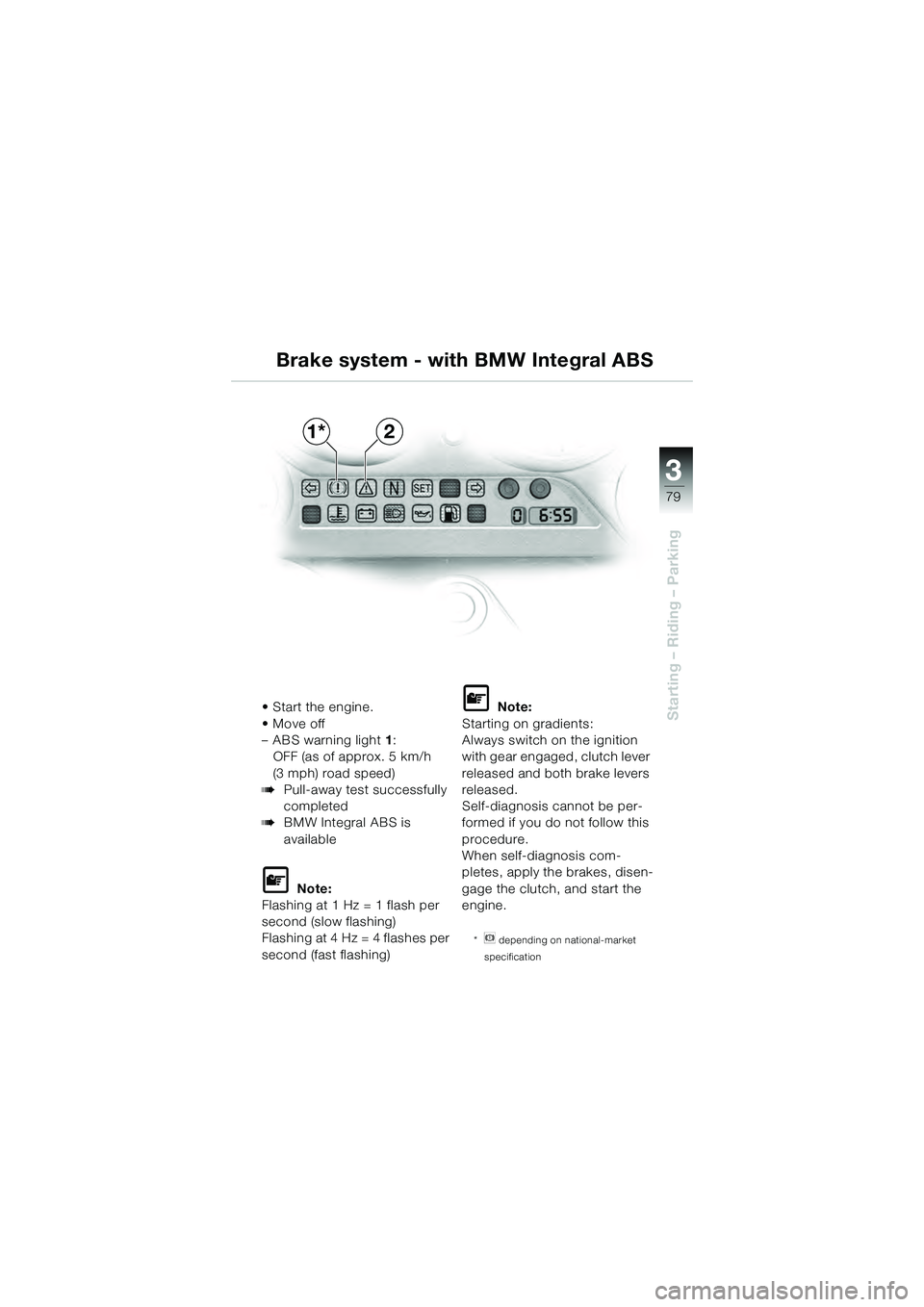

Starting – Riding – Parking•Start the engine.
• Move off
– ABS warning light1:
OFF (as of approx. 5 km/h
(3 mph) road speed)

Pull-away test successfully
completed

BMW Integral ABS is
available

Note:
Flashing at 1 Hz = 1 flash per
second (slow flashing)
Flashing at 4 Hz = 4 flashes per
second (fast flashing)

Note:
Starting on gradients:
Always switch on the ignition
with gear engaged, clutch lever
released and both brake levers
released.
Self-diagnosis cannot be per-
formed if you do not follow this
procedure.
When self-diagnosis com-
pletes, apply the brakes, disen-
gage the clutch, and start the
engine.
*n depending on national-market
specification
1*2
Brake system - with BMW Integral ABS
10k41bkg3.book Seite 79 Donnerstag, 27. Mai 2004 5:30 17

91
Index
i
DDisplay, ambient temperature, 7, 15
EEmergency off (kill) switch for ignition, 13
Engine oil, 31 Oil filler neck, 31
Engine oil pressure telltale light, 68
Engine speed, 70
FFront brake Brake fluid level, 40
Handbrake lever, 35
Fuel
Octane number, 33
Fuel filler cap, 4, 32
Fuel gauge, 6
Fuel tank capacity, 68
Fuse box, 4
GGear indicator, 7
Gearshift lever, 21
Gearshifts, 70, 71
General view, Left side, 4
Right side, 5
HHandlebar fitting
Left, 12
Right, 13
Handlebar lever Handbrake lever, 35
Hazard warning flashers, 9
Headlight basic setting, 55
Headlight switch, 12
Heated handlebar grips, 13
High-beam/low-beam headlight switch, 12
Horn, 12
Horn push, 12
IIgnition switch and steering lock, 6, 10
Function, 11
Installing system case, 27
Integral brake function, 76
KKeys, 10
LLHD traffic Headlight setting, 53
Lifting handle, 4
Light switch, 13
Lights, 52, 54, 55 Beam throw, 42, 53
Notes, 42
Loading, 49
D - L
10k41bkg3.book Seite 91 Donnerstag, 27. Mai 2004 5:30 17

92
Index
i
MMain (centre) stand, 62, 63
Motorcycle accessories, 87
NNeutral (gearbox), 66
Notes on safetyGeneral, 58
OOctane number, fuel, 33
Odometer, 6
Oil filler neck, 5, 31
Oil levelCheck, 31
Engine oil pressure, 8, 68
Sight glass, 5
Overheating, 59, 67
PPartially integral brakes, 76
Permitted gross weight, 51
Power socket, 4
RRefuelling, 32
Removing system case, 26
RESIDUAL BRAKING
FUNCTION, 39, 77
Revolution counter, 6
RHD traffic
Headlight setting, 53
Rider's equipment, 86
Riding, 70 Right flashing turn indicator
switch, 13
Rims, 47
Running-in speeds, 64
SSafety check, 28, 29
Safety instructions Catalytic converter, 59
Safety margin, 75
Seat Adjusting, 22
Installing, 23
Removing, 22
Seat lock, 4
Self-cancelling turn indicators, 12, 13
Self-diagnosis with pull-away test,
78
Sensitive electronic control, 74
Service, 83
Service worldwide, 84
Side stand, 60, 61, 66
Speedometer, 6
Spring preload Front wheel, 45
Starter button, 13
Starter switch, 13
Starting, 67
Storage compartment, 4
Switch on the ignition, 66
System case, 25, 27
M - S
10k41bkg3.book Seite 92 Donnerstag, 27. Mai 2004 5:30 17
