General information and controls
1
1Telltale light, left turn indica-
tor repeater green


2 Warning light ABS
red
 (
68)
3 Warning light, general
red

(
68)
4 Telltale light, neutral telltale
light green
 (
66)
5 Telltale light, cruise control
yellow
OE (
16-19)
OEOptional extra
*
n depending on national-market
specification
6 Telltale light, right turn indi-
cator green

7 Display, time/ambient tem-
perature,
buttons A andB: set clock/
toggle °C - °F (

14-15)
8 Gear indicator
( ) Number in parentheses

page number for description
Telltale and warning lights
78
6A14B2*35
10k41bkg3.book Seite 7 Donnerstag, 27. Mai 2004 5:30 17

8
General information and controls
1
Telltale and warning lights
1Warning light, coolant tem-
perature
 red (
42, 69)
2 Warning light, battery
charge current red

(
69)
3 Telltale light, high-beam
headlight blue

4 Warning light, engine oil
pressure red
\b (
31, 68) 5
Warning light, fuel level/
when approx. 4 litres
(0.9 gal) left in tank yellow


(
33, 68)
( ) Number in parentheses

page number for description
34512
10k41bkg3.book Seite 8 Donnerstag, 27. Mai 2004 5:30 17

9
General information and controls
1
Hazard warning flashers

Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
To switch on the hazard
warning flashers:
• Switch on the ignition
• Operate hazard warning flasher switch 1
– Hazard warning flashers in operation
– Telltale light in switch is on
• Switch off the ignition
– The hazard warning flashers
continue to operate
– Telltale light in switch goes out
To switch off the hazard
warning flashers:
• Operate hazard warning
flasher switch 1
– Hazard warning flashers
cease to operate
1
Hazard warning flashers
10k41bkg3.book Seite 9 Donnerstag, 27. Mai 2004 5:30 17

10
General information and controls
1

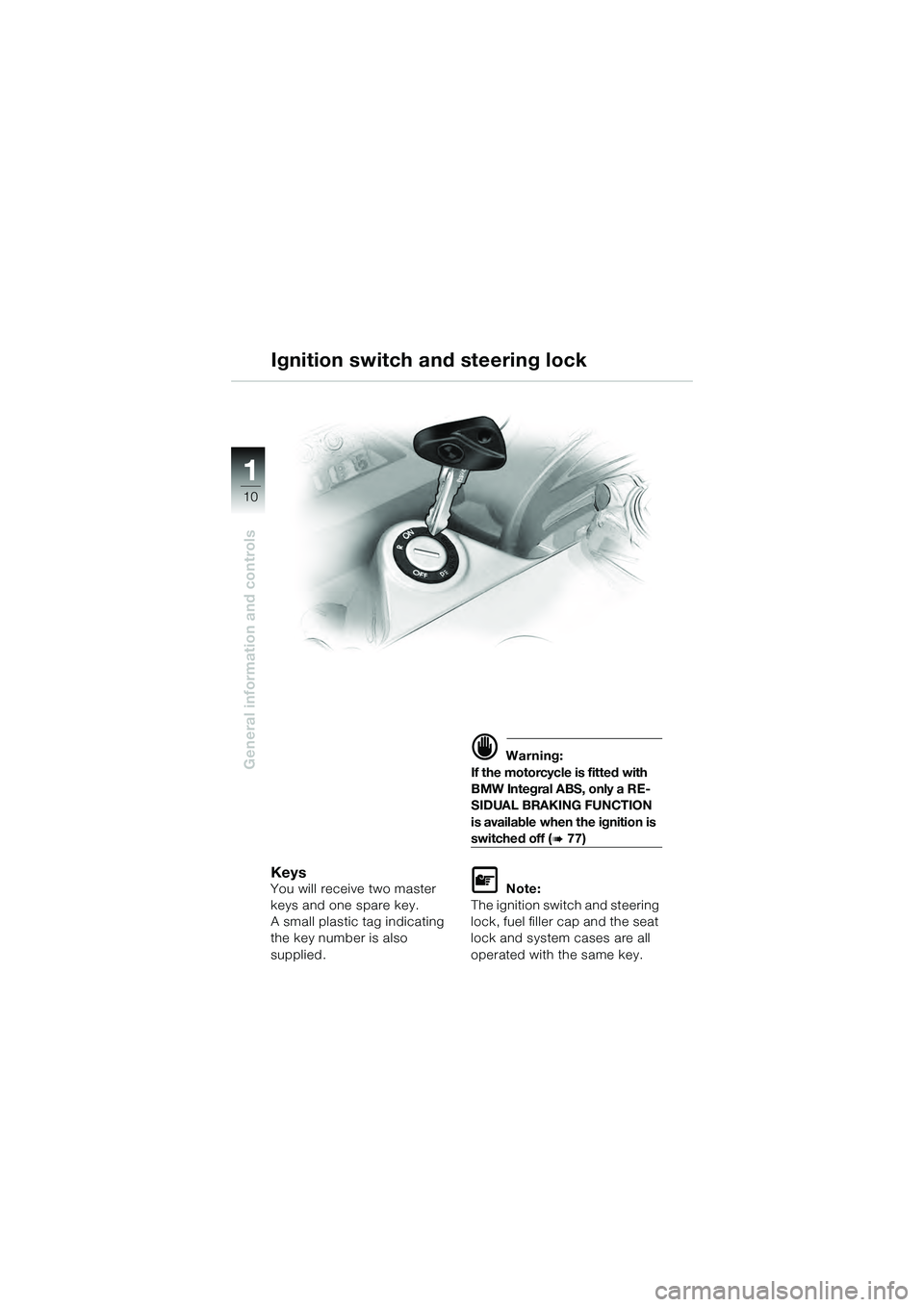

KeysYou will receive two master
keys and one spare key.
A small plastic tag indicating
the key number is also
supplied.
 Warning:
If the motorcycle is fitted with
BMW Integral ABS, only a RE-
SIDUAL BRAKING FUNCTION
is available when the ignition is
switched off (
77)

Note:
The ignition switch and steering
lock, fuel filler cap and the seat
lock and system cases are all
operated with the same key.
Ignition switch and steering lock
10k41bkg3.book Seite 10 Donnerstag, 27. Mai 2004 5:30 17

11
General information and controls
1
Ignition switch and steering lock
Key positionsONOperating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
 Warning:
Never turn the key to OFF or

while riding the motorcycle!
* The key can be removed in these
positions
• Turn the handlebars to full left lock.
 Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF * Ignition and lights off,
steering locked
 * Parking light on,
steering locked

Note:
Switch the parking light on only
for limited periods. Note state of
battery charge.
10k41bkg3.book Seite 11 Donnerstag, 27. Mai 2004 5:30 17

12
General information and controls
1

Warning:
To prevent air from entering
the hydraulic circuit of the
clutch:
• do not turn the fitting on the
handlebar.
1 Switch for cruise control
OE
(
17)
2 Hazard warning flasher
switch (

9)
3 Switch for windscreen
adjustment (

24)
4 Horn push 5
Turn indicator switch, left
•Press
– Turn indicators operate
To switch off turn indicators:
• Self-cancelling while rid-
ing, or press turn-indica-
tor cancel switch 12
(

13)
6 High-beam/low-beam
headlight switch

High-beam headlight
Low-beam headlight

Headlight flasher
OEOptional extra
Left handlebar fitting
123
654
10k4101g3.fm Seite 12 Mittwoch, 9. Juni 2004 3:23 15

13
General information and controls
1

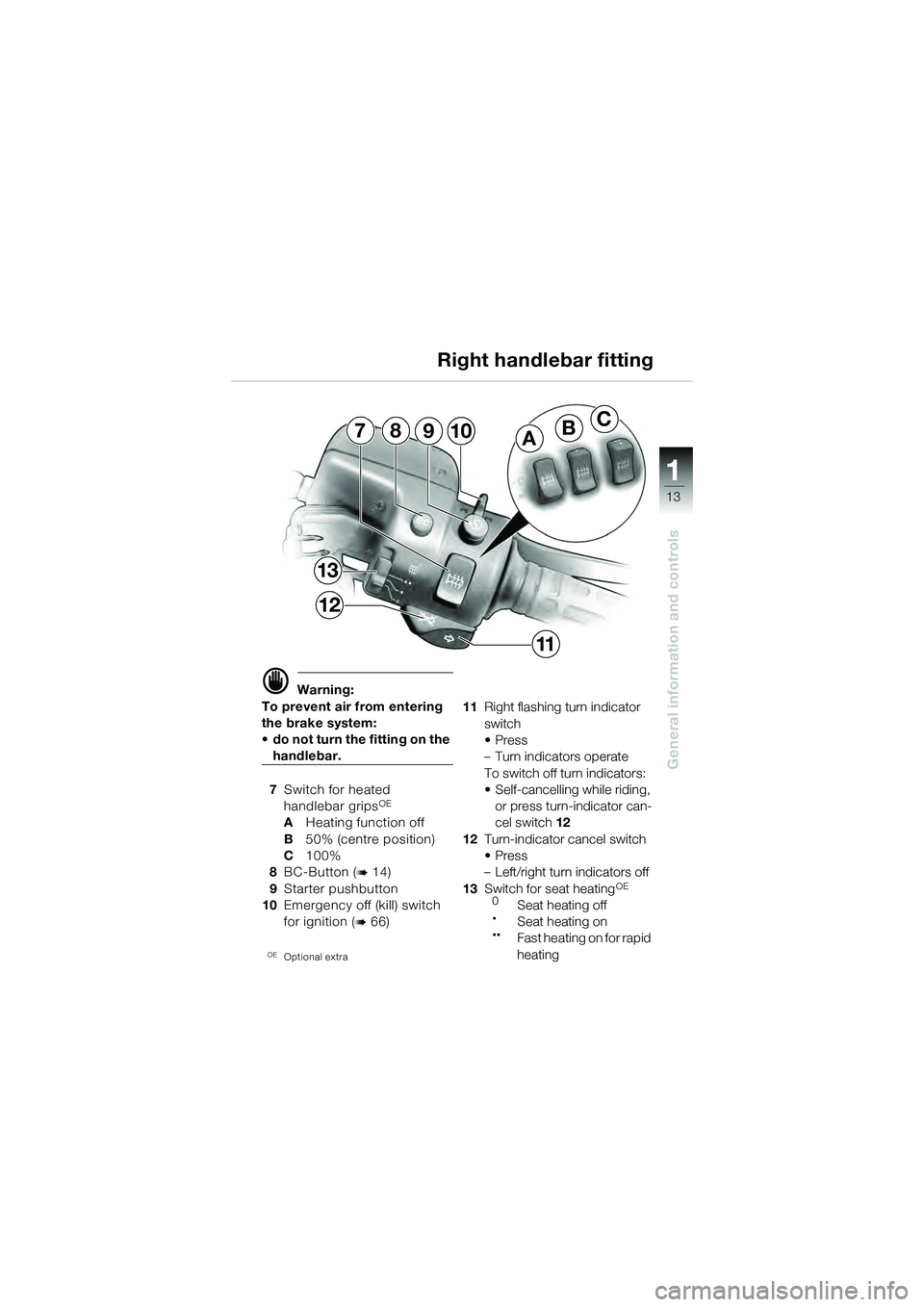

Warning:
To prevent air from entering
the brake system:
• do not turn the fitting on the
handlebar.
7 Switch for heated
handlebar grips
OE
A Heating function off
B 50% (centre position)
C 100%
8 BC-Button (

14)
9 Starter pushbutton
10 Emergency off (kill) switch
for ignition (

66)
OEOptional extra
11Right flashing turn indicator
switch
•Press
– Turn indicators operate
To switch off turn indicators:
• Self-cancelling while riding,
or press turn-indicator can-
cel switch 12
12 Turn-indicator cancel switch
•Press
– Left/right turn indicators off
13 Switch for seat heating
OE
0Seat heating off
.Seat heating on
..Fast heating on for rapid
heating
ABC7
13
12
10
11
98
Right handlebar fitting
10k4101g3.fm Seite 13 Mittwoch, 9. Juni 2004 3:23 15

14
General information and controls
1
Toggling between time/
ambient-temperature
reading
• Switch on the ignition
• Briefly press BC-button 1

Note:
Use a ball-point pen or similar in-
strument to press button A or B.
Setting the timePress button A (hours) or
button B (minutes).
Toggling between 12- and
24-hour modes
• Switch off the ignition
• Press and hold down button A
• Switch on the ignition
• Hold down button A for
approximately 3 seconds
longer
Clock
1
AB
10k4101g3.fm Seite 14 Donnerstag, 27. Mai 2004 5:30 17
