2003 TOYOTA TUNDRA Owners Manual

’03 TUNDRA_U (L/O 0307)
304
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup light
—Rear turn signal,
stop/tail/rear side marker and
backup lights (type B)

’03 TUNDRA_U (L/O 0307)
305
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup lightUse a Phillipshead screwdriver.
—License plate lights

’03 TUNDRA_U (L/O 0307)
306
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

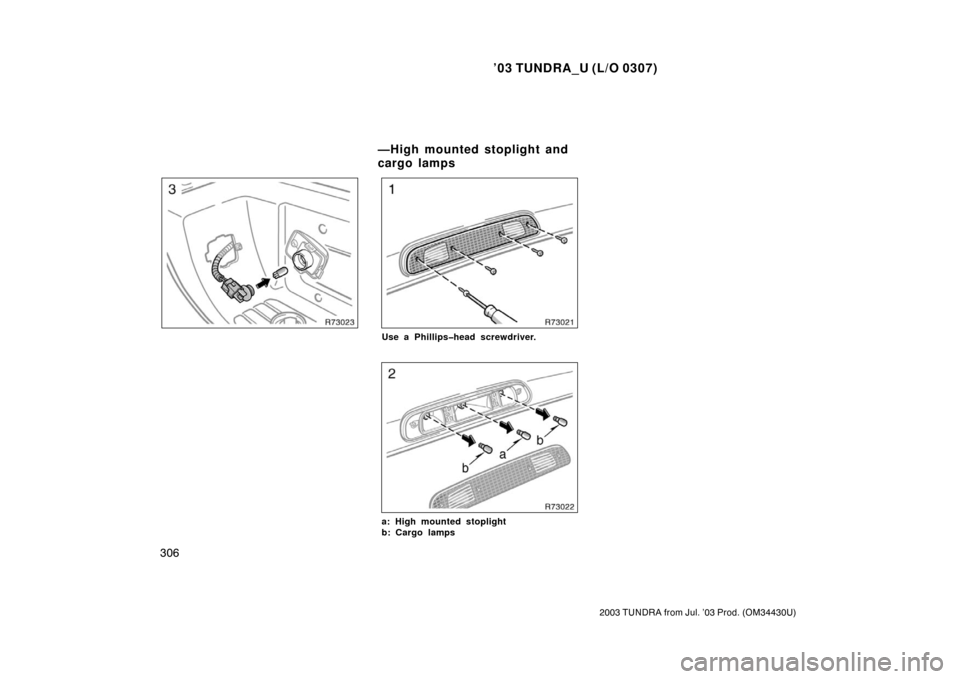

Use a Phillipshead screwdriver.
a: High mounted stoplight
b: Cargo lamps
—High mounted stoplight and
cargo lamps

’03 TUNDRA_U (L/O 0307)
307
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
SPECIFICATIONS
Specifications
Dimensions 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Payload 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Towing capacity 311
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’03 TUNDRA_U (L/O 0307)
308
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
mm (in.)
TWO−WHEEL DRIVE MODELSFOUR− WHEEL DRIVE MODELS
Standard cab
modelsAccess cab modelsStandard cabmodelsAccess cab models
Standard bedStepSide bedStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗2
Overall width1910 (75.2)
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42000 (78.7)1910 (75.2)
1945 (76.6)∗3
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42000 (78.7)
Overall height∗51795 (70.7)1790 (70.5)∗6
1800 (70.9)∗71790 (70.5)1805 (71.1)∗6
1815 (71.5)∗71810 (71.3)∗6
1820 (71.7)∗71810 (71.3)
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3260 (128.3)3260 (128.3)3260 (128.3)
Front tread1680 (66.1)1680 (66.1)1680 (66.1)1675 (65.9)1675 (65.9)1675 (65.9)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1648 (64.9)1648 (64.9)1648 (64.9)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 or P265/65R17 tires
Dimensions

’03 TUNDRA_U (L/O 0307)
309
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
U.S.A. kg (lb.)
Cab type
EngineDriving systemTransmission typeGrade∗ 1Deck typePayload∗2
Standard cab5VZ −FETw o −wheel driveManual transmissionStandardStandard bed714 (1575)
Automatic transmissionStandardStandard bed701 (1545)
2UZ −FEFour −wheel driveAutomatic transmissionSR5Standard bed776 (1710)
Access cab
5VZ −FE
Tw o −wheel driveManual transmissionSR5Standard bed699 (1540)
Automatic transmissionSR5Standard bed678 (1495)
Four −wheel driveManual transmissionSR5Standard bed710 (1565)
Automatic transmissionSR5Standard bed689 (1520)
2UZ −FE
Tw o −wheel driveAutomatic transmission
SR5Standard bed794 (1750)
StepSide bed687 (1515)
LimitedStandard bed816 (1800)
StepSide bed726 (1600)
Four −wheel driveAutomatic transmission
SR5Standard bed669 (1475)
StepSide bed576 (1270)
LimitedStandard bed692 (1525)
StepSide bed601 (1325)
∗
1: See “Model code” on page vi in the beginning of this m anual if you are not sure of which model your vehicle is.∗
2:
Occupants + luggage (Payload is the maximum weight th e vehicle should carry with standard equipment. Depending
on the number of options equipped on your vehicle, the pa yload may differ from the figures on the tire and loading
information label on your vehicle.)
Payload

’03 TUNDRA_U (L/O 0307)
310
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Canada kg (lb.)
Cab type
EngineDriving systemGrade∗ 1Payload∗2
Standard cab5VZ −FETw o −wheel driveStandard708 (1560)
2UZ −FEFour −wheel driveStandard782 (1725)
Access cab2UZ −FE
Tw o −wheel driveSR5787 (1735)
Four −wheel driveSR5662 (1460)
Limited685 (1510)
∗
1: See “Model code” on page vi in the beginning of this m anual if you are not sure of which model your vehicle is.∗
2:
Occupants + luggage (Payload is the maximum weight the v ehicle should carry with full options. Depending on the
number of options equipped on your vehicle, the payload may differ from the figures on the tire and loading informa-
tion label on your vehicle.)

’03 TUNDRA_U (L/O 0307)
311
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
kg (lb.)
Standard cab models
5VZ −FE engineTw o −wheel drive models2358 (5200)
Four −wheel drive models2268 (5000)
2UZ −FE engine
Tw o −wheel drive modelsWithout towing package2494 (5500)
With towing package3311 (7300)
Four −wheel drive modelsWithout towing package2450 (5600)
With towing package3357 (7400)
Access cab models
5VZ −FE engineTw o −wheel drive models2268 (5000)
Four −wheel drive models2268 (5000)
2UZ −FE engine
Tw o −wheel drive modelsWithout towing package2494 (5500)
With towing package3311 (7300)
Four −wheel drive modelsWithout towing package2404 (5300)
With towing package3221 (7100)
∗: Trailer weight + car go weight
Towing capacity∗
