2003 TOYOTA TUNDRA Owners Manual

’03 TUNDRA_U (L/O 0307)
168
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
square.Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.
Garage door opener box

’03 TUNDRA_U (L/O 0307)
169
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Place the transmitter with Velcro square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.

’03 TUNDRA_U (L/O 0307)
170
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
The auxiliary box (stored in the glove
box) and garage door opener box are
interchangeable.
Removing the cover—
Half open the cover. Pinch each hinge and
pull it out of its pivot one at a time as
shown above.
Do not remove the cover forcibly.

’03 TUNDRA_U (L/O 0307)
171
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Installing the cover—
Align the hinges to the pivots, and press
each hinge until you hear a click.
Make sure that the cover opens and
closes smoothly. To use the auxiliary bo
xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A only—As this holder is de-
signed for holding a light object
such as an eyeglass, do not place
any heavy objects in it. Heavy ob-
jects may cause the holder to open
and contents to fly out resulting in
injuries.
NOTICE
Type A only—During hot weather, the
interior of the vehicle becomes very
hot. Do not leave anything flammable
or deformable such as a lighter,
glasses, etc. inside.
Type A (on the ceiling)
Auxiliary boxes

’03 TUNDRA_U (L/O 0307)
172
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

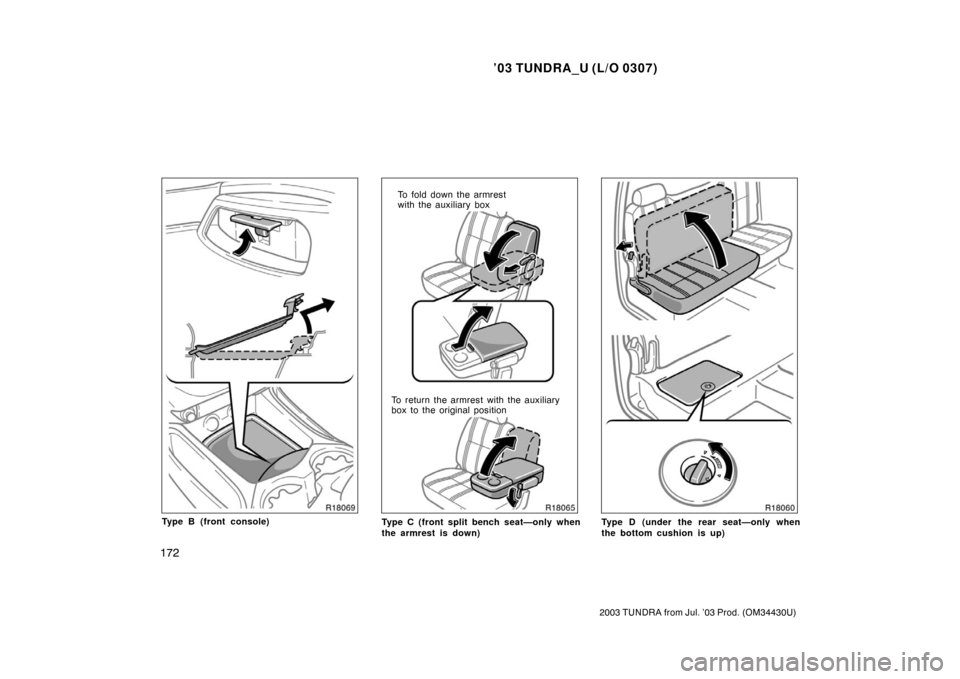

Type B (front console)
To fold down the armrest
with the auxiliary box
To return the armrest with the auxiliary
box to the original position
Type C (front split bench seat—only when
the armrest is down)
Type D (under the rear seat—only when
the bottom cushion is up)

’03 TUNDRA_U (L/O 0307)
173
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

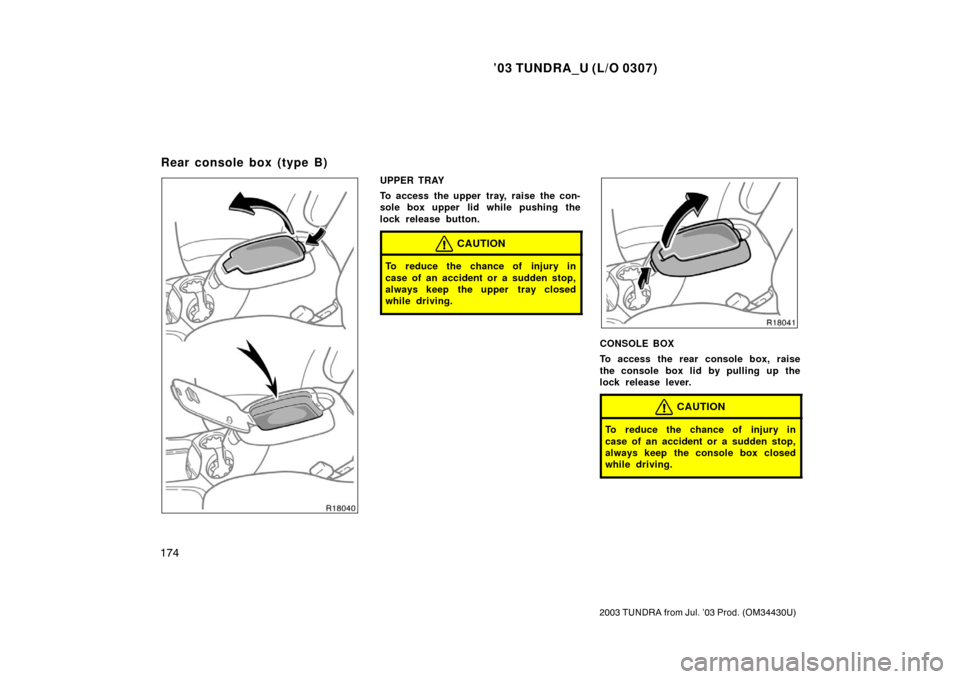

UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the upper tray by pulling up the lock
release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type A)

’03 TUNDRA_U (L/O 0307)
174
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
UPPER TRAY
To access the upper tray, raise the con-
sole box upper lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the console box lid by pulling up the
lock release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type B)

’03 TUNDRA_U (L/O 0307)
175
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

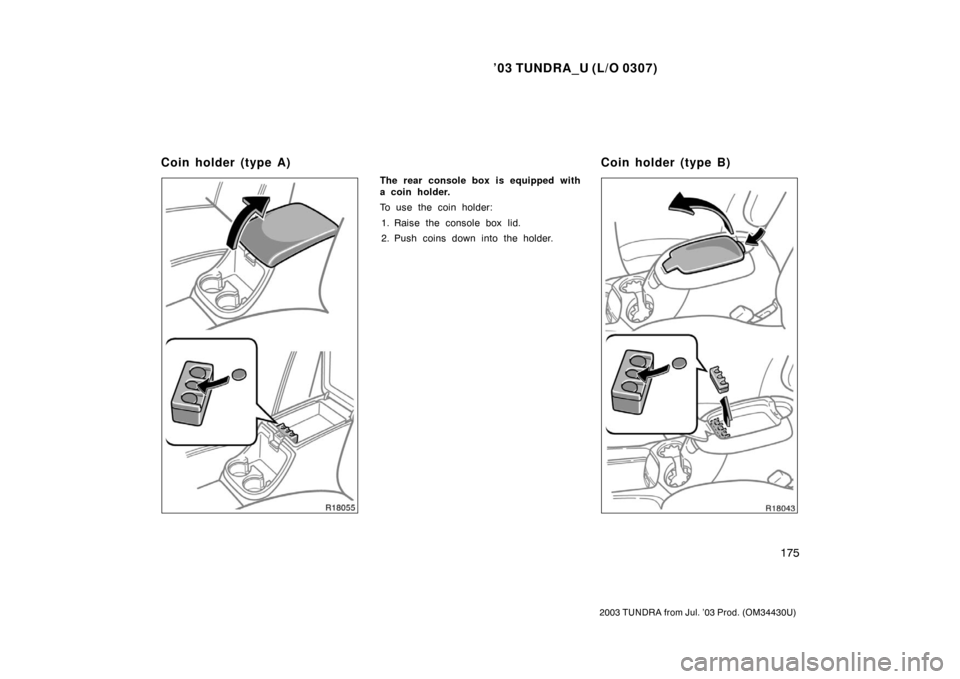

The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box lid.
2. Push coins down into the holder.
Coin holder (type A) Coin holder (type B)
