2003 TOYOTA TUNDRA Owners Manual

’03 TUNDRA_U (L/O 0307)
56
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Indicator light
This onoff switch is designed to dis-
able the passenger airbag in order to
allow usage, if necessary, of a member
of a passenger risk group identified in
TABLE 1 is occupying the right front
passenger seating position. (For details,
see “SRS driver airbag and front pas-
senger airbag” in this section.)
Operate onoff switch as follows:
Insert key into the keyhole and turn it.
To turn passenger airbag on: Turn the key
clockwise to the “ON” position.
To turn passenger airbag off: Turn the key
counterclockwise to the “OFF” position.
The indicator light comes on when the
passenger airbag system is off.
CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 (page
NO TAG) is occupying the right
front passenger seating position.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
For details, see “SRS driver airbag
and front passenger airbag” in this
section.
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s hould sit in the seat
and must be restrained using the vehicle’s
seat belt. See “Seat belts” for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Passenger airbag manual
onoff switch Child restraint—
—Child restraint precautions

’03 TUNDRA_U (L/O 0307)
57
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
STANDARD CAB MODELS—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child.
ACCESS CAB MODELS—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never put infant or child age 1 to
12 in a passenger risk group on the
right front seat with the passenger
airbag manual onoff switch in the
“ON” position. In the event of an
accident, the force of the rapid
inflation of the passenger airbag
can cause death or serious injury
to the child.
If you must put infant or child age
1 to 12 in a passenger risk group
on the right front seat, make sure
the passenger airbag manual onoff
switch is in the “OFF” position and
that the indicator light is on. (For
details, see “SRS driver airbag and
front passenger airbag” in this sec-
tion.)
Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured.A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer ’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat if your vehicle
is equipped with rear seats. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
—Child restraint system

’03 TUNDRA_U (L/O 0307)
58
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

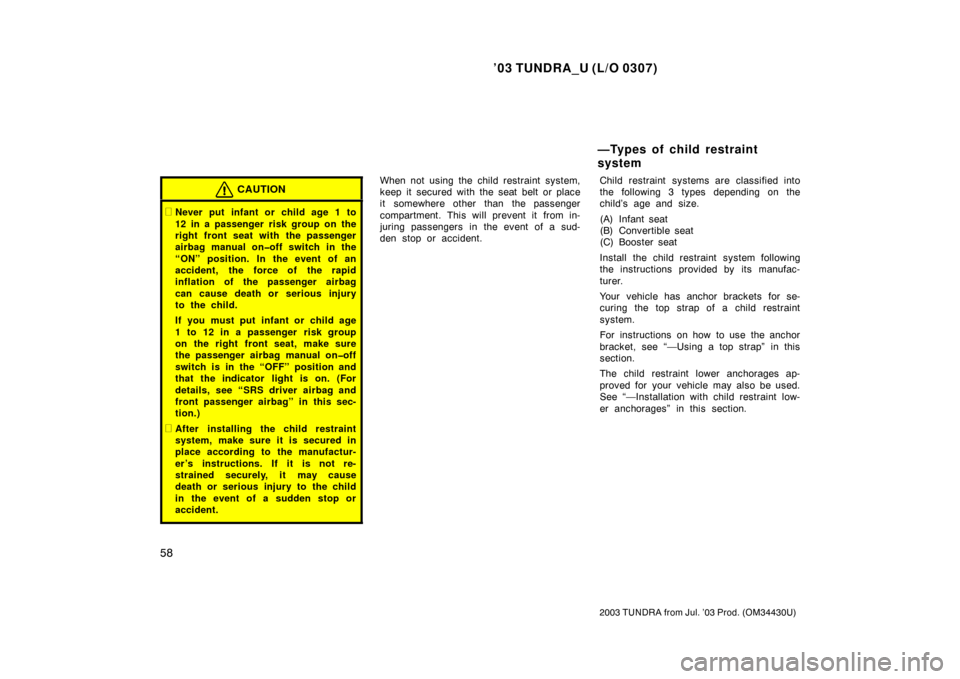

CAUTION
Never put infant or child age 1 to
12 in a passenger risk group on the
right front seat with the passenger
airbag manual onoff switch in the
“ON” position. In the event of an
accident, the force of the rapid
inflation of the passenger airbag
can cause death or serious injury
to the child.
If you must put infant or child age
1 to 12 in a passenger risk group
on the right front seat, make sure
the passenger airbag manual onoff
switch is in the “OFF” position and
that the indicator light is on. (For
details, see “SRS driver airbag and
front passenger airbag” in this sec-
tion.)
After installing the child restraint
system, make sure it is secured in
place according to the manufactur-
er’s instructions. If it is not re-
strained securely, it may cause
death or serious injury to the child
in the event of a sudden stop or
accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident. Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions on how to use the anchor
bracket, see “—Using a top strap” in this
section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” in this section.
—Types of child restraint
system

’03 TUNDRA_U (L/O 0307)
59
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

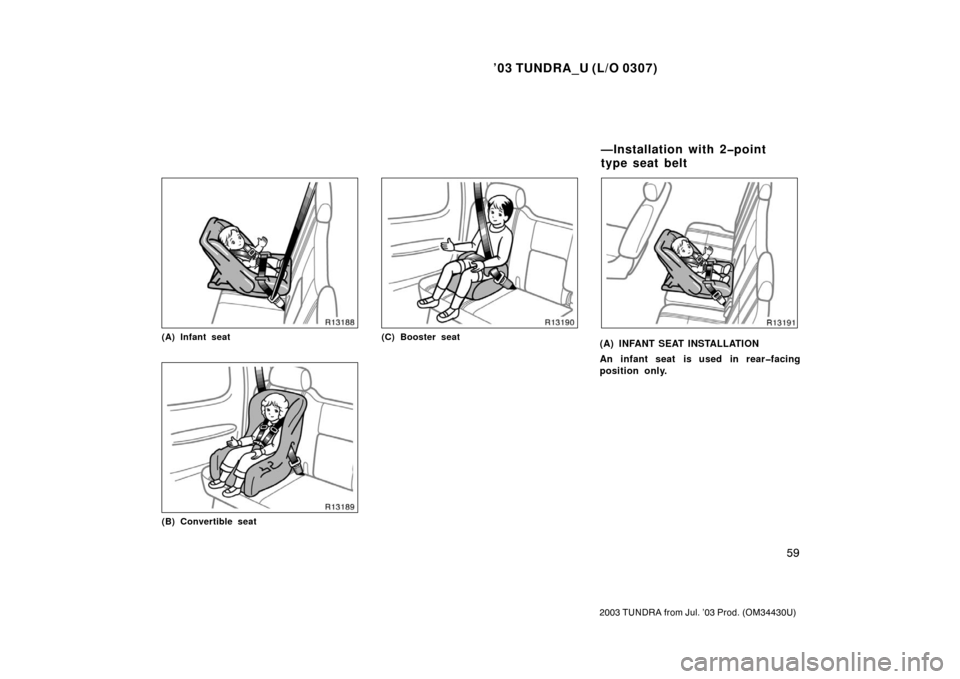

(A) Infant seat
(B) Convertible seat
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat is used in rearfacing
position only.
—Installation with 2point
type seat belt

’03 TUNDRA_U (L/O 0307)
60
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
With the child restraint system installed,
check that your driving position is satis-
factory and that the child restraint system
does not interfere with your driving.
If your driving position is not satisfactory,
or the child restraint system interferes
with your driving, install it at another posi-
tion.

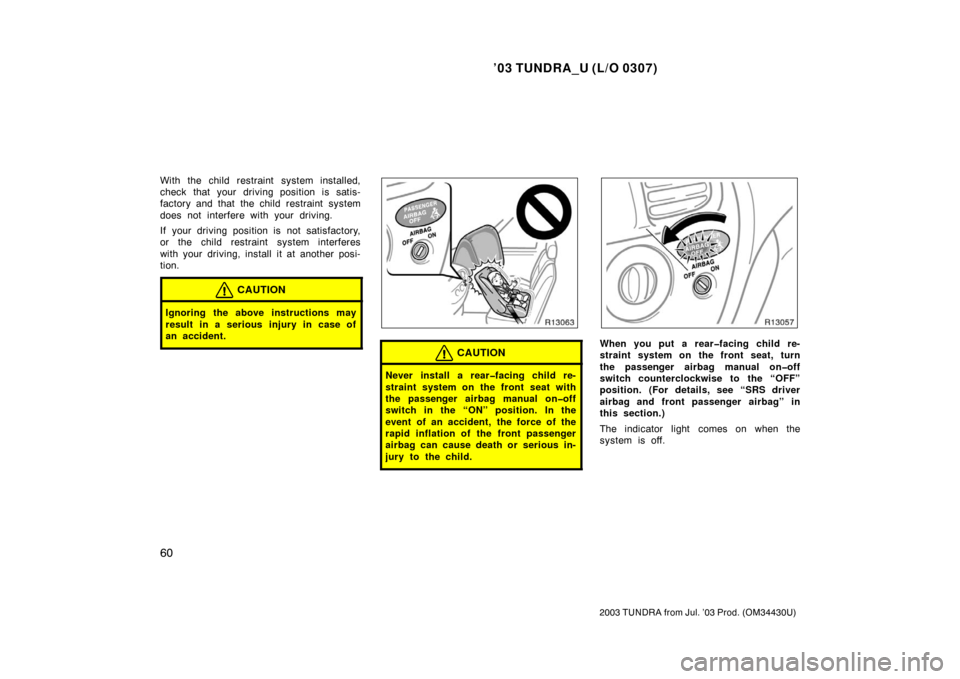

CAUTION
Ignoring the above instructions may
result in a serious injury in case of
an accident.
CAUTION
Never install a rearfacing child re-
straint system on the front seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child.
When you put a rearfacing child re-
straint system on the front seat, turn
the passenger airbag manual onoff
switch counterclockwise to the “OFF”
position. (For details, see “SRS driver
airbag and front passenger airbag” in
this section.)
The indicator light comes on when the
system is off.

’03 TUNDRA_U (L/O 0307)
61
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

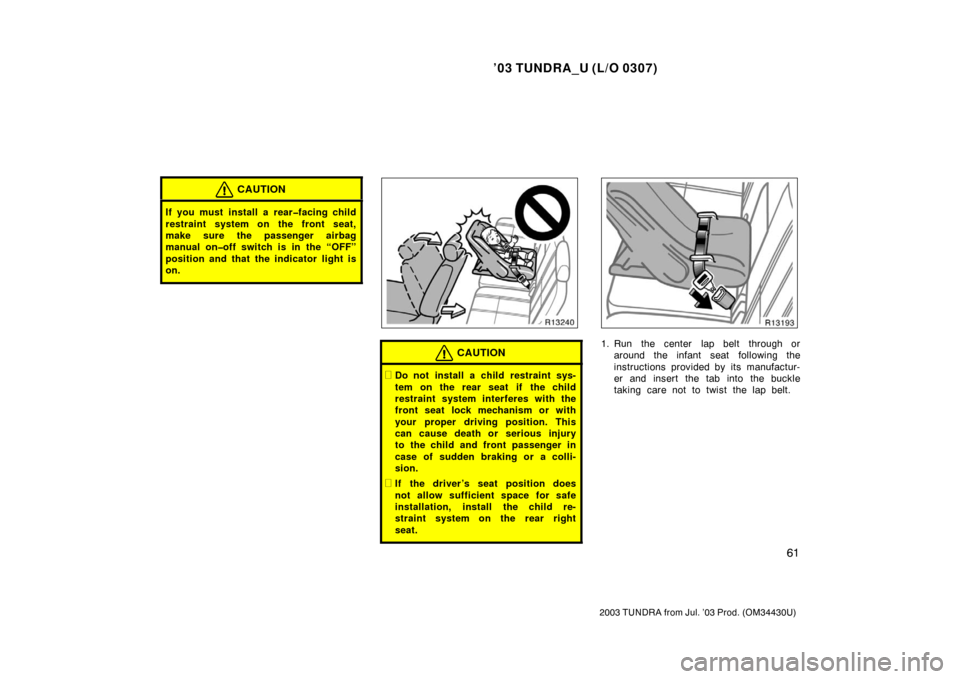

CAUTION
If you must install a rearfacing child
restraint system on the front seat,
make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.
CAUTION
Do not install a child restraint sys-
tem on the rear seat if the child
restraint system interferes with the
front seat lock mechanism or with
your proper driving position. This
can cause death or serious injury
to the child and front passenger in
case of sudden braking or a colli-
sion.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
1. Run the center lap belt through or
around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.

’03 TUNDRA_U (L/O 0307)
62
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

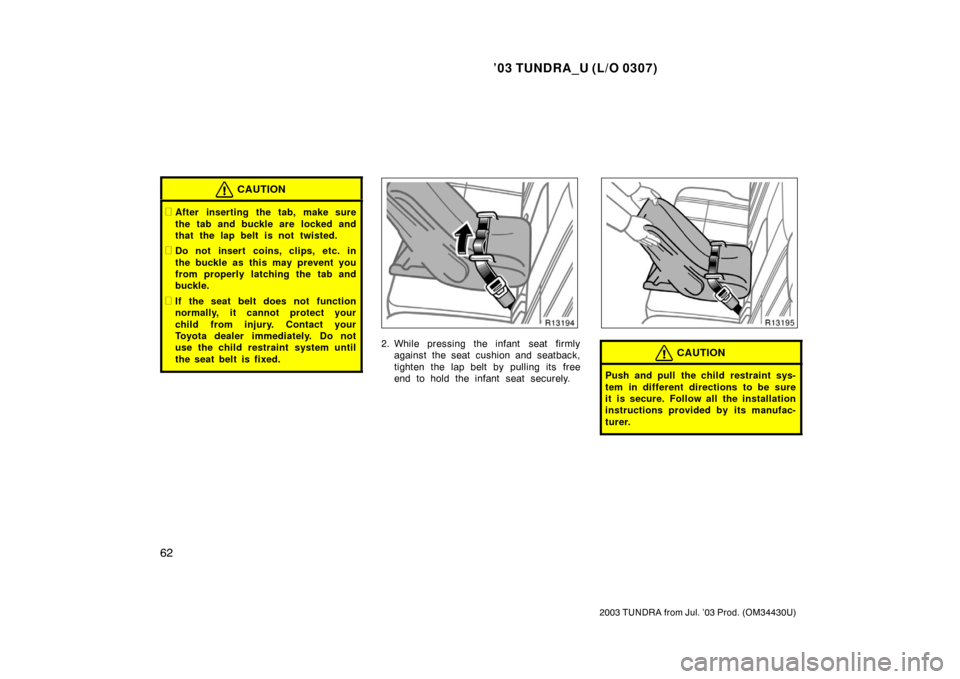

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
2. While pressing the infant seat firmly
against the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’03 TUNDRA_U (L/O 0307)
63
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

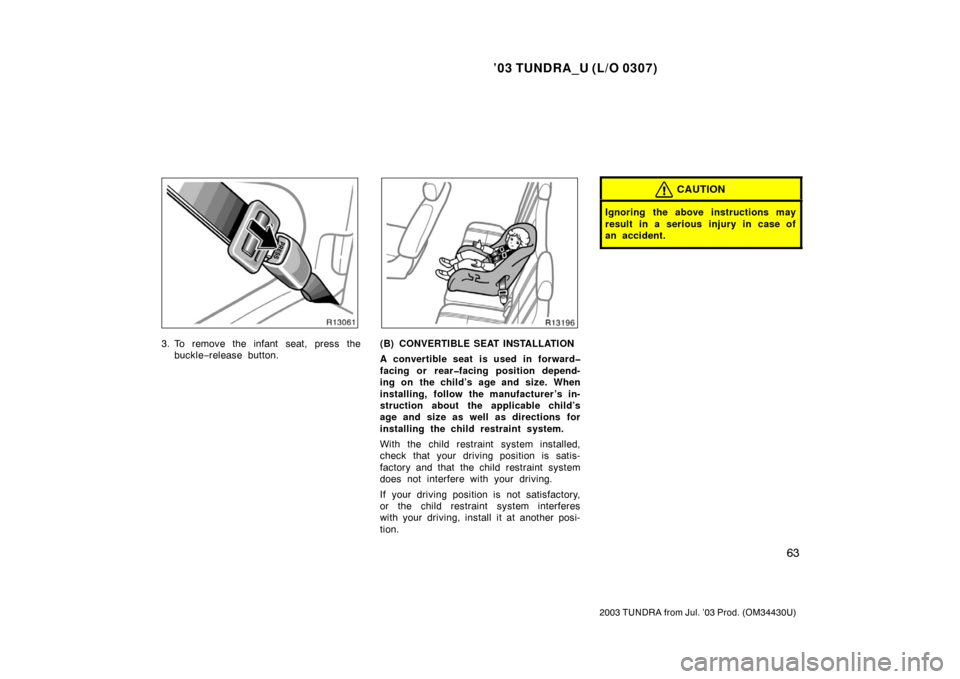

3. To remove the infant seat, press the
buckle −release button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
struction about the applicable child’s
age and size as well as directions for
installing the child restraint system.
With the child restraint system installed,
check that your driving position is satis-
factory and that the child restraint system
does not interfere with your driving.
If your driving position is not satisfactory,
or the child restraint system interferes
with your driving, install it at another posi-
tion.
CAUTION
Ignoring the above instructions may
result in a serious injury in case of
an accident.
