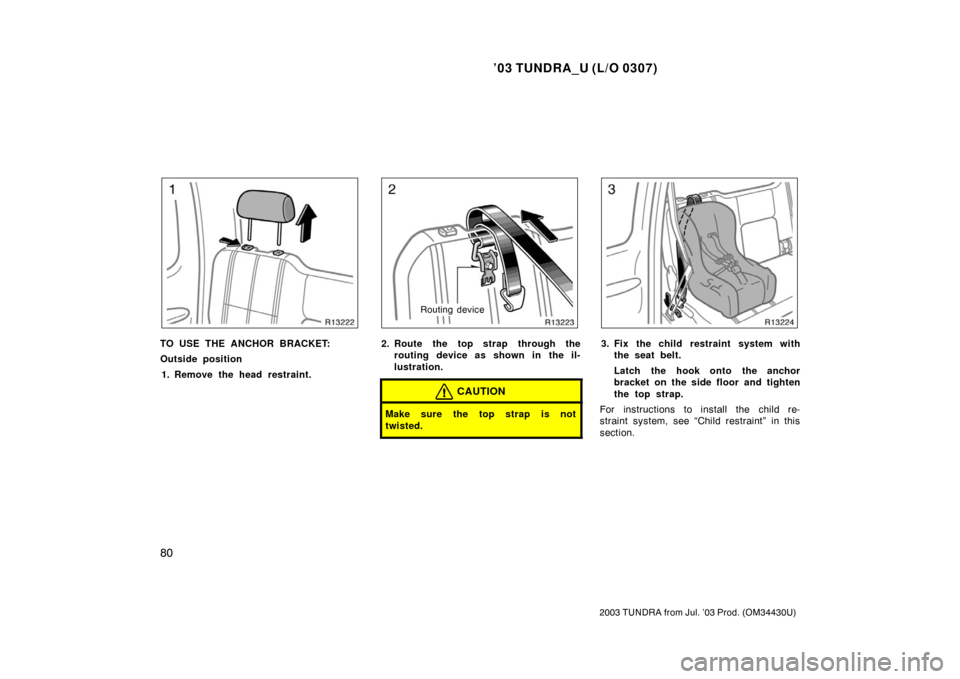

TO USE THE ANCHOR BRACKET:
Outside position
1. Remove the head restraint.
Routing device
2. Route the top strap through the routing device as shown in the il-
lustration.
CAUTION
Make sure the top strap is not
twisted.
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket on the side floor and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.

’03 TUNDRA_U (L/O 0307)
81
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

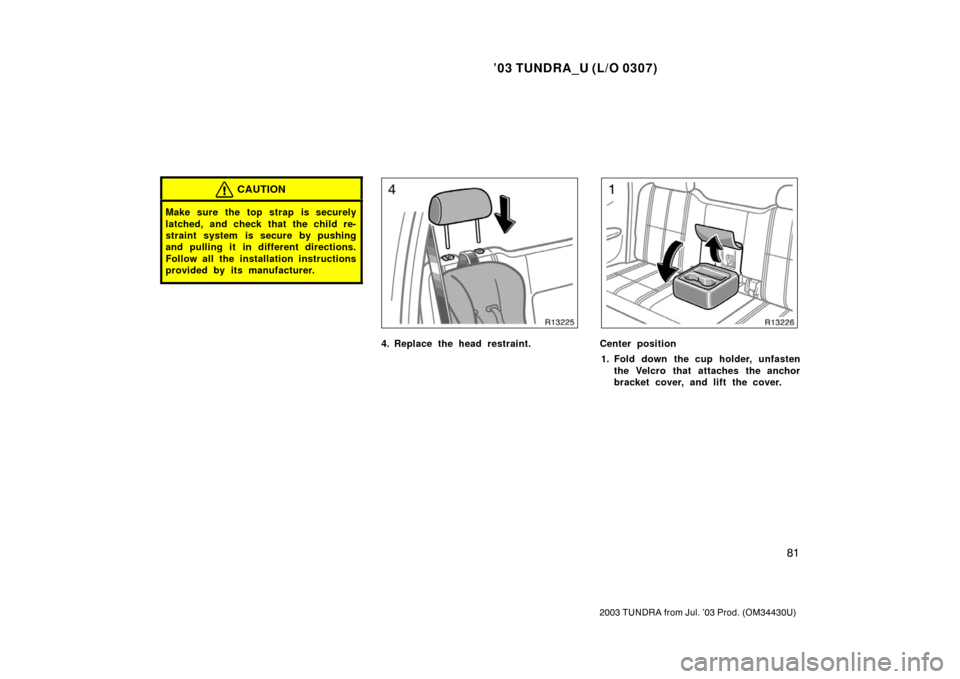

CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint.Center position
1. Fold down the cup holder, unfasten the Velcro that attaches the anchor
bracket cover, and lift the cover.

’03 TUNDRA_U (L/O 0307)
82
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
2. Route the top strap through the slot
on top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover and return the cup
holder to the original position.3. Move the child restraint system tothe correct position.
Then fix the child restraint system
with the seat belt and tighten the
top strap.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
Nonsplit bench seat
Split bench seat
—Installation with child
restraint lower anchorages
(standard cab models)

’03 TUNDRA_U (L/O 0307)
83
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of the right side of the seat as
shown in the illustration.
Child restraint systems complying with the
FMVSS225 or CMVSS210.2 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e ACanada only
Ty p e B

’03 TUNDRA_U (L/O 0307)
84
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —
1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the tag on the
seat cushion (nonsplit bench seat)
or seatback (split bench seat).
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the tag on the
seat cushion (nonsplit bench seat)
or seatback (split bench seat).
2. Latch the buckles onto the anchor- ages. If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of the outsides of the rear seat as
shown in the illustration.
Child restraint systems complying with the
FMVSS225 or CMVSS210.2 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(access cab models)

’03 TUNDRA_U (L/O 0307)
85
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

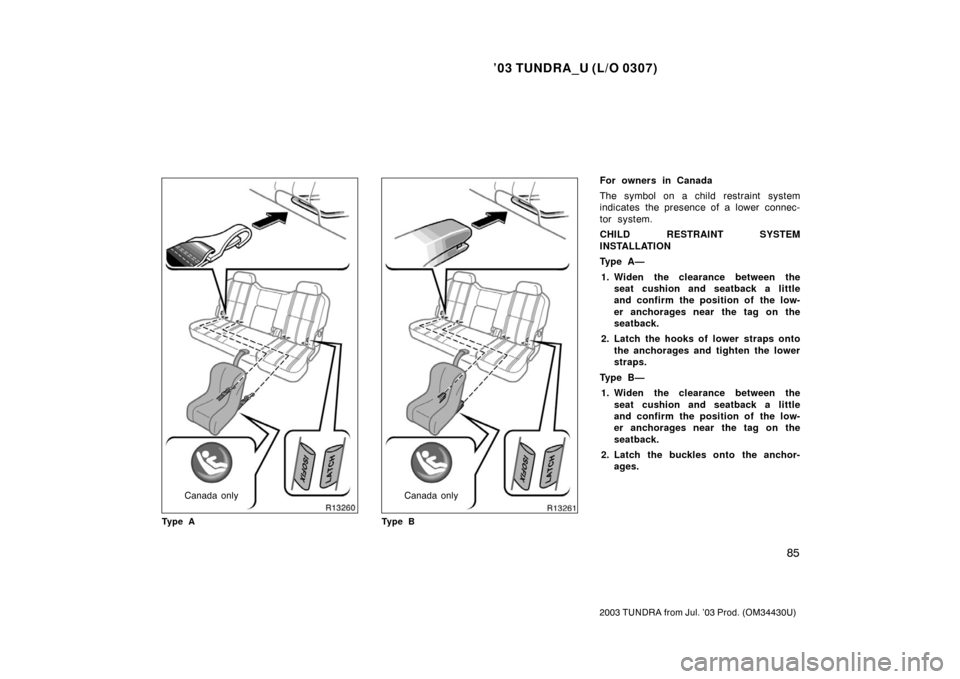

Canada only
Ty p e ACanada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the tag on the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages near the tag on the
seatback.
2. Latch the buckles onto the anchor- ages.

’03 TUNDRA_U (L/O 0307)
86
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each

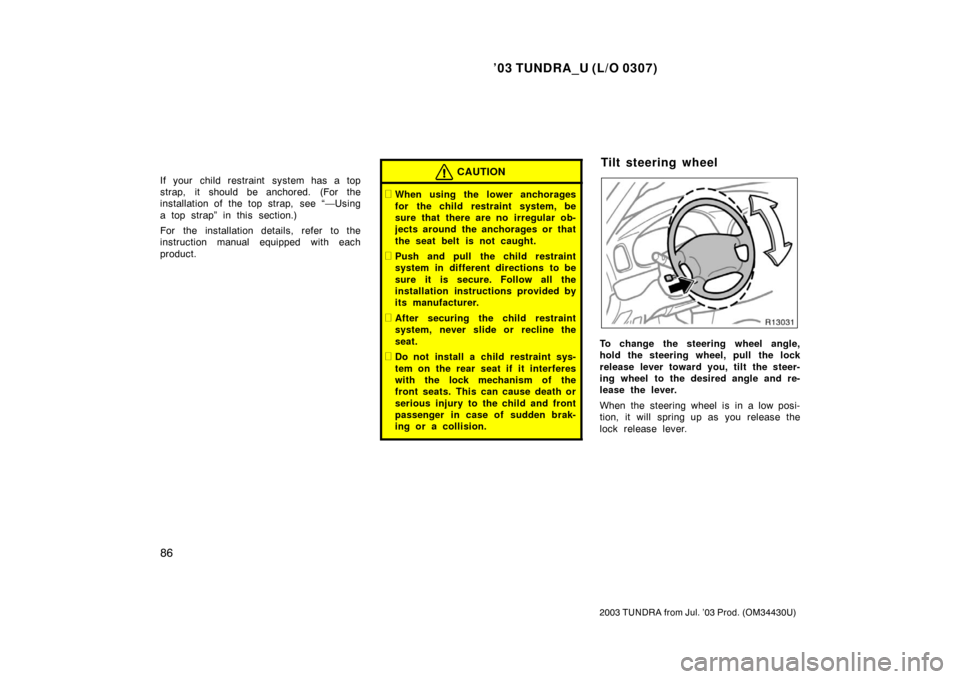

product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. This can cause death or
serious injury to the child and front
passenger in case of sudden brak-
ing or a collision.
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
Tilt steering wheel

’03 TUNDRA_U (L/O 0307)
87
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

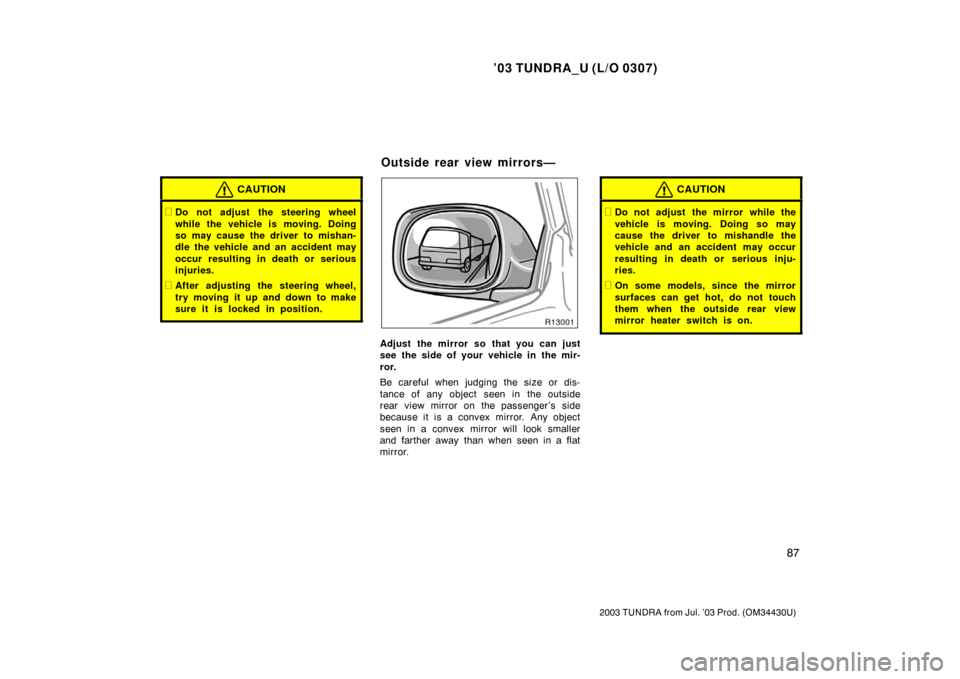

CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the outside rear view
mirror heater switch is on.
Outside rear view mirrors—
