2003 TOYOTA TUNDRA Owners Manual

’03 TUNDRA_U (L/O 0307)
312
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Model:
5VZ− FE and 2UZ −FE
Type: 5VZ− FE engine
6 cylinder V type, 4 cycle, gasoline
2UZ− FE engine
8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 5VZ− FE engine
93.5 82.0 (3.68 3.23)
2UZ− FE engine
94.0 84.0 (3.70 3.31)
Displacement, cm
3 (cu. in.):
5VZ− FE engine 3378 (206.1)
2UZ− FE engine 4664 (284.6)Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 100 (26.4, 22.0) ENGINE
Valve clearance (engine cold), mm (in.):
5VZ− FE engine
Intake 0.13—0.23 (0.006—0.009)
Exhaust 0.27—0.37 (0.011—0.014)
2UZ− FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: 5VZ− FE engine
DENSO K16TR11
NGK BKR5EKB11
2UZ− FE engine
DENSO K20R−U
NGK BKR6EYA
Spark plug gap, mm (in.): 5VZ− FE engine 1.1 (0.043)
2UZ− FE engine 0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No. BT− 33−73F (used belt), lbf:
5VZ− FE engine
Generator belt 100 20
Air conditioning compressor belt 100 20
Power steering pump belt
100
+20
15
Engine FuelService specifications

’03 TUNDRA_U (L/O 0307)
313
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
5VZ− FE engine
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
2UZ− FE engine
With filter 6.2 (6.5, 5.5)
Without filter 5.7 (6.0, 5.0)
“Toyota Genuine Motor Oil” is filled in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “Energy −Conserving” or

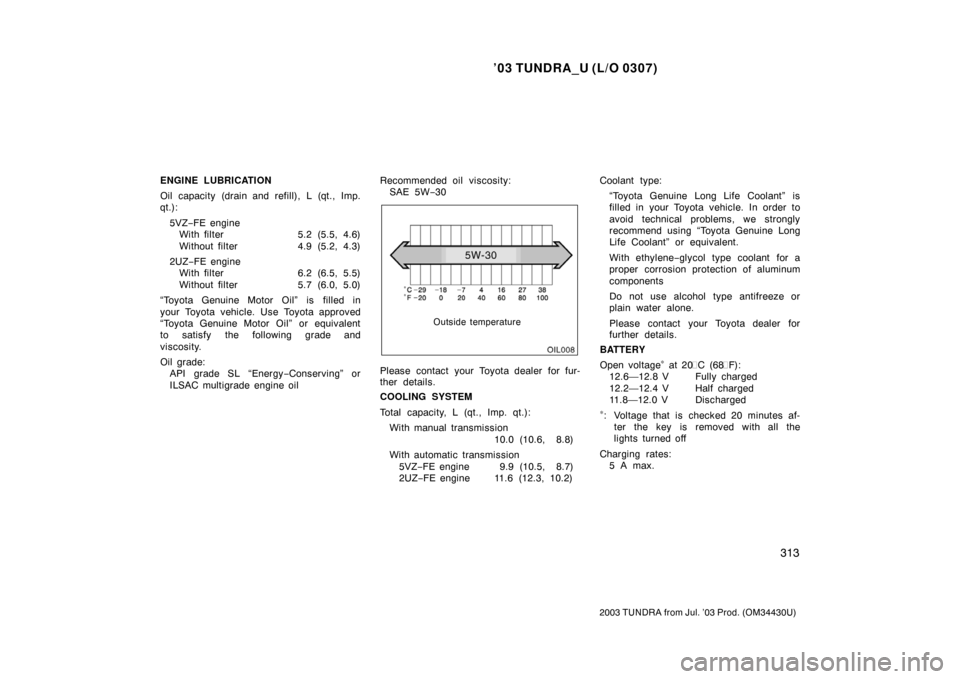

ILSAC multigrade engine oil Recommended oil viscosity:
SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
With manual transmission 10.0 (10.6, 8.8)
With automatic transmission 5VZ− FE engine 9.9 (10.5, 8.7)
2UZ− FE engine 11.6 (12.3, 10.2) Coolant type:
“Toyota Genuine Long Life Coolant” is
filled in your Toyota vehicle. In order to
avoid technical problems, we strongly
recommend using “Toyota Genuine Long
Life Coolant” or equivalent.
With ethylene− glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max.

’03 TUNDRA_U (L/O 0307)
314
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
CLUTCH
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSMISSION
Oil capacity, L (qt., Imp. qt.): Tw o −wheel drive models
2.6 (2.7, 2.3)
Four −wheel drive models
2.2 (2.3, 1.9)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill), L (qt.,
Imp. qt.): Up to 2.0 (2.1, 1.8)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T
−IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transmission perfor-
mance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.
TRANSFER
Oil capacity, L (qt., Imp. qt.):
1.0 (1.1, 0.9)
Oil type: Gear oil API GL−4 or GL−5
Recommended oil viscosity: SAE 75W −90 DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.):
Front1.15 (1.2, 1.0)
Rear
Tw o −wheel drive models
Standard differential
3.80 (4.0, 3.3)
Limited− slip differential
3.15 (3.3, 2.8)
Four −wheel drive models
Standard differential 3.50 (3.7, 3.1)
Limited− slip differential
2.95 (3.1, 2.6)
Oil type: Standard differentialHypoid gear oil API GL −5
Limited− slip differential
Hypoid gear oil for limited −slip differ-
ential API GL −5

’03 TUNDRA_U (L/O 0307)
315
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Recommended oil viscosity:
FrontSAE 75W −90
Rear Standard differential
Synthetic oil SAE 75W −140
Limited− slip differential
Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90
CHASSIS LUBRICATION
Propeller shafts: Spiders and slide yokesLithium base chassis grease, NLGI
No.2
Double cardan joint Molybdenum −disulfide lithium base
chassis grease, NLGI No.2 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
95 (3.7)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment:
Pedal type—when depressed with the
force of 294 N (30 kgf, 66.1 lbf)8—10 clicks
Lever type—when pulled with the force
of 196 N (20 kgf, 44 lbf) 8—12 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’03 TUNDRA_U (L/O 0307)
316
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Tires
Engine compartment (2UZFE engine)
Ti r e siz eTire pressure
kPa (kgf/cm2 or bar, psi)
Front Rear
P245/70R16
P265/70R16 180 (1.8, 26) 240 (2.4, 35)
180 (1.8, 26) 200 (2.0, 29) Wheel size
7J or 7JJ 16
7J or 7JJ 16
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions” in Section 7 −2.
W h eel nu t to rq u e, N⋅ m (kgf·m, ft·lbf):
110 (11.5, 83)
Tire size, cold tire inflation pressure and wheel size:
P265/65R17 200 (2.0, 29) 220 (2.2, 32) 7 1/2JJ
17
Fuses

’03 TUNDRA_U (L/O 0307)
317
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

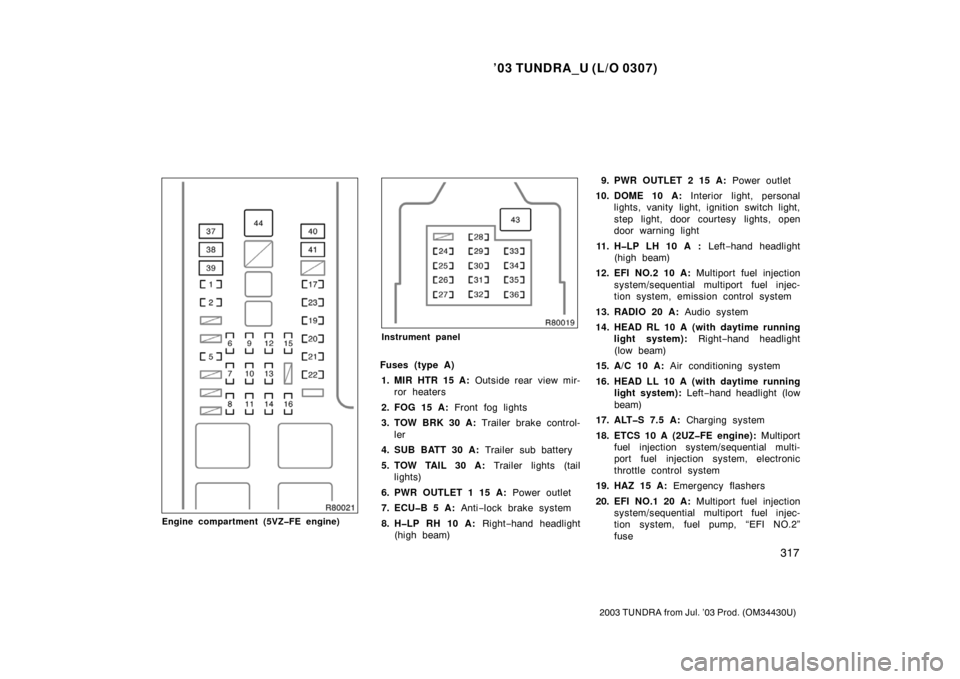

Engine compartment (5VZFE engine)
Instrument panel
Fuses (type A)
1. MIR HTR 15 A: Outside rear view mir-
ror heaters
2. FOG 15 A: Front fog lights
3. TOW BRK 30 A: Trailer brake control-
ler
4. SUB BATT 30 A: Trailer sub battery
5. TOW TAIL 30 A: Trailer lights (tail
lights)
6. PWR OUTLET 1 15 A: Power outlet
7. ECUB 5 A: Anti−lock brake system
8. HLP RH 10 A: Right−hand headlight
(high beam) 9. PWR OUTLET 2 15 A:
Power outlet
10. DOME 10 A: Interior light, personal
lights, vanity light, ignition switch light,
step light, door courtesy lights, open
door warning light
11. HLP LH 10 A : Left−hand headlight
(high beam)
12. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, emission control system
13. RADIO 20 A: Audio system
14. HEAD RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
15. A/C 10 A: Air conditioning system
16. HEAD LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
17. ALTS 7.5 A: Charging system
18. ETCS 10 A (2UZFE engine): Multiport
fuel injection system/sequential multi-
port fuel injection system, electronic
throttle control system
19. HAZ 15 A: Emergency flashers
20. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump, “EFI NO.2”
fuse

’03 TUNDRA_U (L/O 0307)
318
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
21. AM2 30 A: Ignition system, starting
system, “IGN” and “STA” fuses
22. TOWING 30 A: Towing converter
23. ETCS 15 A (5VZFE engine): Multiport
fuel injection system/sequential multi-
port fuel injection system, electronic
throttle control system
24. WIP 20 A: Windshield wipers and
washer
25. TURN 5 A: Turn signal lights
26. ECU IG 5 A: Anti−lock brake system,
cruise control system
27. 4WD 20 A: Four−wheel drive control
system, A.D.D. control system
28. ACC 15 A: Cigarette lighter, audio sys-
tem, SRS airbag system, power rear
view mirrors, “PWR OUTLET 1” and
“PWR OUTLET 2” fuses
29. GAUGE 10 A: Gauges and meters,
back −up lights, starting system, air
conditioning system
30. IGN 5 A: SRS airbag system, multiport
fuel injection system/sequential multi-
port fuel injection system, discharge
warning light, ignition system
31. CARGO LP 5 A: Cargo lamp 32. TAIL 15 A:
Tail lights, license plate
lights, instrument panel lights, parking
lights, glove box light
33. OBD 7.5 A: On−board diagnosis sys-
tem
34. HORN 10 A: Horns
35. STA 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, gauges and meters
36. STOP 15 A: Stoplights, high mounted
stoplight
Fuses (type B)
37. AM1 40 A: Starting system, “ACC”,
“WIP”, “4WD”, “ECU −IG”, “GAUGE” and
“TURN” fuses
38. HTR 50 A: Air conditioning system,
“A/C” fuse
39. J/B 50 A: “POWER”, “CARGO LP”,
“TAIL”, “OBD”, “HORN” and “STOP”
fuses
40. ABS 2 40 A: Anti−lock brake system
41. ABS 3 30 A: Anti−lock brake system
42. ST3 30 A: Starting system, “STA” fuse
43. POWER 30 A: Power door lock sys-
tem, power windows, power seat Fuse (type C)
44. FL ALT 100 A (without towing pack- age) or 140 A (with towing package):
“AM1”, “HTR”, “J/B”, “MIR HTR”,
“FOG”, “TOW BRK”, “SUB BATT”,
“TOW TAIL”, “PWR OUTLET 1” and
“PWR OUTLET 2” fuses

’03 TUNDRA_U (L/O 0307)
319
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
