2003 TOYOTA TUNDRA Owners Manual

’03 TUNDRA_U (L/O 0307)
32
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Separate and split bench seatNonsplit bench seat
1. SEAT POSITION ADJUSTING LEVER
Separate and split bench seat: Hold the
center of the lever and pull it up. Then
slide the seat to the desired position
with slight body pressure and release
the lever.
Nonsplit bench seat: Pull the lever up.
Then slide the seat to the desired posi-
tion with slight body pressure and re-
lease the lever. 2. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’03 TUNDRA_U (L/O 0307)
33
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.

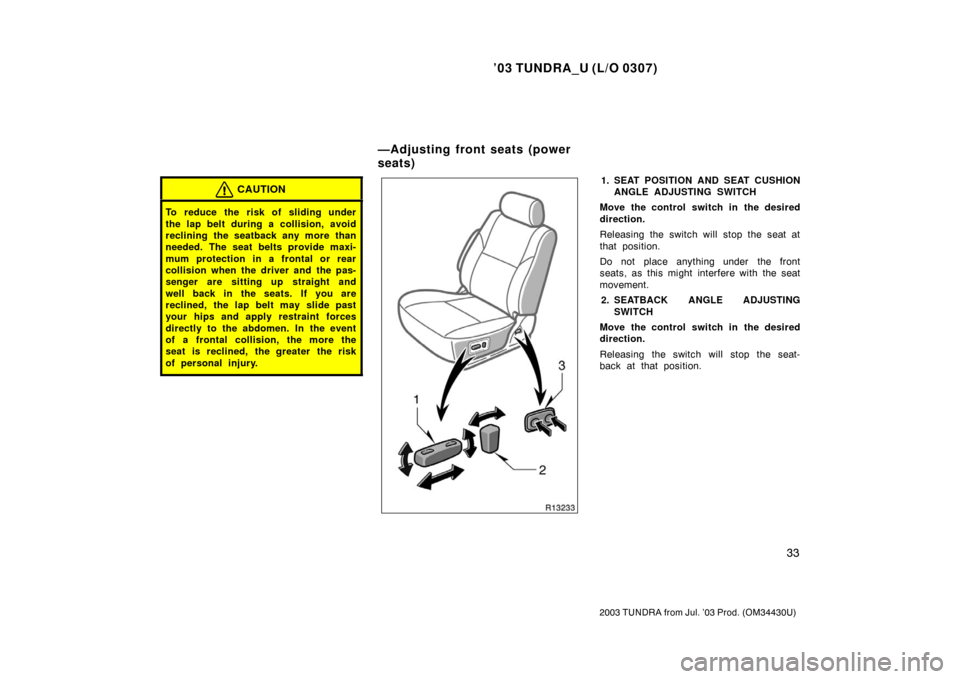

1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seats)

’03 TUNDRA_U (L/O 0307)
34
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch on either way.
The amount of lumbar support will change
while the switch is pushed.

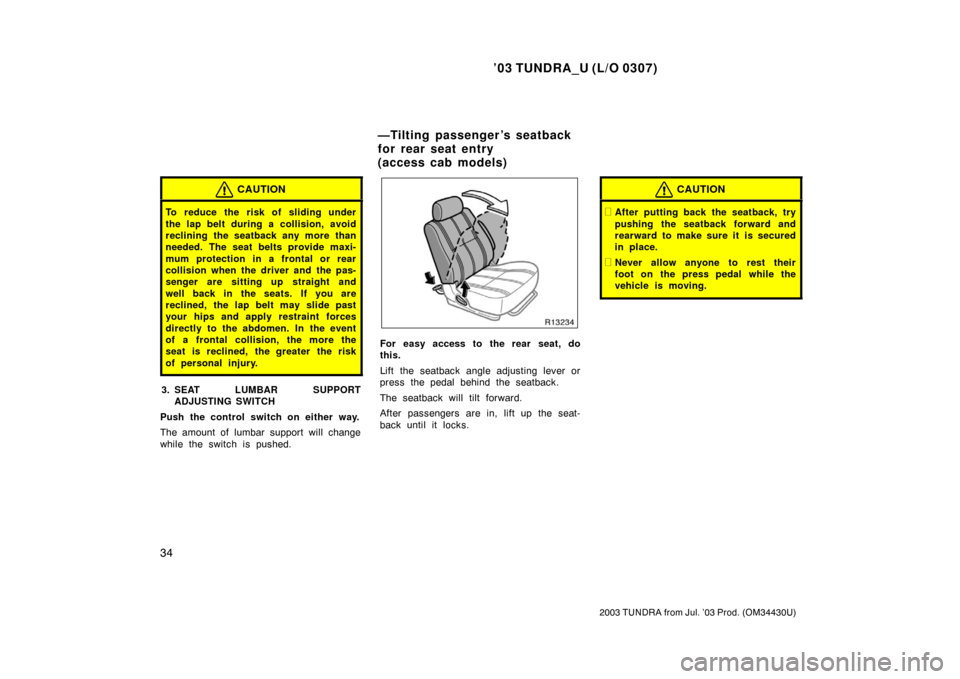

For easy access to the rear seat, do
this.
Lift the seatback angle adjusting lever or
press the pedal behind the seatback.
The seatback will tilt forward.
After passengers are in, lift up the seat-
back until it locks.
CAUTION
After putting back the seatback, try
pushing the seatback forward and
rearward to make sure it is secured
in place.
Never allow anyone to rest their
foot on the press pedal while the
vehicle is moving.
—Tilting passenger ’s seatback
for rear seat entry
(access cab models)

’03 TUNDRA_U (L/O 0307)
35
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

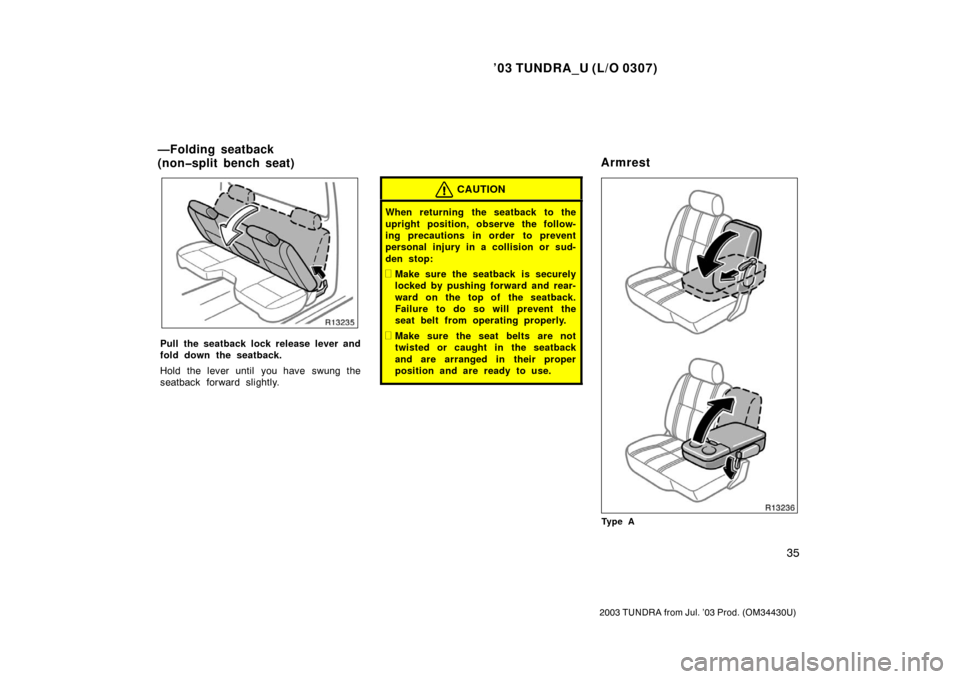

Pull the seatback lock release lever and
fold down the seatback.
Hold the lever until you have swung the
seatback forward slightly.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Ty p e A
—Folding seatback
(nonsplit bench seat) Armrest

’03 TUNDRA_U (L/O 0307)
36
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Ty p e B
Ty p e C
To use the armrest, do this.
Ty p e A —
To lower: Pull the lock release strap and
down the armrest.
To raise: Push down the lock release knob
and up the armrest.
Type B—Pull the armrest down as shown
in the illustration.
Type C—Pull the armrest out as shown in
the illustration.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.1. Stow the rear seat belt and buckles
as shown in the illustration.
This prevents the belt and buckles from
falling out when you swing up the rear
seat.
NOTICE
The seat belt and buckles must be
stowed before you swing up the rear
seat.
Swingup rear seats
(access cab models)

’03 TUNDRA_U (L/O 0307)
37
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

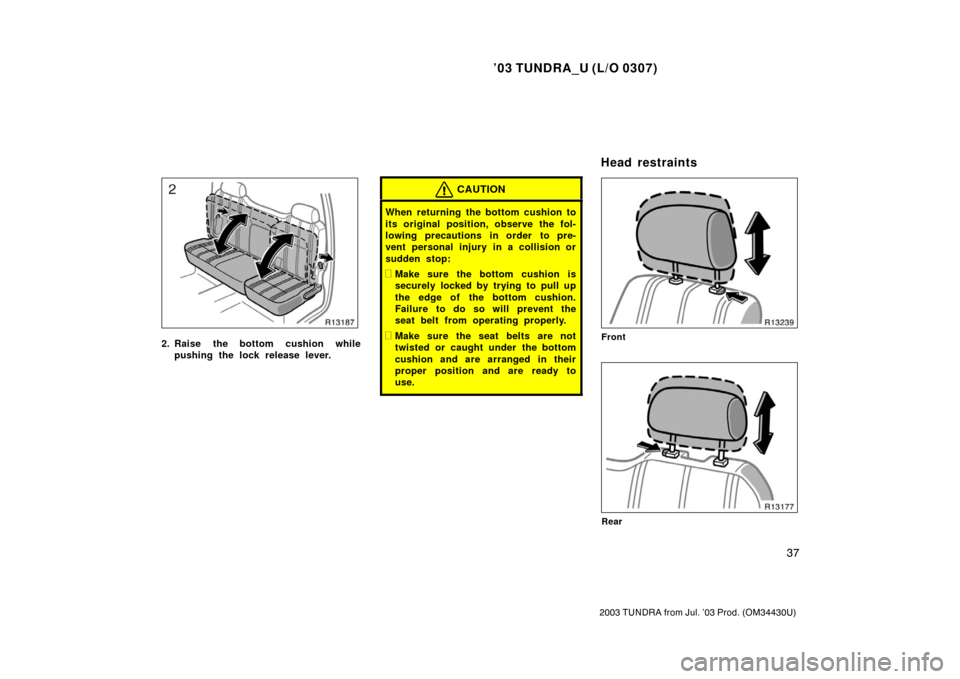

2. Raise the bottom cushion while
pushing the lock release lever.
CAUTION
When returning the bottom cushion to
its original position, observe the fol-
lowing precautions in order to pre-
vent personal injury in a collision or
sudden stop:
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the bottom
cushion and are arranged in their
proper position and are ready to
use.Front
Rear
Head restraints

’03 TUNDRA_U (L/O 0307)
38
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
for details.
STANDARD CAB MODELS—
If a child is too large for a child restraint
system, the child s hould sit in the seat
and must be restrained using the vehicle’s
seat belt.
ACCESS CAB MODELS—
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat. If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Smallframed person or youth in a
3point type seat belt.
On models with
a non −split bench seat, have a small −
framed person or youth sit slightly closer
to the center of the vehicle (so the shoul-
der belt does not cross over the neck).
On models with separate seats and a split
bench seat, move the seat fully backward.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Seat belts—
—Seat belt precautions

’03 TUNDRA_U (L/O 0307)
39
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See “Cleaning the interior”
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Front outside seat belts and
rear outside seat belts
