2003 PORSCHE 911 CARRERA Owners Manual

Installing

1.Insertheadlightintoguiderailsandpushfully
intothewing.
2.Pushheadlighttotherearandatthesame
timeturnthesocketwrenchuntilitpoints
horizontallytotherearC.
Theheadlightlockingdevicemustperceptibly
andaudiblyengage.
3.Checkheadlightforafirmseating,e.g.by
pullingitintheareaofthefoglight.
4.Insertrubberplugintotheunlockingopening
andsecurethecarpeting.
Checkthefunctionofalllights.
I>I>I>
PracticalTips,EmergencyService
225

Lowbeam,highbeamandadditional
highbeam
Openingthelidoftheheadlighthousing

1.UnscrewthetwoscrewsA.
2.PressbothreleasetabsBandremovelid.
226PracticalTips,EmergencyService

Changingbulbforturnsignallight

1.Turnplugcounterclockwise(bayonetlock)
andpullitoff.
2.Replacedefectivebulb.
Whendoingso,ensurebulbisseated
properly.
3.Reassembleinreverseorder.

N
0
0
Bi-Xenonheadlight:
Changingbulbforlowbeamandhighbeam

1.Turnplugcounterclockwise(bayonetlock)
andpull
itoff.

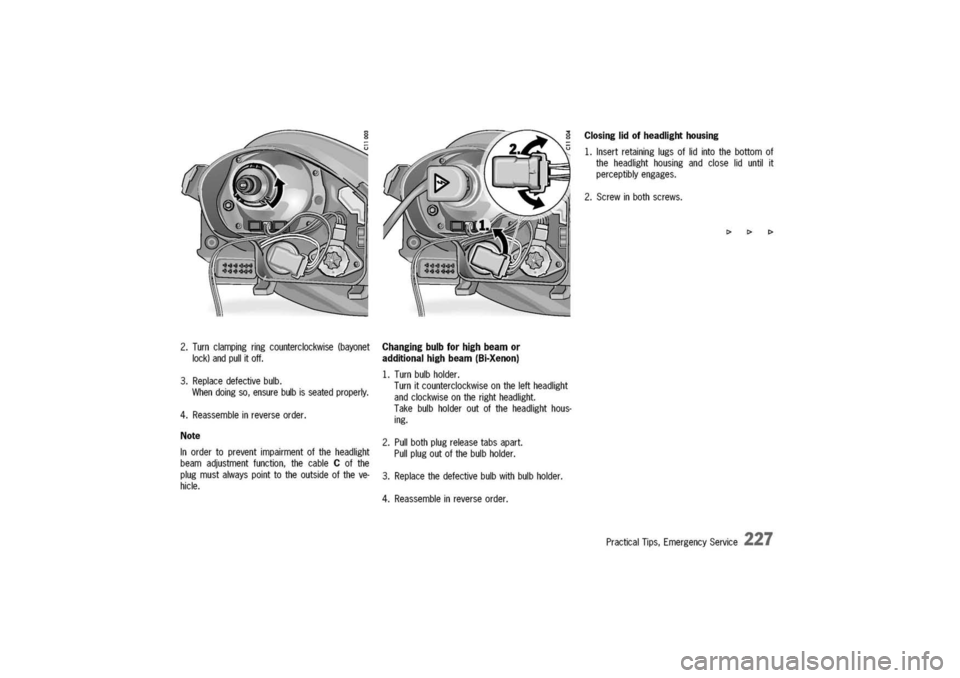

2.Turnclampingringcounterclockwise(bayonet
lock)andpullitoff.
3.Replacedefectivebulb.
Whendoingso,ensurebulbisseatedproperly.
4.Reassembleinreverseorder.
Note
Inordertopreventimpairmentoftheheadlight
beamadjustmentfunction,thecableCofthe
plugmustalwayspointtotheoutsideoftheve-
hicle.
Changingbulbforhighbeamor
additionalhighbeam(Bi-Xenon)
1.Turnbulbholder.
Turnitcounterclockwiseontheleftheadlight
andclockwiseontherightheadlight.
Takebulbholderoutoftheheadlighthous-
ing.
2.Pullbothplugreleasetabsapart.
Pullplugoutofthebulbholder.
3.Replacethedefectivebulbwithbulbholder.
4.Reassembleinreverseorder.

Closinglidofheadlighthousing

1.Insertretaininglugsoflidintothebottomof
theheadlighthousingandcloseliduntilit
perceptiblyengages.
2.Screwinbothscrews.
I>I>I>
PracticalTips,EmergencyService
227

Changingbulb
forparkinglight

1.Turncapintheheadlighthousingcounter-
lockwiseandremovethecap.
228PracticalTips,EmergencyService
2.Turnbulbholder.
Turnitcounterclockwiseontheleftheadlight
andclockwiseontherightheadlight.
Takebulbholderoutoftheheadlighthous-
ing.
3.Turndefectivebulbcounterclockwise(bay-
onetlock)andreplaceit.
4.Reassembleinreverseorder.
Changingbulb
forturnsignallight

1.Turnbulbholderintheheadlighthousing
counterclockwiseandpullitout.
2.Turndefectivebulbcounterclockwise(bay-
onetlock)andreplaceit.
3.Reassembleinreverseorder.

Changingbulbforfoglight
1.Turncapintheheadlighthousingcounter-
clockwiseandremovethecap.
2.Presstheretainingclipdownwithascrew-
driverandpushittotheleft.
3.Pivottheretainingclipback.
4.Pullbulbwithcableoutoftheheadlighthous-
ing.
5.Disconnectplugconnectionandreplacethe
defectivebulb.
6.Reassembleinreverseorder.
PracticalTips,EmergencyService
229

0
1.Removecapinthewheelhousinglinerwith
thescrewdriver.
2.Insertscrewdriverintotheopeninginthe
wheelhousinglineratrightanglestotheside
markerlighthousing.
Bypressingwiththescrewdriver,disengage
thesecuringspringofthesidemarkerlight
housing.
230PracticalTips,EmergencyService
ChangingBulbintheSide
MarkerLight
~
3.Removesidemarkerlightandundobulb
holder(bayonetlock).
4.Removebulbfromtheholderandreplace.
Insertholder.
5.Insertthelighttabs(arrowA)intothewingat
thefront.
Engagesecuringspring(arrowB)inthewing.
6.Presscapintothewheelhousingliner.
Checkoperationofthelight.

Tai/lightleft
TailLight
911Carrera,Carrera4,Targa
Changingbulb
1.Openlidofenginecompartment.
2.UnscrewboltAandpulltaillightback(arrow)
andout.
A-Tai/light,brakelight
B-Reversinglight
C-Turnsigna/light
D-Rearfoglight
E-Sidemarkerlight
3.Turnbulbholdercounterclockwiseand
removefromtaillight.
4.Replacedefectivebulb(bayonetmount).
5.Insertbulbholderandturnclockwise.
6.Inserttaillightinthefender.
Ensurethatlocatinglug(arrow)iscorrectly
positioned.
ScrewinboltA.
Checkoperationofthelight.
PracticalTips,EmergencyService
231

Taillight,left
TailLight

CalTera
45
Changingbulb
1.Openenginecompartmentlid.
2.UnscrewfasteningscrewsAwithascrew-
driverandpulltaillightbackandout.
232PracticalTips,EmergencyService
A-Reversinglight
B-Turnsigna/light
C-Taillight;brakelight
D-Taillight
E-Rearfoglight
F-Sidemarkerlight
3.Turnbulbholderinthetaillighthousing
counter-clockwiseandpullitout.
4.Turndefectivebulbcounter-clockwise(bay-
onetlock)andreplaceit.
5.Insertbulbholderandturnitclockwise.
6.Inserttaillightinthewing.
Ensurethatlocatinglug(arrow)iscorrectly
positioned.
7.Slightlyscrewinbothfasteningscrewsofthe
taillight.
Alignthetaillightwiththevehiclecontours
andtightenthescrews.
8.Checkoperationofthelight.
