2003 PORSCHE 911 CARRERA Owners Manual

B-Closingthelifting/slidingroof
I>Pressfrontofrockerswitchuntillifting/slid-
ingroofreachesthedesiredposition.
One-touchoperation
I>Touchfrontofrockerswitch-lifting/sliding
roofclosesfullytoitsendposition.
Stopitinanypositionbytouchinganybutton.
Closingthelifting/slidingroofautomat-
icallywhenthevehicleislocked
I>Holdthecarkeyinthedoorlockinlocking
positionuntilthelifting/slidingroofreaches
thedesiredposition.
C-Liftingthelifting/slidingroof
I>Presscenterofrockerswitchuntillift-
ing/slidingroofreachesthedesiredposition.
One-touchoperation
I>Touchcenterofrockerswitch-lifting/sliding
roofopensfullytoitsendposition.
Stopitinanypositionbytouchinganybutton.
B-Loweringthelifting/slidingroof
I>Pressfrontofrockerswitchuntillifting/slid-
ingroofreachesthedesiredposition.
Thestandbyfunctionoftheroofdrive
switchesoffaftertwohours
Ifthevehicleisunlocked,thelifting/slidingroof
cannolongerbeoperatedaftertwohours
(preventionofbatterydischarging).
Thepowersupplyisswitchedbackonwhenthe
ignitionisswitchedonortheenginestarted.
I>I>I>
MobileRoofs
137

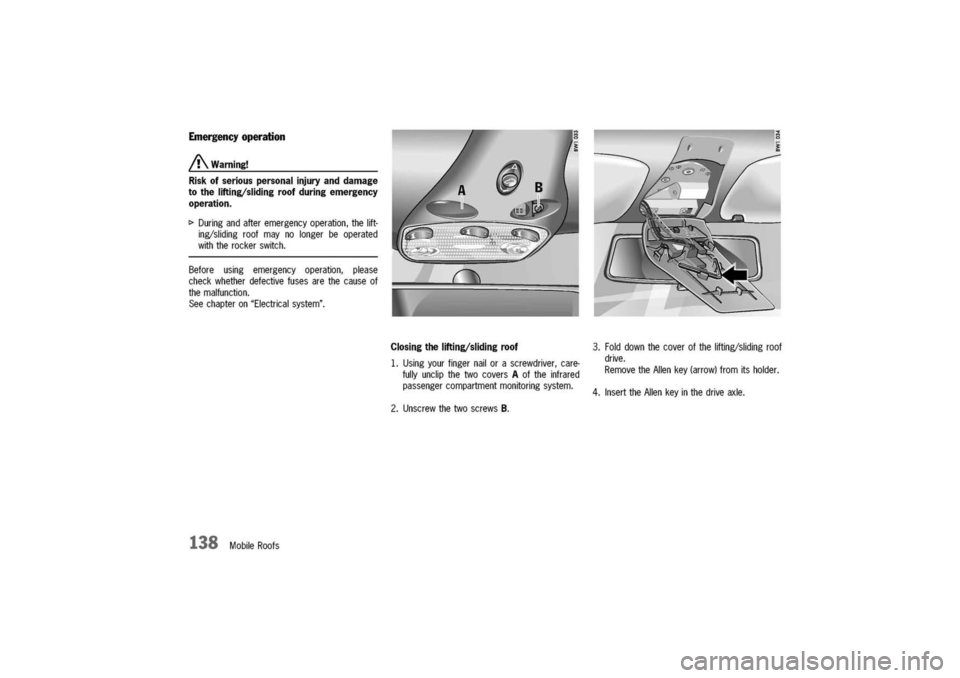

Emergencyoperation

/!\Warning!
Risk
ofseriouspersonalinjuryanddamage
tothelifting/slidingroofduringemergency
operation.

[>Duringandafteremergencyoperation,thelift-
ing/slidingroofmaynolongerbeoperated
withtherockerswitch.
Beforeusingemergencyoperation,please
checkwhetherdefectivefusesarethecauseof
themalfunction.
Seechapteron"Electricalsystem".
138MobileRoofs

Closingthelifting/slidingroof

1.Usingyourfingernailorascrewdriver,care-
fullyunclipthetwocoversAoftheinfrared
passengercompartmentmonitoringsystem.
2.UnscrewthetwoscrewsB.
3.Folddownthecoverofthelifting/slidingroof
drive.
RemovetheAllenkey(arrow)fromitsholder.
4.InserttheAllenkeyinthedriveaxle.

5.PresstheAllenkeyintothedriveaxle,keep
itpressedandturnitclockwiseuntilthelift-
ing/slidingroofisclosed.
6.WithdrawtheAllenkey.
Closethecoverandfastenthescrews.
7.Pleasehavethefaultremediedatanauth-
orizedPorschedealer.
MobileRoofs
139

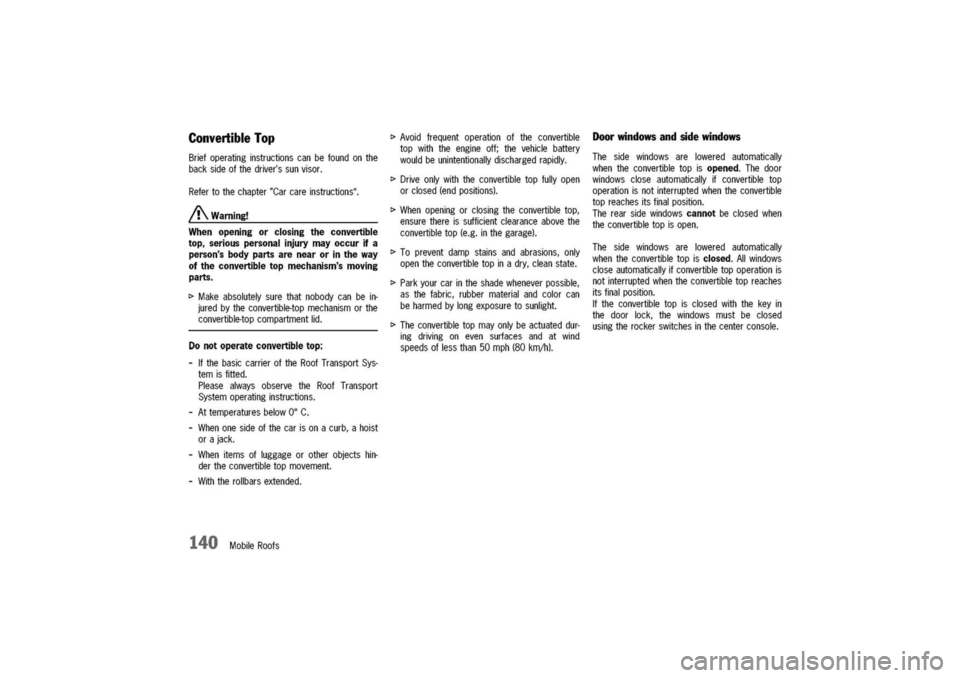

ConvertibleTop
Briefoperatinginstructionscanbefoundonthe
backsideofthedriver'ssunvisor.
Refertothechapter"Carcareinstructions".
/!\Warning!
Whenopeningorclosingtheconvertible
top,seriouspersonalinjurymayoccurifa
person'sbodypartsarenearorintheway
oftheconvertibletopmechanism'smoving
parts.
[>
Makeabsolutelysurethatnobodycanbein-
juredbytheconvertible-topmechanismorthe
convertible-topcompartmentlid.
Donotoperateconvertibletop:
-IfthebasiccarrieroftheRoofTransportSys-
temisfitted.
PleasealwaysobservetheRoofTransport
Systemoperatinginstructions.
-Attemperaturesbelow0°C.
-Whenonesideofthecarisonacurb,ahoist
orajack.
-Whenitemsofluggageorotherobjectshin-
dertheconvertibletopmovement.
-Withtherollbarsextended.
140MobileRoofs
[>
Avoidfrequentoperationoftheconvertible
topwiththeengineoff;thevehiclebattery
wouldbeunintentionallydischargedrapidly.
[>
Driveonlywiththeconvertibletopfullyopen
orclosed(endpositions).
[>
Whenopeningorclosingtheconvertibletop,
ensurethereissufficientclearanceabovethe
convertibletop(e.g.inthegarage).
[>
Topreventdampstainsandabrasions,only
opentheconvertibletopinadry,cleanstate.
[>
Parkyourcarintheshadewheneverpossible,
asthefabric,rubbermaterialandcolorcan
beharmedbylongexposuretosunlight.
[>
Theconvertibletopmayonlybeactuateddur-
ingdrivingonevensurfacesandatwind
speedsoflessthan50mph(80kmjh).
Doorwindowsandsidewindows
Thesidewindowsareloweredautomatically
whentheconvertibletopisopened.Thedoor
windowscloseautomaticallyifconvertibletop
operationisnotinterruptedwhentheconvertible
topreachesitsfinalposition.
Therearsidewindows
cannot
beclosedwhen
theconvertibletopisopen.
Thesidewindowsareloweredautomatically
whentheconvertibletopisclosed.Allwindows
closeautomaticallyifconvertibletopoperationis
notinterruptedwhentheconvertibletopreaches
itsfinalposition.
Iftheconvertibletopisclosedwiththekeyin
thedoorlock,thewindowsmustbeclosed
usingtherockerswitchesinthecenterconsole.

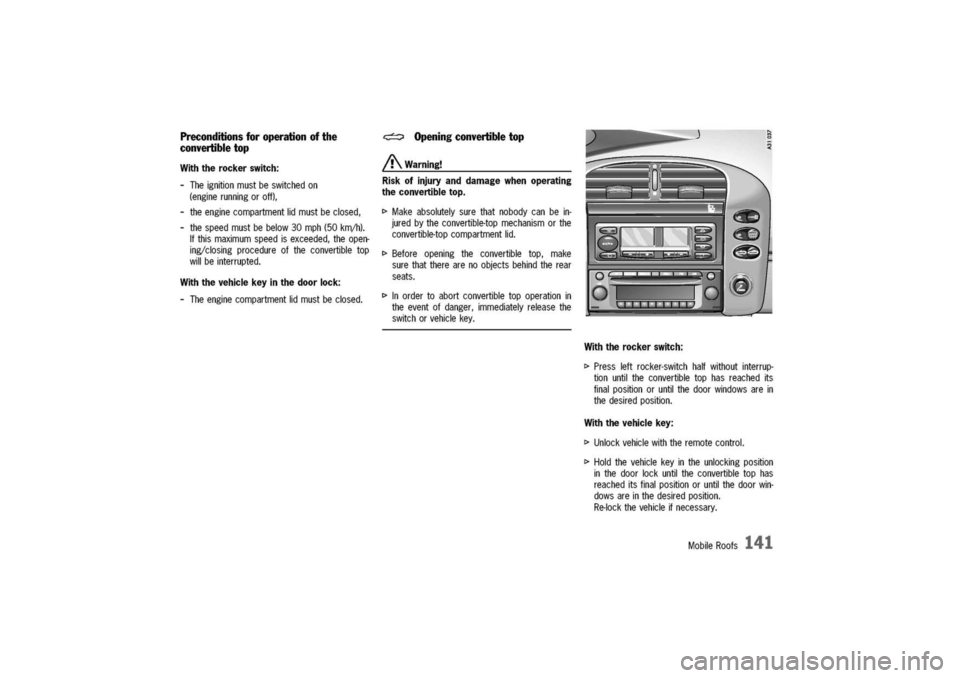

Preconditionsforoperationofthe
convertibletop
Withtherockerswitch:
-Theignitionmustbeswitchedon
(enginerunningoroff),
-theenginecompartmentlidmustbeclosed,
-thespeedmustbebelow30mph(50km/h).
Ifthismaximumspeedisexceeded,theopen-
ing/closingprocedureoftheconvertibletop
willbeinterrupted.
Withthevehiclekeyinthedoorlock:
-Theenginecompartmentlidmustbeclosed.

~Openingconvertible
top
A
Warning!
Riskofinjuryanddamagewhenoperating
theconvertibletop.
~Makeabsolutelysurethatnobodycanbein-
juredbytheconvertible-topmechanismorthe
convertible-topcompartmentlid.
~Beforeopeningtheconvertibletop,make
surethattherearenoobjectsbehindtherear
seats.
~Inordertoabortconvertibletopoperationin
theeventofdanger,immediatelyreleasethe
switchorvehiclekey.
Withtherockerswitch:
~Pressleftrocker-switchhalfwithoutinterrup-
tionuntiltheconvertibletophasreachedits
finalpositionoruntilthedoorwindowsarein
thedesiredposition.
Withthevehiclekey:
~Unlockvehiclewiththeremotecontrol.
~Holdthevehiclekeyintheunlockingposition
inthedoorlockuntiltheconvertibletophas
reacheditsfinalpositionoruntilthedoorwin-
dowsareinthedesiredposition.
Re-Iockthevehicleifnecessary.
MobileRoofs
141

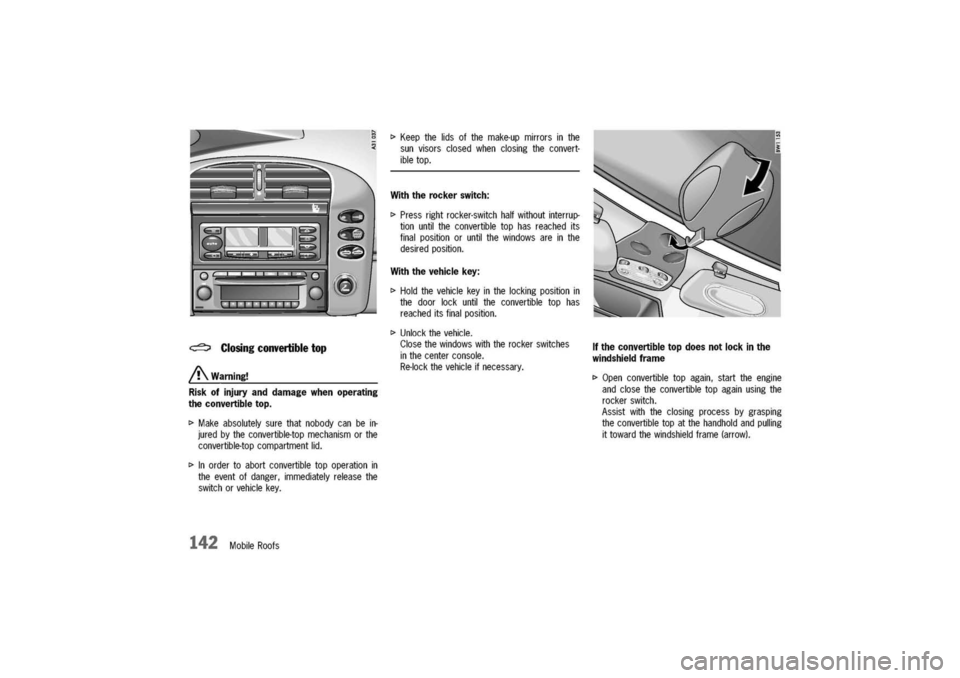

~Closingconvertibletop
A
Warning!
Risk
ofinjuryanddamagewhenoperating
theconvertibletop.
[>

Makeabsolutelysurethatnobodycanbein-
juredbytheconvertible-topmechanismorthe
convertible-topcompartmentlid.
[>Inordertoabortconvertibletopoperationin
theeventofdanger,immediatelyreleasethe
switchorvehiclekey.
142MobileRoofs

[>
Keepthelidsofthemake-upmirrorsinthe
sunvisorsclosedwhenclosingtheconvert-
ibletop.
With
therockerswitch:
[>

Pressrightrocker-switchhalfwithoutinterrup-
tionuntiltheconvertibletophasreachedits
finalpositionoruntilthewindowsareinthe
desiredposition.
With
thevehiclekey:
[>

Holdthevehiclekeyinthelockingpositionin
thedoorlockuntiltheconvertibletophas
reacheditsfinalposition.

[>

Unlockthevehicle.
Closethewindowswiththerockerswitches
inthecenterconsole.
Re-Iockthevehicleifnecessary.

Iftheconvertibletopdoesnotlockinthe
windshieldframe
[>
Openconvertibletopagain,starttheengine
andclosetheconvertibletopagainusingthe
rockerswitch.
Assistwiththeclosingprocessbygrasping
theconvertibletopatthehandholdandpulling
ittowardthewindshieldframe(arrow).

e
Warning
light
Itlights
upwhentheignitionisswitchedonand
mustgooutwhentheengineisrunning.
Ifthewarninglightlightsupwiththeenginerun-
ning,theconvertibletopisnotinoneofitsend
positions.
I>Fullyopenorclosetheconvertibletop.
Driveonlywiththeconvertibletopfullyopen
orclosed.
Ifthewarninglightdoesnotgooutintheend
position,pleaseconsultanauthorizedPorsche
dealer.
Afaultispossible,oritmaybenecessaryto
adjusttheconvertible
top.
Ifthewarninglightflashes
whenoperatingthe
convertibletopwiththerockerswitch:
I>Checkwhethertheenginecompartmentlidis
closed.
Emergencyoperation
oftheconvertibletop
I>
Before
performingemergencyoperation,
pleasecheck:
Wastheignitionswitchedonandwastheen-
ginecompartmentlidclosedduringoperation
oftheconvertibletopwiththerockerswitch?
Areelectricalfusesdefective?
Refertothechapter"Electricalsystem".

A.Warning!
Thereisadangerofinjuryduringemer-
gencyoperation.
Thereisadangerofcrushingortrapping
bodypartsatallmovableconvertibletop
partswhichcouldcauseseriouspersonal
injury.

I>Takegreatcarewhenperformingemergency
operation.
I>Donotoperatetheconvertibletopduringand
afteremergencyoperation.
Before
emergencyoperation
I>
Removetheignitionkeysothattheconvert-
ibletopisnotoperatedunintentionally.

I>
Takescrewdriveroutofthetoolkit.Referto
thechapter"Toolkit".
I>Foldtherearseatbackrestsforward.

I>I>I>

MobileRoofs
143

Removingrearwalllining
1.UnscrewscrewsAfromtherear
walllining.
Pulloutandrepositionthescrewdriverinsert
ifnecessary.
2.Grasptherearwallliningatthecut-outsfor
theseatbeltsandpressdownward.
Pullrearwallliningforwardandliftupand
out.
144MobileRoofs

Openingconvertibletopcompartment
lid"D"
1.Take
redAllenkeyBoutofitsholder.
2.PuthandleofscrewdriverontoAllenkeyB.
InsertAllenkeyintothedriveaxleCandturn
itcounterclockwise(indirectionofthearrow)
untiltheconvertibletopcompartmentlidDis
fullyopen.
RemovetheAllen
key.
A
Warning!
TheAllenkeycanrotateorflyoutand
therebycauseseriouspersonalinjuryifthe
convertibletopisactuated.

I>AlwaysremovetheAllenkeyBfromthedrive
axleCbeforeoperatingtheconvertibletop.
Whenyouhaveopenedtheconvertibletopcom-
partmentlid,trytoclosetheconvertibletop
usingtherockerswitch.
Iftheconvertibletopcannotbeclosed,continue
withemergencyoperation.
