2003 PORSCHE 911 CARRERA fuse box

A-Openingluggagecompartmentlid
B-Openingenginecompartmentlid

Luggage
CompartmentLidand
EngineCompartmentLid
Unlocking
t>Operatetheappropriatepul~buttonnexttothe
driver'sseat.
Theluggagecompartmentorenginecompart-
mentisilluminatedwhentherespectivelidis
open.
Alsorefertothechapter"Rearlid(Targa)"
and"Loadswitch-off".
118Controls,Instruments
Theluggagecompartmentlidcanalsobe
unlockedwiththeradioremotecontrol.
Refertothechapter"Keys".
ImportantNote
Ifthevehiclebatteryisdischarged,thelidscan
beopenedonlybyconnectinganexternalelec-
tricalpowersource.
Pleaseobservethechapter"Electricalsystem"
orthedescriptioninsidethefuseboxcover.

e
Warninglight

Thewarninglightsintheinstrumentpanelandin
theon-board-computercomeonifthelidsare
notcompletelyclosed.
t>Fullyclosethelid.

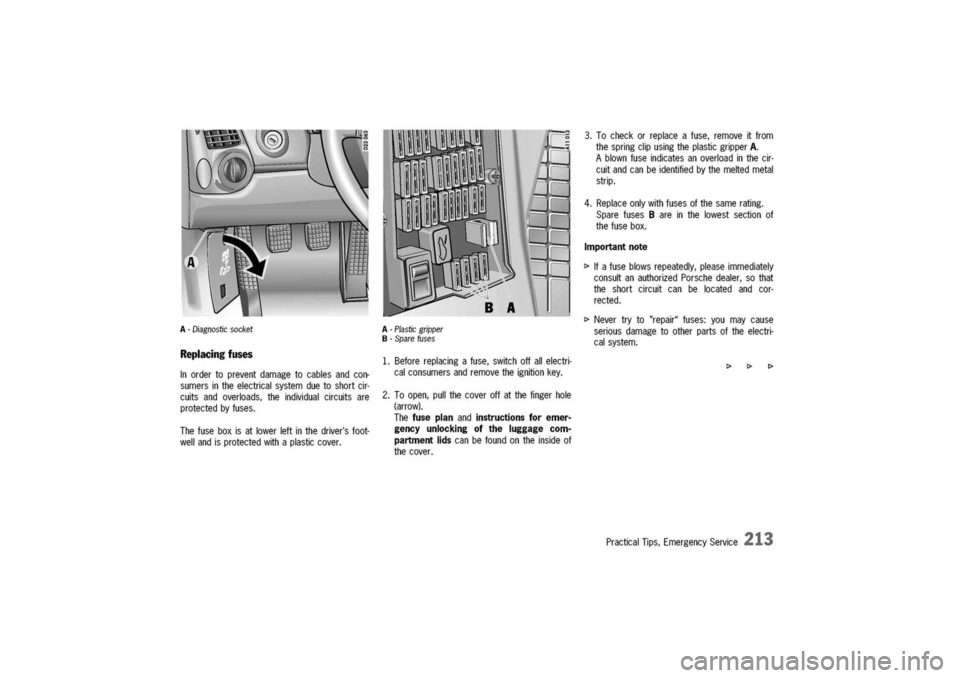

A-Diagnosticsocket

Replacing
fuses
Inordertopreventdamagetocablesandcon-
sumersintheelectricalsystemduetoshortcir-
cuitsandoverloads,theindividualcircuitsare
protectedbyfuses.
Thefuseboxisatlowerleftinthedriver'sfoot-
wellandisprotectedwithaplasticcover.
A-Plasticgripper
B-Sparefuses
1.Beforereplacingafuse,switchoffallelectri-
calconsumersandremovetheignitionkey.
2.Toopen,pullthecoveroffatthefingerhole
(arrow).
Thefuseplanandinstructionsforemer-
gencyunlockingoftheluggagecom-
partmentlidscanbefoundontheinsideof
thecover.
3.Tocheckorreplaceafuse,removeitfrom
thespringclipusingtheplasticgripperA.
Ablownfuseindicatesanoverloadinthecir-
cuitandcanbeidentifiedbythemeltedmetal
strip.
4.Replaceonlywithfusesofthesamerating.
SparefusesBareinthelowestsectionof
thefusebox.
Importantnote
t>Ifafuseblowsrepeatedly,pleaseimmediately
consultanauthorizedPorschedealer,sothat
theshortcircuitcanbelocatedandcor-
rected.
t>Nevertryto"repair"fuses:youmaycause
seriousdamagetootherpartsoftheelectri-
calsystem.
t>t>t>
PracticalTips,EmergencyService
213

Emergencyunlockingoftheluggage
compartmentlidandengine
compartmentlid
Ifthebatteryisdischarged,thelidscanbe
openedonlywiththeaidofadonorbattery.
Unlockinglids
1.Usethekeytounlockthevehicleatthedoor
lock.
Leavethekeyinthedoorlock.
2.Removeplasticcoveroverthefusebox.
3.PulloutpositiveterminalAinthefusebox.
4.Useajumper
cabletoconnectthepositive
terminalofthedonorbatterywithpositive
terminalAinthefuse
box.
214PracticalTips,EmergencyService
Note
Ifthevehicle
waslocked,thealarmhornwill
soundwhenthenegativecableisconnected.
5.Usethesecondjumpercabletoconnectthe
negativeterminalofthedonorbatterywith
latchstrikerB.
6.Switchthealarmsystemoffbylockingand
unlockingatthedoorlock.
7.Unlocktheenginecompartmentlidorlug-

gagecompartment
lidwiththeswitch.
8.Disconnectthenegativecablefirst,thenthe
positivecable.
9.PushpositiveterminalAintothefusebox
andpushontheplasticfuseboxcover.

Note
Theenginecannot
bestartedwiththismethod.
Pleaseobservethechapter"EmergencyStarting
withJumperCables"forthispurpose.
