ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
CO

ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
OVERHEATING CAUSE ANALYSIS .......................... 5
Troubleshooting Chart .............................................. 5
COOLING SYSTEM .................................................... 7
Cooling Circuit .......................................................... 7
System Chart ........................................................... 8
ENGINE COOLANT .................................................... 9
Inspection ................................................................. 9
LEVEL CHECK ..................................................... 9
LEAK CHECK ....................................................... 9
Changing Engine Coolant ........................................ 9
DRAINING ENGINE COOLANT ........................... 9
REFILLING ENGINE COOLANT ........................ 10
FLUSHING COOLING SYSTEM ......................... 10
RADIATOR ................................................................ 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 13
Checking Radiator Cap .......................................... 13
Checking Radiator .................................................. 13
RADIATOR (ALUMINUM TYPE) .............................. 14
Disassembly and Assembly ................................... 14
PREPARATION ................................................... 14
DISASSEMBLY ................................................... 14
ASSEMBLY ......................................................... 15
INSPECTION ...................................................... 17
COOLING FAN ......................................................... 18
Removal and Installation ........................................ 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18
DISASSEMBLY AND ASSEMBLY ...................... 18WATER PUMP .......................................................... 20
Removal and Installation ........................................ 20
REMOVAL ........................................................... 20
INSPECTION AFTER REMOVAL ....................... 21
INSTALLATION ................................................... 21
INSPECTION AFTER INSTALLATION ................ 21
THERMOSTAT AND WATER CONTROL VALVE .... 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL ....................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 24
Standard and Limit .................................................. 24
CAPACITY ........................................................... 24
THERMOSTAT .................................................... 24
WATER CONTROL VALVE ................................. 24
RADIATOR .......................................................... 24
Tightening Torque ................................................... 24
YD22DDTi
PRECAUTIONS ........................................................ 25
Precautions For Liquid Gasket ............................... 25
LIQUID GASKET APPLICATION PROCEDURE ... 25
PREPARATION ......................................................... 26
Special Service Tools ............................................. 26
Commercial Service Tools ...................................... 26
OVERHEATING CAUSE ANALYSIS ........................ 27
Troubleshooting Chart ............................................ 27
COOLING SYSTEM .................................................. 29
Cooling Circuit ........................................................ 29
System Chart .......................................................... 30
ENGINE COOLANT .................................................. 31
Inspection ............................................................... 31
LEVEL CHECK .................................................... 31

CO-2 CHECKING RADIATOR SYSTEM FOR LEAKS ... 31
Changing Engine Coolant ....................................... 31
DRAINING ENGINE COOLANT .......................... 31
REFILLING ENGINE COOLANT ......................... 32
FLUSHING COOLING SYSTEM ......................... 33
RADIATOR ................................................................ 34
Removal and Installation ........................................ 34
REMOVAL ........................................................... 34
INSTALLATION .................................................... 34
INSPECTION AFTER INSTALLATION ................ 34
Checking Radiator Cap .......................................... 35
Checking Radiator .................................................. 35
COOLING FAN .......................................................... 36
Removal and Installation ........................................ 36
REMOVAL ........................................................... 36
INSTALLATION .................................................... 36
DISASSEMBLY AND ASSEMBLY ....................... 36
RADIATOR (ALUMINUM TYPE) ............................... 38
Disassembly and Assembly .................................... 38
PREPARATION ................................................... 38
DISASSEMBLY ................................................... 38
ASSEMBLY ......................................................... 39
INSPECTION ....................................................... 41WATER PUMP ........................................................... 42
Removal and Installation ......................................... 42
REMOVAL ............................................................ 42
INSPECTION AFTER REMOVAL ........................ 43
INSTALLATION .................................................... 43
INSPECTION AFTER INSTALLATION ................ 43
THERMOSTAT AND WATER PIPING ....................... 44
Removal and Installation ......................................... 44
REMOVAL ............................................................ 44
INSPECTION AFTER REMOVAL ........................ 45
INSTALLATION .................................................... 45
INSPECTION AFTER INSTALLATION ................ 45
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 46
Standard and Limit .................................................. 46
CAPACITY ........................................................... 46
THERMOSTAT ..................................................... 46
RADIATOR ........................................................... 46
Tightening Torque ................................................... 46

PRECAUTIONS
CO-3
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

[QR]PRECAUTIONSPFP:00001
Precautions for Liquid GasketEBS00MRX
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.

Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.

Within five minutes of liquid gasket application, install the mat-
ing component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

Wait 30 minutes or more after installation before refilling
engine oil and engine coolant.
PBIC2160E

OVERHEATING CAUSE ANALYSIS
CO-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00KOD
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat and water con-
trol valve stuck closed—
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

ENGINE COOLANT
CO-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

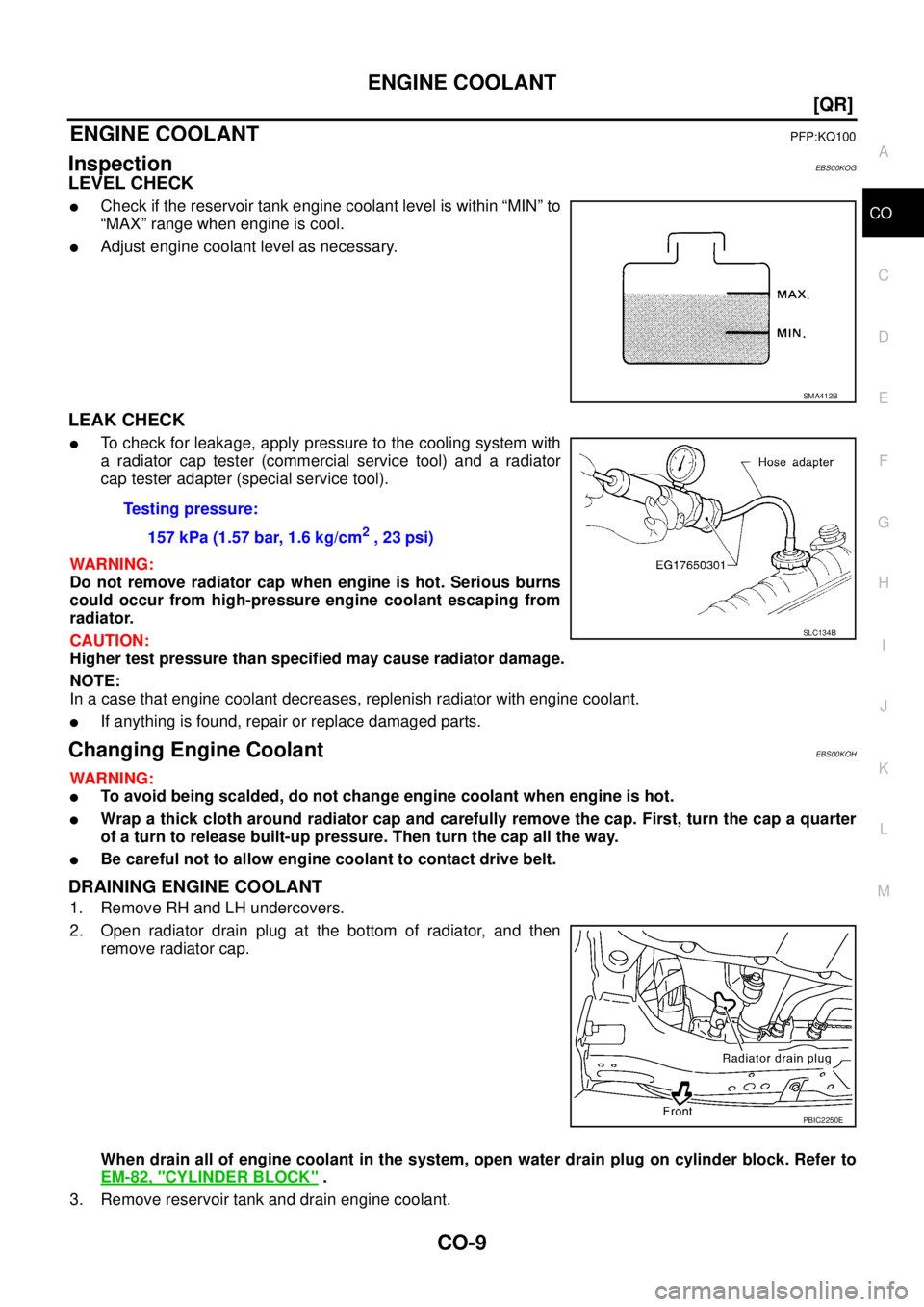

ENGINE COOLANTPFP:KQ100
InspectionEBS00KOG
LEVEL CHECK

Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” range when engine is cool.

Adjust engine coolant level as necessary.
LEAK CHECK

To check for leakage, apply pressure to the cooling system with
a radiator cap tester (commercial service tool) and a radiator
cap tester adapter (special service tool).
WARNING:
Do not remove radiator cap when engine is hot. Serious burns
could occur from high-pressure engine coolant escaping from
radiator.
CAUTION:
Higher test pressure than specified may cause radiator damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantEBS00KOH
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove the cap. First, turn the cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.

Be careful not to allow engine coolant to contact drive belt.
DRAINING ENGINE COOLANT
1. Remove RH and LH undercovers.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.
When drain all of engine coolant in the system, open water drain plug on cylinder block. Refer to
EM-82, "
CYLINDER BLOCK" .
3. Remove reservoir tank and drain engine coolant.
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC2250E

CO-10
[QR]
ENGINE COOLANT

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to CO-10, "
FLUSHING COOLING SYSTEM" .

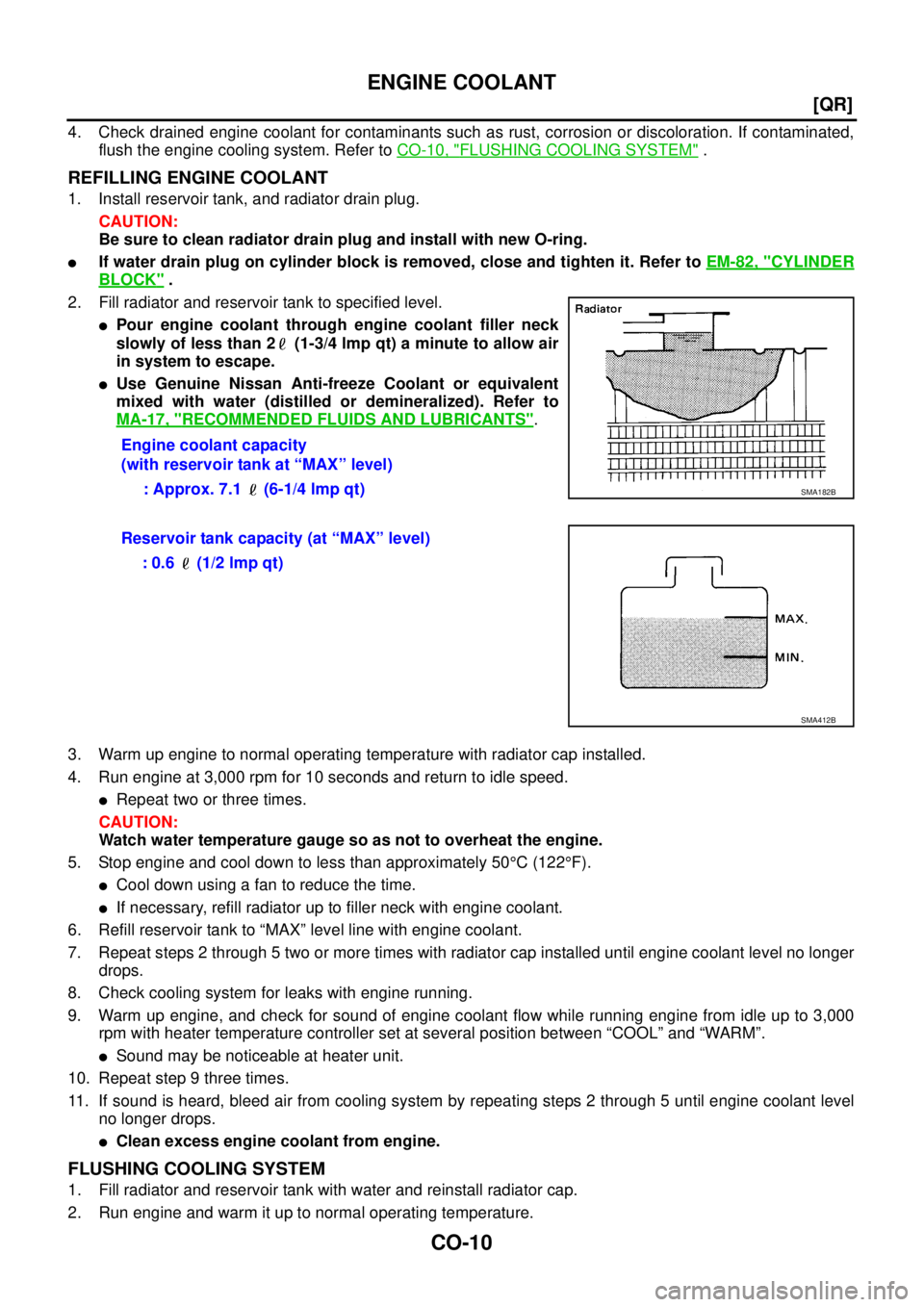

REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-82, "CYLINDER
BLOCK" .
2. Fill radiator and reservoir tank to specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".
3. Warm up engine to normal operating temperature with radiator cap installed.
4. Run engine at 3,000 rpm for 10 seconds and return to idle speed.

Repeat two or three times.
CAUTION:
Watch water temperature gauge so as not to overheat the engine.
5. Stop engine and cool down to less than approximately 50°C (122°F).

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
6. Refill reservoir tank to “MAX” level line with engine coolant.
7. Repeat steps 2 through 5 two or more times with radiator cap installed until engine coolant level no longer
drops.
8. Check cooling system for leaks with engine running.
9. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
10. Repeat step 9 three times.
11. If sound is heard, bleed air from cooling system by repeating steps 2 through 5 until engine coolant level
no longer drops.

Clean excess engine coolant from engine.
FLUSHING COOLING SYSTEM
1. Fill radiator and reservoir tank with water and reinstall radiator cap.
2. Run engine and warm it up to normal operating temperature.Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 7.1 (6-1/4 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.6 (1/2 lmp qt)
SMA412B

ENGINE COOLANT
CO-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water from the system. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
6. Repeat steps 1 through 5 until clear water begins to drain from radiator.
