ENGINE ASSEMBLY
EM-79
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Release fuel pressure. Refer to EC-48, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-510,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Disconnect both battery terminals. Refer to SC-3, "
BATTERY" .
4. Drain engine coolant from radiator. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
5. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-3, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-15, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-12, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
6. Disconnect engine room harness from the engine side and set it aside for easier work.
7. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hose, and plug it to prevent fuel from draining. Refer to EM-32, "FUEL INJECTOR
AND FUEL TUBE"
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
3. Disconnect control cable from transaxle (A/T models). Refer to AT- 4 0 4 , "
ON-VEHICLE SERVICE" .
4. Disconnect clutch operating cylinder from transaxle, and move it aside (M/T models). Refer to CL-10,
"OPERATING CYLINDER" .
5. Disconnect shift and select cable from transaxle (M/T models). Refer to MT-14, "
CONTROL LINKAGE" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove propeller shaft. Refer to PR-3, "
REAR PROPELLER SHAFT" .
3. Remove steering lower joint from steering gear. Refer to PS-10, "
STEERING COLUMN" .
4. Disconnect power steering fluid piping at a point between vehicle and engine. Refer to PS-34, "
HYDRAU-
LIC LINE" .
5. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter
(A/T models). Refer to EM-25, "
OIL PAN AND OIL STRAINER" and AT- 4 1 3 , "REMOVAL AND INSTALLA-
TION" .
6. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-17, "
TRAN-
SAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 , "REMOVAL AND INSTALLATION" (A/T models).
7. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-45, "
WHEEL SEN-
SORS" (ABS) or BRC-116, "WHEEL SENSORS" (ESP/TCS/ABS).
8. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
9. Remove lower ends of left and right strut from steering knuckle. Refer to FSU-5, "
FRONT SUSPENSION
ASSEMBLY" .
Removal
1. Install engine slingers into front left of cylinder head and rear right of cylinder head.

ENGINE ASSEMBLY
EM-81
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

9. Remove power steering oil pump with piping connected from engine. Move it aside on front suspension
member. Refer to PS-34, "
HYDRAULIC LINE" .
10. Remove front engine mounting and rear engine mounting through-bolts to remove front suspension mem-
ber and center member.
11. Remove starter motor. Refer to SC-21, "
STARTING SYSTEM" .
12. Separate engine and transaxle. Refer to MT-17, "
TRANSAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 ,
"REMOVAL AND INSTALLATION" (A/T models).
INSTALLATION
Note the following, and install in the reverse order of removal.

Do not allow engine oil to get on mounting insulator. Be careful not to damage mounting insulator.

When installation directions are specified, install parts according to the direction marks on them referring
to figure of components. Refer to EM-78, "
Removal and Installation" .

Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
INSPECTION AFTER INSTALLATION

Before starting engine, check the levels of engine coolant, engine oil and working fluid. If less than
required quantity, fill to the specified level.

Use procedure below to make sure there is no fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, make sure there
are no fuel leaks at connection points.
–Start engine. With engine speed increased, check again if there are no fuel leaks at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of engine coolant, engine oil, working fluid,
fuel and exhaust gas.

Bleed air from passages in pipes and tubes of applicable lines, such as in cooling system.

After cooling down engine, again check amounts of engine coolant, engine oil and working fluid. Refill to
specified level, if necessary.
Summary of the inspection items:
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Working fluid Level Leakage Level
Fuel — Leakage —
Exhaust gas — Leakage —

EM-84
[QR]
CYLINDER BLOCK


A widely use engine stand can be used.
NOTE:
This example is an engine stand for holding at transaxle
mounting side with flywheel (M/T models) or drive plate (A/T
models) removed.
3. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
4. Drain engine coolant by removing water drain plug from inside of
engine.
5. Remove cylinder head. Refer to EM-67, "
CYLINDER HEAD" .
6. Remove knock sensor.
CAUTION:
Carefully handle knock sensor avoiding shocks.
7. Remove crankshaft position sensor (POS).
CAUTION:

Avoid impacts such as a dropping.

Do not disassemble.

Keep it away from metal particles.

Do not place sensor in a location where it is exposed to
magnetism.
8. Remove clutch cover and clutch disc (M/T models). Refer to CL-14, "
CLUTCH DISC, CLUTCH COVER
AND FLYWHEEL" .
9. Remove flywheel (M/T models) or drive plate (A/T models).

Secure crankshaft with a stopper plate, and remove mounting
bolts.

Using the following TORX socket, loosen mounting bolts.
CAUTION:
Be careful not to damage contact surface for clutch disc of
flywheel (M/T models).
PBIC0085E
PBIC2443E
PBIC2191E
Flywheel (M/T models)
: size T55 (commercial service tool)
Drive plate (A/T models)
: size E20
PBIC2352E

CYLINDER BLOCK
EM-87
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAUTION:

Be careful not damage or deform signal plate mounted on
crankshaft.

When setting crankshaft on a flat floor surface, use a
block of wood to avoid interference between signal plate
and the floor surface.

Do not remove signal plate unless it is necessary to do
so.
NOTE:
When removing or installing signal plate, use TORX socket (size
T30).
18. Pull rear oil seal out from rear end of crankshaft.
NOTE:
When replacing rear oil seal without removing lower cylinder block, use a screwdriver to pull it out from
between crankshaft and cylinder block.
CAUTION:
Be careful not to damage crankshaft and cylinder block.
19. Remove main bearings and thrust bearings from cylinder block and lower cylinder block.
CAUTION:
Identify installation positions, and store them without mixing them up.
ASSEMBLY
1. Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to
remove any foreign material.
CAUTION:
Use a goggles to protect your eye.
2. Install each plug to cylinder block.

Apply liquid gasket.
Use Genuine Liquid Gasket or equivalent.
3. Install main bearings and thrust bearings with the following procedure:
a. Remove dust, dirt, and engine oil on the bearing mating surfaces of cylinder block and lower cylinder
block.
b. Install thrust bearings to the both sides of the No. 3 journal hous-
ing on cylinder block.

Install thrust bearings with the oil groove facing crankshaft
arm (outside).
c. Install the main bearings paying attention to the direction.
SBIA0275E
PBIC2192E
PBIC0264E

EM-102
[QR]
CYLINDER BLOCK

Piston Pin Outer Diameter
Measure the outer diameter of piston pin with a micrometer.
Connecting Rod Bushing Oil Clearance
(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

If the measured value is out of the standard, replace connecting rod assembly and/or piston and piston pin
assembly.

If replacing piston and piston pin assembly, refer to EM-103, "PISTON TO CYLINDER BORE CLEAR-
ANCE" .

If replacing connecting rod assembly, refer to EM-105, "CON-
NECTING ROD BEARING OIL CLEARANCE" to select con-
necting rod bearing.
Factory installed parts grading:

Service parts apply only to grade “0”.
Unit: mm (in)
* : After installing in connecting rod.
CYLINDER BLOCK DISTORTION

Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon,
or other contamination.
CAUTION:
Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.Standard: 19.989 - 20.001 mm (0.7870 - 0.7874 in)
PBIC0117E
Standard: 0.005 - 0.017 mm (0.0002 - 0.0007 in)
PBIC2196E
Grade 0 1
Connecting rod bushing
inner diameter
* 20.000 - 20 .0 06
(0.7874 - 0.7876) 20.006 - 20.012
(0.7876 - 0.7879)
Piston pin hole diameter19.993 - 19.999
(0.7871 - 0.7874) 19.999 - 20. 005
(0.7874 - 0.7876)
Piston pin outer diameter 19.989 - 19.995
(0.7870 - 0.7872) 19.995 - 20.001
(0.7872 - 0.7874)
PBIC2197E

EM-122
[YD22DDTi]
PRECAUTIONS

[YD22DDTi]PRECAUTIONSPFP:00001
Precautions for Draining Engine CoolantEBS00LQZ
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingEBS00LR0

Before starting work, make sure no fire or spark producing items are in the work area.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyEBS00LR1

When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementEBS00LR2
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationEBS00LR3

Use torque wrench to tighten bolts or nuts to specification.

When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.

Replace with new liquid gasket, packing, oil seal or O-ring.

Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.

Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, engine oil sliding surfaces well.

Release air within route when refilling after draining coolant.

After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust systems for leakage.
Parts Requiring Angle TighteningEBS00LR4

Use an angle wrench (special service tool: KV10112100) for the final tightening of the following engine
parts:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap nuts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular
tightening)

Do not use a torque value for final tightening.

The torque value for these parts are for a preliminary step.

Ensure thread and seat surfaces are clean and coated with engine oil.

PRECAUTIONS
EM-123
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Precautions For Liquid GasketEBS00ODW
REMOVAL OF LIQUID GASKET

After removing the mounting bolts and nuts, separate the mating
surface using the seal cutter (special service tool) and remove
the old liquid gasket sealing.
CAUTION:
Be careful not to damage the mating surfaces.

In areas where the seal cutter (special service tool) is difficult to
use, use a plastic hammer to lightly tap (1) the seal cutter where
the liquid gasket is applied. Use a plastic hammer to slide the
seal cutter (2) by tapping on the side.
CAUTION:
If for some unavoidable reason a tool such as a flat-blade
screwdriver is used, be careful not to damage the mating
surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts and bolt
holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach the liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified, it should be applied outside the holes.
Make sure to read the instruction in this manual.

Within five minutes of liquid gasket application, install the mat-
ing component.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten after the installation.

After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.
CAUTION:
If there are instructions in this manual, observe them.
PBIC0275E
PBIC0003E
PBIC2160E
SEM159F

DRIVE BELTS
EM-131
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00LRA

Before inspecting engine, make sure engine has cooled down;
wait approximately 30 minutes after engine has been stopped.

Visually inspect all belts for wear, damage or cracks on contact-
ing surfaces and edge areas.

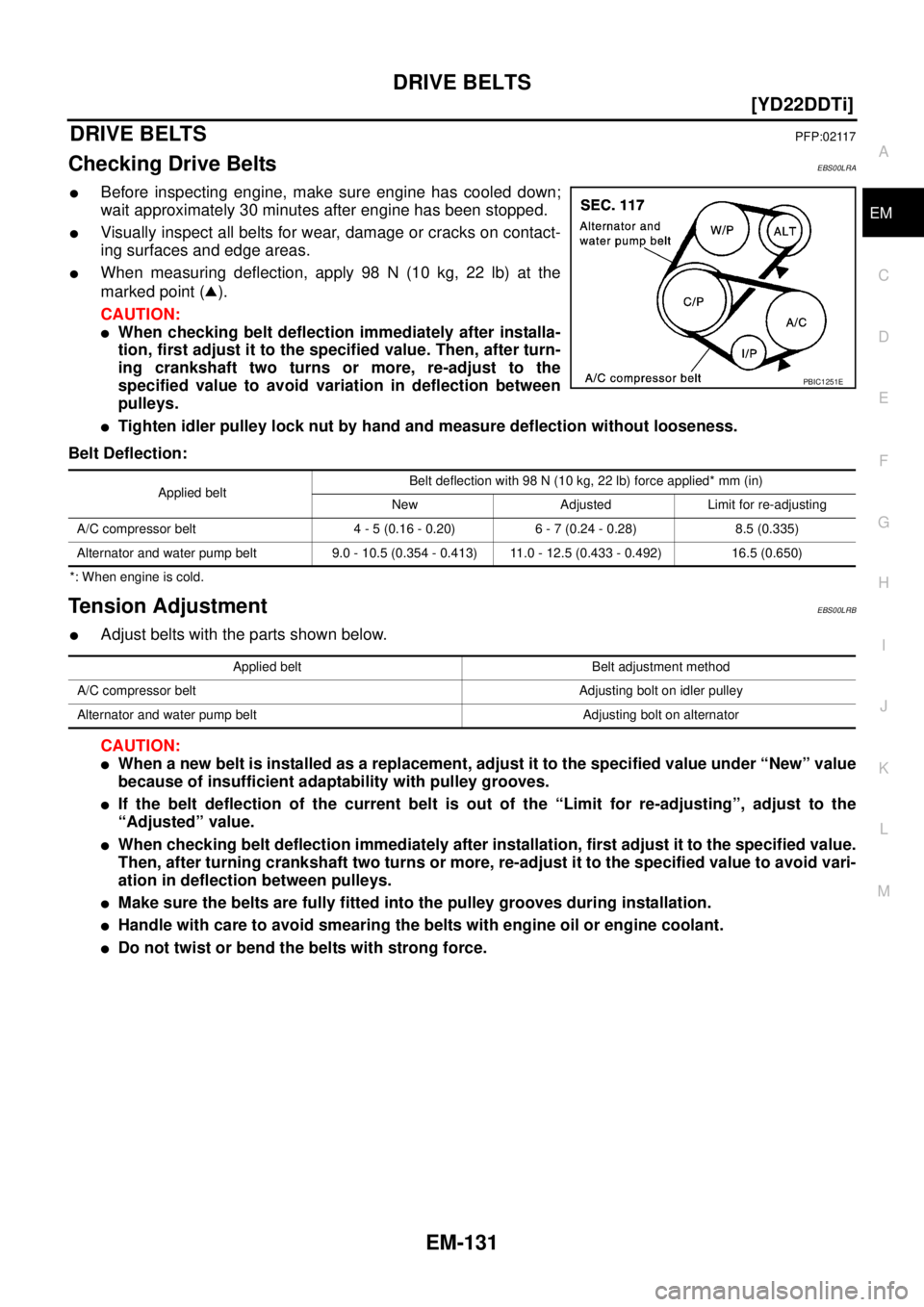

When measuring deflection, apply 98 N (10 kg, 22 lb) at the
marked point ( ).
CAUTION:

When checking belt deflection immediately after installa-
tion, first adjust it to the specified value. Then, after turn-
ing crankshaft two turns or more, re-adjust to the
specified value to avoid variation in deflection between
pulleys.

Tighten idler pulley lock nut by hand and measure deflection without looseness.
Belt Deflection:
*: When engine is cold.
Tension AdjustmentEBS00LRB

Adjust belts with the parts shown below.
CAUTION:

When a new belt is installed as a replacement, adjust it to the specified value under “New” value
because of insufficient adaptability with pulley grooves.

If the belt deflection of the current belt is out of the “Limit for re-adjusting”, adjust to the
“Adjusted” value.

When checking belt deflection immediately after installation, first adjust it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust it to the specified value to avoid vari-
ation in deflection between pulleys.

Make sure the belts are fully fitted into the pulley grooves during installation.

Handle with care to avoid smearing the belts with engine oil or engine coolant.

Do not twist or bend the belts with strong force.
PBIC1251E
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)
New Adjusted Limit for re-adjusting
A/C compressor belt 4 - 5 (0.16 - 0.20) 6 - 7 (0.24 - 0.28) 8.5 (0.335)
Alternator and water pump belt 9.0 - 10.5 (0.354 - 0.413) 11.0 - 12.5 (0.433 - 0.492) 16.5 (0.650)
Applied belt Belt adjustment method
A/C compressor belt Adjusting bolt on idler pulley
Alternator and water pump belt Adjusting bolt on alternator
