2003 NISSAN X-TRAIL sensor

EC-140
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
Component Inspection
EBS00B30
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between intake air temperature sensor termi-
nals 3 and 5 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature
sensor).
Removal and InstallationEBS00B31
MASS AIR FLOW SENSOR
Refer toEM-15, "AIR CLEANER AND AIR DUCT".
Intake air temperature°C(°F) Resistance kW
25 (77) 1.9 - 2.1
SEC266C
SEF012P

DTC P0117, P0118 ECT SENSOR
EC-141
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionEBS00B32
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

*: These data are reference values and are measured between ECM terminal 93
(Engine coolant temperature sensor) and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00B33
FAI L-S AFE MO DE
When this malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
SEF594K
Engine coolant
temperature°C(°F)Voltage* V Resistance kW
-10 (14) 4.4 7.0 - 11.4
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P0117
0117Engine coolant
temperature sen-
sor circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
lHarness or connectors
(The sensor circuit is open or shorted.)
lEngine coolant temperature sensor
P0118
0118Engine coolant
temperature sen-
sor circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
Detected items Engine operating condition in fail-safe mode
Engine coolant temper-
ature sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning ignition switch “ON”
or “START”.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or Start 40°C(104°F)
More than approx. 4 minutes after ignition ON or
Sta rt80°C(176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling fan operates
while engine is running.

EC-142
[QR (WITH EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
DTC Confirmation Procedure
EBS00B34
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go toEC-144, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y

DTC P0117, P0118 ECT SENSOR
EC-143
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

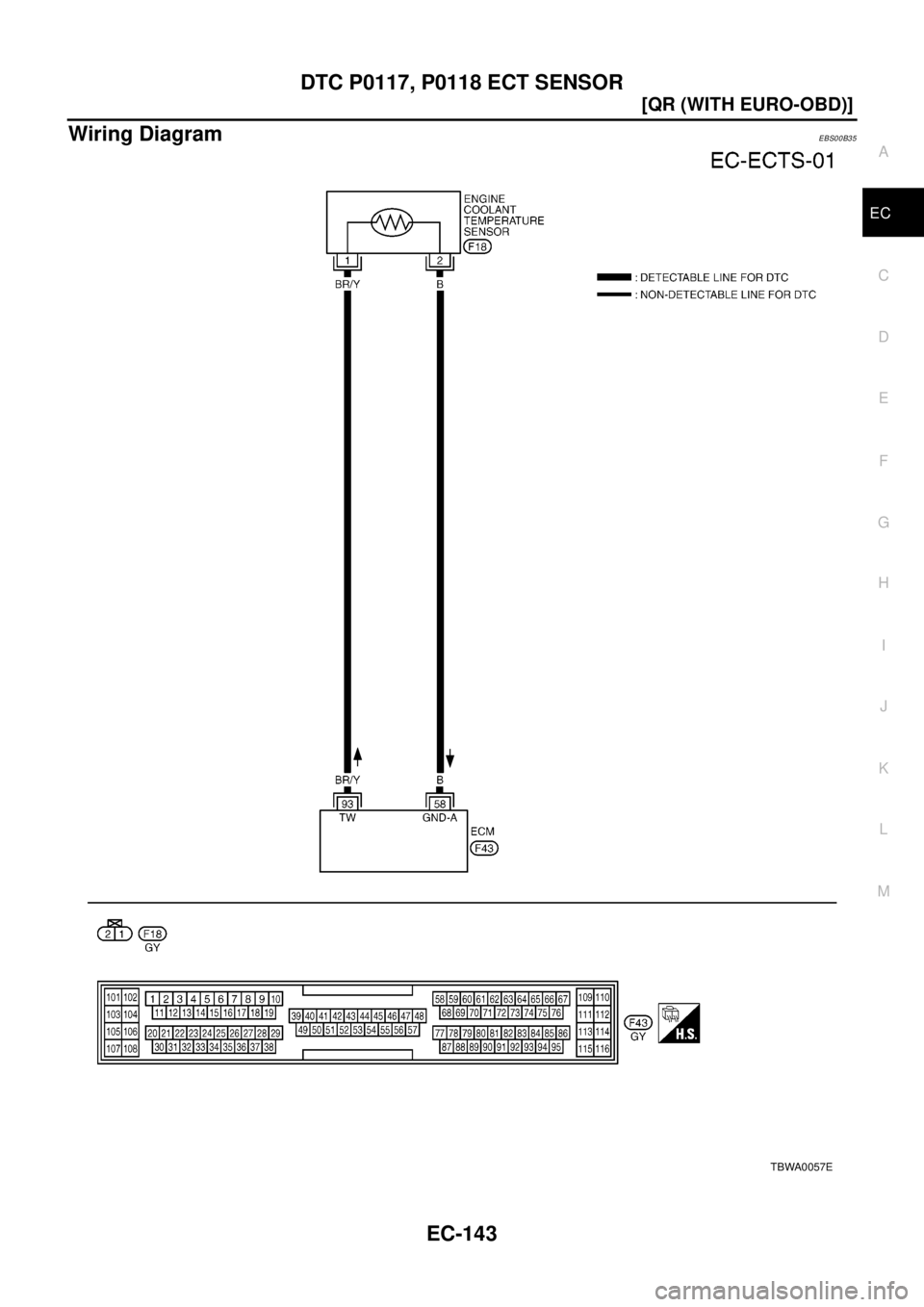

Wiring DiagramEBS00B35
TBWA0057E

EC-144
[QR (WITH EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
Diagnostic Procedure
EBS00B36
1.CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect engine coolant temperature (ECT) sensor harness
connector.
3. Turn ignition switch “ON”.
4. Check voltage between ECT sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2.CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between ECT sensor terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer toEC-145, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace engine coolant temperature sensor.
4.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
PBIB0496E
Voltage: Approximately 5V
PBIB0080E
Continuity should exist.

DTC P0117, P0118 ECT SENSOR
EC-145
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionEBS00B37
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

*: These data are reference values and are measured between ECM terminal
93 (Engine coolant temperature sensor) and body ground.
2. If NG, replace engine coolant temperature sensor.
Removal and InstallationEBS00B38
ENGINE COOLANT TEMPERATURE SENSOR
Refer toCO-21, "THERMOSTAT AND WATER CONTROL VALVE".
PBIB0081E
Engine coolant
temperature°C(°F)Voltage* V Resistance kW
-10 (14) 4.4 7.0 - 11.4
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P

EC-146
[QR (WITH EURO-OBD)]
DTC P0120 TP SENSOR
DTC P0120 TP SENSOR
PFP:16119
Component DescriptionEBS00B39
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeEBS00B3A
Specification data are reference values.
ECM Terminals and Reference ValueEBS00B3B
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN1
THRTL SEN2
lIgnition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
lShift lever:
D (A/T model)
1st (M/T model)Accelerator pedal: Fully depressed Less than 4.75V
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
lWarm-up condition
lIdle speedApproximately 0V
65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
73 WThrottle position sen-
sor 1[Ignition switch "ON"]
lGear position is "D" (A/T model)
lGear position is "1st" (M/T model)
lAccelerator pedal fully releasedMore than 0.36V
[Ignition switch “ON”]
lGear position is "D" (A/T model)
lGear position is "1st" (M/T model)
lAccelerator pedal fully depressedLess than 4.75V

DTC P0120 TP SENSOR
EC-147
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
On Board Diagnosis LogicEBS00B3C
FAI L-S AFE MO DE
ECM enters in fail-safe mode when the malfunction A, B, C or D is detected.
*: The ECM enters in the fail-safe mode when the normal signal is entered to the ECM after the malfunction C was detected.
DTC Confirmation ProcedureEBS00B3D
NOTE:
lPerform “PROCEDURE FOR MALFUNCTION A, B, C AND D” first. If the 1st trip DTC cannot be con-
firmed, perform “PROCEDURE FOR MALFUNCTION E". If the 1st trip DTC cannot be confirmed,
perform “PROCEDURE FOR MALFUNCTION F".
lIf “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.
74 GThrottlepositionsen-
sor 2[Ignition switch "ON"]
lGear position is "D" (A/T model)
lGear position is "1st" (M/T model)
lAccelerator pedal fully releasedLess than 4.75V
[Ignition switch “ON”]
lGear position is "D" (A/T model)
lGear position is "1st" (M/T model)
lAccelerator pedal fully depressedMore than 0.36V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0120
0120Throttle position sensor
circuitA)An excessively low or high voltage from
the throttle position sensor 1 is sent to
ECM.
lHarness or connectors
(The throttle position sensor 1 or 2 circuit
is open or shorted.)
lElectric throttle control actuator B)An excessively low or high voltage from
the throttle position sensor 2 is sent to
ECM.
C)A difference between signals from sensor
1 and sensor 2 is out of the specified
range.
D)ECM detects a voltage of power source
for sensor is excessively low or high.
lHarness or connectors
(The throttle position sensor 1, 2, accel-
erator pedal position sensor 1, 2, mass
air flow sensor, power steering pressure
sensor or refrigerant pressure sensor cir-
cuit is shorted.)
lECM
(ECM pin terminal is bend or break.)
E)Closed throttle position learning value is
excessively low.
lElectric throttle control actuator
F)Closed throttle position learning is not
performed successfully, repeatedly.
Detected items Engine operation condition in fail-safe mode
Malfunction A The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle
position to be within +10 degrees.
The ECM regulates an opening speed of approx. 5 seconds to an opening of 10 degrees.
So, the acceleration will be poor. Malfunction B
Malfunction C*
Malfunction DECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx.
5 degrees) by the return spring.
