2003 NISSAN X-TRAIL sensor

EC-132
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR

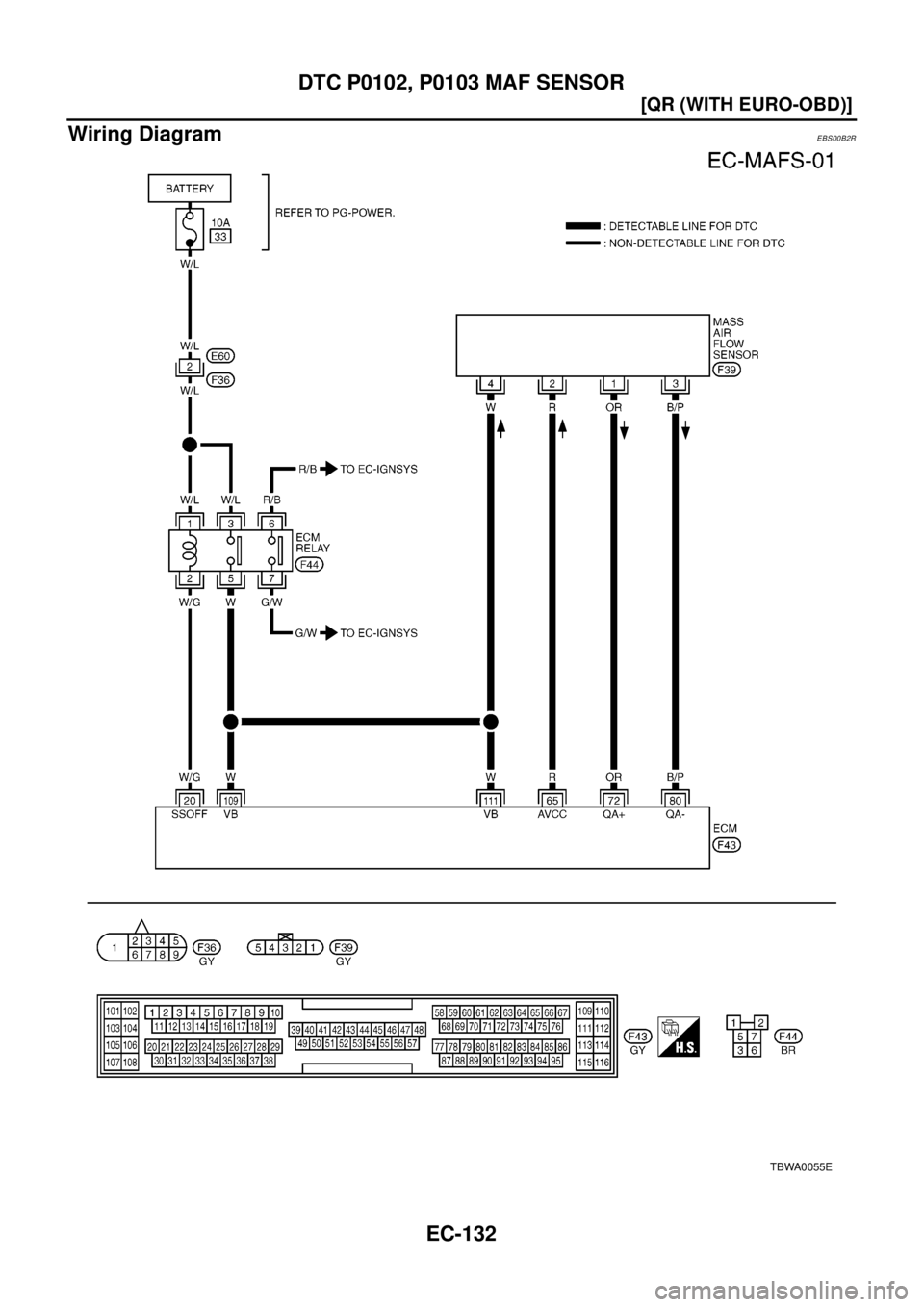

Wiring Diagram
EBS00B2R
TBWA0055E

DTC P0102, P0103 MAF SENSOR
EC-133
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B2S
1.INSPECTION START
Which malfunction (P0102 or P0103) is duplicated?
P0102 or P0103
P0102 >>GOTO2.
P0103 >>GOTO3.
2.CHECK INTAKE SYSTEM
Check the following for connection.
lAir duct
lVacuum hoses
lIntake air passage between air duct to intake manifold
OK or NG
OK >> GO TO 3.
NG >> Reconnect the parts.
3.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 4.
PBIB0494E

EC-134
[QR (WITH EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
4.CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect MAF sensor harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between MAF sensor terminals 2, 4 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness for open or short between ECM relay and mass air flow sensor
lHarness for open or short between mass air flow sensor and ECM
>> Repair harness or connectors.
6.CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 80.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between MAF sensor terminal 1 and ECM terminal 72.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0495E
Terminal Voltage
2 Approximately 5V
4 Battery voltage
PBIB0076E
Continuity should exist.
Continuity should exist.

DTC P0102, P0103 MAF SENSOR
EC-135
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8.CHECK MASS AIR FLOW SENSOR
Refer toEC-135, "
Component Inspection".
OK or NG
OK >> GO TO 9.
NG >> Replace mass air flow sensor.
9.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00B2T
MASS AIR FLOW SENSOR
1. Reconnect harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 72 (Mass air flow sensor
signal) and ground.
*: Check for liner voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.
lTurn ignition switch "OFF".
lDisconnect mass air flow sensor harness connector and reconnect it again.
lPerform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
6. If NG, clean or replace mass air flow sensor.
Removal and InstallationEBS00B2U
MASS AIR FLOW SENSOR
Refer toEM-15, "AIR CLEANER AND AIR DUCT".
Condition Voltage V
Ignition switch "ON" (Engine stopped.) Approx. 1.0
Idle (Engine is warmed-up to normal
operating temperature.)1.1 - 1.5
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.6 - 2.0
Idle to about 4,000 rpm* 1.5 - 2.0 to Approx. 4.0
PBIB0537E

EC-136
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
DTC P0112, P0113 IAT SENSOR
PFP:22630
Component DescriptionEBS00B2V
The intake air temperature sensor is built into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.

*: These data are reference values and are measured between ECM terminal 84
(Intake air temperature sensor) and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00B2W
DTC Confirmation ProcedureEBS00B2X
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go toEC-139, "
Diagnostic Procedure"
.
SEC266C
Intake air
temperature°C(°F)Voltage* V Resistance kW
25 (77) 3.32 1.9 - 2.1
80 (176) 1.23 0.31 - 0.37
SEF012P
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0112
0112Intake air tempera-
ture sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.
lHarness or connectors
(The sensor circuit is open or shorted.)
lIntake air temperature sensor
P0113
0113Intake air tempera-
ture sensor circuit
high inputAn excessively low voltage from the sensor is
sent to ECM.
SEF058Y

DTC P0112, P0113 IAT SENSOR
EC-137
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITH GST
Follow the procedure “With CONSULT-II” above.

EC-138
[QR (WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR

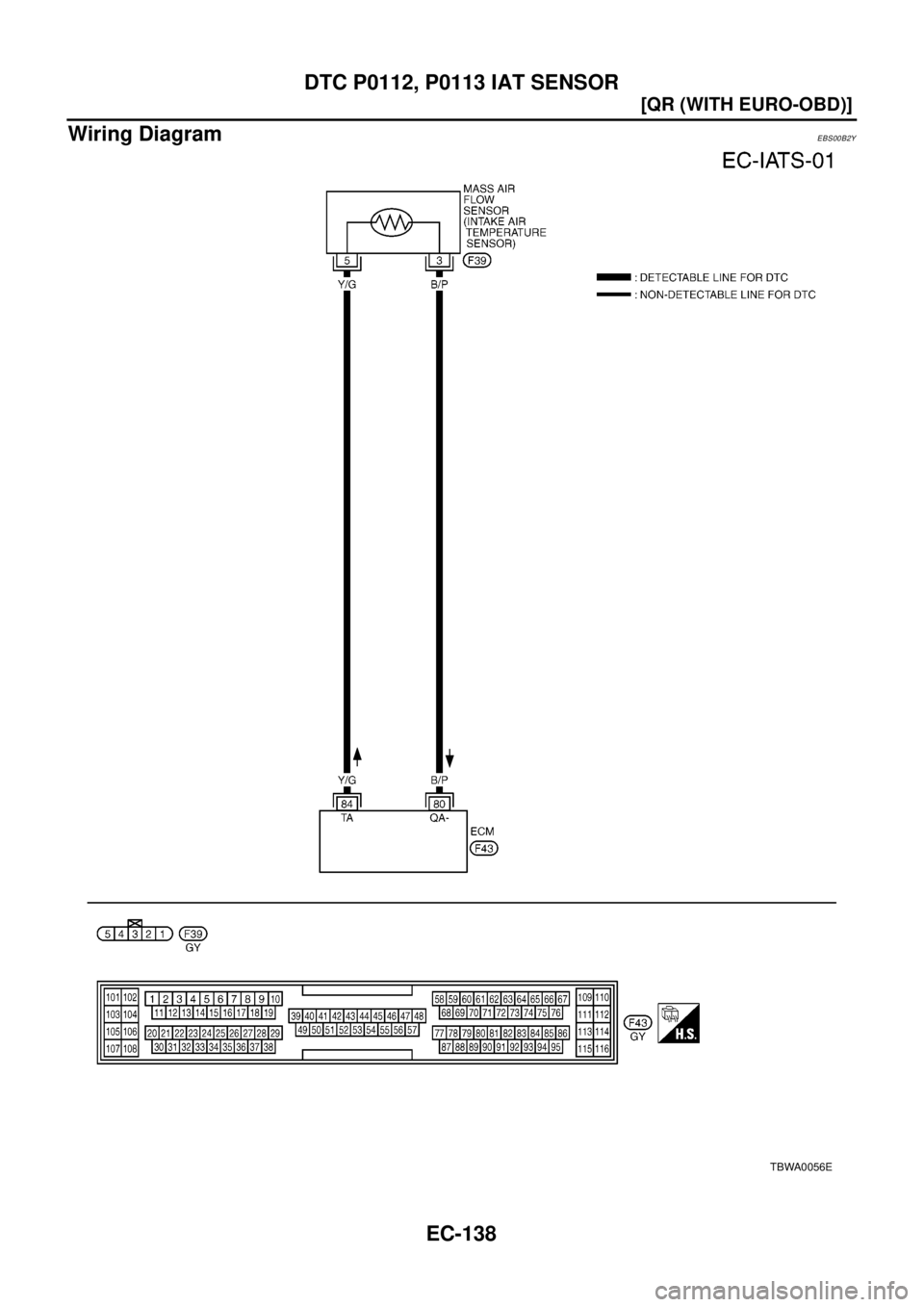

Wiring Diagram
EBS00B2Y
TBWA0056E

DTC P0112, P0113 IAT SENSOR
EC-139
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B2Z
1.CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between MAF sensor terminal 5 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connectors.
2.CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between MAF sensor terminal 3 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3.CHECK INTAKE AIR TEMPERATURE SENSOR
Refer toEC-140, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
4.CHECK INTERMITTENT INCIDENT
Refer toEC-107, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
PBIB0495E
Voltage: Approximately 5V
PBIB0066E
Continuity should exist.
