TROUBLE DIAGNOSIS
BRC-115
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3.SYMPTOM CHECK 3
Does the symptom appear during normal braking operation?
CAUTION:
ABS may work in following driving conditions even if there is no sudden brake.
lWhen road friction is low.
lHigh speed cornering
lWhenagustofwind
Is inspection result OK?
YES >> GO TO 4.
NO >> Normal
4.SYMPTOM CHECK 4
Check that the symptom is reproduce when the engine speed is increased with the vehicle stopped.
Is inspection result OK?
YES >> GO TO 5.
NO >>
lNormal.
CAUTION:
This symptom may appear with vehicle stopped.
5.SYMPTOM CHECK 5
Check that the symptom is reproduce when any switch of electrical equipment is operated.
Is inspection result OK?
YES >> Check that there are no radio, antenna, and antenna lead-in wires (including wiring) near control
unit.
NO >> GO TO 6.
6.ABS WARNING LAMP INSPECTION
Check that the ABS warning lamp turns on.
Is inspection result OK?
YES >> Perform the self-diagnosis.
NO >> GO TO 7.
7.WHEEL SPEED SENSOR INSPECTION
Check the wheel speed sensor system.
lSensor mounting inspection
lSensor pick-up inspection for iron chips (e.g. Number of teeth, damaged teeth)
lSensor connector engagement inspection
lWheel speed sensor path harness and connector inspection
Is inspection result OK?
YES >> Normal
NO >> Wheel speed sensor and rotor lines repair
Symptom 6: ESP OFF Indicator Lamp Does Not IlluminateEFS001AX
Inspection procedure
1.ESP OFF INDICATOR LAMP INSPECTION
Disconnect the ESP/TCS/ABS control unit connector.
Does the ABS warning lamp and ESP OFF indicator lamp illuminate?
YES >> ESP/TCS/ABS control unit malfunction. Repair or replace the control unit.
NO >> Combination meter system malfunction. Check the combination meter.

TROUBLE DIAGNOSIS
BRC-117
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3.ECM SELF-DIAGNOSIS RESULT CHECK
Perform the ECM self-diagnosis.
Is the self-diagnosis results indicated?
YES >> Repair or replace the camshaft position sensor system.
NO >> GO TO 4.
4.SELF-DIAGNOSIS RESULT 2
Disconnect connectors for the ESP/TCS/ABS control unit and ECM, and reconnect them correctly to perform
the self-diagnosis again.
Is inspection result OK?
OK >> GO TO 5.
NG >> Connector malfunction. Repair or replace the connector.
5.SELF-DIAGNOSIS RESULT CHECK 3
Perform the 4WD control unit self-diagnosis.
Is inspection result OK?
OK >> GO TO 6.
NG >> Repair or replace the applicable part.
6.SELF-DIAGNOSIS RESULT CHECK 4
Perform the ESP/TCS/4WD control unit self-diagnosis again.
Is the self-diagnosis results displayed?
YES >> Repair or replace the applicable item.
NO >> GO TO 7.
7.CIRCUIT CHECK BETWEEN ESP/TCS/ABS CONTROL UNIT AND ECM
1. Disconnect connectors for the ESP/TCS/ABS control unit and ECM.
2. Check the engine speed signal harness between the ESP/TCS/ABS control unit and ECM for an open/
shorted circuit.
3. Check connectors for the ESP/TCS/ABS control unit and ECM.
Is inspection result OK?
OK >> Inspection End
NG >> Repair or replace the applicable item and perform the ESP/TCS/ABS control unit self-diagnosis
again.

WHEEL SPEED SENSORS
BRC-119
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
WHEEL SPEED SENSORSPFP:47910
Removal and InstallationEFS001CD
CAUTION:
lBe careful not to damage sensor edge and rotor tooth. Before removing front or rear wheel hub,
remove wheel speed sensor to avoid sensor wiring damage. Otherwise, sensor may be deacti-
vated.
lWhen removing sensor, avoid rotating it as much as possible. Do not forcibly pull sensor harness.
lWhen installing, check sensor pick-up and mounting hole for foreign material such as iron chips.
Check no foreign material has been caught in sensor rotor. Remove any foreign material found.

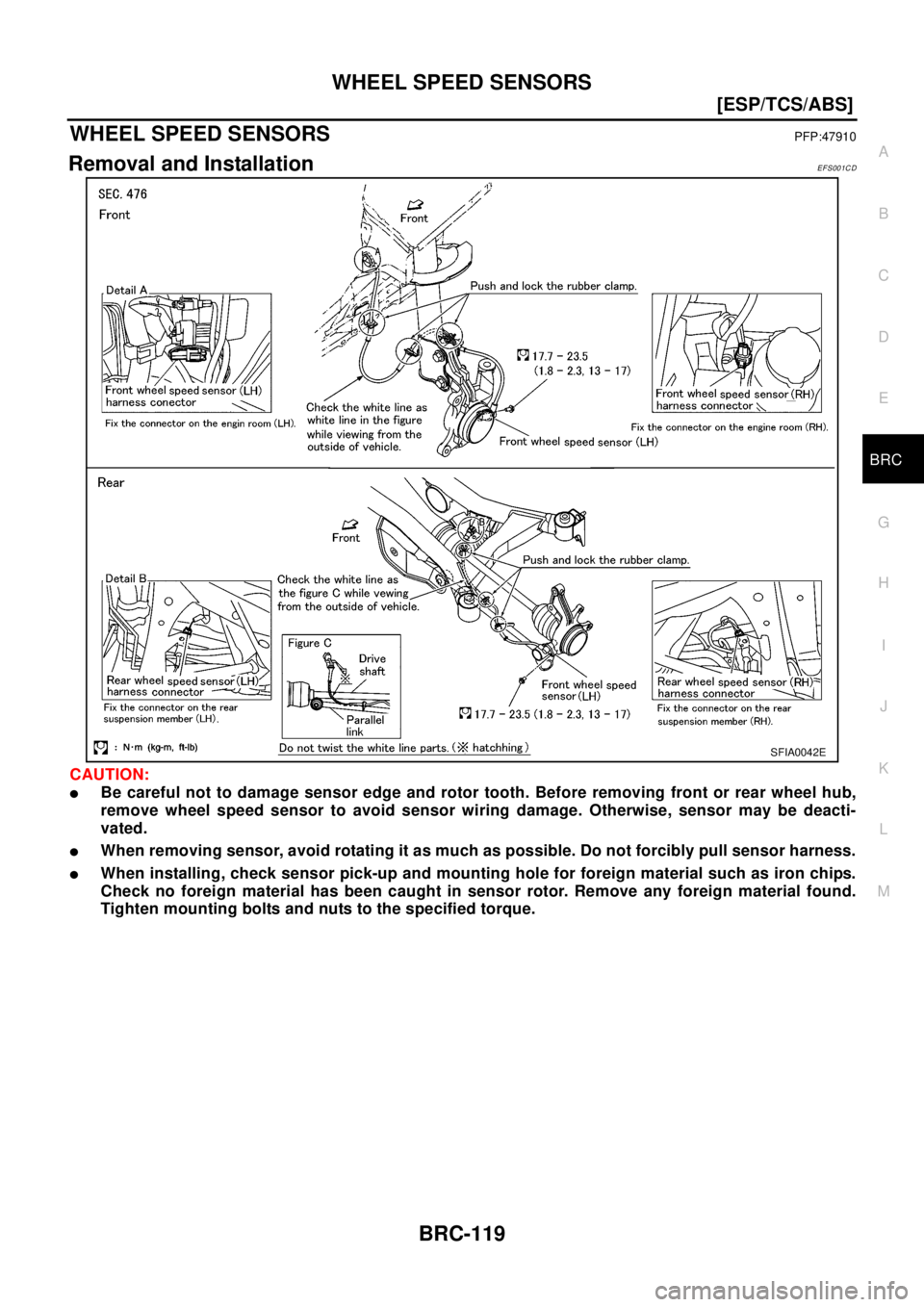

Tighten mounting bolts and nuts to the specified torque.
SFIA0042E

BRC-120
[ESP/TCS/ABS]
SENSOR ROTOR
SENSOR ROTOR
PFP:47970
Removal and InstallationEFS001CE
REMOVAL
Front
1. Remove drive shaft. Refer toFAX-11, "REMOVAL"in “FAX Front Axle”.
2. Remove sensor rotor from drive shaft. Refer to “FAX Front axle/Drive shaft ”FAX-13, "
DISASSEMBLY"
Rear
1. Remove drive shaft. Refer toRAX-9, "Removal"in “RAX Rear Axle/Drive Shaft”.
2. Remove sensor rotor from drive shaft. Refer to “RAX Rear axle/Drive shaft”RAX-10, "
DISASSEMBLY"
INSTALLATION
Front
1. Install sensor rotor to drive shaft. Refer to “FAX Front axle/Drive shaft”FAX-15, "ASSEMBLY"
2. Connect drive shaft. Refer toFAX-12, "INSTALLATION"in “FAX Front Axle/Drive Shaft”.
Rear
1. Install sensor rotor to drive shaft. Refer to RAX Rear axle/Drive shaft”RAX-12, "ASSEMBLY"
2. Connect drive shaft. Refer toRAX-9, "Installation"in “RAX Rear Axle/Drive Shaft”.

BRC-122
[ESP/TCS/ABS]
YAW RATE/SIDE G SENSOR
YAW RATE/SIDE G SENSOR
PFP:47931
Removal and InstallationEFS001CS
REMOVAL
1. Remove the diagnosis sensor unit. Refer toSRS-39, "DIAGNO-
SIS SENSOR UNIT".
2. Disconnect the harness connector.
3. Remove the mounting bolts, and remove the yaw rate / side G
sensor.
CAUTION:
Do not drop or strike the yaw rate / side G sensor, because it
has little endurance against impact.
INSTALLATION
lInstallation is the reverse order of removal.
CAUTION:
Do not drop or strike the yaw rate / side G sensor, because it has little endurance against impact.
SFIA0331E

THERMOSTAT AND WATER CONTROL VALVE
CO-21
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
Removal and InstallationEBS009SK
WA RN ING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator.
REMOVAL
Thermostat Removal
1. Drain engine coolant. Refer toCO-9, "DRAINING ENGINE COOLANT".
CAUTION:
Perform when the engine cold.
2. Disconnect radiator lower hose at water inlet side.
3. Remove water inlet and thermostat.
Water Control Valve Removal
1. Drain engine coolant. Refer toCO-9, "DRAINING ENGINE COOLANT".
2. Disconnect upper radiator hose, heater pipe and heater hose at water outlet side.
3. Remove water outlet.
4. Remove water control valve.
PBIC0239E

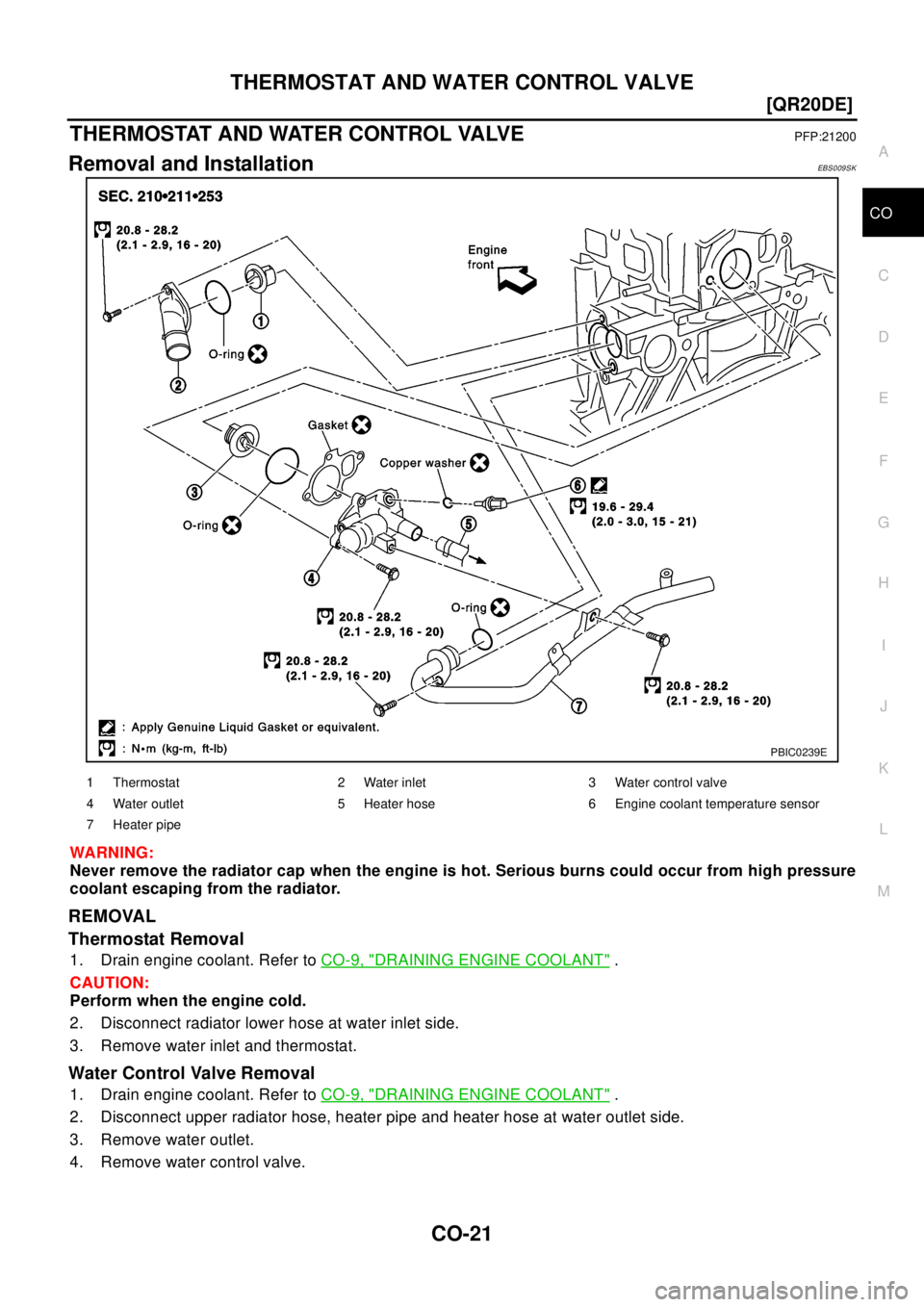

1 Thermostat 2 Water inlet 3 Water control valve
4 Water outlet 5 Heater hose 6 Engine coolant temperature sensor
7Heaterpipe

SERVICE DATA AND SPECIFICATIONS (SDS)
CO-23
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
CapacityEBS009SL
ThermostatEBS009SM
Water Control ValveEBS009SN
RadiatorEBS009SO
Unit:kPa(bar,kg/cm2,psi)
Tightening TorqueEBS009SP
Unit: N·m (kg-m, ft-lb) Nm(kg-m, in-lb)* Coolant capacity [With reservoir tank (MAX level)]
Approximately 7.1 (6-1/4 Imp qt)
Valve opening temperature 80.5 - 83.5°C (177 - 182°F)
Valve liftMore than 8 mm/ 95°C (0.315 in/203°F)
Valve opening temperature 93.5 - 96.5°C (200 - 206°F)
Valve lift More than 8 mm/108°C (0.315 in/226°F)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 -1.0, 11- 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Radiator mounting bracket
Radiator fan assembly
Fan
Fan motor3.8 - 4.5 (0.39 - 0.46, 34 - 39)*
3.8 - 4.5 (0.39 - 0.46, 34 - 39)*
2.9 - 3.9 (0.30 - 0.40, 26 - 34)*
3.9 - 4.9 (0.40 - 0.50, 35 - 43)*
Water pum p
Water pump housing
Water inlet
Water outlet
Water pipet
Hater pip
Water temperature sensor20.8 - 28.2 (2.1 - 2.9, 16- 20)
20.8 - 28.2 (2.1 - 2.9, 16 - 20)
20.8 - 28.2 (2.1 - 2.9, 16- 20)
20.8 - 28.2 (2.1 - 2.9, 16 - 20)
20.8 - 28.2 (2.1 - 2.9, 16 - 20)
20.8 - 28.2 (2.1 - 2.9, 16 - 20)
19.6 - 29.4 (2.0 - 3.0, 14- 22)
