[QR20DE]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS009SQ
REMOVAL OF LIQUID GASKET SEALING
lAfter removing the mounting bolts and nuts, disconnect and
remove the liquid gasket sealing using a seal cutter.
CAUTION:
Be careful not to damage the mating surfaces.
lIn areas where the cutter is difficult to use, use a plastic hammer
to lightly tap the areas where the liquid gasket is applied.
CAUTION:
If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the
gasket application surface and the mating surface.
lRemove the liquid gasket completely from the groove of the gas-
ket application surface, mounting bolts, and bolt holes.
2. Wipe the gasket application surface and the mating surface with
white gasoline (lighting and heating use) to remove adhering
moisture, grease and foreign materials.
3. Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.
4. Apply the gasket without breaks to the specified location with the
specified dimensions.
lIf there is a groove for the liquid gasket application, apply the
gasket to the groove.
lAs for the bolt holes, normally apply the gasket inside the holes.
Occasionally, it should be applied outside the holes. Make sure
to read the text of service manual.
lWithin five minutes of gasket application, install the mating com-
ponent.
lIf the liquid gasket protrudes, wipe it off immediately.
lDo not retighten after the installation.
lAfter 30 minutes or more have passed from the installation, fill
the engine oil and coolant.
CAUTION:
If there are specific instructions in the service manual, observe
them.

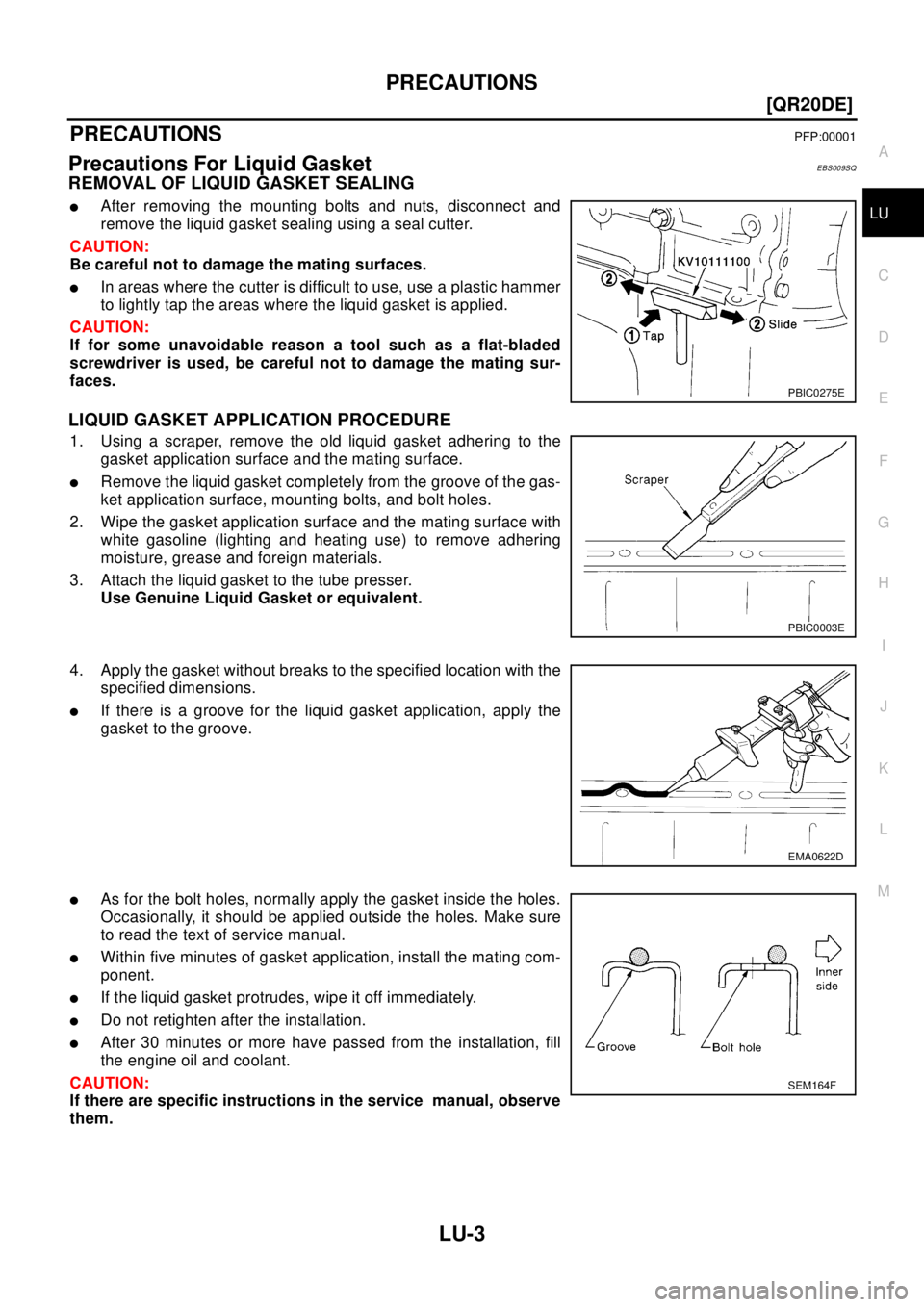

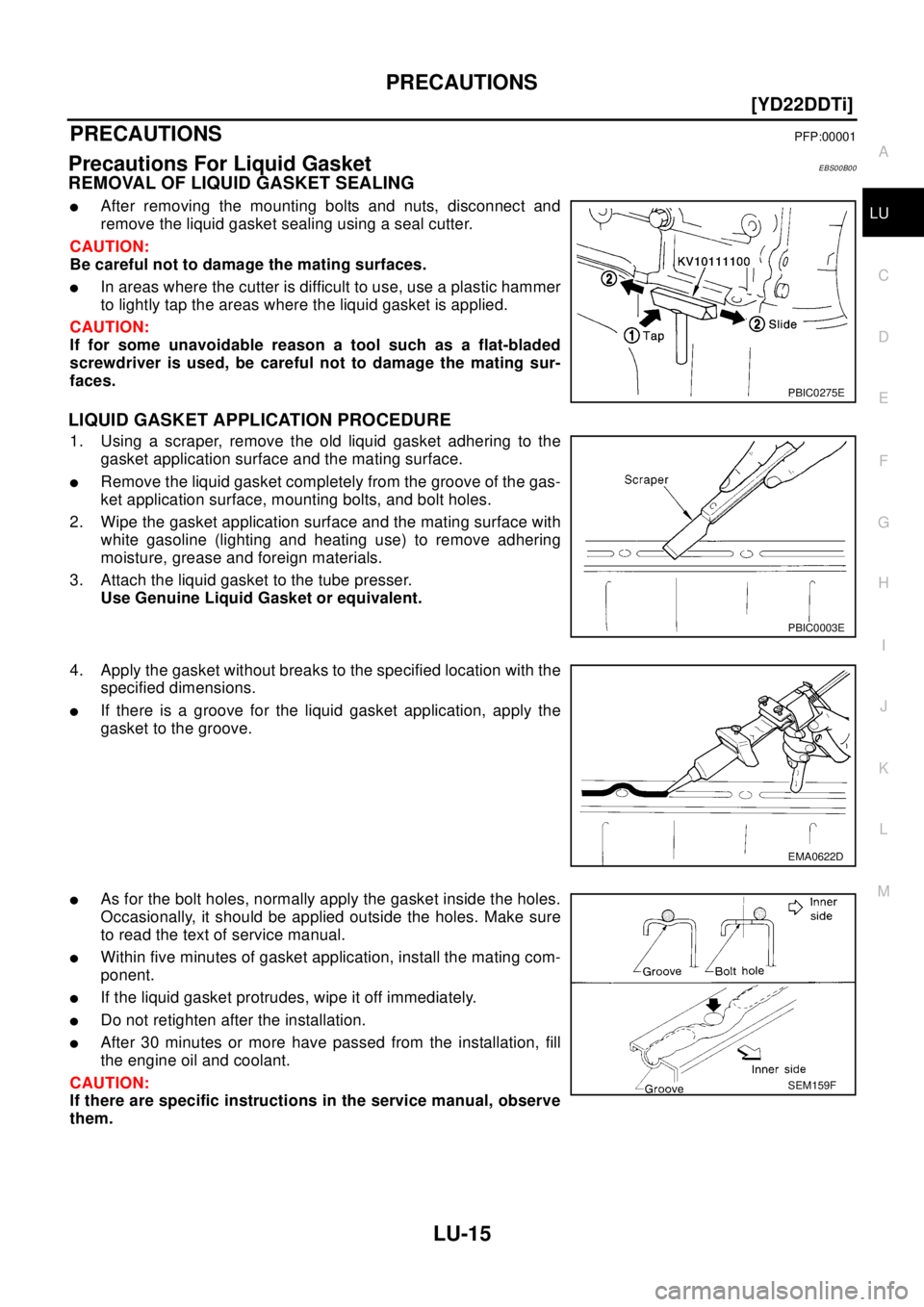

PBIC0275E
PBIC0003E
EMA0622D
SEM164F

ENGINE OIL
LU-7
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
ENGINE OILPFP:KLA92
InspectionEBS009SU
OIL LEVEL AND MUDDINESS
lBefore starting the engine, check the oil level. If the engine is
already started, stop it and allow 10 minutes before checking.
lCheck that the oil level is within the range shown in the figure.
lIf it is out of range, adjust it.
lCheck the oil for white turbidity or remarkable contamination.
lIf the oil becomes turbid and white, it is highly probable that it is
contaminated with coolant. Find the cause and repair.
OIL LEAKAGE
Check for oil leakage around the following area.
lOil pan
lOil pan drain plug
lOil pressure switch
lOil filter
lIntake valve timing control cover
lFront cover
lMating surface between cylinder block and cylinder head
lMating surface between cylinder head and rocker cover
lCrankshaft oil seal.
OIL PRESSURE CHECK
WA RN ING:
lBe careful not to burn yourself, as the engine oil is hot.
lOil pressure check should be done in “ Parking position”.
1. Check the oil level.
2. Remove the under cover.
3. Remove the oil pressure switch to connect the oil pressure
gauge.
4. After warming up the engine, check that oil pressure corre-
sponding to the engine speed is produced.
Engine oil pressure [Oil temperature is 80°C (176°F)]
5. After checking, install the oil pressure switch as follows.
a. Remove old sealant adhering to the switch and engine.
b. Apply thread sealant.
Use Genuine Liquid Gasket or equivalent.

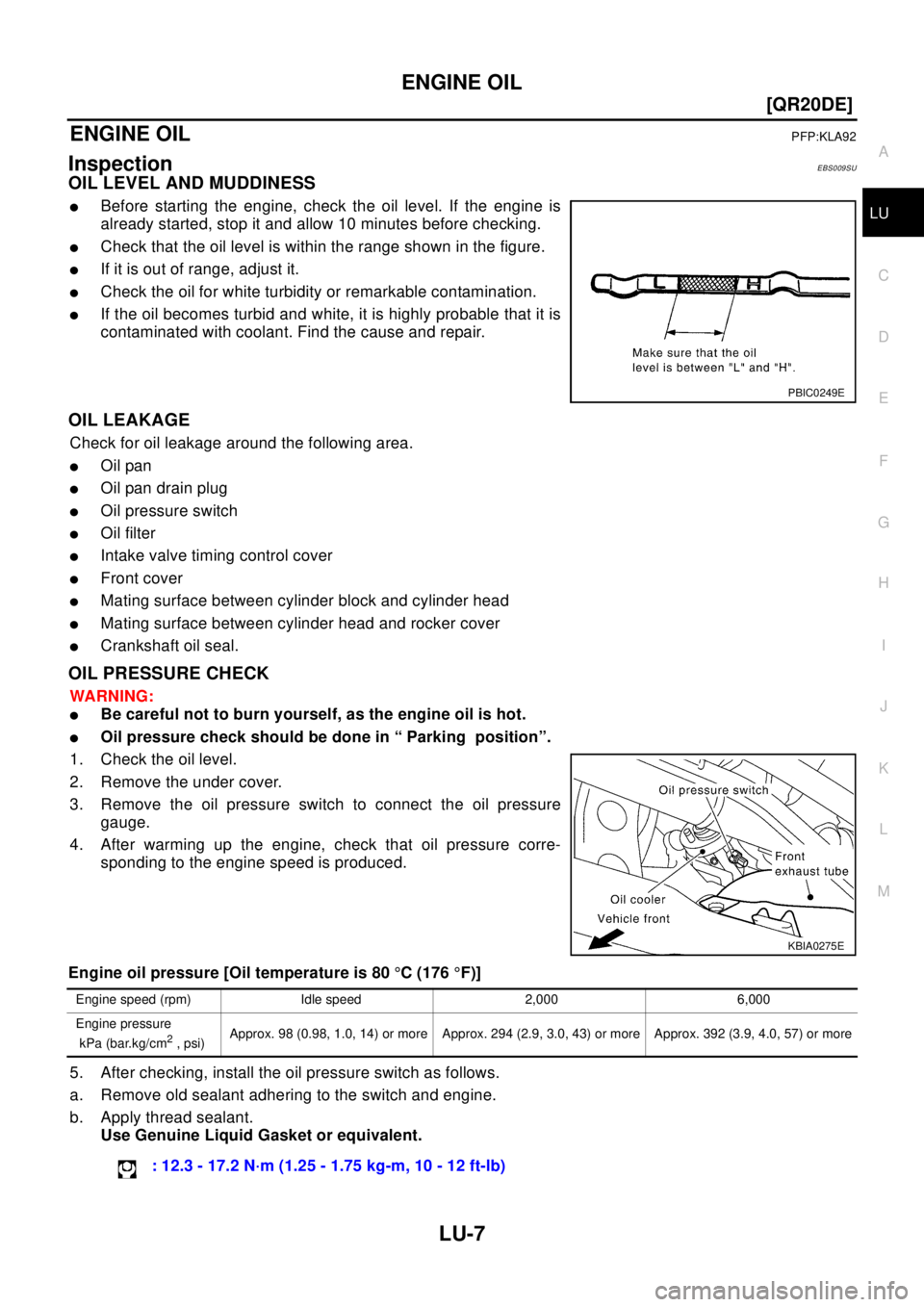

PBIC0249E
KBIA0275E
Engine speed (rpm) Idle speed 2,000 6,000
Engine pressure
kPa (bar.kg/cm
2,psi)Approx. 98 (0.98, 1.0, 14) or more Approx. 294 (2.9, 3.0, 43) or more Approx. 392 (3.9, 4.0, 57) or more
: 12.3 - 17.2 N·m (1.25 - 1.75 kg-m, 10 - 12 ft-lb)

OIL COOLER
LU-13
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS009SZ
WA RN ING:
lBe careful not to get burned when the engine and engine oil are hot.
CAUTION:
lWhen removing oil cooler, prepare a shop cloth to absorb any oil leakage or spillage.
lCompletely wipe off any oil that adhere to the engine and the vehicle.
REMOVAL
1. Remove front RH wheel and engine room right side cover.
2. Drain coolant by removing cylinder block drain plug and radiator drain cock. Refer toCO-9, "
DRAINING
ENGINE COOLANT".
3. Paint a mating mark at the oil cooler and oil cooler bracket.
INSPECTION
Oil Cooler
lCheck oil cooler for cracks. Check oil cooler for clogging by blowing through coolant inlet. If necessary,
replace oil cooler assembly.
Oil Pressure Relief Valve
lInspect oil pressure relief valve for movement, cracks and breaks by pushing the ball. If replacement is
necessary, remove valve by prying it out with a suitable tool. Install a new valve in place by tapping it.
INSTALLATION
Installation is in the reverse order of removal.

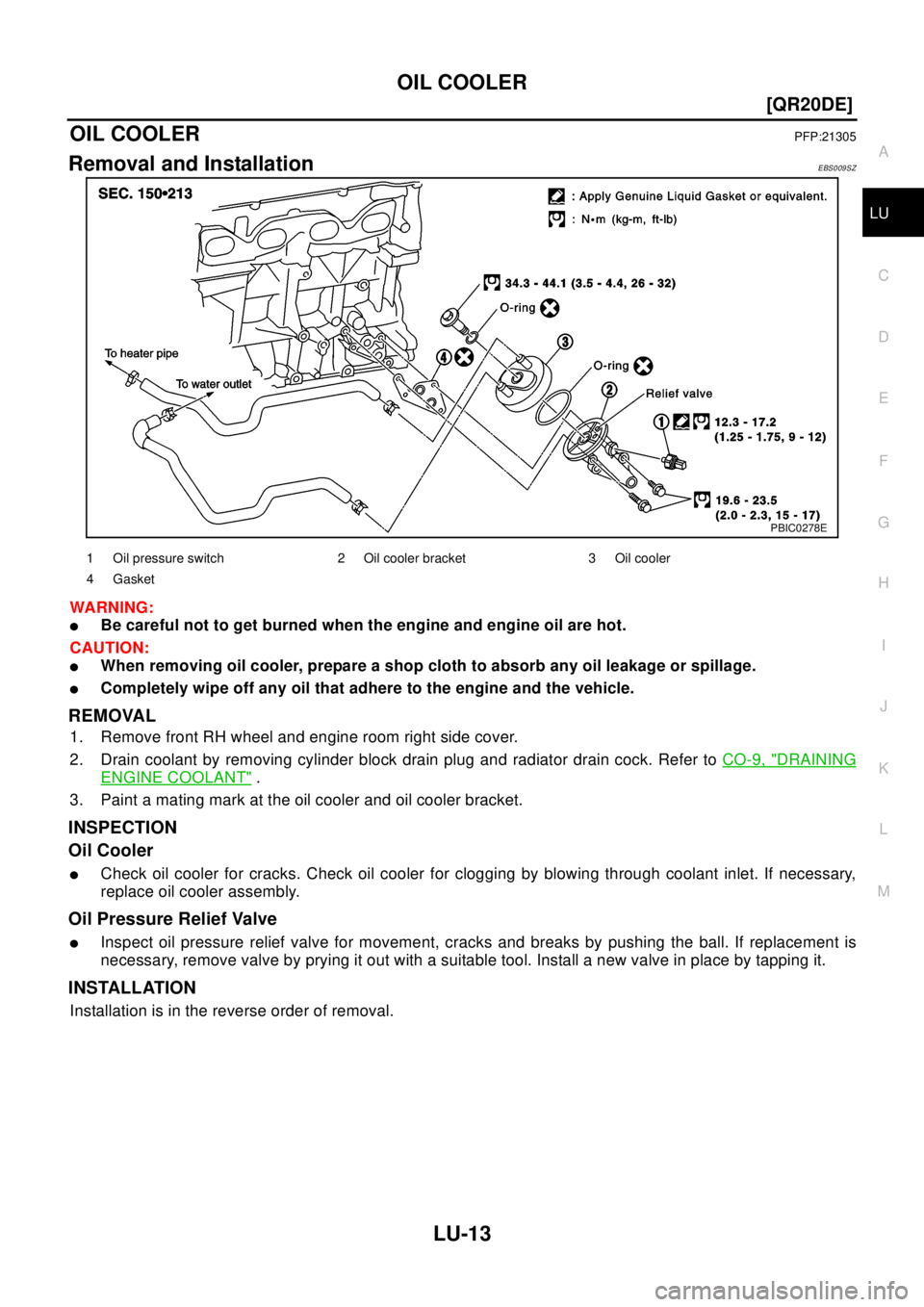

PBIC0278E
1 Oil pressure switch 2 Oil cooler bracket 3 Oil cooler
4Gasket

PRECAUTIONS
LU-15
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
[YD22DDTi]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS00B00
REMOVAL OF LIQUID GASKET SEALING
lAfter removing the mounting bolts and nuts, disconnect and
remove the liquid gasket sealing using a seal cutter.
CAUTION:
Be careful not to damage the mating surfaces.
lIn areas where the cutter is difficult to use, use a plastic hammer
to lightly tap the areas where the liquid gasket is applied.
CAUTION:
If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the
gasket application surface and the mating surface.
lRemove the liquid gasket completely from the groove of the gas-
ket application surface, mounting bolts, and bolt holes.
2. Wipe the gasket application surface and the mating surface with
white gasoline (lighting and heating use) to remove adhering
moisture, grease and foreign materials.
3. Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.
4. Apply the gasket without breaks to the specified location with the
specified dimensions.
lIf there is a groove for the liquid gasket application, apply the
gasket to the groove.
lAs for the bolt holes, normally apply the gasket inside the holes.
Occasionally, it should be applied outside the holes. Make sure
to read the text of service manual.
lWithin five minutes of gasket application, install the mating com-
ponent.
lIf the liquid gasket protrudes, wipe it off immediately.
lDo not retighten after the installation.
lAfter 30 minutes or more have passed from the installation, fill
the engine oil and coolant.
CAUTION:
If there are specific instructions in the service manual, observe
them.
PBIC0275E
PBIC0003E
EMA0622D
SEM159F

LU-18
[YD22DDTi]
ENGINE OIL
ENGINE OIL
PFP:KLA92
InspectionEBS00B03
OIL LEVEL AND MUDDINESS
lBefore starting the engine, check the oil level. If the engine is
already started, stop it and allow 10 minutes before checking.
lCheck that the oil level is within the range shown in the figure.
lIf it is out of range, adjust it.
lCheck the oil for white turbidity or remarkable contamination.
lIf the oil becomes turbid and white, it is highly probable that it is
contaminated with coolant. Find the cause and repair.
OIL LEAKAGE
Check for oil leakage around the following area.
lOil pan
lOil pan drain plug
lOil pressure switch
lOil filter bracket
lVacuum pump
lCylinder head rear cover assembly
lChain case
lOil pump housing
lMating surface between cylinder block and cylinder head
lMating surface between cylinder head and rocker cover
lOil cooler.
lCrankshaft oil seal
OIL PRESSURE CHECK
WAR NIN G:
lBe careful not to burn yourself, as the engine oil is hot.
lOil pressure check should be done in “ Parking position”.
1. Check the oil level.
2. Remove the under cover.
3. Remove the oil pressure switch to connect the oil pressure
gauge.
4. After warming up the engine, check that oil pressure corre-
sponding to the engine speed is produced.
Engine oil pressure [Oil temperature is 80°C (176°F)]
5. After checking, install the oil pressure switch as follows.
a. Remove old sealant adhering to the switch and engine.
b. Apply thread sealant.
Use Genuine Liquid Gasket or equivalent.
SBIA0122E
SBIA0123E
Engine speed (rpm) Idle speed 2,000 4,000
Engine pressure
kPa (bar, kg/cm
2,psi)Approx. 140 (1.40, 1.43, 20.3) or
moreApprox. 270 (2.69, 2.75, 39.1) or
moreApprox. 430 (4.29, 4.38, 62.3) or
more

OIL COOLER
LU-25
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU
OIL COOLERPFP:21305
Removal and InstallationEBS00B09
CAUTION:
lBe careful not to get burned when the engine and engine oil are hot.
lWhen removing, prepare a shop cloth to absorb any oil leakage or spillage.
lCompletely wipe off any oil that abhere to the engine and the vehicle.
REMOVAL
1. Remove front RH wheel and engine side cover.
2. Remove the exhaust front tube.
3. Drain coolant by removing cylinder block drain plug and radiator drain cock.
INSPECTION
Oil Cooler
Check oil cooler for cracks. check oil cooler for clogging by blowing through coolant inlet. If necessary, replace
oil cooler assembly.
INSTALLATION
Installation is in reverse order of removal.
lConfirm that no foreign objects are adhering to the installation
planes of the oil cooler or block.
lTighten the connecting bolt after aligning the stopper on the cyl-
inder block side with protrusion of the oil cooler.

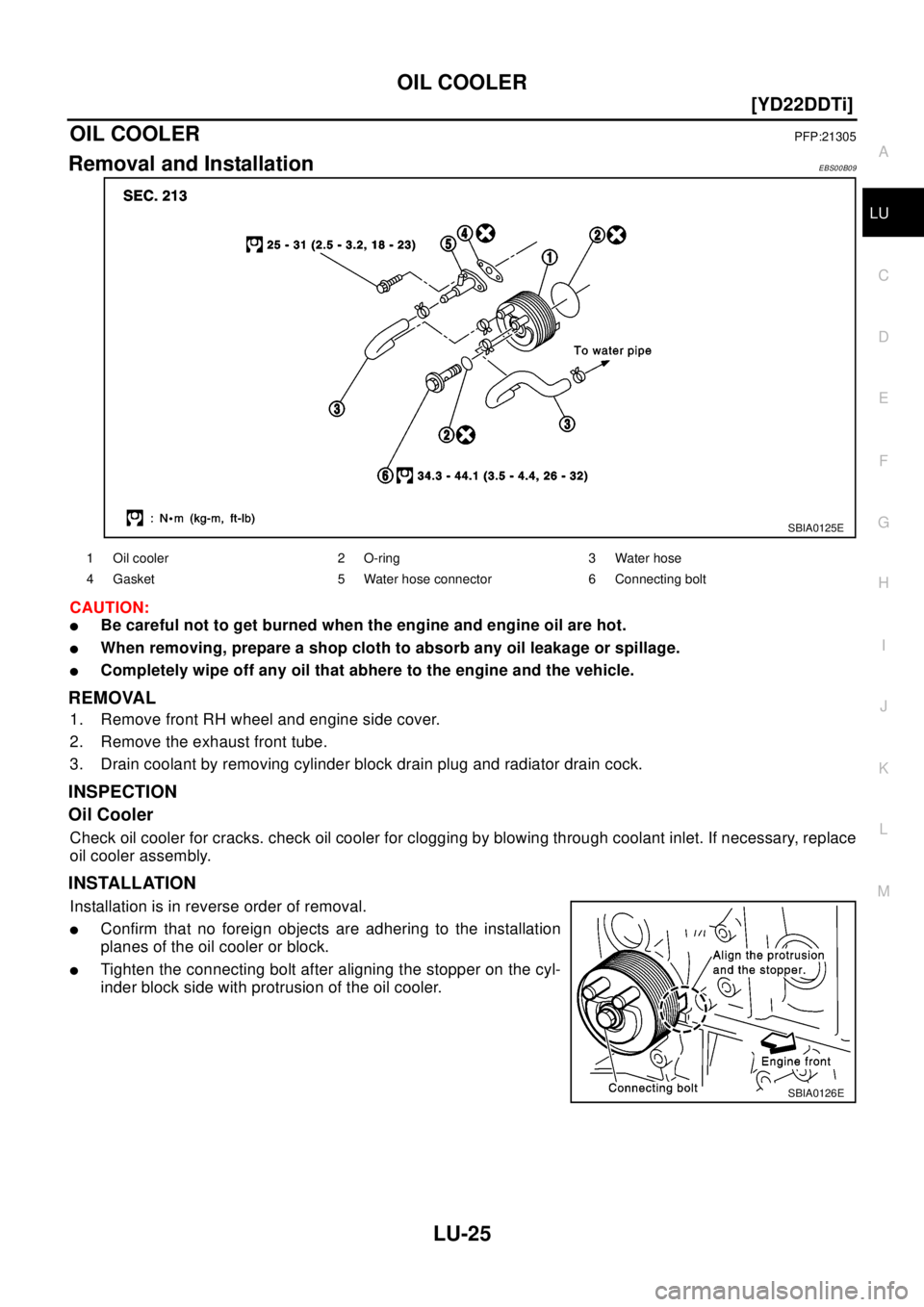

SBIA0125E
1 Oil cooler 2 O-ring 3 Water hose
4 Gasket 5 Water hose connector 6 Connecting bolt
SBIA0126E

MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D
E
F
G
H
I
J
K
M
SECTION
A
B
MA
MAINTENANCE
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
DESCRIPTION ............................................................ 4
Pre-delivery Inspection Items ................................... 4
GENERAL MAINTENANCE ....................................... 6
General Maintenance ............................................... 6
PERIODIC MAINTENANCE ....................................... 7
Periodic Maintenance ............................................... 7
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (QR20DE PETROL ENGINE) .................. 7
CHASSIS AND BODY MAINTENANCE
(QR20DE PETROL ENGINE) ............................... 7
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (YD22DDTI DIESEL ENGINE) ................ 8
CHASSIS AND BODY MAINTENANCE
(YD22DDTI DIESEL ENGINE) .............................. 9
MAINTENANCE UNDER SEVERE DRIVING
CONDITIONS ...................................................... 10
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (QR20DE PETROL ENGINE) .................11
CHASSIS AND BODY MAINTENANCE
(QR20DE PETROL ENGINE) ............................. 12
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (YD22DDTI DIESEL ENGINE) .............. 13
CHASSIS AND BODY MAINTENANCE
(YD22DDTI DIESEL ENGINE) ............................ 14
MAINTENANCE UNDER SEVERE DRIVING
CONDITIONS ...................................................... 15
RECOMMENDED FLUIDS AND LUBRICANTS ...... 17
Fluids and Lubricants ............................................. 17
SAE Viscosity Number ........................................... 18
GASOLINE ENGINE ........................................... 18
DISEL ENGINE ................................................... 18
Engine Coolant Mixture Ratio ................................ 19
ENGINE MAINTENANCE (QR20DE) ....................... 20
Checking Drive Belts .............................................. 20
Changing Engine Coolant ...................................... 20
DRAINING ENGINE COOLANT ......................... 20
REFILLING ENGINE COOLANT ........................ 21
FLUSHING COOLING SYSTEM ......................... 21Checking Cooling System ...................................... 22
CHECKING COOLING SYSTEM HOSES ........... 22
CHECKING RADIATOR ...................................... 22
CHECKING RADIATOR CAP ............................. 22
CHECKING COOLING SYSTEM FOR LEAKS ... 23
Checking Fuel Lines ............................................... 23
Changing Air Cleaner Filter .................................... 23
VISCOUS PAPER TYPE ..................................... 23
Changing Engine Oil ............................................... 24
Changing Oil Filter .................................................. 24
Checking and Changing Spark Plugs ..................... 25
Checking EVAP Vapor Lines .................................. 26
ENGINE MAINTENANCE (YD22DDTI) .................... 27
Checking Drive Belts .............................................. 27
Changing Engine Coolant ....................................... 27
DRAINING ENGINE COOLANT .......................... 27
REFILLING ENGINE COOLANT ......................... 28
FLUSHING COOLING SYSTEM ......................... 29
Checking Cooling System ...................................... 29
CHECKING COOLING SYSTEM HOSES ........... 29
CHECKING RADIATOR ...................................... 29
CHECKING RADIATOR CAP .............................. 29
CHECKING COOLING SYSTEM FOR LEAKS ... 30
Checking Fuel Lines ............................................... 30
Changing Fuel Filter ............................................... 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 31
Changing Air Cleaner Filter .................................... 31
VISCCOUS PAPER TYPE .................................. 31
Changing Engine Oil ............................................... 32
Changing Oil Filter .................................................. 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 34
Draining Water ........................................................ 34
CHASSIS AND BODY MAINTENANCE ................... 35
Checking Exhaust System ...................................... 35
Checking Clutch Fluid Level and Leaks ................. 35
Checking Clutch System ........................................ 35
Checking M/T Oil .................................................... 35
Changing M/T Oil .................................................... 35

MA-4
DESCRIPTION
DESCRIPTION
PFP:00000
Pre-delivery Inspection ItemsELS000AK
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD — engine off
Radiator coolant level and coolant hose connections for leaks
Battery fluid level, specific gravity and conditions of battery terminals
Drive belts tension
Fuel filter for water or dusts (Diesel only), and fuel lines and connections for leaks
Engine oil level and oil leaks
Clutch and brake reservoir fluid level and fluid lines for leaks
Windshield and rear window washer and headlamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for operation
All moldings, trims and fittings for fit and alignment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and alignment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if applicable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If applicable)
Install deodorizing filter to air conditioner (If applicable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Manual transmission/transaxle, transfer and differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for leaks
Tighten bolts and nuts of steering linkage and gear box, suspension, propeller shafts and drive shafts
Tighten rear body bolts and nuts (Models with wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing and kickdown
Steering control and returnability
Engine performance
Squeaks and rattles
ENGINE OPERATING AND HOT
Adjust idle speed
Automatic transmission/transaxle fluid level
