2003 NISSAN TEANA sensor

TROUBLE DIAGNOSIS
LAN-77
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of unified meter and A/C amp.
2. Check the resistance between the unified meter and A/C amp. harness connector terminals.
OK or NG
OK >> GO TO 3.
NG >> Repair the unified meter and A/C amp. branch line.
3. CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the unified meter and A/C amp. Refer to DI-28, "
Schematic" .
OK or NG
OK >>
Present error: Replace the unified meter and A/C amp. Refer to DI-34, "Removal and Installa-
tion of Unified Meter and A/C Amp." .

Past error: Error was detected in the unified meter and A/C amp. branch line.
NG >> Repair the power supply and the ground circuit.
Steering Angle Sensor Branch Line CircuitBKS002ED
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the steering angle sensor for damage, bend and loose connection
(unit side and connector side).
OK or NG
OK >> GO TO 2.
NG >> Repair the terminal and connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of steering angle sensor.
2. Check the resistance between the steering angle sensor harness connector terminals.
OK or NG
OK >> GO TO 3.
NG >> Repair the steering angle sensor branch line.
3. CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the steering angle sensor. Refer to BRC-48, "
Schematic"
(Models with VDC), LT- 7 9 , "Wiring Diagram — AFS —" (Models with AFS).
OK or NG
OK >>
Present error: Replace the steering angle sensor. Refer to BRC-91, "Removal and Installation"
(Models with VDC), LT- 9 4 , "REMOVAL" (Models with AFS).

Past error: Error was detected in the steering angle sensor branch line.
NG >> Repair the power supply and the ground circuit.
Unified meter and A/C amp. harness connector
Resistance (Ω)
Connector No. Terminal No.
M41 1 11 Approx. 54 – 66
Steering angle sensor harness connector
Resistance (Ω)
Connector No. Terminal No.
M26 4 5 Approx. 54 – 66

LT-2 CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 48
CONSULT-II Functions (BCM) ................................ 49
CONSULT-II Functions (IPDM E/R) ........................ 49
Headlamp High Do Not Illuminate (Both Sides) ...... 50
Headlamp High Does Not Illuminate (One Side) .... 53
High Beam Indicator Does Not Illuminate ............... 54
Headlamp Low Beam Does Not Illuminate (Both
Sides) ..................................................................... 54
Headlamp Low Beam Does Not Illuminate (One
Side) ....................................................................... 57
Headlamps High Do Not Go OFF (Both Sides) ...... 58
Headlamps Low Do Not Go OFF (Both Sides) ....... 59
Aiming Adjustment .................................................. 60
PREPARATION BEFORE ADJUSTING .............. 60
LOW BEAM AND HIGH BEAM ........................... 60
ADJUSTMENT USING AN ADJUSTMENT
SCREEN (LIGHT/DARK BORDERLINE) ............ 61
Bulb Replacement .................................................. 62
HEADLAMP (UPPER) HIGH BEAM .................... 62
HEADLAMP (LOWER) LOW BEAM .................... 62
PARKING LAMP .................................................. 62
FRONT TURN SIGNAL LAMP ............................ 62
Removal and Installation ........................................ 62
Disassembly and Assembly .................................... 63
DISASSEMBLY ................................................... 63
ASSEMBLY ......................................................... 63
AUTO LIGHT SYSTEM ............................................. 64
Component Parts and Harness Connector Location ... 64
System Description ................................................. 64
OUTLINE ............................................................. 64
AUTO LIGHT OPERATION ................................. 65
COMBINATION SWITCH READING FUNCTION ... 65
HEADLAMP LOW AND HIGH OPERATION
(XENON TYPE) ................................................... 65
HEADLAMP LOW AND HIGH OPERATION
(HALOGEN TYPE) .............................................. 65
FRONT FOG LAMP OPERATION ....................... 65
PARKING, LICENSE PLATE AND TAIL LAMPS
OPERATION ........................................................ 65
CAN Communication System Description .............. 65
CAN Communication Unit ....................................... 65
Major Components and Functions .......................... 65
Wiring Diagram — AUTO/L — ................................ 66
Terminals and Reference Values for BCM .............. 68
Terminals and Reference Values for IPDM E/R ...... 69
How to Perform Trouble Diagnosis ......................... 69
Preliminary Check .................................................. 70
SETTING CHANGE FUNCTIONS ....................... 70
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 70
CONSULT-II Functions (BCM) ................................ 71
Auto Light Function Does Not Operate ................... 71
Removal and Installation for Optical Sensor ........... 74
REMOVAL ........................................................... 74
INSTALLATION .................................................... 74
ACTIVE AFS ............................................................. 75
Component Parts and Harness Connector Location ... 75
System Description ................................................. 75AFS (ADAPTIVE FRONT-LIGHTING SYSTEM) ... 75
OUTLINE ............................................................. 76
BENDING LAMP OPERATION ............................ 76
CAN Communication System Description .............. 77
CAN Communication Unit ....................................... 77
Schematic ............................................................... 78
Wiring Diagram — AFS — ...................................... 79
Terminals and Reference Values for AFS Control
Unit .......................................................................... 82
CONSULT-II Functions (ADAPTIVE LIGHT) ........... 82
CONSULT-II BASIC OPERATION ....................... 82
WORK SUPPORT ............................................... 82
SELF-DIAG RESULTS ......................................... 84
DATA MONITOR .................................................. 86
ACTIVE TEST ...................................................... 87
AFS Operation Check (Function Test) .................... 88
Bending Lamps Do Not Illuminate (Both Side) ....... 90
Bending Lamp Does Not Illuminate (One Side) ...... 91
Bending Lamp Does Not turn OFF ......................... 92
DTC B2515 [ST ANG SEN SIG] ............................. 92
DTC B2516 [SHIFT POS SIG (P, R)] ...................... 93
DTC B2517 [VEHICLE SPEED SIG] ...................... 93
Aiming Adjustment .................................................. 94
Bulb Replacement ................................................... 94
Removal and Installation of AFS Control Unit ......... 94
REMOVAL ............................................................ 94
INSTALLATION .................................................... 94
Removal and Installation of Steering Angle Sensor ... 94
REMOVAL ............................................................ 94
INSTALLATION .................................................... 94
HEADLAMP AIMING CONTROL (AUTO) ................ 95
Component Parts and Harness connector Location ... 95
System Description ................................................. 96
OUTLINE ............................................................. 96
HEADLAMP AUTO AIMING CONTROL OPER-
ATION .................................................................. 97
CAN Communication System Description .............. 97
CAN Communication Unit ....................................... 97
Schematic ............................................................... 98
Wiring Diagram — H/AIM — ................................... 99
Terminals and Reference Values for Height Sensor .103
How to Proceed With Trouble Diagnosis ..............103
CONSULT-II Functions (HEADLAMP LEVELIZER) .103
CONSULT-II BASIC OPERATION .....................103
WORK SUPPORT .............................................103
DATA MONITOR ................................................104
ACTIVE TEST ....................................................105
SELF-DIAG RESULTS .......................................105
Check Aiming Control System ..............................107
Headlamp Aiming Motor Does Not Operate (Both
Sides) ....................................................................108
Headlamp Aiming Motor Does Not Operate (One
Side) ...................................................................... 111
DTC B2081 [INITIAL NOT DONE] ........................112
DTC B2082 [SENSOR OUT OF RANGE] .............112
DTC B2083 [SEN SIG NOT PLAUSIBLE] ............113
DTC B2084 [VOLTAGE UNDER LIMIT] ................113
DTC B2085 [LOW BEAM SIG OPEN LINE] .........114
DTC B2086 [FRQ. OVER LIMIT] ..........................115

LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
DTC B2087 [SHORT TO GROUND] ..................... 116
DTC B2088 [SHORT TO BATTERY] ..................... 118
Removal and Installation of Height Sensor .......... 120
REMOVAL ......................................................... 120
INSTALLATION ................................................. 120
HEADLAMP AIMING CONTROL (MANUAL) ........ 121
Schematic ............................................................ 121
Wiring Diagram — H/AIM — ................................ 122
Removal and Installation ...................................... 125
REMOVAL ......................................................... 125
INSTALLATION ................................................. 125
Switch Circuit Inspection ...................................... 125
FRONT FOG LAMP ................................................ 126
Component Parts and Harness Connector Location . 126
System Description .............................................. 126
OUTLINE ........................................................... 126
COMBINATION SWITCH READING FUNCTION . 127
EXTERIOR LAMP BATTERY SAVER CONTROL . 127
CAN Communication System Description ............ 127
CAN Communication Unit .................................... 127
Schematic ............................................................ 128
Wiring Diagram — F/FOG — ............................... 129
Terminals and Reference Values for BCM ........... 132
Terminals and Reference Values for IPDM E/R ... 133
How to Perform Trouble Diagnosis ...................... 133
Preliminary Check ................................................ 133
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. 133
CONSULT-II Functions (BCM) ............................. 134
CONSULT-II Functions (IPDM E/R) ..................... 134
Front Fog Lamps Do Not Illuminate (Both Sides) . 135
Front Fog Lamp Does Not Illuminate (One Side) . 137
Front Fog Lamp Indicator Lamp Does Not Illuminate . 138
Front Fog Lamps Does Not Go OFF (Both Sides) . 139
Aiming Adjustment ............................................... 140
Bulb Replacement ................................................ 141
Removal and Installation ...................................... 141
REMOVAL ......................................................... 141
INSTALLATION ................................................. 141
REAR FOG LAMP .................................................. 142
Component Parts and Harness Connector Location . 142
System Description .............................................. 142
OUTLINE ........................................................... 142
COMBINATION SWITCH READING FUNCTION . 143
EXTERIOR LAMP BATTERY SAVER CONTROL . 143
CAN Communication System Description ............ 143
CAN Communication Unit .................................... 143
Wiring Diagram — R/FOG — ............................... 144
Terminals and Reference Value for BCM ............. 146
How to Proceed With Trouble Diagnosis .............. 147
Preliminary Check ................................................ 147
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. 147
CONSULT-II Function (BCM) ............................... 148
Rear Fog Lamp Does Not Illuminate .................... 148
Rear Fog Lamp Indicator Lamp Does Not Illuminate . 150
Rear Fog Lamp Does Not Go OFF ...................... 151
Bulb Replacement ................................................ 151
Removal and Installation ...................................... 151TURN SIGNAL AND HAZARD WARNING LAMPS .152
Component Parts and Harness Connector Location .152
System Description ...............................................152
OUTLINE ...........................................................152
TURN SIGNAL OPERATION ............................153
HAZARD LAMP OPERATION ...........................153
INTERLOCKED HAZARD LAMP OPERATION
WITH REMOTE KEYLESS ENTRY SYSTEM ...154
INTERLOCKED HAZARD LAMP OPERATION
WITH INTELLIGENT KEY SYSTEM .................154
COMBINATION SWITCH READING FUNCTION .154
CAN Communication System Description ............154
CAN Communication Unit .....................................154
Schematic .............................................................155
Wiring Diagram — TURN — .................................156
Terminals and Reference Values for BCM ............159
How to Perform Trouble Diagnoses .....................160
Preliminary Check ................................................161
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ..................................................................161
CONSULT-II Functions (BCM) ..............................162
CONSULT-II BASIC OPERATION .....................162
DATA MONITOR ...............................................162
ACTIVE TEST ...................................................162
Turn Signal Lamp RH Does Not Illuminate ...........163
Turn Signal Lamp LH Does Not Illuminate ...........167
Turn Signal Lamps Do Not Operate But Hazard
Warning Lamp Operate ........................................170
Hazard Warning Lamp Do Not Operate But Turn Sig-
nal Lamp Operate .................................................171
Turn Signal Indicator Lamp Does Not Illuminate ..173
Turn Signal Lamps Do Not Go OFF .....................173
Bulb Replacement ................................................175
SIDE TURN SIGNAL LAMP ..............................175
FRONT TURN SIGNAL LAMP ..........................175
REAR TURN SIGNAL LAMP ............................175
Removal and Installation ......................................175
SIDE TURN SIGNAL LAMP ..............................175
FRONT TURN SIGNAL LAMP ..........................175
REAR TURN SIGNAL LAMP ............................175
LIGHTING AND TURN SIGNAL SWITCH ..............176
Removal and Installation ......................................176
REMOVAL .........................................................176
INSTALLATION .................................................176
Switch Circuit Inspection ......................................176
HAZARD SWITCH ..................................................177
Removal and Installation ......................................177
REMOVAL .........................................................177
INSTALLATION .................................................177
COMBINATION SWITCH ........................................178
Wiring Diagram — COMB SW — .........................178
Terminals and Reference Values for BCM ............179
Combination Switch Reading Function .................183
CONSULT-II Functions (BCM) ..............................183
CONSULT-II BASIC OPERATION .....................184
DATA MONITOR ...............................................184
Combination Switch Inspection ............................185
Removal and Installation ......................................189
STOP LAMP ............................................................190

LT-20
HEADLAMP - XENON TYPE -

NOTE:
This item is displayed, but cannot be monitored.
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “OFF” deactivates the operation.
Display Item List
NOTE:
This item is displayed, but cannot be monitored.
CONSULT-II Functions (IPDM E/R)BKS001N5
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
DOOR SW - DR “ON/OFF”Displays status of the driver door as judged from the driver door switch signal. (Door is open:
ON/door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays status of the passenger door as judged from the passenger door switch signal. (Door
is open: ON/door is closed: OFF)
DOOR SW - RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is open:
ON/door is closed: OFF)
DOOR SW - RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is open:
ON/door is closed: OFF)
BACK DOOR SW
NOTE “OFF” —
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/others: OFF) as judged from lighting switch signal.
OPTICAL SENSOR “0 - 5V ”Displays “outside brightness (close to 5V when light/close to 0V when dark)” judged from opti-
cal sensor signal.
VEHICLE SPEED “km/h” Displays vehicle speed as judged from vehicle speed signal.Monitor item Contents
CONSULT-II screen
displayTest item Description
TAIL LAMPParking, license plate and tail
lamps operationTail lamp relay is operated by switching operation ON-OFF.
HEAD LAMP High beam headlamp and low
beam headlamp operationHeadlamp high relay and headlamp low relay are operated by switching
operation (OFF: OFF, HI: high beam, LO: low beam).
RR FOG LAMP Rear fog lamp operation Rear fog lamp is operated by switching operation ON-OFF.
FR FOG LAMP Front fog lamp operation Front fog lamp relay is operated by switching operation ON-OFF.
CORNERING LAMP
Cornering lamp operation
NOTE—
ILL DIM SIGNALCombination meter and dis-
play dimming operationDimming function by MR output signal from BCM, it is operated by switch-
ing operation ON-OFF.
Diagnosis Mode Description
SELF-DIAGNOSTIC RESULTS Refer to PG-19, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of the IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.

LT-64
AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEMPFP:28491

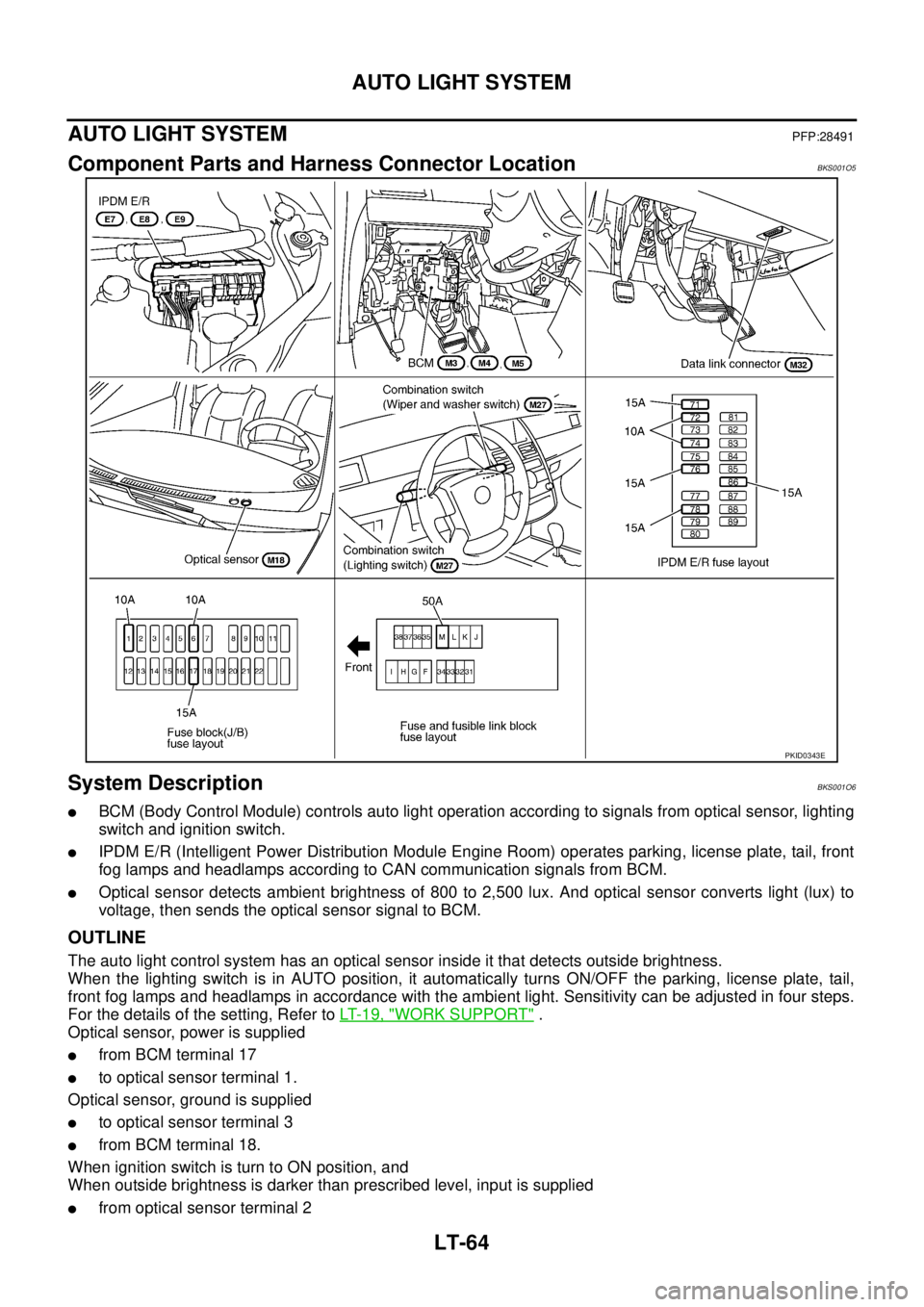

Component Parts and Harness Connector LocationBKS001O5
System DescriptionBKS001O6

BCM (Body Control Module) controls auto light operation according to signals from optical sensor, lighting
switch and ignition switch.

IPDM E/R (Intelligent Power Distribution Module Engine Room) operates parking, license plate, tail, front
fog lamps and headlamps according to CAN communication signals from BCM.

Optical sensor detects ambient brightness of 800 to 2,500 lux. And optical sensor converts light (lux) to
voltage, then sends the optical sensor signal to BCM.
OUTLINE
The auto light control system has an optical sensor inside it that detects outside brightness.
When the lighting switch is in AUTO position, it automatically turns ON/OFF the parking, license plate, tail,
front fog lamps and headlamps in accordance with the ambient light. Sensitivity can be adjusted in four steps.
For the details of the setting, Refer to LT- 1 9 , "
WORK SUPPORT" .
Optical sensor, power is supplied

from BCM terminal 17

to optical sensor terminal 1.
Optical sensor, ground is supplied

to optical sensor terminal 3

from BCM terminal 18.
When ignition switch is turn to ON position, and
When outside brightness is darker than prescribed level, input is supplied

from optical sensor terminal 2
PKID0343E

AUTO LIGHT SYSTEM
LT-65
C
D
E
F
G
H
I
J
L
MA
B
LT


to BCM terminal 14.
AUTO LIGHT OPERATION
Applicable lamps

Low beam headlamp

Parking, license plate and tail lamps

High beam headlamp (with the lighting switch in HIGH BEAM position)

Front fog lamp (with the lighting switch in front fog lamp ON position)
When the lighting switch is in AUTO position with the ignition switch in ON position, BCM detects the AUTO
LIGHT (ON) by BCM combination switch reading function. BCM turns automatically ON/OFF the applicable
lamps according to ambient brightness depending on the following condition.

It turns ON applicable lamps in 3 seconds when ambient brightness is less than 1250 lux.

This lighted lamps is turned OFF in 5 seconds when ambient brightness becomes 2500 lux or higher.
Releasing Function:

Turn ignition switch to the OFF position, or

Change lighting switch to the OFF, 1ST, 2ND position.
NOTE:
Timing for when lamps turn ON/OFF can be changed by the function setting of CONSULT-II. Refer to LT- 1 9 ,
"WORK SUPPORT" .
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
HEADLAMP LOW AND HIGH OPERATION (XENON TYPE)
Refer to LT- 6 , "System Description" .
HEADLAMP LOW AND HIGH OPERATION (HALOGEN TYPE)
Refer to LT- 3 8 , "System Description" .
FRONT FOG LAMP OPERATION
Refer to LT- 1 2 6 , "System Description" .
PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION
Refer to LT- 1 9 6 , "System Description" .
CAN Communication System DescriptionBKS001O7
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBKS001O8
Refer to LAN-49, "CAN System Specification Chart" .
Major Components and FunctionsBKS001O9
Components Functions
BCM

Turns ON/OFF circuits of parking lamp, license plate lamp, tail lamp and headlamp according to signals from
optical sensor, lighting switch (AUTO), and ignition switch (ON, OFF).
Optical sensor

Converts outside brightness (lux) to voltage, and sends it to BCM. (Detects brightness of 800 to 2500 lux)

LT-68
AUTO LIGHT SYSTEM

Terminals and Reference Values for BCMBKS001OC
CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to LT-
184, "DATA MONITOR" .
NOTE:
Optical sensor must be securely subjected to work lamp light. If the optical sensor is insufficiently illuminated, the measured value may
not satisfy the standard.Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
4RCombination switch
input 3ONLighting, turn, wiper
switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Lighting switch
AUTO position
Approx. 1.0 V
11 V Ignition switch (ACC) ACC — Battery voltage
14 P/B Optical sensor signal ONWhen optical sensor is illuminated
3.1 V or more
NOTE
When optical sensor is not illuminated 0.6 V or less
17 W/BOptical sensor power
supplyON — Approx. 5 V
18 P Optical sensor ground ON — Approx. 0 V
33 G/YCombination switch
output 4ONLighting, turn, wiper
switch
(Wiper intermittent
dial position 4)OFF
Approx. 7.2 V
Lighting switch
AUTO position
Approx. 1.2 V
38 R Ignition switch (ON) ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
42 Y/R Battery power supply OFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 W/B Battery power supply OFF — Battery voltage
PKIB4959J
PKIB4960J
PKIB4958J

AUTO LIGHT SYSTEM
LT-71
C
D
E
F
G
H
I
J
L
MA
B
LT

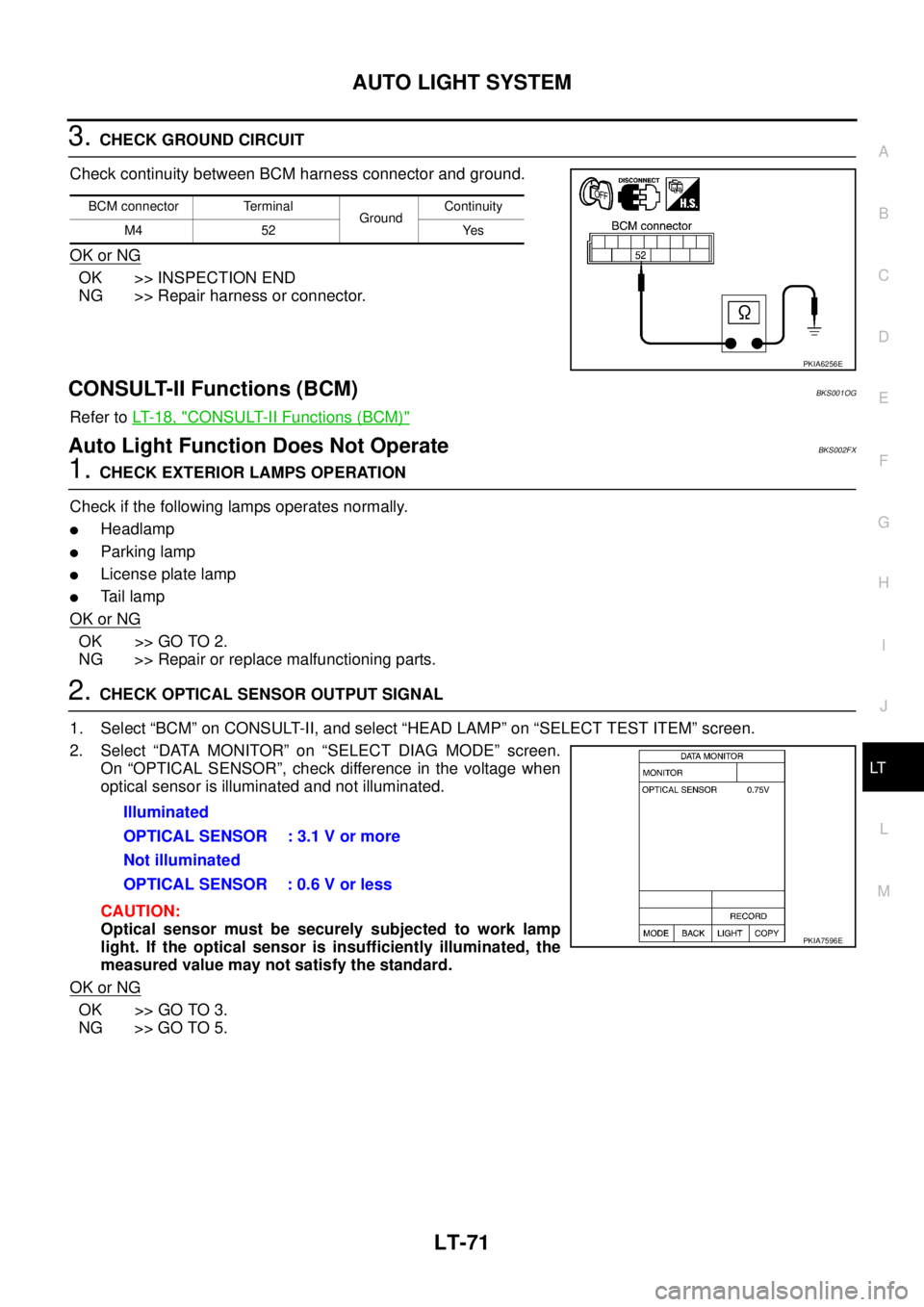

3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)BKS001OG
Refer to LT- 1 8 , "CONSULT-II Functions (BCM)"
Auto Light Function Does Not OperateBKS002FX
1. CHECK EXTERIOR LAMPS OPERATION
Check if the following lamps operates normally.

Headlamp

Parking lamp

License plate lamp

Tail lamp
OK or NG
OK >> GO TO 2.
NG >> Repair or replace malfunctioning parts.
2. CHECK OPTICAL SENSOR OUTPUT SIGNAL
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
On “OPTICAL SENSOR”, check difference in the voltage when
optical sensor is illuminated and not illuminated.
CAUTION:
Optical sensor must be securely subjected to work lamp
light. If the optical sensor is insufficiently illuminated, the
measured value may not satisfy the standard.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
BCM connector Terminal
GroundContinuity
M4 52 Yes
PKIA6256E
Illuminated
OPTICAL SENSOR : 3.1 V or more
Not illuminated
OPTICAL SENSOR : 0.6 V or less
PKIA7596E
