2003 NISSAN TEANA sensor

LT-86
ACTIVE AFS

DATA MONITOR
Operation Procedure
1. Touch ADAPTIVE LIGHT” on “SELECT SYSTEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “ALL SIGNALS” is selected, all the items will be monitored. When “SELECTION FROM MENU” is
selected, touch items to be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
NOTE:
Items will be displayed, but it is fixed to “ON” display.ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitors them.
Monitor itemOperating condition and display item
Contents
Operating conditionDisplay
item
STR ANGLE SIG “deg” Steering wheelTurn to right +deg
Displays steering angle as judged from steering
angle sensor signal.
Turn to left -deg
VHCL SPD “km/h” —Displays vehicle speed judged from vehicle
speed signal.
SLCT LVR POSI “P - 1” —Displays shift condition judged from AT shift
position signal or CVT shift position signal.
HEAD LAMP LO “ON/OFF” Lighting switchLO, HI ON
Displays ON/OFF condition of headlamp LO
judged from headlamp (LO) ON signal. Other than
LO, HIOFF
AFS SW
NOTE“ON/OFF” — —
BEND LAMP LH “ON/OFF” Bending lamp (LH)ON ON
Displays bending lamp (LH) output condition
judged from AFS control unit.
OFF OFF
BEND LAMP RH “ON/OFF” Bending lamp (RH)ON ON
Displays bending lamp (RH) output condition
judged from AFS control unit.
OFF OFF
HEAD LAMP HI “ON/OFF” Lighting switchHI ON
Displays ON/OFF condition of headlamp HI
judged from headlamp (HI) ON signal.
Other than HI OFF

LT-88
ACTIVE AFS

AFS Operation Check (Function Test)BKS002FA

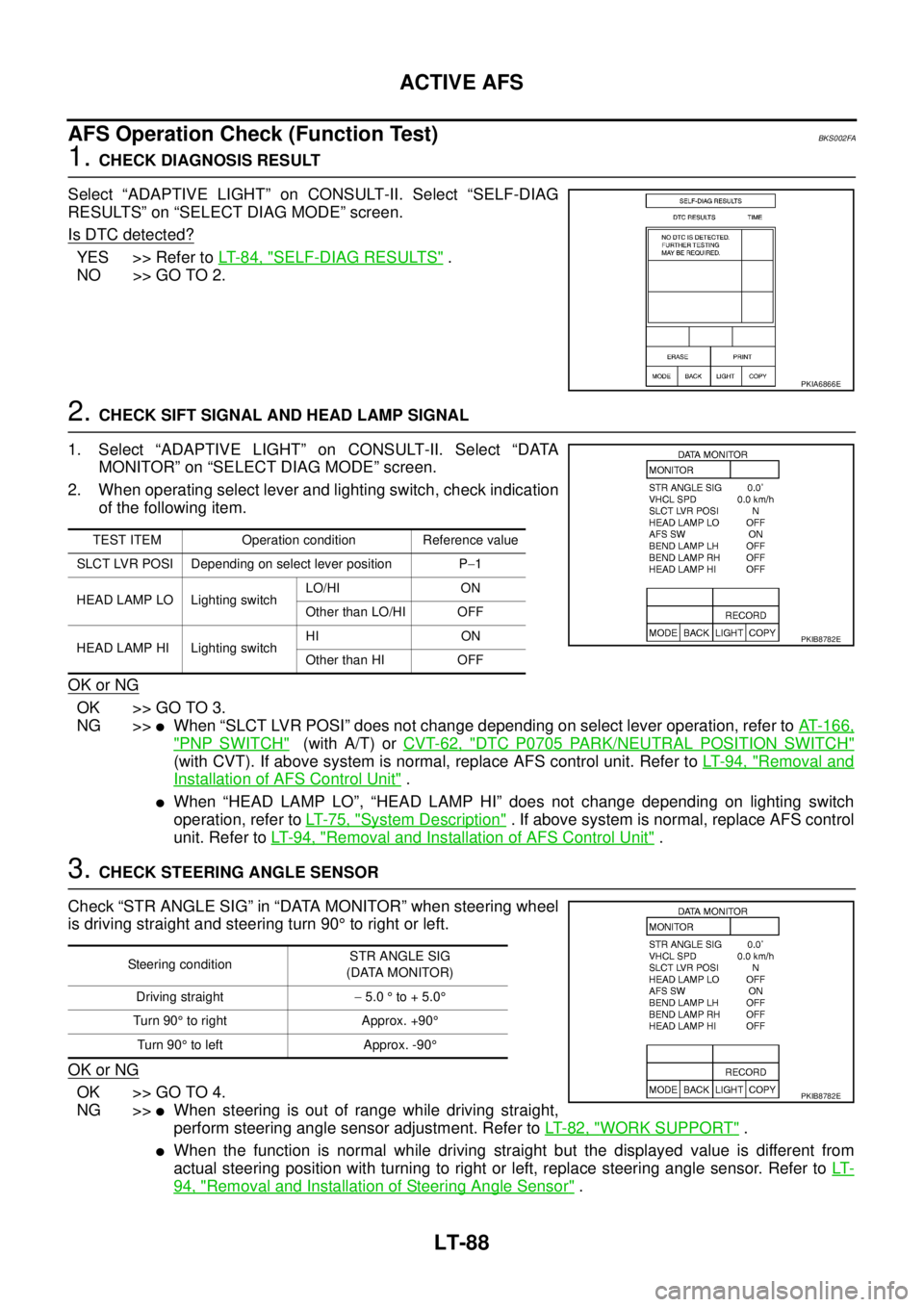

1. CHECK DIAGNOSIS RESULT
Select “ADAPTIVE LIGHT” on CONSULT-II. Select “SELF-DIAG
RESULTS” on “SELECT DIAG MODE” screen.
Is DTC detected?
YES >> Refer to LT- 8 4 , "SELF-DIAG RESULTS" .
NO >> GO TO 2.
2. CHECK SIFT SIGNAL AND HEAD LAMP SIGNAL
1. Select “ADAPTIVE LIGHT” on CONSULT-II. Select “DATA
MONITOR” on “SELECT DIAG MODE” screen.
2. When operating select lever and lighting switch, check indication
of the following item.
OK or NG
OK >> GO TO 3.
NG >>

When “SLCT LVR POSI” does not change depending on select lever operation, refer to AT- 1 6 6 ,
"PNP SWITCH" (with A/T) or CVT-62, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
(with CVT). If above system is normal, replace AFS control unit. Refer to LT- 9 4 , "Removal and
Installation of AFS Control Unit" .

When “HEAD LAMP LO”, “HEAD LAMP HI” does not change depending on lighting switch
operation, refer to LT- 7 5 , "
System Description" . If above system is normal, replace AFS control
unit. Refer to LT- 9 4 , "
Removal and Installation of AFS Control Unit" .
3. CHECK STEERING ANGLE SENSOR
Check “STR ANGLE SIG” in “DATA MONITOR” when steering wheel
is driving straight and steering turn 90° to right or left.
OK or NG
OK >> GO TO 4.
NG >>

When steering is out of range while driving straight,
perform steering angle sensor adjustment. Refer to LT- 8 2 , "
WORK SUPPORT" .

When the function is normal while driving straight but the displayed value is different from
actual steering position with turning to right or left, replace steering angle sensor. Refer to LT-
94, "Removal and Installation of Steering Angle Sensor" .
PKIA6866E
TEST ITEM Operation condition Reference value
SLCT LVR POSI Depending on select lever position P−1
HEAD LAMP LO Lighting switchLO/HI ON
Other than LO/HI OFF
HEAD LAMP HI Lighting switchHI ON
Other than HI OFF
PKIB8782E
Steering conditionSTR ANGLE SIG
(DATA MONITOR)
Driving straight− 5.0 ° to + 5.0°
Turn 90° to right Approx. +90°
Turn 90° to left Approx. -90°
PKIB8782E

LT-92
ACTIVE AFS

Bending Lamp Does Not turn OFFBKS002FD
1. CHECK BENDING LAMP POWER SUPPLY CIRCUIT
Check if continuity does not exist between bending lamp signal circuit and power supply.
OK or NG
OK >> Replace AFS control unit. Refer to LT- 9 4 , "Removal and Installation of AFS Control Unit" .
NG >> Repair harness or connector.

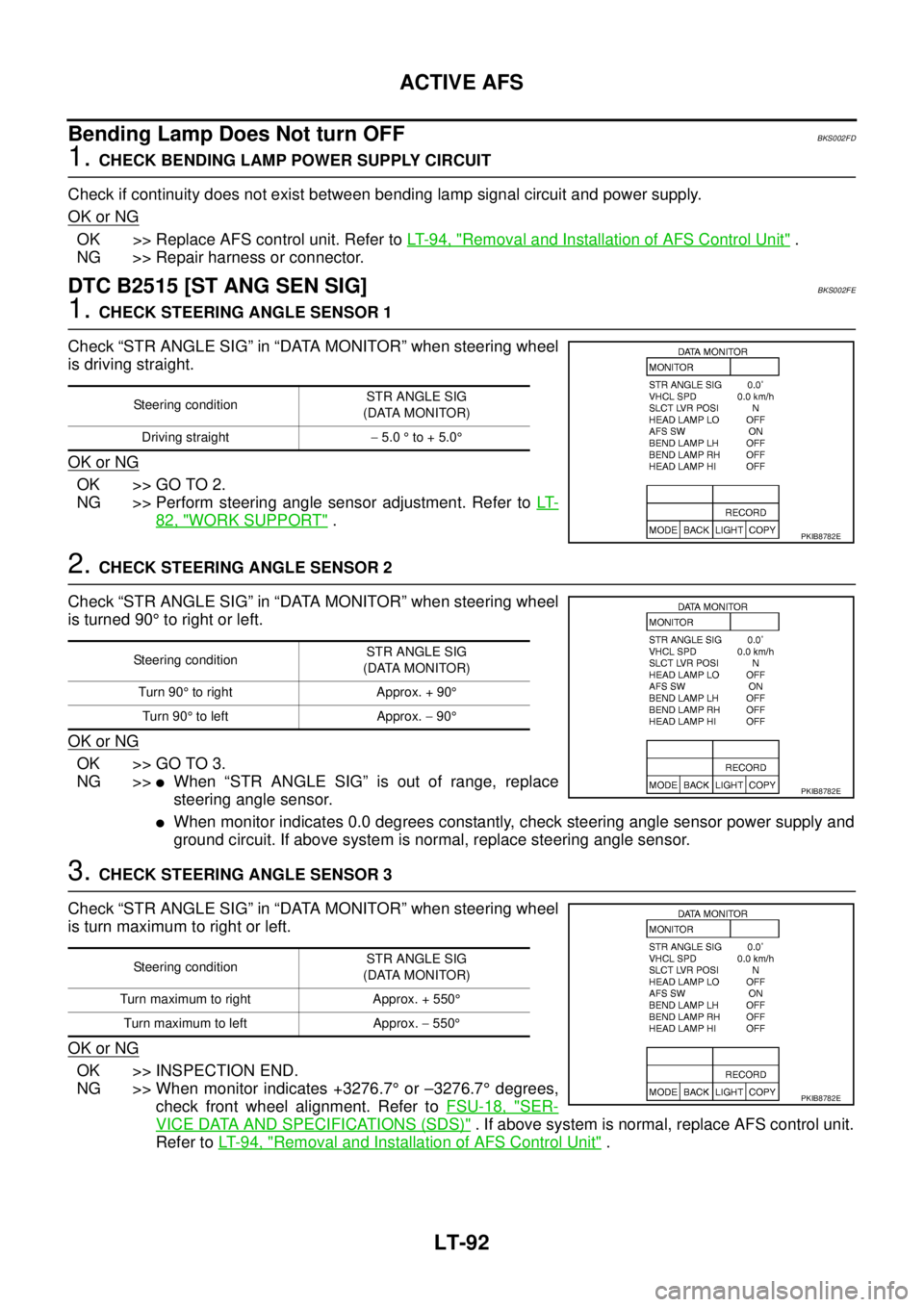

DTC B2515 [ST ANG SEN SIG]BKS002FE
1. CHECK STEERING ANGLE SENSOR 1
Check “STR ANGLE SIG” in “DATA MONITOR” when steering wheel
is driving straight.
OK or NG
OK >> GO TO 2.
NG >> Perform steering angle sensor adjustment. Refer to LT-
82, "WORK SUPPORT" .
2. CHECK STEERING ANGLE SENSOR 2
Check “STR ANGLE SIG” in “DATA MONITOR” when steering wheel
is turned 90° to right or left.
OK or NG
OK >> GO TO 3.
NG >>

When “STR ANGLE SIG” is out of range, replace
steering angle sensor.

When monitor indicates 0.0 degrees constantly, check steering angle sensor power supply and
ground circuit. If above system is normal, replace steering angle sensor.
3. CHECK STEERING ANGLE SENSOR 3
Check “STR ANGLE SIG” in “DATA MONITOR” when steering wheel
is turn maximum to right or left.
OK or NG
OK >> INSPECTION END.
NG >> When monitor indicates +3276.7° or –3276.7° degrees,
check front wheel alignment. Refer to FSU-18, "
SER-
VICE DATA AND SPECIFICATIONS (SDS)" . If above system is normal, replace AFS control unit.
Refer to LT- 9 4 , "
Removal and Installation of AFS Control Unit" .
Steering conditionSTR ANGLE SIG
(DATA MONITOR)
Driving straight− 5.0 ° to + 5.0°
PKIB8782E
Steering conditionSTR ANGLE SIG
(DATA MONITOR)
Turn 90° to right Approx. + 90°
Tu rn 90° to left Approx. − 90°
PKIB8782E
Steering conditionSTR ANGLE SIG
(DATA MONITOR)
Turn maximum to right Approx. + 550°
Turn maximum to left Approx. − 550°
PKIB8782E

LT-94
ACTIVE AFS

Aiming AdjustmentBKS002FH
Refer to LT- 3 3 , "Aiming Adjustment" .
Bulb ReplacementBKS002FI
Refer to LT- 3 5 , "BENDING LAMP" .

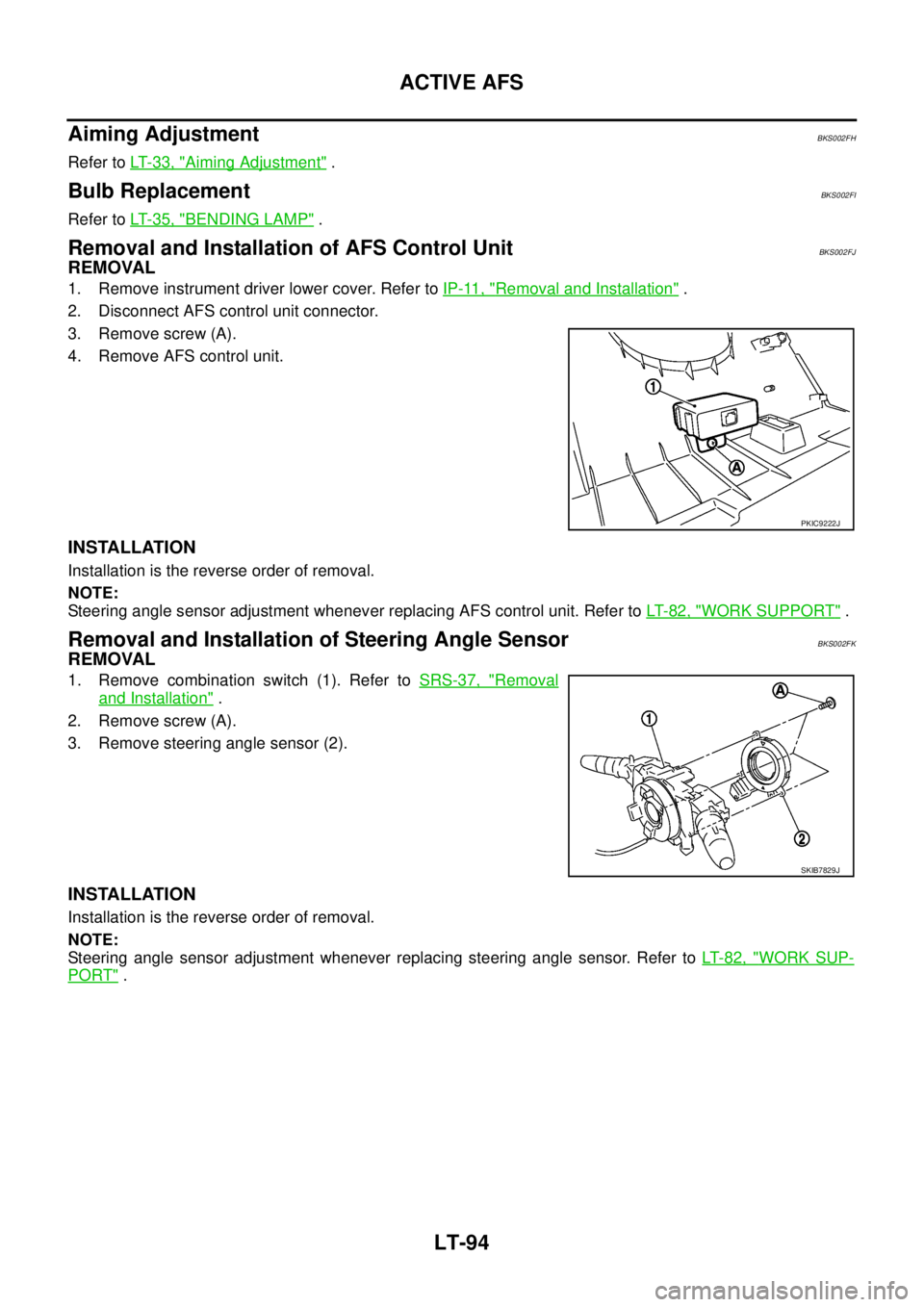

Removal and Installation of AFS Control UnitBKS002FJ
REMOVAL
1. Remove instrument driver lower cover. Refer to IP-11, "Removal and Installation" .
2. Disconnect AFS control unit connector.
3. Remove screw (A).
4. Remove AFS control unit.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
Steering angle sensor adjustment whenever replacing AFS control unit. Refer to LT- 8 2 , "
WORK SUPPORT" .
Removal and Installation of Steering Angle SensorBKS002FK
REMOVAL
1. Remove combination switch (1). Refer to SRS-37, "Removal
and Installation" .
2. Remove screw (A).
3. Remove steering angle sensor (2).
INSTALLATION
Installation is the reverse order of removal.
NOTE:
Steering angle sensor adjustment whenever replacing steering angle sensor. Refer to LT- 8 2 , "
WORK SUP-
PORT" .
PKIC9222J
SKIB7829J

LT-96
HEADLAMP AIMING CONTROL (AUTO)

System DescriptionBKS002BA
The height sensor is located on the right side of the rear suspension member. With the lighting switch in the
1ST or 2ND position, the height sensor detects vehicle height change by sensing the displacement of the sus-
pension arm. And the height sensor transmits a corresponding signal to the headlamp aiming motors. The sig-
nal drives the headlamp aiming motors, which adjusts the low beam reflector of each headlamp to an angle
appropriate for the vehicle height.
The aiming motor drive signal level retains when the following conditions are not met.

When the stopped vehicle changes the height and keeps it for more than 10 seconds, the height sensor
outputs a aiming motor drive signal. And height sensor keeps signal voltage to headlamp aiming motor.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.

When the vehicle is running (excluded when accelerating/decelerating), the height sensor transmits aim-
ing motor drive signal to headlamp aiming motors at the predetermined intervals. The voltage level of
every signal input is maintained unchanged until the next signal is input.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.

When the vehicle is accelerating or decelerating, the height sensor keeps the same aiming motor drive
signal voltage level rather than changing it, so that the low beam reflectors of both headlamps do not
operate.
When the lighting switch is turned OFF position, the height sensor retains the aiming motor drive signal level
at that moment and stops transmitting the signal.
OUTLINE
Power is supplied at all times

to ignition relay [located in IPDM E/R (Intelligent Power Distribution Module Engine Room)], from battery
direct,

through 15A fuse (No. 71, located in IPDM E/R)

to tail lamp relay (located in IPDM E/R) and

to CPU (central processing unit) in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU in IPDM E/R,

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 17, located in fuse block (J/B)]

to BCM terminal 42.
With the ignition switch in the ON or START position, power is supplied

to ignition relay (located in IPDM E/R),

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in fuse block (J/B)]

to height sensor terminal 2.
With the ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M71 and M72,

to IPDM E/R terminals 38 and 60

through grounds E1 and E31,

to height sensor terminal 1

through grounds B214 and B217.

HEADLAMP AIMING CONTROL (AUTO)
LT-97
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AUTO AIMING CONTROL OPERATION
The height sensor is located on the right side of the rear suspension member and detects vehicle height
change by sensing the displacement of the suspension arm.
When the lighting switch is turned to the 1ST or 2ND position, power is supplied

through IPDM E/R terminal 22

to height sensor terminal 6 and

to front combination lamp RH and LH terminals 3.
At the same time, the vehicle height signal (voltage signal that corresponds to the vehicle height) is applied

through height sensor terminal 7

to front combination lamp RH and LH terminals 6.
Ground is supplied

to front combination lamp RH and LH terminals 4

through grounds E1 and E31.
CAN Communication System DescriptionBKS0041M
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBKS0041N
Refer to LAN-49, "CAN System Specification Chart" .

HEADLAMP AIMING CONTROL (AUTO)
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT

Terminals and Reference Values for Height SensorBKS002BF
How to Proceed With Trouble DiagnosisBKS002BG
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 9 6 , "
System Description" .
3. Perform self-diagnosis by CONSULT-II. Refer to LT- 1 0 5 , "
SELF-DIAG RESULTS" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp aiming control operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
CONSULT-II Functions (HEADLAMP LEVELIZER)BKS002BH
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
WORK SUPPORT
Display Item List
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
1 B Ground ON — —
2 G Ignition switch (ON) ON — Battery voltage
4 V/W Vehicle speed signal ON about 40 km/h (25 MPH)
5OK-line — — —
6 R/L Tail lamp signal —Lighting switch 1ST
positionOFF 2 V or less
ON Battery voltage
7 L/Y Aiming motor drive signal ONCombination switch
1ST vehicle speed
0 km/h (0 MPH)Unloaded vehicle
positionApprox. 10.6 V
Maximum laden
conditionApprox.1.9 V
PKIA1935E
Diagnosis mode Description
WORK SUPPORT Height sensor can be initialized.
SELF-DIAG RESULTS The result of self-diagnosis for height sensor can be displayed and erased.
DATA MONITOR Displays height sensor inputs and outputs in real time.
ACTIVE TEST Operation of headlamp aiming motor can be confirmed with “MAX”, “MID” or “MIN” touched.
ECU PART NUMBER Height sensor part number can be read.
CONFIGURATION (Not be used.)
Item Description
SENSOR INITIALISEMake it memorize height sensor stroke of unloaded vehicle condition.
Perform when replacing height sensor.

LT-104
HEADLAMP AIMING CONTROL (AUTO)

Operation Procedure
1. Set the vehicle in unladen condition. (Removal all loads in driver, passenger and trunk rooms.)
2. Touch “HEAD LAMP LEVELIZER” on “SELECT SYSTEM” screen.
3. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
4. Touch “SENSOR INITIALISE”.
5. Touch “WRITE”.
6. “INITIALISE COMPLETE” will be displayed.
7. Touch “END”.
Instruction of initialized results
DATA MONITOR
Operation Procedure
1. Touch “HEADLAMP LEVELIZER” on “SELECT SYSTEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “ALL SIGNALS” is selected, all the items will be monitored. When “SELECTION FROM MENU” is
selected, touch items to be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
NOTE:
This item is displayed, but does not function.Item Description of indications
INITIALISE COMPLETE Initialization completed.
INCORRECT CONDITION Improper condition. (Wrong connection of height sensor connector or CONSULT-II connector.)
NO CAR TYPE SELECT Program error of the height sensor.
INITIALISE NOT DONE Initialization uncompleted.
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitors them.
Monitor item Contents
INT SENSOR VALUE “%”The ratio between the maximum sensor lever angle which the height sensor can recognize and the
current sensor angle is displayed.
ACT OUTPUT “%”The ratio between the headlamp aiming motor drive signal voltage calculated by the height sensor
and the height sensor power supply voltage is displayed.
ACT MEASURED “%”The ratio between the headlamp aiming motor drive signal voltage and the height sensor power sup-
ply voltage is displayed.
SPEED SIG “km/h” Vehicle speed calculated from the vehicle speed signal (8-pulse) is displayed.
LIGHT SIGNAL “V”The condition either “headlamp low beam ON (power supply voltage) ” or “headlamp low beam OFF
(2 V or less)” judged from the headlamp low signal is displayed.
INT SEN VOLT “V” The condition of IGN power supply is displayed.
EXT SEN VOLT
NOTE“V” —
EXT SEN SIG
NOTE“V” —
