POWER STEERING GEAR AND LINKAGE
PS-19
C
D
E
F
H
I
J
K
L
MA
B
PS

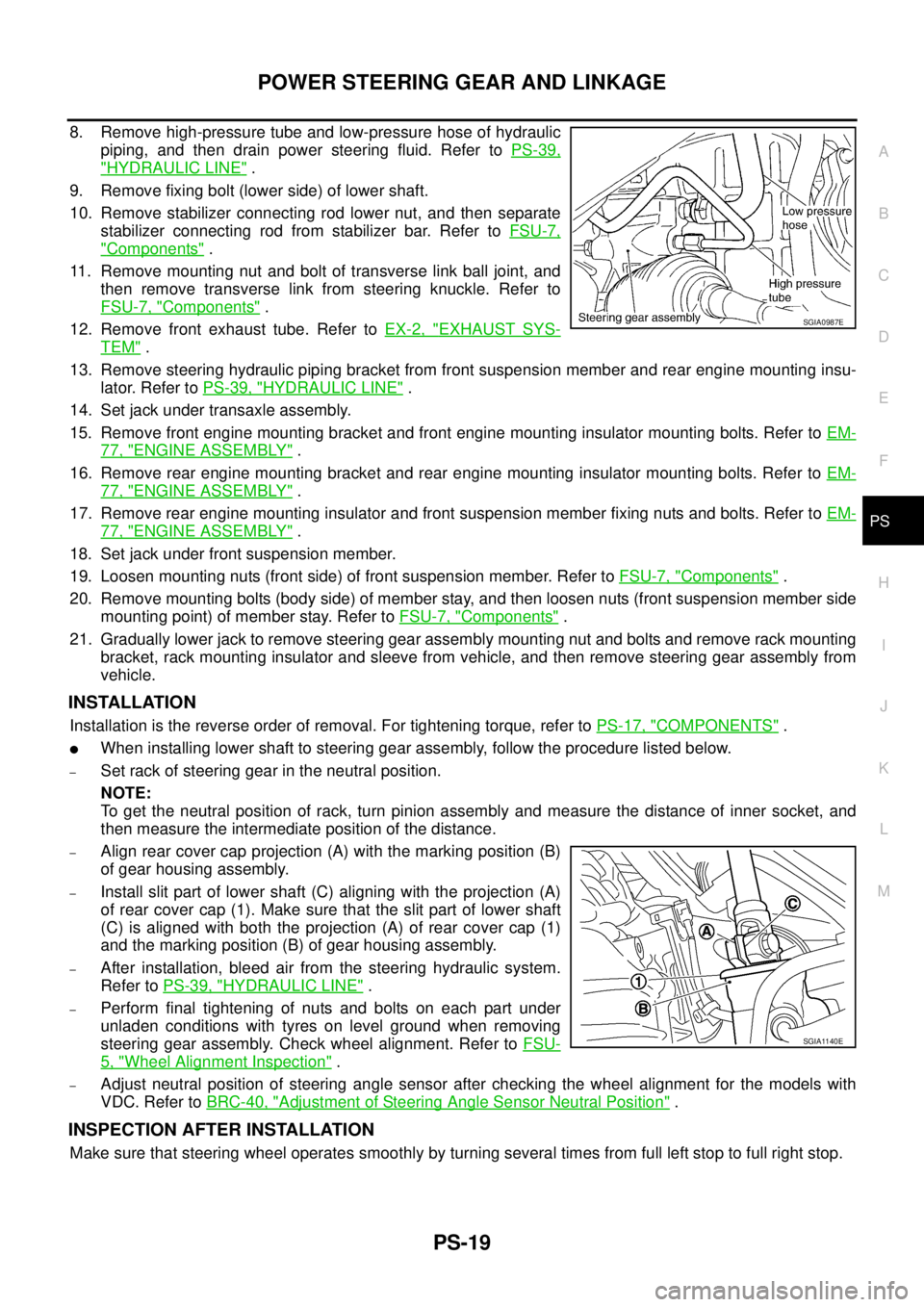

8. Remove high-pressure tube and low-pressure hose of hydraulic
piping, and then drain power steering fluid. Refer to PS-39,
"HYDRAULIC LINE" .
9. Remove fixing bolt (lower side) of lower shaft.
10. Remove stabilizer connecting rod lower nut, and then separate
stabilizer connecting rod from stabilizer bar. Refer to FSU-7,
"Components" .
11. Remove mounting nut and bolt of transverse link ball joint, and
then remove transverse link from steering knuckle. Refer to
FSU-7, "
Components" .
12. Remove front exhaust tube. Refer to EX-2, "
EXHAUST SYS-
TEM" .
13. Remove steering hydraulic piping bracket from front suspension member and rear engine mounting insu-
lator. Refer to PS-39, "
HYDRAULIC LINE" .
14. Set jack under transaxle assembly.
15. Remove front engine mounting bracket and front engine mounting insulator mounting bolts. Refer to EM-
77, "ENGINE ASSEMBLY" .
16. Remove rear engine mounting bracket and rear engine mounting insulator mounting bolts. Refer to EM-
77, "ENGINE ASSEMBLY" .
17. Remove rear engine mounting insulator and front suspension member fixing nuts and bolts. Refer to EM-
77, "ENGINE ASSEMBLY" .
18. Set jack under front suspension member.
19. Loosen mounting nuts (front side) of front suspension member. Refer to FSU-7, "
Components" .
20. Remove mounting bolts (body side) of member stay, and then loosen nuts (front suspension member side
mounting point) of member stay. Refer to FSU-7, "
Components" .
21. Gradually lower jack to remove steering gear assembly mounting nut and bolts and remove rack mounting
bracket, rack mounting insulator and sleeve from vehicle, and then remove steering gear assembly from
vehicle.
INSTALLATION
Installation is the reverse order of removal. For tightening torque, refer to PS-17, "COMPONENTS" .

When installing lower shaft to steering gear assembly, follow the procedure listed below.
–Set rack of steering gear in the neutral position.
NOTE:
To get the neutral position of rack, turn pinion assembly and measure the distance of inner socket, and
then measure the intermediate position of the distance.
–Align rear cover cap projection (A) with the marking position (B)
of gear housing assembly.
–Install slit part of lower shaft (C) aligning with the projection (A)
of rear cover cap (1). Make sure that the slit part of lower shaft
(C) is aligned with both the projection (A) of rear cover cap (1)
and the marking position (B) of gear housing assembly.
–After installation, bleed air from the steering hydraulic system.
Refer to PS-39, "
HYDRAULIC LINE" .
–Perform final tightening of nuts and bolts on each part under
unladen conditions with tyres on level ground when removing
steering gear assembly. Check wheel alignment. Refer to FSU-
5, "Wheel Alignment Inspection" .
–Adjust neutral position of steering angle sensor after checking the wheel alignment for the models with
VDC. Refer to BRC-40, "
Adjustment of Steering Angle Sensor Neutral Position" .
INSPECTION AFTER INSTALLATION
Make sure that steering wheel operates smoothly by turning several times from full left stop to full right stop.
SGIA0987E
SGIA1140E

PS-30
POWER STEERING OIL PUMP

Removal and InstallationBGS0003Z
REMOVAL
1. Drain power steering fluid from reservoir tank.
2. Remove tyres from vehicle.
3. Remove side splash guard.
4. Remove heat insulator from vehicle. (Except for QR20DE mod-
els).
5. Loosen drive belt. Refer to EM-14, "
DRIVE BELTS" (QR20DE
models), EM-128, "
DRIVE BELTS" (Except for QR20DE mod-
els).
6. Remove drive belt from oil pump pulley.
7. Disconnect the pressure sensor electrical connector.
8. Remove piping of high pressure and low pressure (drain fluid
from their pipings). Refer to PS-39, "
HYDRAULIC LINE" .
9. Remove power steering oil pump mounting bolts, and then
remove power steering oil pump. Refer to PS-39, "
HYDRAULIC
LINE" .
INSTALLATION

Installation is the reverse order of removal. For tightening torque, refer to PS-39, "HYDRAULIC LINE" .

Perform the following procedure after installing.
–Adjust belt tension (Except for QR20DE models). Refer to EM-128, "DRIVE BELTS" .
–About the installation of QR20DE drive belt, refer to EM-14, "DRIVE BELTS" .
–Bleed air. Refer to PS-7, "Air Bleeding Hydraulic System" .
SGIA0502E

HYDRAULIC LINE
PS-39
C
D
E
F
H
I
J
K
L
MA
B
PS

HYDRAULIC LINEPFP:49721
Removal and InstallationBGS00041

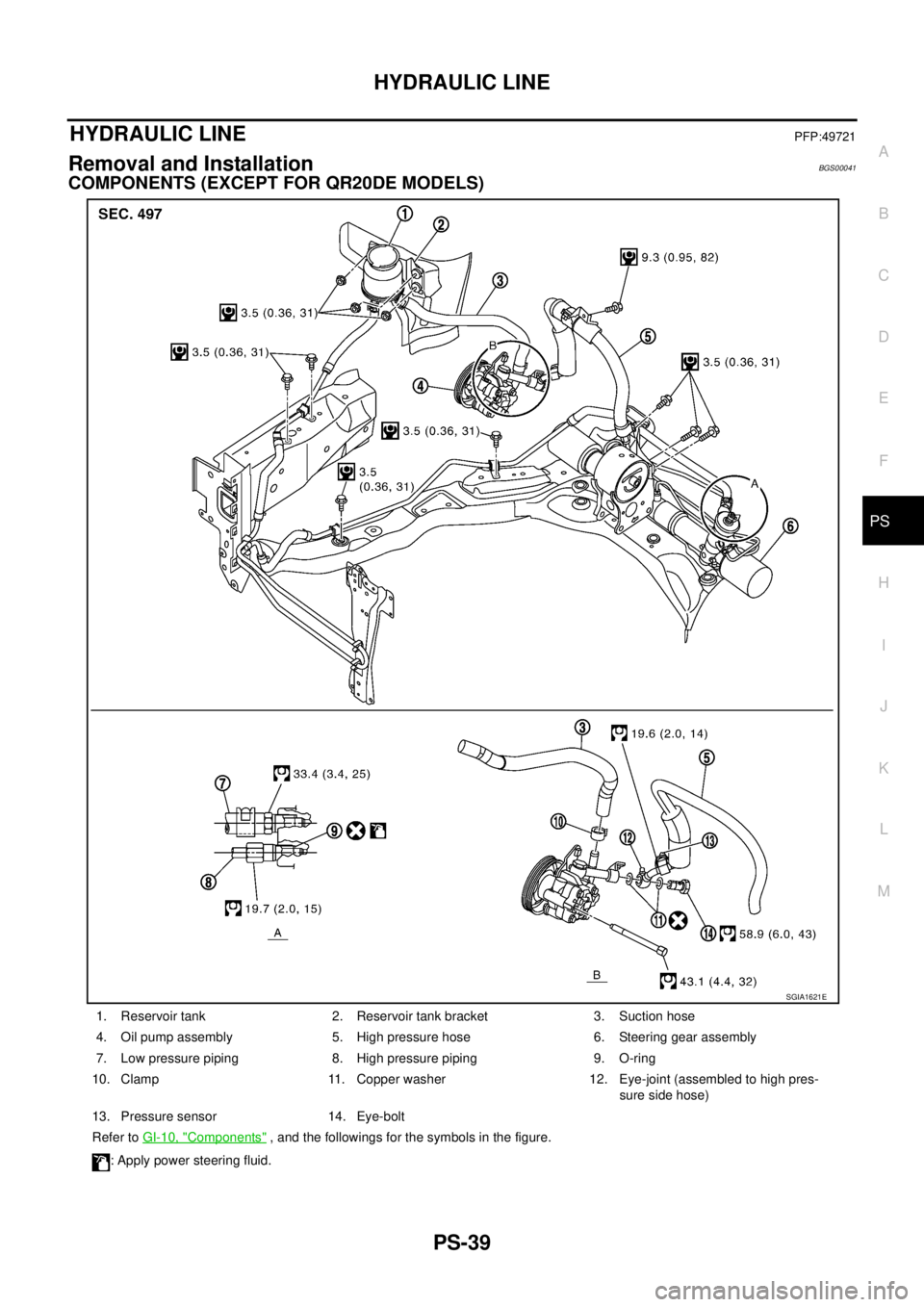

COMPONENTS (EXCEPT FOR QR20DE MODELS)
1. Reservoir tank 2. Reservoir tank bracket 3. Suction hose
4. Oil pump assembly 5. High pressure hose 6. Steering gear assembly
7. Low pressure piping 8. High pressure piping 9. O-ring
10. Clamp 11. Copper washer 12. Eye-joint (assembled to high pres-
sure side hose)
13. Pressure sensor 14. Eye-bolt
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
SGIA1621E

PS-40
HYDRAULIC LINE

COMPONENTS (QR20DE MODELS)
CAUTION:

Securely insert harness connector to pressure sensor.
1. Reservoir tank 2. Reservoir tank bracket 3. Suction hose
4. Oil pump assembly 5. High pressure hose 6. Steering gear assembly
7. Low pressure piping 8. High pressure piping 9. O-ring
10. Eye-bolt 11. Copper washer 12. Eye-joint (assembled to high pres-
sure side hose)
13. Pressure sensor 14. Clamp
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
SGIA1622E

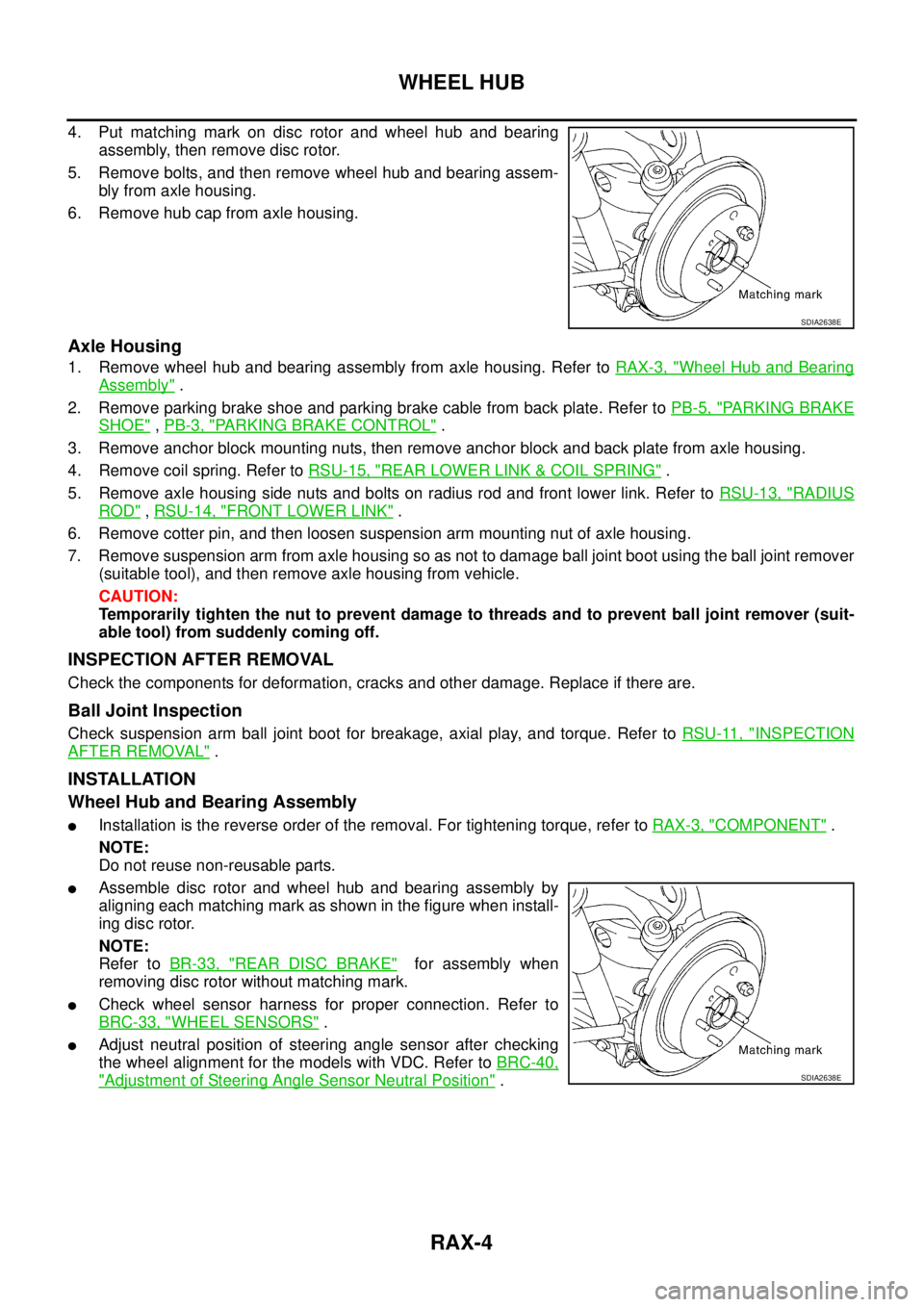

WHEEL HUB

RAX-3
C
E
F
G
H
I
J
K
L
MA
B
RAX

WHEEL HUBPFP:43202
On-Vehicle Inspection BDS0007Y
Make sure that the mounting conditions (looseness, backlash) of each components and the component condi-
tions (wear, damage) are normal.
WHEEL BEARING INSPECTION

Move wheel hub and bearing assembly in the axial direction by hand make sure there is no looseness of
wheel bearing.

Rotate wheel hub and make sure that is no unusual noise or other irregular conditions. If there is any of
irregular conditions, replace wheel hub and bearing assembly.
Removal and InstallationBDS0007Z
COMPONENT
REMOVAL
Wheel Hub and Bearing Assembly
1. Remove tires from vehicle.
2. Remove wheel sensor from axle housing. Refer to BRC-33, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
3. Remove torque member fixing bolts. Hang torque member in a place where it will not interfere with work.
Refer to BR-33, "
REAR DISC BRAKE" .
NOTE:
Do not depress brake pedal while brake caliper is removed.Axial end play : 0.05 mm (0.0020 in) or less
1. Disc rotor 2. Wheel hub and bearing assembly 3. Anchor block
4. Back plate 5. Bushing 6. Hub cap
7. Ball seat 8. Axle housing 9. Cotter pin
SDIA1716E

RAX-4
WHEEL HUB

4. Put matching mark on disc rotor and wheel hub and bearing
assembly, then remove disc rotor.
5. Remove bolts, and then remove wheel hub and bearing assem-
bly from axle housing.
6. Remove hub cap from axle housing.
Axle Housing
1. Remove wheel hub and bearing assembly from axle housing. Refer to RAX-3, "Wheel Hub and Bearing
Assembly" .
2. Remove parking brake shoe and parking brake cable from back plate. Refer to PB-5, "
PARKING BRAKE
SHOE" , PB-3, "PARKING BRAKE CONTROL" .
3. Remove anchor block mounting nuts, then remove anchor block and back plate from axle housing.
4. Remove coil spring. Refer to RSU-15, "
REAR LOWER LINK & COIL SPRING" .
5. Remove axle housing side nuts and bolts on radius rod and front lower link. Refer to RSU-13, "
RADIUS
ROD" , RSU-14, "FRONT LOWER LINK" .
6. Remove cotter pin, and then loosen suspension arm mounting nut of axle housing.
7. Remove suspension arm from axle housing so as not to damage ball joint boot using the ball joint remover
(suitable tool), and then remove axle housing from vehicle.
CAUTION:
Temporarily tighten the nut to prevent damage to threads and to prevent ball joint remover (suit-
able tool) from suddenly coming off.
INSPECTION AFTER REMOVAL
Check the components for deformation, cracks and other damage. Replace if there are.
Ball Joint Inspection
Check suspension arm ball joint boot for breakage, axial play, and torque. Refer to RSU-11, "INSPECTION
AFTER REMOVAL" .
INSTALLATION
Wheel Hub and Bearing Assembly

Installation is the reverse order of the removal. For tightening torque, refer to RAX-3, "COMPONENT" .
NOTE:
Do not reuse non-reusable parts.

Assemble disc rotor and wheel hub and bearing assembly by
aligning each matching mark as shown in the figure when install-
ing disc rotor.
NOTE:
Refer to BR-33, "
REAR DISC BRAKE" for assembly when
removing disc rotor without matching mark.

Check wheel sensor harness for proper connection. Refer to
BRC-33, "
WHEEL SENSORS" .

Adjust neutral position of steering angle sensor after checking
the wheel alignment for the models with VDC. Refer to BRC-40,
"Adjustment of Steering Angle Sensor Neutral Position" .
SDIA2638E
SDIA2638E

RSU-8
REAR SUSPENSION ASSEMBLY

Removal and InstallationBES00043
REMOVAL
1. Remove tires from vehicle.
2. Remove wheel sensor from axle housing, and then disconnect sensor harness from suspension arm and
suspension member. Refer to BRC-33, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
3. Remove torque member fixing bolts. Hang torque member in a place where it will not interfere with work.
Refer to BR-33, "
REAR DISC BRAKE" .
NOTE:
Do not depress brake pedal while brake caliper is removed.
4. Remove main muffler and center muffler. Refer to EX-2, "
EXHAUST SYSTEM" .
5. Remove parking brake cable (rear cables) from rear suspension member and body. Refer to PB-3,
"PARKING BRAKE CONTROL" .
6. Remove coil spring. Refer to RSU-15, "
REAR LOWER LINK & COIL SPRING" .
7. Remove the mounting nuts on the upper side of shock absorber assembly. Refer to RSU-9, "
SHOCK
ABSORBER" .
8. Set jack under rear suspension member.
9. Remove rear suspension member mounting nuts, and then remove rebound stopper.
10. Gradually lower jack to remove rear suspension assembly.
INSTALLATION

Installation is the reverse order of the removal. For tightening torque, refer to RSU-7, "Component" .
NOTE:
Do not reuse non-reusable parts.

Perform final tightening of each parts under unladen conditions, which were removed when removing rear
suspension assembly. Check the wheel alignment. Refer to RSU-5, "
Wheel Alignment Inspection" .

Adjust neutral position of steering angle sensor after checking the wheel alignment for models with VDC.
Refer to BRC-40, "
Adjustment of Steering Angle Sensor Neutral Position" .

Check for the following after finishing work.
–Parking brake operation (stroke): Refer to PB-2, "On-Vehicle Inspection" .
–Wheel sensor harness for proper connection: Refer to BRC-33, "WHEEL SENSORS" .
1. Outer washer 2. Bushing (upper) 3. Distance tube
4. Mounting seal bracket 5. Bushing (lower) 6. Bound bumper cover
7. Bound bumper 8. Shock absorber 9. Upper seat
10. Coil spring 11. Rubber seat 12. Rear lower link
13. Axle housing assembly 14. Front lower link 15. Radius rod
16. Suspension arm 17. Connecting rod mounting bracket 18. Rebound stopper
19. Shock absorber assembly 20. Rear suspension member 21. Front lower link protector
22. Stabilizer bar 23. Connecting rod 24. Stabilizer bushing
25. Stabilizer clamp 26. Cotter pin 27. Washer
28. Ball seat
Refer to GI-10, "
Components" , for the symbols in the figure.
