2003 NISSAN TEANA sensor

SRS-2 FRONT SEAT BELT PRE-TENSIONER ................... 46
Removal and Installation ........................................ 46
DIAGNOSIS SENSOR UNIT ..................................... 47
Removal and Installation ........................................ 47
REMOVAL ........................................................... 47
INSTALLATION .................................................... 47
ECU DISCRIMINATED NO. ................................. 47
DISPOSAL OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER ..................................................... 48
Caution for Air Bag Module and Seat Belt Pre-Ten-
sioner ...................................................................... 48
CHECKING DEPLOYMENT TOOL ..................... 48
DEPLOYMENT PROCEDURES FOR AIR BAG
MODULE (OUTSIDE OF VEHICLE) ................... 49
DEPLOYMENT PROCEDURES FOR SEAT
BELT PRE-TENSIONER (OUTSIDE OF VEHI-CLE) ..................................................................... 53
DEPLOYMENT OF AIR BAG MODULE AND
SEAT BELT PRE-TENSIONER WHILE
MOUNTED IN VEHICLE ...................................... 54
DISPOSING OF AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER ...................................... 54
COLLISION DIAGNOSIS .......................................... 55
For Frontal Collision ................................................ 55
SRS INSPECTION (FOR FRONTAL COLLI-
SION) ................................................................... 55
For Side Collision .................................................... 57
WHEN THE SIDE AIR BAG IS ACTIVATED IN A
SIDE COLLISION: ............................................... 57
WHEN SRS IS NOT ACTIVATED IN A SIDE COL-
LISION: ................................................................ 57
SRS INSPECTION (FOR SIDE COLLISION) ...... 57

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BHS0003U
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceBHS0003V

Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

Before servicing the SRS, turn ignition switch OFF, and disconnect both battery cables. Then wait at least
3 minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.

Diagnosis sensor unit must always be installed with their arrow marks “⇐” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformations or rust before
installation and replace if required.

The spiral cable must be set to the neutral position since its rotations are limited. Do not attempt to turn
steering wheel or column, if steering gear was disconnected from the column shaft.

Handle air bag module carefully. Always put a driver air bag module with the pad side facing upward.

Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

After an air bag is deployed, the front instrument panel assembly should be replaced if damaged.

Always replace instrument panel pad following front passenger air bag deployment.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-5
C
D
E
F
G
I
J
K
L
MA
B
SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)PFP:28556
SRS ConfigurationBHS0003Z
The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ON or START posi-
tion.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module and front passenger air bag module are activated in a frontal col-
lision but not in a side collision.
SRS configurations which are activated for some collision modes are as follows:
PHIA0775E
SRS configuration Frontal collision Left side collision Right side collision
Driver air bag module×——
Front passenger air bag module×——
Front LH seat belt pre-tensioner×——
Front RH seat belt pre-tensioner×——
Front LH side air bag module —×—
Front RH side air bag module — —×
LH side curtain air bag module —×—
RH side curtain air bag module — —×

TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS

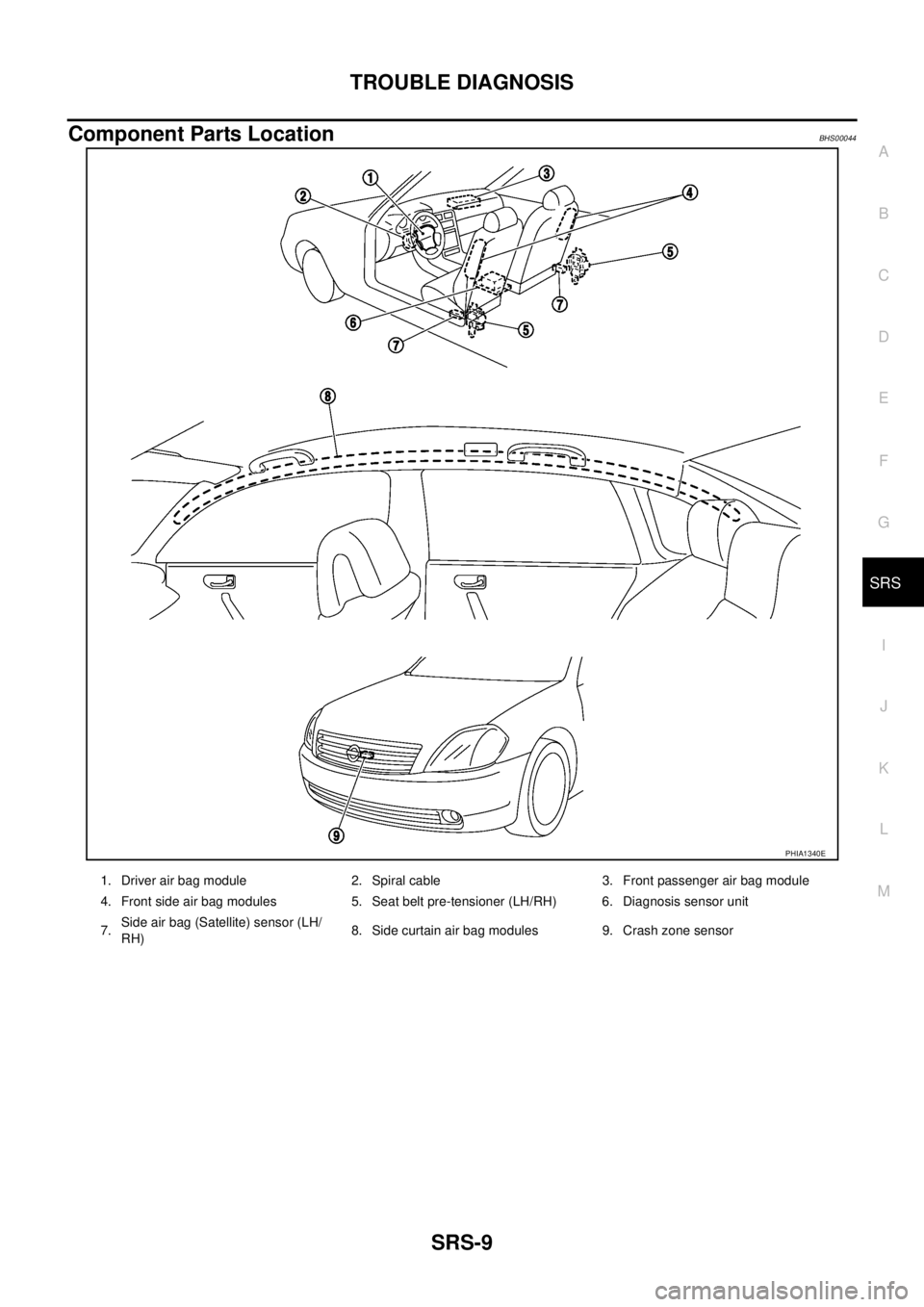

Component Parts LocationBHS00044
PHIA1340E
1. Driver air bag module 2. Spiral cable 3. Front passenger air bag module
4. Front side air bag modules 5. Seat belt pre-tensioner (LH/RH) 6. Diagnosis sensor unit
7.Side air bag (Satellite) sensor (LH/
RH)8. Side curtain air bag modules 9. Crash zone sensor

SRS-14
TROUBLE DIAGNOSIS

CONSULT-II FunctionBHS00047
DIAGNOSIS MODE FOR CONSULT-II

“SELF-DIAG [CURRENT]”
A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requiring
repairs.

“SELF-DIAG [PAST]”
Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The stored
results are not erased until memory erasing is executed.

“TROUBLE DIAG RECORD”
With TROUBLE DIAG RECORD, diagnostic results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.

“ECU DISCRIMINATED NO.”
The diagnosis sensor unit for each vehicle model is assigned
with its own, individual classification number. This number is dis-
played on the CONSULT-II screen, as shown. When replacing
the diagnosis sensor unit, refer to the part number for the com-
patibility. After installation, replacement with a correct unit can
be checked by confirming this classification number on the
CONSULT-II screen.
After repair, make sure the discriminated number of diagnosis
sensor unit installed to vehicle are same. Refer to SRS-47,
"ECU DISCRIMINATED NO." .
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II
From User Mode to Diagnosis Mode
After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears. Then diagnosis mode automatically changes to User mode.
PHIA0218E
SRS803
SRS804

TROUBLE DIAGNOSIS
SRS-17
C
D
E
F
G
I
J
K
L
MA
B
SRS

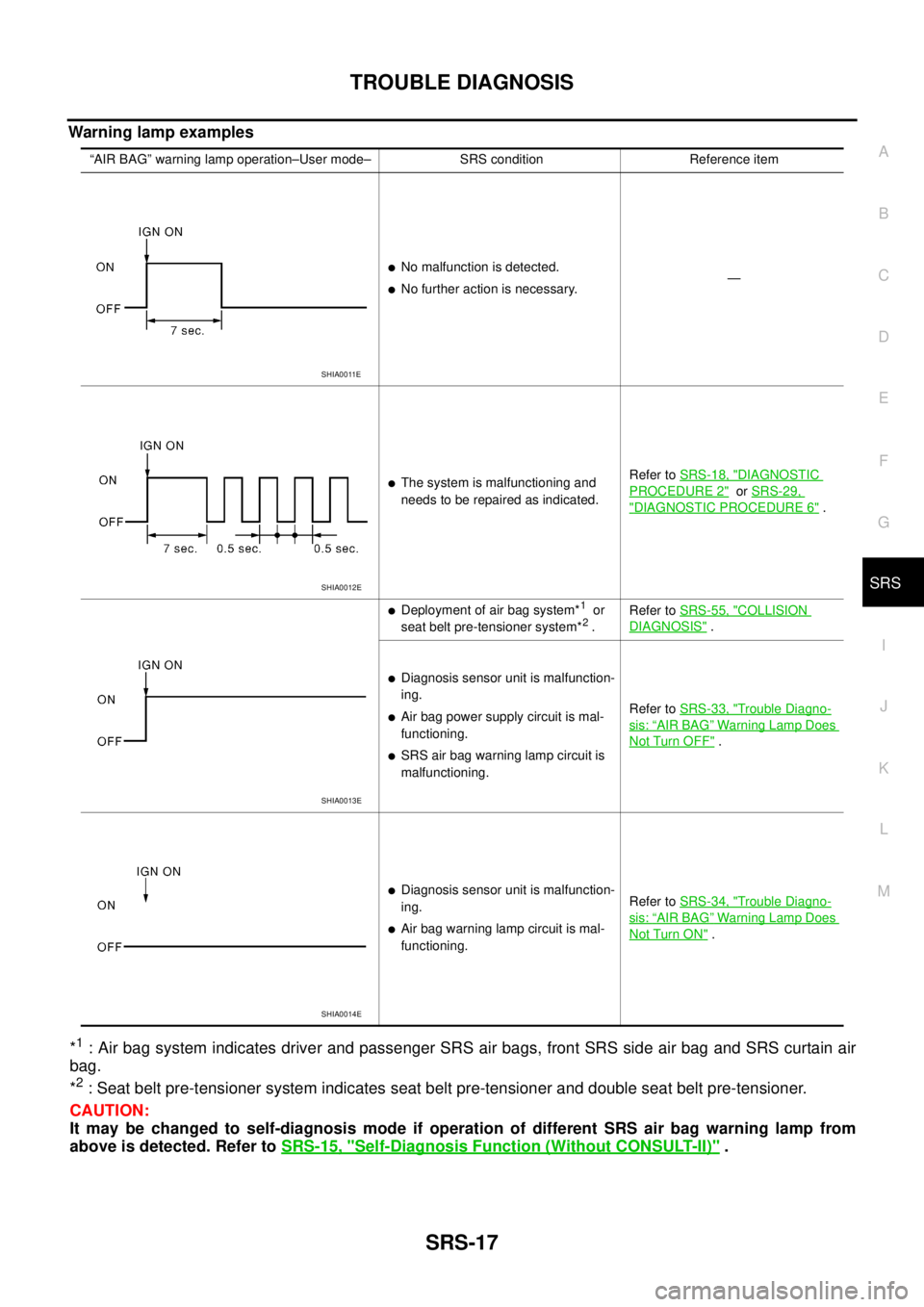

Warning lamp examples
*
1 : Air bag system indicates driver and passenger SRS air bags, front SRS side air bag and SRS curtain air
bag.
*
2 : Seat belt pre-tensioner system indicates seat belt pre-tensioner and double seat belt pre-tensioner.
CAUTION:
It may be changed to self-diagnosis mode if operation of different SRS air bag warning lamp from
above is detected. Refer to SRS-15, "
Self-Diagnosis Function (Without CONSULT-II)" .
“AIR BAG” warning lamp operation–User mode– SRS condition Reference item

No malfunction is detected.

No further action is necessary.—

The system is malfunctioning and
needs to be repaired as indicated.Refer to SRS-18, "DIAGNOSTIC
PROCEDURE 2" or SRS-29,
"DIAGNOSTIC PROCEDURE 6" .

Deployment of air bag system*1 or
seat belt pre-tensioner system*2 .Refer to SRS-55, "
COLLISION
DIAGNOSIS" .

Diagnosis sensor unit is malfunction-
ing.

Air bag power supply circuit is mal-
functioning.

SRS air bag warning lamp circuit is
malfunctioning.Refer to SRS-33, "
Trouble Diagno-
sis: “AIR BAG” Warning Lamp Does
Not Turn OFF" .

Diagnosis sensor unit is malfunction-
ing.

Air bag warning lamp circuit is mal-
functioning.Refer to SRS-34, "
Trouble Diagno-
sis: “AIR BAG” Warning Lamp Does
Not Turn ON" .
SHIA0011E
SHIA0012E
SHIA0013E
SHIA0014E

TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS

DRIVER AIRBAG
MODULE
[OPEN]
[B1049]
Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace driver air bag module.
(Before disposal, it must be
deployed.)
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness. DRIVER AIRBAG
MODULE
[VB-SHORT]
[B1050]

Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG
MODULE
[GND-SHORT]
[B1051]

Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIRBAG
MODULE
[SHORT]
[B1052]

Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
[B1065]

Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag
module. (Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. ASSIST A/B MODULE
[VB-SHORT]
[B1066]

Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
[B1067]

Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
[B1068]

Front passenger air bag module circuit is shorted between lines.
CONTROL UNIT
[B1001-B1015]
[B1026-B1031]
[B1042-B1047]
[B1058-B1063]
[B1074-B1079]
[ B 11 0 6 - B 1111 ]
[B1122-B1127]
[B1138-B1143]
[B1170-B1175]
[B1186-B1191]
[B1202-B1207]

Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the diagnosis sensor unit.
SIDE MODULE RH
[OPEN]
[B1129]

Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front RH setback assembly
(front RH side air bag module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]
[B1130]

Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
[B1131]

Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
[B1132]

Front RH side air bag module circuit is shorted between lines. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

SRS-20
TROUBLE DIAGNOSIS

SIDE MODULE LH
[OPEN]
[B1134]
Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front LH setback assembly
(front LH side air bag module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]
[B1135]

Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
[B1136]

Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
[B1137]

Front LH side air bag module circuit is shorted between lines.
PRE-TEN FRONT RH
[OPEN]
[B1081]

Front RH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
[B1082]

Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]

Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]

Front RH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT LH
[OPEN]
[B1086]

Front LH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
[B1087]

Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]

Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]

Front LH pre-tensioner circuit is shorted between lines.
SATELLITE SENS RH
[UNIT FAIL]
[ B 111 3 ]
SATELLITE SENS RH
[COMM FAIL]
[ B 111 5 ]

RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS LH
[UNIT FAIL]
[ B 111 8 ]
SATELLITE SENS LH
[COMM FAIL]
[B1120]

LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
