2003 NISSAN TEANA sensor

EC-654
[VQ]
DTC P2138 APP SENSOR

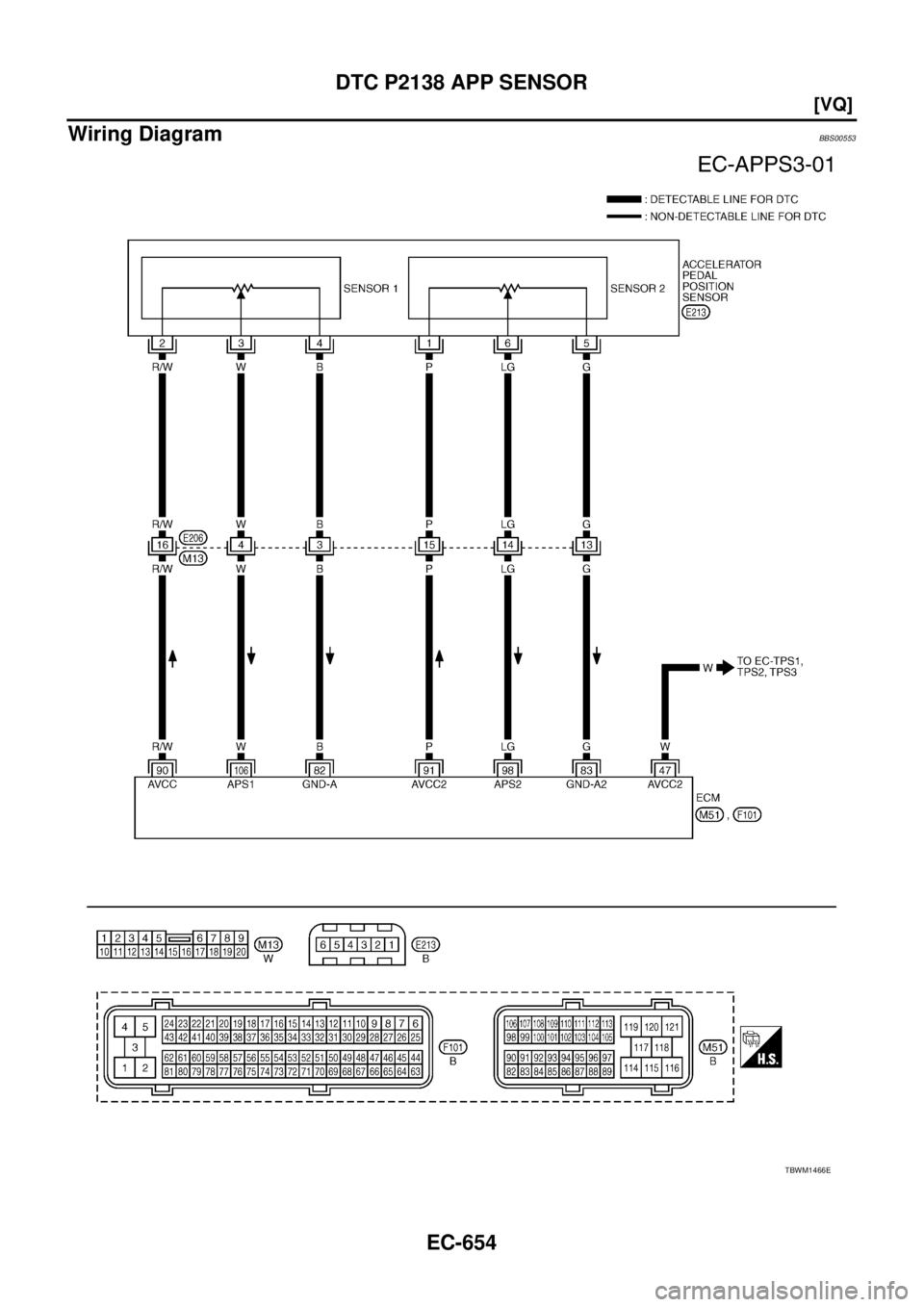

Wiring DiagramBBS00553
TBWM1466E

DTC P2138 APP SENSOR
EC-655
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS00554
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 WSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
82 BSensor ground
(APP sensor 1)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
83 GSensor ground
(APP sensor 2)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
90 R/WSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 PSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
98 LGAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Released0.28 - 0.48V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressedMore than 2.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Released0.65 - 0.87V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressedMore than 4.3V
PBIB2160E

EC-656
[VQ]
DTC P2138 APP SENSOR

2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open or short between ECM and APP sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 5.
PBIB2467E
Voltage: Approximately 5V
PBIB2478E
Voltage: Approximately 5V
PBIB2477E

DTC P2138 APP SENSOR
EC-657
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open between ECM and APP sensor
>> Repair open circuit in harness or connectors.
7. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 8.
NG >> Repair short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR
Refer to EC-651, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 9.
9. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-389, "
Throttle Valve Closed Position Learning" .
3. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 1EC-654
47 Electric throttle control actuator terminal 1EC-647

EC-658
[VQ]
DTC P2138 APP SENSOR

10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 82, APP sensor terminal 5
and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
12. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between APP sensor terminal 3 and ECM terminal 106, APP sensor terminal 6
and ECM terminal 98.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to power in harness or connectors.
14. CHECK APP SENSOR
Refer to EC-659, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.Continuity should exist.
Continuity should exist.

DTC P2138 APP SENSOR
EC-659
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-389, "
Throttle Valve Closed Position Learning" .
4. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
16. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionBBS00555
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-389, "
Throttle Valve Closed Position Learning" .
7. Perform EC-389, "
Idle Air Volume Learning" .
Removal and InstallationBBS00556
ACCELERATOR PEDAL
Refer to ACC-3, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.65 - 0.87V
Fully depressed More than 4.3V
98
(Accelerator pedal position
sensor 2)Fully released 0.28 - 0.48V
Fully depressed More than 2.0V
MBIB0023E

EC-672
[VQ]
ELECTRONIC CONTROLLED ENGINE MOUNT

ELECTRONIC CONTROLLED ENGINE MOUNTPFP:11270
System DescriptionBBS0056V
*: This signal is sent to the ECM through CAN communication line.
The ECM controls the engine mount operation corresponding to the engine speed and the vehicle speed. The
control system has 2-step control [Soft/Hard]
CONSULT-II Reference Value in Data Monitor ModeBBS0056W
Specification data are reference values.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Engine mount
controlElectronic controlled engine
mount
wheel sensor Vehicle speed*
Vehicle condition Engine mount control
Idle (with vehicle stopped)Soft
Except above conditionsHard
MONITOR ITEM CONDITION SPECIFICATION
ENGINE MOUNT

Engine: After warming upIdle (with vehicle stopped) IDLE
Except above conditions TRVL

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-677
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEPFP:14920
DescriptionBBS0056B
SYSTEM DESCRIPTION
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeBBS0056C
Specification data are reference values.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge vol-
ume control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*1
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Wheel sensor
Vehicle speed*
2
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V

Engine: After warming up

Shift lever: P or N

Air conditioner switch: OFF

No loadIdle 0%
2,000 rpm —
