2003 NISSAN TEANA sensor

DTC P0122, P0123 TP SENSOR
EC-479
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0122, P0123 TP SENSORPFP:16119
Component DescriptionBBS004ZJ
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeBBS004ZK
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicBBS004ZL
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MI lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*

Ignition switch: ON
(Engine stopped)

Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122Throttle position sensor
2 circuit low inputAn excessively low voltage from the TP sensor
2 is sent to ECM.

Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)

Electric throttle control actuator
(TP sensor 2)

Accelerator pedal position sensor
(APP sensor 2) P0123
0123Throttle position sensor
2 circuit high inputAn excessively high voltage from the TP sen-
sor 2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

EC-480
[VQ]
DTC P0122, P0123 TP SENSOR

DTC Confirmation ProcedureBBS004ZM
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-482, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-482, "
Diagnostic Procedure" .
SEF058Y

DTC P0122, P0123 TP SENSOR
EC-481
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

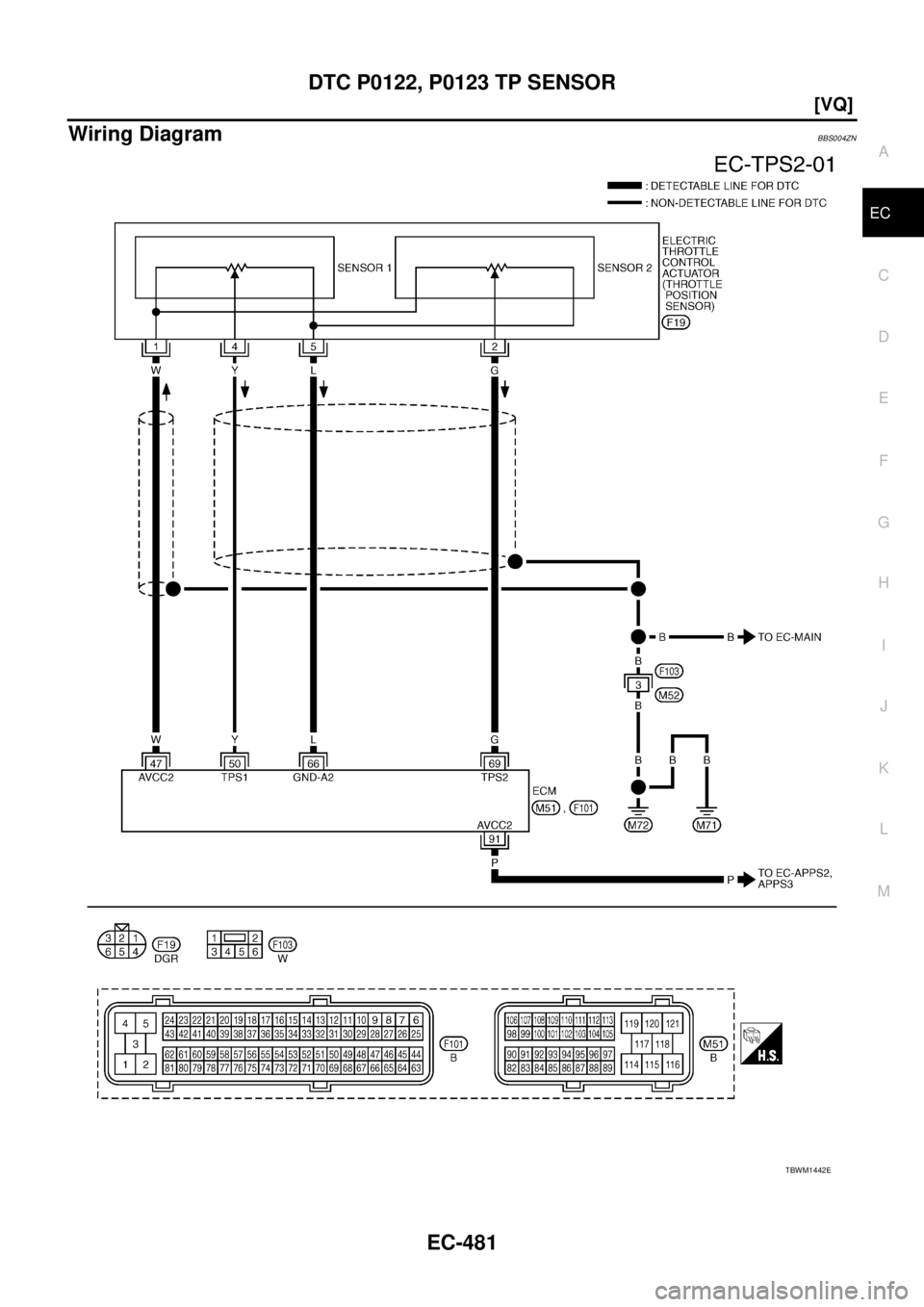

Wiring DiagramBBS004ZN
TBWM1442E

EC-482
[VQ]
DTC P0122, P0123 TP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS004ZO
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 WSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
50 Y Throttle position sensor 1[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: ReleasedMore than 0.36V
[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: Fully depressedLess than 4.75V
66 LSensor ground
(Throttle position sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
69 G Throttle position sensor 2[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: ReleasedLess than 4.75V
[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: Fully depressedMore than 0.36V
91 PSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
PBIB2160E

DTC P0122, P0123 TP SENSOR
EC-483
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-659, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
PBIB2107E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 1EC-481
91 APP sensor terminal 1EC-654

EC-484
[VQ]
DTC P0122, P0123 TP SENSOR

6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-389, "
Throttle Valve Closed Position Learning" .
4. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between electric throttle control actuator terminal 2 and ECM terminal 69.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-485, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-389, "
Throttle Valve Closed Position Learning" .
3. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

DTC P0122, P0123 TP SENSOR
EC-485
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionBBS004ZP
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-389, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 50 (TP sensor 1 signal),
69 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-389, "
Throttle Valve Closed Position Learning" .
8. Perform EC-389, "
Idle Air Volume Learning" .
Removal and InstallationBBS004ZQ
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
Terminal Accelerator pedal Voltage
50
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
69
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB1392E

EC-486
[VQ]
DTC P0132, P0152 HO2S1

DTC P0132, P0152 HO2S1PFP:22690
Component DescriptionBBS004ZR
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1 to 0V.
CONSULT-II Reference Value in Data Monitor ModeBBS004ZS
Specification data are reference values.
On Board Diagnosis LogicBBS004ZT
To judge the malfunction, the diagnosis checks that the heated oxy-
gen sensor 1 output is not inordinately high.
SEF463R
SEF288D
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 (B1)
HO2S1 (B2)

Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S1 MNTR (B1)
HO2S1 MNTR (B2)LEAN ←→ RICH
Changes more than 5 times
during 10 seconds.
SEF301U
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0132
0132
(Bank 1)
Heated oxygen sensor
1 circuit high voltageAn excessively high voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted)

Heated oxygen sensor 1 P0152
0152
(Bank 2)
