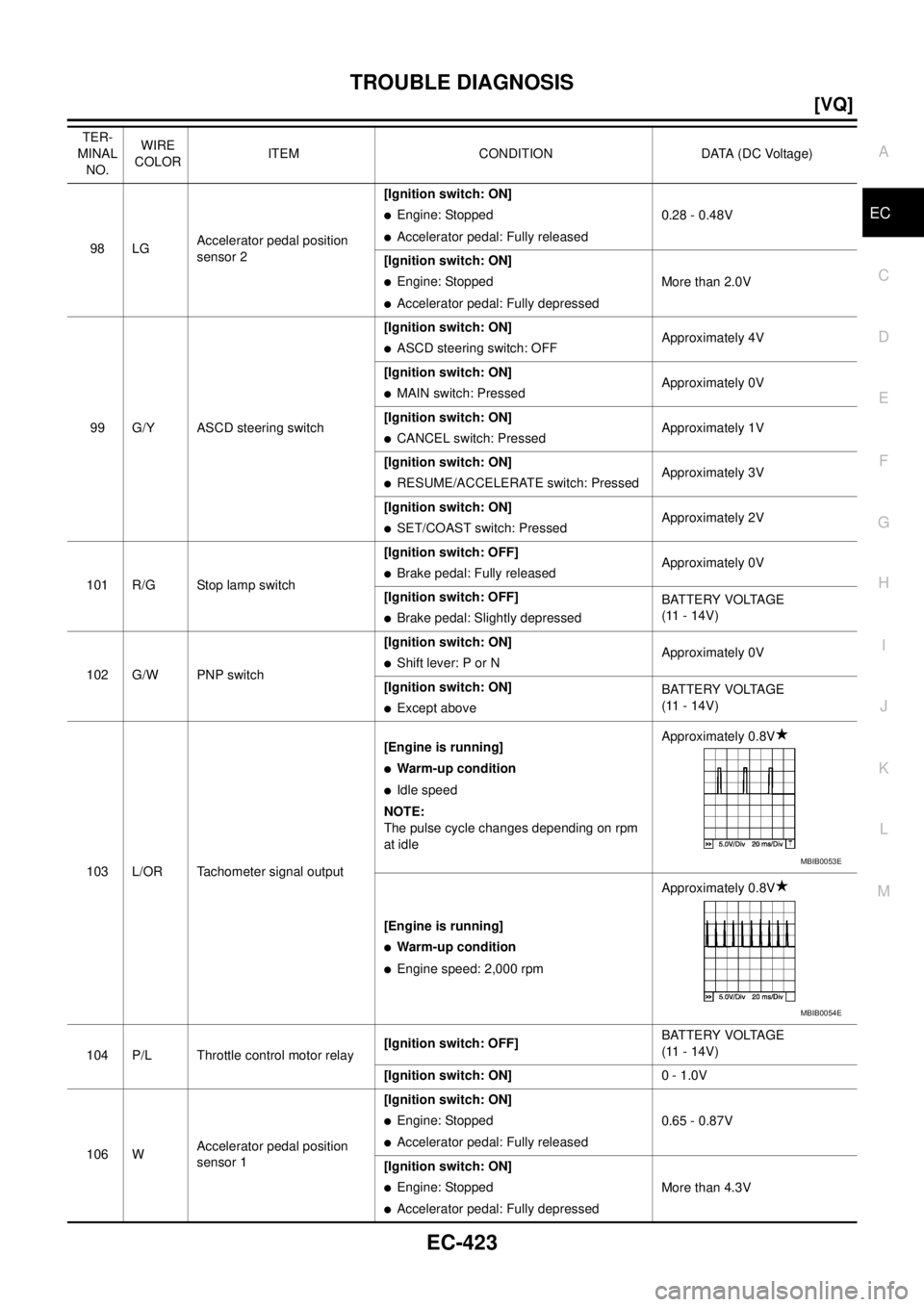

TROUBLE DIAGNOSIS
EC-423
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

98 LGAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully released0.28 - 0.48V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressedMore than 2.0V
99 G/Y ASCD steering switch[Ignition switch: ON]

ASCD steering switch: OFFApproximately 4V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 2V
101 R/G Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
102 G/W PNP switch[Ignition switch: ON]

Shift lever: P or NApproximately 0V
[Ignition switch: ON]

Except aboveBATTERY VOLTAGE
(11 - 14V)
103 L/OR Tachometer signal output[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleApproximately 0.8V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmApproximately 0.8V
104 P/L Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully released0.65 - 0.87V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressedMore than 4.3V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
MBIB0053E
MBIB0054E

EC-426
[VQ]
TROUBLE DIAGNOSIS

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-427, "
Freeze Frame Data and 1st Trip Freeze Frame Data" . ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONITORDATA
MONITOR
(SPEC)ACTIVE
TEST
DTC*1FREEZE
FRAME
DATA*2
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor (PHASE)××××
Mass air flow sensor×××
Engine coolant temperature sensor×××××
Heated oxygen sensor 1×××
Heated oxygen sensor 2××
Wheel sensor×××
Accelerator pedal position sensor×××
Throttle position sensor×××
Intake air temperature sensor×××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch (accelerator
pedal position sensor signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××
ASCD steering switch×××
ASCD brake switch×××
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector×××
Power transistor (Ignition timing)×××
Throttle control motor relay×××
Throttle control motor×
EVAP canister purge volume control sole-
noid valve×××
Air conditioner relay××
Fuel pump relay××××
Cooling fan relay××××
Heated oxygen sensor 1 heater××
Heated oxygen sensor 2 heater××
Intake valve timing control solenoid valve××××
VIAS control solenoid valve×××
Electronic controlled engine mount×××

TROUBLE DIAGNOSIS
EC-427
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

INSPECTION PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-373, "EMISSION-RELATED DIAGNOSTIC INFORMA-
TION ITEMS" .
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing the coefficient of
self-learning control value
TARGET IDLE RPM ADJ*

IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*

IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as “PXXXX”. (Refer
to EC-347, "
INDEX FOR DTC" .)
FUEL SYS-B1

“Fuel injection system status” at the moment a malfunction is detected is displayed.

One mode in the following is displayed.
“Mode2”: Open loop due to detected system malfunction
“Mode3”: Open loop due to driving conditions (power enrichment, deceleration enleanment)
“Mode4”: Closed loop - using oxygen sensor(s) as feedback for fuel control
“Mode5”: Open loop - has not yet satisfied condition to go to closed loop FUEL SYS-B2
COOLANT TEMP
[°C] or [°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]

“Long-term fuel trim” at the moment a malfunction is detected is displayed.

The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim. L-FUEL TRM-B2 [%]
S-FUEL TRM-B1 [%]

“Short-term fuel trim” at the moment a malfunction is detected is displayed.

The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule. S-FUEL TRM-B2 [%]
ENGINE SPEED
[rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[°C] or [°F]

The intake air temperature at the moment a malfunction is detected is displayed.

EC-428
[VQ]
TROUBLE DIAGNOSIS

DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIGNALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed from
the signal of the crankshaft position sensor
(POS) and camshaft position sensor
(PHASE).
Accuracy becomes poor if engine
speed drops below the idle rpm.

If the signal is interrupted while the
engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow sen-
sor is displayed.
When the engine is stopped, a cer-
tain value is indicated.
B/FUEL SCHDL
[msec]×

Base fuel schedule indicates the fuel injec-
tion pulse width programmed into ECM,
prior to any learned on board correction.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.
When the engine is stopped, a cer-
tain value is indicated.

This data also includes the data for
the air-fuel ratio learning control. A/F ALPHA-B2 [%]×
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.

When the engine coolant tempera-
ture sensor is open or short-cir-
cuited, ECM enters fail-safe mode.
The engine coolant temperature
determined by the ECM is displayed.
HO2S1 (B1) [V]××

The signal voltage of the heated oxygen
sensor 1 is displayed.
HO2S1 (B2) [V]×
HO2S2 (B1) [V]×

The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S2 (B2) [V]×
HO2S1 MNTR (B1)
[RICH/LEAN]××

Display of heated oxygen sensor 1 signal
during air-fuel ratio feedback control:
RICH: means the mixture became “rich”,
and control is being affected toward a
leaner mixture.
LEAN: means the mixture became “lean”,
and control is being affected toward a rich
mixture.
After turning ON the ignition switch,
“RICH” is displayed until air-fuel mix-
ture ratio feedback control begins.

When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continuously. HO2S1 MNTR (B2)
[RICH/LEAN]×
HO2S2 MNTR (B1)
[RICH/LEAN]×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a cer-
tain value is indicated.
HO2S2 MNTR (B2)
[RICH/LEAN]×
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed from the vehi-
cle speed signal sent from combination
meter is displayed.
BATTERY VOLT
[V]××

The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××

The accelerator pedal position sensor sig-
nal voltage is displayed.
ACCEL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××

The throttle position sensor signal voltage
is displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. THRTL SEN 2 [V]×
INT/A TEMP SE
[°C] or [°F]××

The intake air temperature (determined by
the signal voltage of the intake air tempera-
ture sensor) is indicated.

TROUBLE DIAGNOSIS
EC-429
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC
START SIGNAL
[ON/OFF]××
Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals
of engine speed and battery voltage.
After starting the engine, [OFF] is
displayed regardless of the starter
signal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] computed
by ECM according to the accelerator pedal
position sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air
conditioner switch as determined by the air
conditioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor sig-
nal) is indicated.
LOAD SIGNAL
[ON/OFF]××

Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from ignition
switch signal.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from heater
fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a cer-
tain computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC]×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a cer-
tain value is indicated.
PURG VOL C/V
[%]

Indicates the EVAP canister purge volume
control solenoid valve control value com-
puted by the ECM according to the input
signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1)
[°CA]

Indicates [°CA] of intake camshaft
advanced angle.
INT/V TIM (B2)
[°CA]
INT/V SOL (B1) [%]

The control condition of the intake valve
timing control solenoid valve (determined
by ECM according to the input signals) is
indicated.

The advance angle becomes larger as the
value increases. INT/V SOL (B2) [%]Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIGNALSDescription Remarks

EC-430
[VQ]
TROUBLE DIAGNOSIS

VIAS S/V
[ON/OFF]

The control condition of the VIAS control
solenoid valve (determined by ECM
according to the input signals) is indicated.
ON: VIAS control solenoid valve is operat-
ing.
OFF: VIAS control solenoid valve is not
operating.
AIR COND RLY
[ON/OFF]×

The air conditioner relay control condition
(determined by ECM according to the input
signals) is indicated.
ENGINE MOUNT
[IDLE/TRVL]

The control condition of the electronic con-
trolled engine mount (determined by ECM
according to the input signals) is indicated.
IDLE: Idle condition
TRVL: Driving condition
FUEL PUMP RLY
[ON/OFF]×

Indicates the fuel pump relay control condi-
tion determined by ECM according to the
input signals.
THRTL RELAY
[ON/OFF]×

Indicates the throttle control motor relay
control condition determined by the ECM
according to the input signals.
COOLING FAN
[HI/MID/LOW/OFF]

The control condition of the cooling fan
(determined by ECM according to the input
signals) is indicated.
HI: High speed operation
MID: Middle speed operation
LOW: Low speed operation
OFF: Stop
HO2S1 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated
oxygen sensor 1 heater determined by
ECM according to the input signals. HO2S1 HTR (B2)
[ON/OFF]
HO2S2 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals. HO2S2 HTR (B2)
[ON/OFF]
I/P PULLY SPD
[rpm]

Indicates the engine speed computed from
the primary speed sensor signal.
VEHICLE SPEED
[km/h] or [MPH]

Indicates the vehicle speed computed from
the secondary speed sensor signal.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle Air Volume Learning has not
been performed yet.
CMPLT: Idle Air Volume Learning has
already been performed successfully.
O2SEN HTR DTY
[%]

Indicates the heated oxygen sensor 1
heater control value computed by the ECM
according to the input signals.
AC PRESS SEN
[V]

The signal voltage from the refrigerant
pressure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the vehi-
cle speed signal sent from TCM is dis-
played. Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIGNALSDescription Remarks

EC-432
[VQ]
TROUBLE DIAGNOSIS

DATA MONITOR (SPEC) MODE
Monitored Item
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
Monitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow
sensor specification is displayed.
When engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]×

Base fuel schedule indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.

When engine is running specification
range is indicated.
A/F ALPHA-B1 [%]
A/F ALPHA-B2 [%]×

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.
When engine is running specification
range is indicated.

This data also includes the data for the
air-fuel ratio learning control.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION

Engine: Return to the original
trouble condition

Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Fuel injector

Heated oxygen sensor 1
IGNITION TIM-
ING

Engine: Return to the original
trouble condition

Timing light: Set

Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Perform Idle Air Volume Learning.
POWER BAL-
ANCE

Engine: After warming up, idle
the engine.

A/C switch: OFF

Shift lever: P or N

Cut off each fuel injector signal
one at a time using CONSULT-II.Engine runs rough or dies.

Harness and connectors

Compression

Fuel injector

Power transistor

Spark plug

Ignition coil
COOLING FAN*

Ignition switch: ON

Turn the cooling fan “HI”, “MID”,
“LOW” and “OFF” using CON-
SULT-II.Cooling fan moves and stops.
Harness and connectors

Cooling fan motor

IPDM E/R
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP
RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay “ON”
and “OFF” using CONSULT-II
and listen to operating sound.Fuel pump relay makes the operat-
ing sound.
Harness and connectors

Fuel pump relay

EC-434
[VQ]
TROUBLE DIAGNOSIS

When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the DTC Confirmation Procedure, the moment a malfunction is found the DTC/1st
trip DTC will be displayed. (Refer to “INCIDENT SIMULATION TESTS” in GI-24, "
How to Perform Effi-
cient Diagnosis for an Electrical Incident" .)

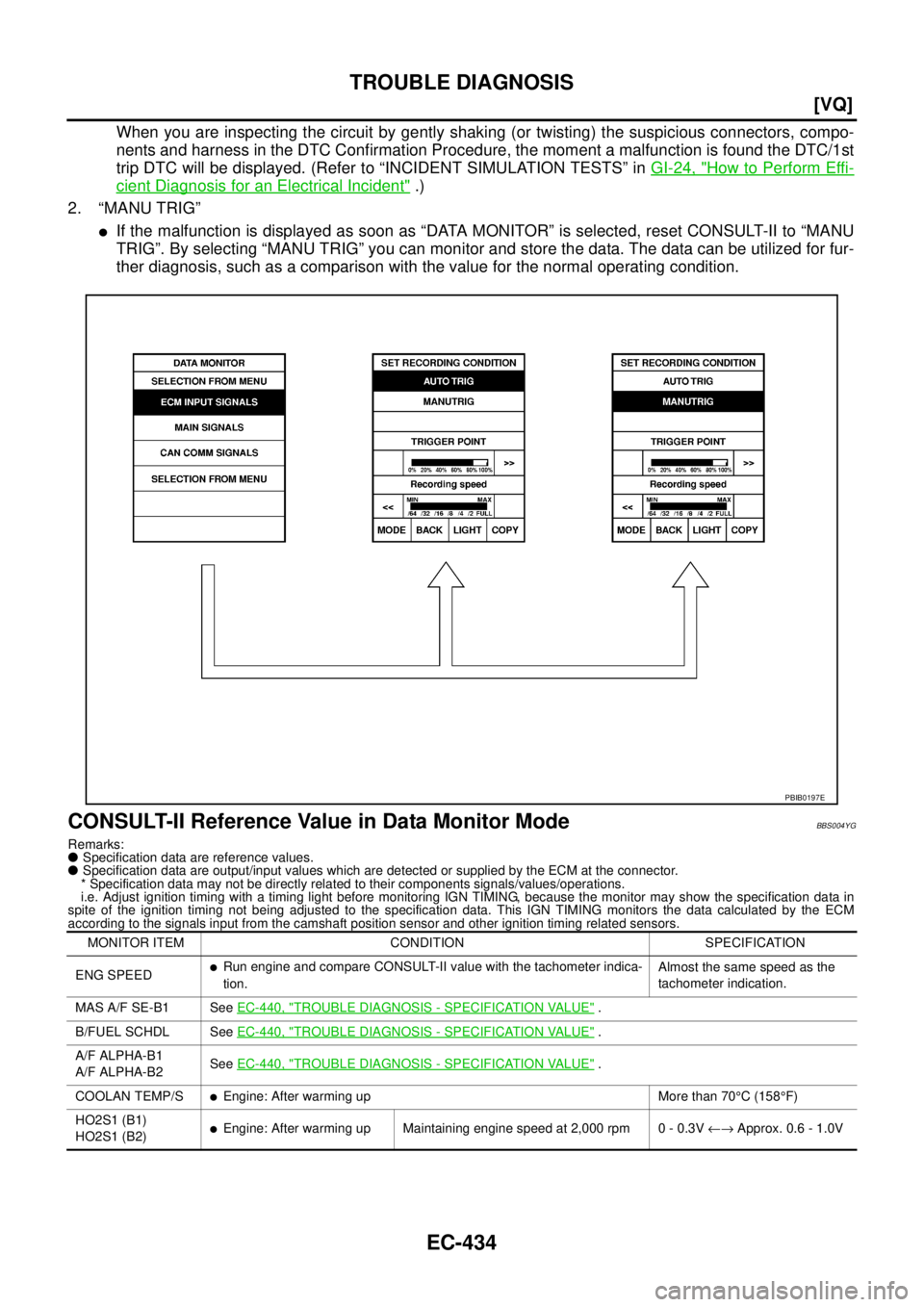

2. “MANU TRIG”

If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.
CONSULT-II Reference Value in Data Monitor ModeBBS004YG
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
PBIB0197E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED

Run engine and compare CONSULT-II value with the tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-440, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-440, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2See EC-440, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)
HO2S1 (B2)

Engine: After warming up Maintaining engine speed at 2,000 rpm 0 - 0.3V ←→ Approx. 0.6 - 1.0V
