2003 NISSAN TEANA check engine

GI-1
GENERAL INFORMATION
A GENERAL INFORMATION
CONTENTS
C
D
E
F
G
H
I
J
K
L
MB
GI
SECTION GI

GENERAL INFORMATION
PRECAUTIONS .......................................................... 3
Description ............................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for NATS (NISSAN ANTI-THEFT SYS-
TEM) ........................................................................ 3
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 4
OPERATION PROCEDURE ................................. 4
General Precautions ................................................ 4
Precautions for Three Way Catalyst ......................... 6
Precautions for Fuel ................................................. 6
QR20DE/VQ23DE ENGINE (REGULAR GASO-
LINE, UNLEADED PREMIUM GASOLINE REC-
OMMENDED) ........................................................ 6
VQ35DE ENGINE (PREMIUM GASOLINE) ......... 6
Precautions for Multiport Fuel Injection System or
Engine Control System ............................................ 6
Precautions for Hoses .............................................. 7
HOSE REMOVAL AND INSTALLATION ............... 7
HOSE CLAMPING ................................................ 7
Precautions for Engine Oils ...................................... 8
HEALTH PROTECTION PRECAUTIONS ............. 8
Precautions for Air Conditioning ............................... 8
HOW TO USE THIS MANUAL ................................... 9
Description ............................................................... 9
Terms ....................................................................... 9
Units ......................................................................... 9
Contents ................................................................... 9
Components ........................................................... 10
SYMBOLS ........................................................... 10
How to Follow Trouble Diagnoses ........................... 11
DESCRIPTION ..................................................... 11
HOW TO FOLLOW TEST GROUPS IN TROU-
BLE DIAGNOSES ................................................ 11
HARNESS WIRE COLOR AND CONNECTOR
NUMBER INDICATION ....................................... 12
KEY TO SYMBOLS SIGNIFYING MEASURE-
MENTS OR PROCEDURES ............................... 13How to Read Wiring Diagrams ............................... 15
HEALTH PROTECTION PRECAUTIONS ............. 8
SYMBOLS ........................................................... 10
DESCRIPTION .................................................... 17
Abbreviations .......................................................... 23
SERVICE INFORMATION FOR ELECTRICAL INCI-
DENT ......................................................................... 24
How to Perform Efficient Diagnosis for an Electrical
Incident ................................................................... 24

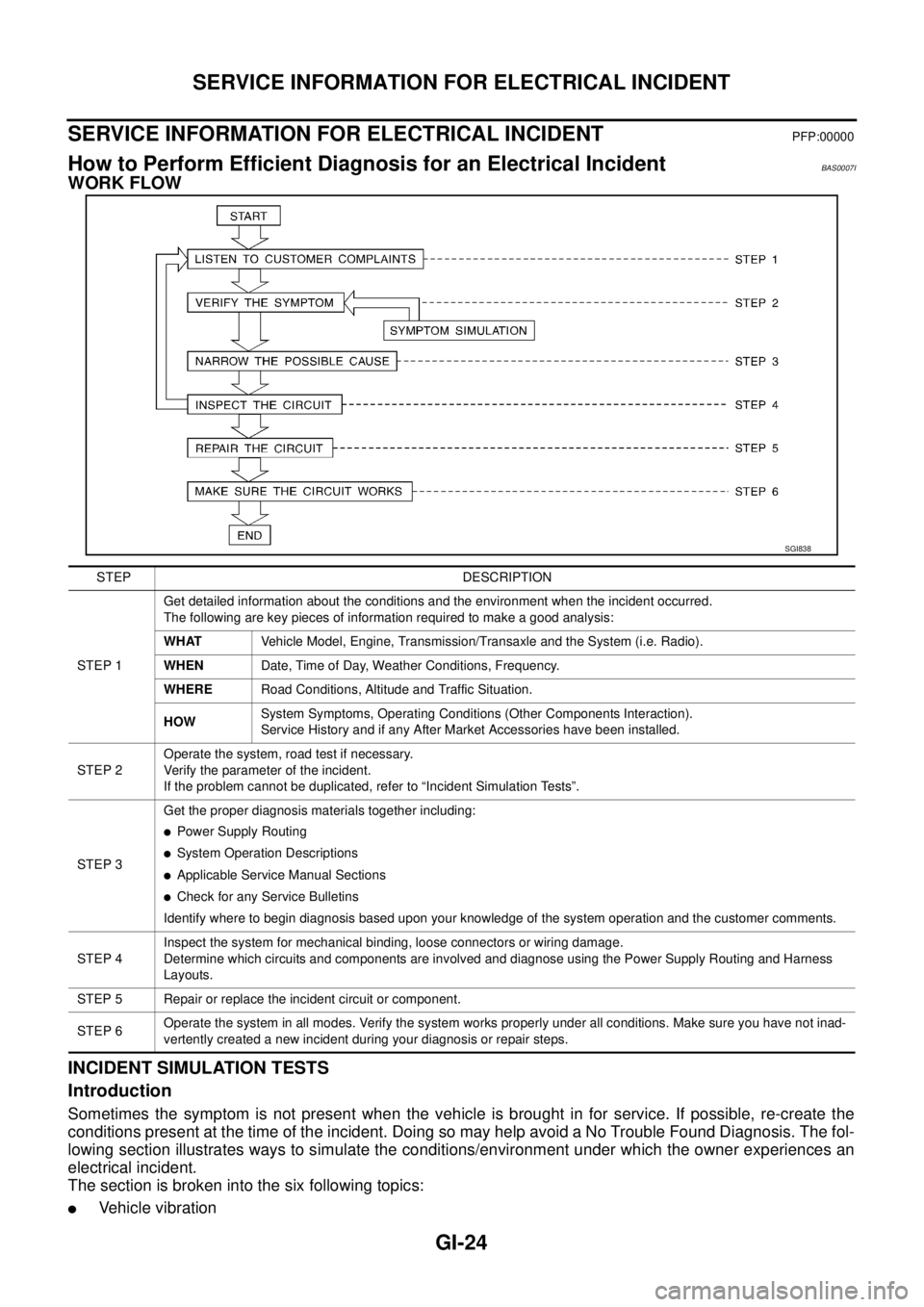

WORK FLOW ...................................................... 24
INCIDENT SIMULATION TESTS ........................ 24
CIRCUIT INSPECTION ....................................... 27
Control Units and Electrical Parts ........................... 31
PRECAUTIONS .................................................. 31
CONSULT-II CHECKING SYSTEM .......................... 33
Description .............................................................. 33
Function and System Application ........................... 33
Nickel Metal Hydride Battery Replacement ............ 33
Checking Equipment .............................................. 34
CONSULT-II Start Procedure .................................. 34
CONSULT-II Data Link Connector (DLC) Circuit .... 35
INSPECTION PROCEDURE .............................. 35
CIRCUIT DIAGRAM ............................................... 36
LIFTING POINT ......................................................... 37
Commercial Service Tools ...................................... 37
Garage Jack and Safety Stand and 2-Pole Lift ....... 37
Board-On Lift .......................................................... 38
TOW TRUCK TOWING ............................................. 39
Tow Truck Towing ................................................... 39
TOWING AN AUTOMATIC TRANSAXLE
MODEL WITH THE FRONT WHEELS ON THE
GROUND ............................................................ 39
Vehicle Recovery (Freeing a Stuck Vehicle) ........... 39
TIGHTENING TORQUE OF STANDARD BOLTS .... 40
Tightening Torque Table ......................................... 40
IDENTIFICATION INFORMATION ............................ 41
Model Variation ....................................................... 41
IDENTIFICATION NUMBER ................................ 41
IDENTIFICATION PLATE .................................... 42
ENGINE SERIAL NUMBER ................................ 42

GI-4
PRECAUTIONS

Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBAS00072
NOTE:

This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT
SYSTEM).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
General PrecautionsBAS00073

Do not operate the engine for an extended period of time without
proper exhaust ventilation.
Keep the work area well ventilated and free of any flammable
materials. Special care should be taken when handling any flam-
mable or poisonous materials, such as gasoline, refrigerant gas,
etc. When working in a pit or other enclosed area, be sure to
properly ventilate the area before working with hazardous mate-
rials.
Do not smoke while working on the vehicle.

Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before working
on the vehicle.
These operations should be done on a level surface.

When removing a heavy component such as the engine or tran-
saxle/transmission, be careful not to lose your balance and drop
them. Also, do not allow them to strike adjacent parts, especially
the brake tubes and master cylinder.
SGI285
SGI231

PRECAUTIONS
GI-5
C
D
E
F
G
H
I
J
K
L
MB
GI


Before starting repairs which do not require battery power:
Turn off ignition switch.
Disconnect the negative battery terminal.

If the battery terminals are disconnected, recorded memory of
radio and each control unit is erased.

Battery posts, terminals and related accessories contain lead
and lead compounds. Wash hands after handling.

To prevent serious burns:
Avoid contact with hot metal parts.
Do not remove the radiator cap when the engine is hot.

Dispose of or recycle drained oil or the solvent used for cleaning
parts in an appropriate manner.

Do not attempt to top off the fuel tank after the fuel pump nozzle
shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel
spray and possibly a fire.

Clean all disassembled parts in the designated liquid or solvent
prior to inspection or assembly.

Replace oil seals, gaskets, packings, O-rings, locking washers, cotter pins, self-locking nuts, etc. with new
ones.

Replace inner and outer races of tapered roller bearings and needle bearings as a set.

Arrange the disassembled parts in accordance with their assembled locations and sequence.

Do not touch the terminals of electrical components which use microcomputers (such as ECM).
Static electricity may damage internal electronic components.

After disconnecting vacuum or air hoses, attach a tag to indicate the proper connection.

Use only the fluids and lubricants specified in this manual.

Use approved bonding agent, sealants or their equivalents when required.

Use hand tools, power tools (disassembly only) and recom-
mended special tools where specified for safe and efficient ser-
vice repairs.

When repairing the fuel, oil, water, vacuum or exhaust systems,
check all affected lines for leaks.

Before servicing the vehicle:
Protect fenders, upholstery and carpeting with appropriate cov-
ers.
Take caution that keys, buckles or buttons do not scratch paint.
SEF289H
SGI233
PBIC0190E
SGI234

GI-6
PRECAUTIONS

WARNING:
To prevent ECM from storing the diagnostic trouble codes, do not carelessly disconnect the harness
connectors which are related to the engine control system and TCM (transmission control module)
system. The connectors should be disconnected only when working according to the WORK FLOW of
TROUBLE DIAGNOSES in EC and AT sections.
Precautions for Three Way CatalystBAS00074
If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To
prevent this, follow the instructions.

Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.

When checking for ignition spark or measuring engine compression, make tests quickly and only when
necessary.

Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to
the catalyst.
Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three
way catalyst.
Precautions for FuelBAS0008E
QR20DE/VQ23DE ENGINE (REGULAR GASOLINE, UNLEADED PREMIUM GASOLINE RECOM-
MENDED)
Use unleaded regular gasoline with an octane rating of at least 91 RON (research octane number).
CAUTION:
Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Using a fuel
other than that specified could adversely affect the emission control devices and systems, and could
also affect the warranty coverage validity.
VQ35DE ENGINE (PREMIUM GASOLINE)
Use unleaded premium gasoline with an octane rating of at least 95 RON (research octane number).
If unleaded premium gasoline is not available, unleaded regular gasoline with an octane rating of at least 91
RON (research octane number) can be used, but only under the following precautions:

have the fuel tank filled only partially with unleaded regular gasoline, and fill up with unleaded premium
gasoline as soon as possible.

avoid full throttle driving and abrupt acceleration.
However, for maximum vehicle performance, the use of unleaded premium gasoline is recommended.
CAUTION:
Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Using a fuel
other than that specified could adversely affect the emission control devices and systems, and could
also affect the warranty coverage validity.
Precautions for Multiport Fuel Injection System or Engine Control SystemBAS0008F

Before connecting or disconnecting any harness connector for
the multiport fuel injection system or ECM:
Turn ignition switch to “OFF” position.
Disconnect negative battery terminal.
Otherwise, there may be damage to ECM.

Before disconnecting pressurized fuel line from fuel pump to
injectors, be sure to release fuel pressure.

Be careful not to jar components such as ECM and mass air
flow sensor.
SGI787

GI-24
SERVICE INFORMATION FOR ELECTRICAL INCIDENT

SERVICE INFORMATION FOR ELECTRICAL INCIDENTPFP:00000
How to Perform Efficient Diagnosis for an Electrical IncidentBAS0007I
WORK FLOW
INCIDENT SIMULATION TESTS
Introduction
Sometimes the symptom is not present when the vehicle is brought in for service. If possible, re-create the
conditions present at the time of the incident. Doing so may help avoid a No Trouble Found Diagnosis. The fol-
lowing section illustrates ways to simulate the conditions/environment under which the owner experiences an
electrical incident.
The section is broken into the six following topics:

Vehicle vibration
SGI838
STEP DESCRIPTION
STEP 1Get detailed information about the conditions and the environment when the incident occurred.
The following are key pieces of information required to make a good analysis:
WHATVehicle Model, Engine, Transmission/Transaxle and the System (i.e. Radio).
WHENDate, Time of Day, Weather Conditions, Frequency.
WHERERoad Conditions, Altitude and Traffic Situation.
HOWSystem Symptoms, Operating Conditions (Other Components Interaction).
Service History and if any After Market Accessories have been installed.
STEP 2Operate the system, road test if necessary.
Verify the parameter of the incident.
If the problem cannot be duplicated, refer to “Incident Simulation Tests”.
STEP 3Get the proper diagnosis materials together including:

Power Supply Routing

System Operation Descriptions

Applicable Service Manual Sections

Check for any Service Bulletins
Identify where to begin diagnosis based upon your knowledge of the system operation and the customer comments.
STEP 4Inspect the system for mechanical binding, loose connectors or wiring damage.
Determine which circuits and components are involved and diagnose using the Power Supply Routing and Harness
Layouts.
STEP 5 Repair or replace the incident circuit or component.
STEP 6Operate the system in all modes. Verify the system works properly under all conditions. Make sure you have not inad-
vertently created a new incident during your diagnosis or repair steps.

SERVICE INFORMATION FOR ELECTRICAL INCIDENT
GI-25
C
D
E
F
G
H
I
J
K
L
MB
GI


Heat sensitive

Freezing

Water intrusion

Electrical load

Cold or hot start up
Get a thorough description of the incident from the customer. It is important for simulating the conditions of the
problem.
Vehicle Vibration
The problem may occur or become worse while driving on a rough road or when engine is vibrating (idle with
A/C on). In such a case, you will want to check for a vibration related condition. Refer to the following illustra-
tion.
CONNECTORS & HARNESS
Determine which connectors and wiring harness would affect the electrical system you are inspecting. Gently
shake each connector and harness while monitoring the system for the incident you are trying to duplicate.
This test may indicate a loose or poor electrical connection.
HINT
Connectors can be exposed to moisture. It is possible to get a thin film of corrosion on the connector termi-
nals. A visual inspection may not reveal this without disconnecting the connector. If the problem occurs inter-
mittently, perhaps the problem is caused by corrosion. It is a good idea to disconnect, inspect and clean the
terminals on related connectors in the system.
SENSORS & RELAYS
Gently apply a slight vibration to sensors and relays in the system you are inspecting.
This test may indicate a loose or poorly mounted sensor or relay.
ENGINE COMPARTMENT
There are several reasons a vehicle or engine vibration could cause an electrical complaint. Some of the
things to check for are:

Connectors not fully seated.

Wiring harness not long enough and is being stressed due to engine vibrations or rocking.

Wires laying across brackets or moving components.

Loose, dirty or corroded ground wires.

Wires routed too close to hot components.
To inspect components under the hood, start by verifying the integrity of ground connections. (Refer to Ground
Inspection described later.) First check that the system is properly grounded. Then check for loose connection
by gently shaking the wiring or components as previously explained. Using the wiring diagrams inspect the
wiring for continuity.
BEHIND THE INSTRUMENT PANEL
An improperly routed or improperly clamped harness can become pinched during accessory installation. Vehi-
cle vibration can aggravate a harness which is routed along a bracket or near a screw.
SGI839

CONSULT-II CHECKING SYSTEM
GI-33
C
D
E
F
G
H
I
J
K
L
MB
GI

CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionBAS0007K

CONSULT-II is a hand-held type tester. When it is connected with a diagnostic connector equipped on the
vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.

Refer to “CONSULT-II Software Operation Manual” for more information.
Function and System Application BAS0007L
x: Applicable
*1:Nissan Anti-Theft System
Nickel Metal Hydride Battery Replacement BAS0007M
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with Genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard if
mistreated. Do not recharge, disassemble or dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regulations.
Diagnostic test
modeFunction
ENGINE
A/T
TRANSMISSION
AIR BAG
METER A/C AMP
IPDM E/R
BCM
ABS
ABS (Including VDC)
INTELLIGENT KEY
NATS
*1
HEADLAMP LEVELIZER
ADAPTIVE LIGHT
AUTO DRIVE POS.
REARVIEW CAMERA
Work supportThis mode enables a technician to adjust some devices faster
and more accurately by following the indications on CONSULT-
II.xxx- - - x - xx - xxxx
Self-diagnostic
resultsSelf-diagnostic results can be read and erased quickly. xxxxxxxxxx x xxx-
Trouble diagnos-
tic recordCurrent self-diagnostic results and all trouble diagnostic
records previously stored can be read.---x------ - ----
Data monitor Input/Output data in the ECU can be read. x x x - x xxxxx - xxxx
CAN diagnosis
support monitorThe condition of CAN communication line can be indicated. x x x - x xxxxx - - xx-
Active testDiagnostic Test Mode in which CONSULT-II drives some actua-
tors apart from the ECUs and also shifts some parameters in a
specified range.x- - - - xxxxx - xxx-
ECU (ECM/TCM)
part numberECU (ECM/TCM) part number can be read. x x x - - - - x x x - x x x x
ECU discrimi-
nated No.Classification number of a replacement ECU can be read to
prevent an incorrect ECU from being installed.---x------ - ----
Function testThis mode can show results of self-diagnosis of ECU with either
“OK” or “NG”. For engines, more practical tests regarding sen-
sors/switches and/or actuators are available.xxxx---xx- - ----
Control unit ini-
tializationAll registered ignition key IDs in NATS components can be ini-
tialized and new IDs can be registered.---------- x ----
DTC work sup-
portThe operating condition to confirm Diagnosis Trouble Codes
can be selected. -x-------- - ----
CALIB data Characteristic information can be read. - - x - ------ - ----
Configuration - - - - - - - x - - - - x - - -

GI-34
CONSULT-II CHECKING SYSTEM

Checking Equipment BAS0007N
When ordering the following equipment, contact your NISSAN/INFINITI distributor.
CAUTION:

Previous CONSULT-II “I” and “Y” DLC-I and DLC-II cables should NOT be used anymore because
their DDL connector pins can be damaged during cable swapping.

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

If CONSULT-II CONVERTER is not connected with CONSULT-II, vehicle occur the “FAIL SAFE
MODE” which is “LIGHT UP the HEAD LIGHT” and/or “COOLING FAN ROTATING” when CON-
SULT-II is started.
NOTE:

The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.

Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II Start ProcedureBAS0007O
NOTE:
Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.
1. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
2. If necessary, turn on the ignition switch.
3. Touch “START(NISSAN BASED VHCL)” or System Shortcut key
(ex: ENGINE) on the screen.
Tool nameDescription
NISSAN CONSULT-II
1. CONSULT-II unit (Tester internal soft: Resident
version 3.3.0) and accessories
2. Program card AED06A and AEN06A (For NATS)
3. CONSULT-II CONVERTER
SAIA0362E
PAIA0070E
SAIA0450E
