CAMSHAFT
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

b. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner.
CAUTION:
Be careful not to drop mounting bolts inside front cover.
NOTE:
Use approximately 0.5 mm (0.02 in) dia. hard metal pin as a
stopper pin.
c. Secure hexagonal part of camshaft with wrench. Loosen cam-
shaft sprocket mounting bolts and remove camshaft sprockets.
CAUTION:

Do not loosen mounting bolts with securing anything
other than the camshaft hexagonal part or with tension-
ing timing chain.

Do not rotate crankshaft or camshaft while timing chain
is removed. It causes interference between valve and pis-
ton.
NOTE:
Chain tension holding work is not necessary. Crankshaft
sprocket and timing chain do not disconnect structurally while
front cover is attached.
9. Remove camshaft position sensor (PHASE) from cylinder head back side.
CAUTION:

Handle carefully to avoid dropping and shocks.

Do not disassemble.

Do not allow metal powder to adhere to magnetic part at sensor tip.

Do not place sensor in a location where it is exposed to magnetism.
10. Loosen mounting bolts in reverse order as shown in the figure,
and remove camshaft brackets.

Remove camshaft bracket (No. 1) by slightly tapping it with
plastic hammer.
11. Remove camshafts.
12. Remove valve lifters.

Identify installation positions, and store them without mixing them up.
KBIA0048E
KBIA0049E
SBIA0255E

EM-48
[QR]
CAMSHAFT

ii. Apply liquid gasket to camshaft bracket (No. 1) contact surface
on the front cover backside.
Use Genuine Liquid Gasket or equivalent.

Apply liquid gasket to the outside of bolt hole on front cover.
iii. For camshaft bracket (No. 1) near installation position, and
install it without disturbing the liquid gasket applied to the sur-
faces.
4. Tighten mounting bolts of camshaft brackets in the following
steps, in numerical order as shown in the figure.
a. Tighten No. 9 to 11 in numerical order.
b. Tighten No. 1 to 8 in numerical order.
c. Tighten all bolts in numerical order.
d. Tighten all bolts in numerical order.
CAUTION:
After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the parts listed below.

Mating surfaces of rocker cover.

Mating surface of front cover. (When installed without front cover)
5. Install camshaft position sensor (PHASE).
6. Install camshaft sprockets.

Install them by aligning the mating marks on each camshaft
sprocket with the paint marks on timing chain link plate during
removal.
CAUTION:

Aligned mating marks could slip. Therefore, after
matching them, hold the timing chain in place by hand.

Before and after installing chain tensioner, make sure
again that mating marks have not slipped.
NOTE:
Before installation of chain tensioner, it is possible to re-match
the marks on timing chain with the ones on each sprocket.
7. Install chain tensioner.
SBIA0258E
PBIC2641E
: 2.0 N·m (0.2 kg-m, 1 ft-lb)
: 2.0 N·m (0.2 kg-m, 1 ft-lb)
: 5.9 N·m (0.6 kg-m, 4 ft-lb)
: 10.4 N·m (1.1 kg-m, 8 ft-lb)
SBIA0255E
PBIC2351E

CAMSHAFT
EM-49
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAUTION:
After installation, pull the stopper pin off completely, and make sure that chain tensioner plunger
is released.
8. Install chain guide.
9. Install intake valve timing control cover with the following procedure:
a. Install oil rings to the intake camshaft sprocket insertion points on backside of intake valve timing control
cover.
b. Install O-ring to front cover.
c. Apply liquid gasket with tube presser [SST: WS39930000] to
intake valve timing control cover as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
d. Tighten mounting bolts in numerical order as shown in the fig-
ure.
e. Install intake valve timing control solenoid valve to intake valve timing control cover if removed.
f. Connect ground cables, and install harness clip.
10. Check and adjust valve clearance. Refer to EM-50, "
Valve Clearance" .
11. Install in the reverse order of removal after this step.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.
INSPECTION AFTER INSTALLATION
Inspection of Camshaft Sprocket (INT) Oil Groove
CAUTION:

Perform this inspection only when DTC P0011 is detected in self-diagnostic results of CONSULT-II
and it is directed according to inspection procedure of EC section. Refer to EC-82, "
SELF-DIAG
RESULTS MODE" .

Check when the engine is cold so as to prevent burns from any splashing engine oil.
1. Check the engine oil level. Refer to LU-7, "
ENGINE OIL" .
2. Perform the following procedure so as to prevent the engine from being unintentionally started while
checking.
a. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" .
b. Disconnect ignition coil and injector harness connectors.
3. Remove intake valve timing control solenoid valve. Refer to EM-41, "
CAMSHAFT" .
SBIA0260E
KBIA0085E

TIMING CHAIN
EM-53
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

TIMING CHAINPFP:13028
Removal and InstallationBBS00597

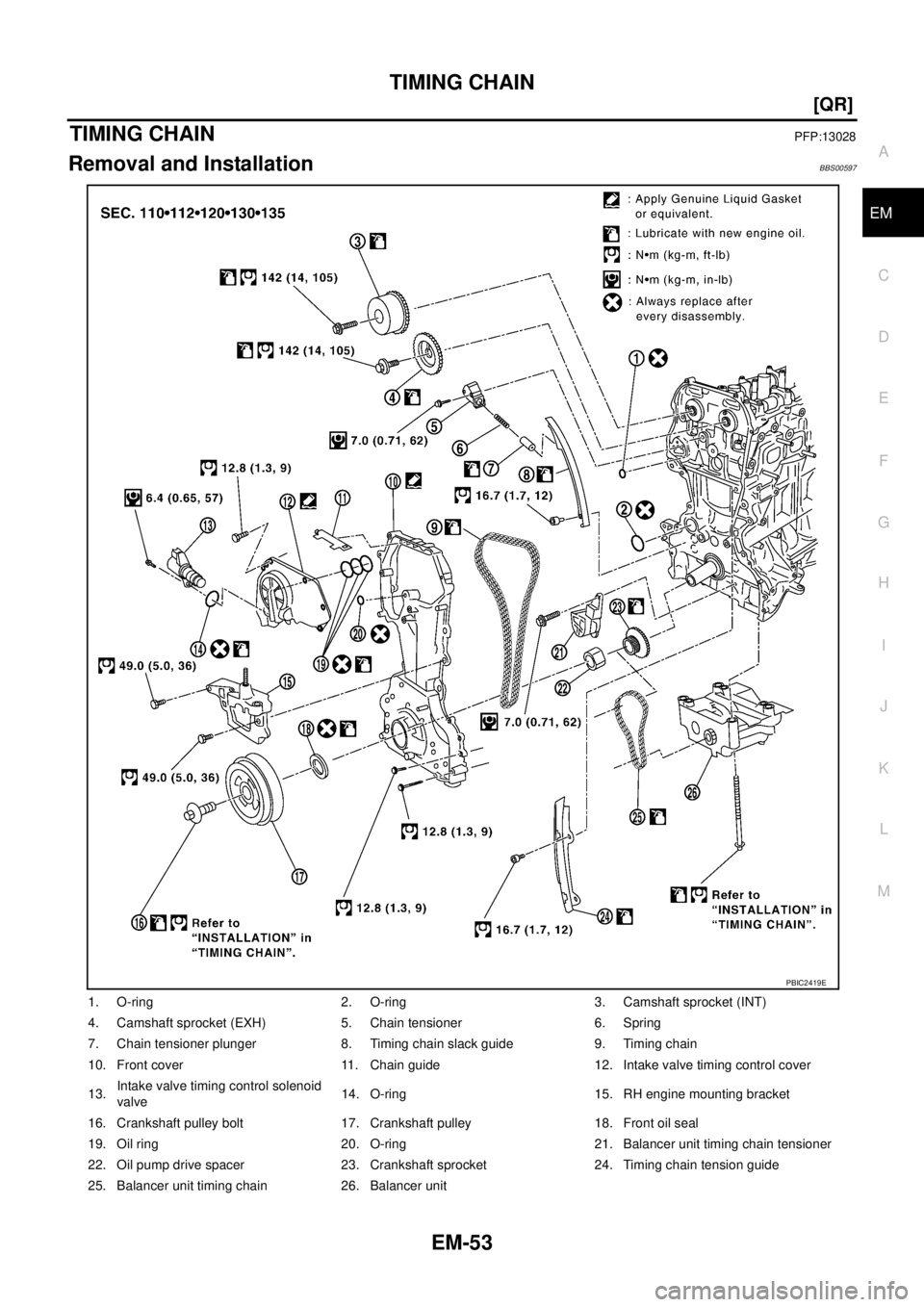

1. O-ring 2. O-ring 3. Camshaft sprocket (INT)
4. Camshaft sprocket (EXH) 5. Chain tensioner 6. Spring
7. Chain tensioner plunger 8. Timing chain slack guide 9. Timing chain
10. Front cover 11. Chain guide 12. Intake valve timing control cover
13.Intake valve timing control solenoid
valve14. O-ring 15. RH engine mounting bracket
16. Crankshaft pulley bolt 17. Crankshaft pulley 18. Front oil seal
19. Oil ring 20. O-ring 21. Balancer unit timing chain tensioner
22. Oil pump drive spacer 23. Crankshaft sprocket 24. Timing chain tension guide
25. Balancer unit timing chain 26. Balancer unit
PBIC2419E

EM-54
[QR]
TIMING CHAIN

REMOVAL
1. Remove the following parts.

RH front road wheel and tire

Undercover and splash guard (RH)

PCV hose; Refer to EM-19, "INTAKE MANIFOLD" .

Ignition coil; Refer to EM-31, "IGNITION COIL" .

Rocker cover; Refer to EM-39, "ROCKER COVER" .

Reservoir tank of radiator; Refer to CO-13, "RADIATOR" .

Drive belt; Refer to EM-14, "DRIVE BELTS" .

Alternator; Refer to SC-27, "CHARGING SYSTEM" .

Drive belt auto-tensioner; Refer to EM-15, "Removal and Installation of Drive Belt Auto-Tensioner" .

Exhaust front tube; Refer to EX-2, "EXHAUST SYSTEM" .
2. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when engine is cold.
3. Remove A/C compressor with piping connected. Temporarily secure A/C compressor to vehicle side with
a rope to avoid putting a load on them. Refer to ATC-134, "
Removal and Installation of Compressor" .
4. Remove power steering oil pump with piping connected, and secure it to vehicle side temporarily. Refer to
PS-39, "
HYDRAULIC LINE" .
5. Securely support bottom of transaxle with suitable transmission jack.
6. Remove RH engine mounting insulator. Refer to EM-77, "
ENGINE ASSEMBLY" .
7. Remove oil pans (upper and lower), and oil strainer. Refer to EM-26, "
OIL PAN AND OIL STRAINER" .
8. To support engine, temporarily tighten removed front and rear engine mounting through-bolts for removing
oil pans (upper and lower). Refer to EM-77, "
ENGINE ASSEMBLY" .
9. Remove intake valve timing control cover with the following procedure:
a. Disconnect intake valve timing control solenoid valve harness connector.
b. Disconnect ground cables and remove harness clip.
c. Remove intake valve timing control solenoid valve, if necessary.
d. Loosen bolts in reverse order as shown in the figure.
e . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q -
uid gasket for removal.
CAUTION:
Be careful not to damage the mating surfaces.
10. Pull chain guide between camshaft sprockets out through front cover.
11. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
KBIA0085E
KBIA0190E

EM-58
[QR]
TIMING CHAIN

INSTALLATION
NOTE:

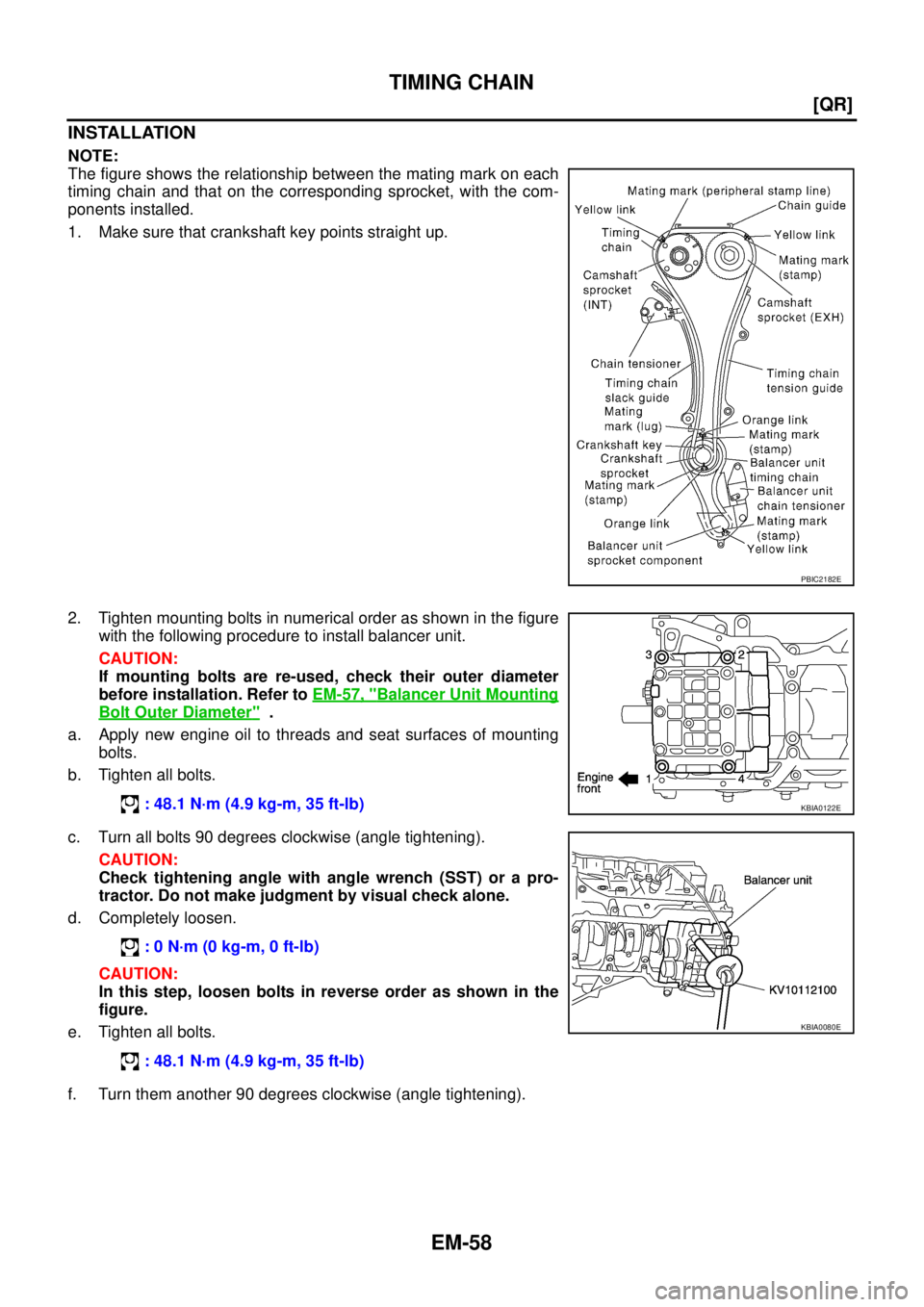

The figure shows the relationship between the mating mark on each
timing chain and that on the corresponding sprocket, with the com-
ponents installed.
1. Make sure that crankshaft key points straight up.
2. Tighten mounting bolts in numerical order as shown in the figure
with the following procedure to install balancer unit.
CAUTION:
If mounting bolts are re-used, check their outer diameter
before installation. Refer to EM-57, "
Balancer Unit Mounting
Bolt Outer Diameter" .
a. Apply new engine oil to threads and seat surfaces of mounting
bolts.
b. Tighten all bolts.
c. Turn all bolts 90 degrees clockwise (angle tightening).
CAUTION:
Check tightening angle with angle wrench (SST) or a pro-
tractor. Do not make judgment by visual check alone.
d. Completely loosen.
CAUTION:
In this step, loosen bolts in reverse order as shown in the
figure.
e. Tighten all bolts.
f. Turn them another 90 degrees clockwise (angle tightening).
PBIC2182E
: 48.1 N·m (4.9 kg-m, 35 ft-lb)KBIA0122E
: 0 N·m (0 kg-m, 0 ft-lb)
: 48.1 N·m (4.9 kg-m, 35 ft-lb)
KBIA0080E

TIMING CHAIN
EM-59
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

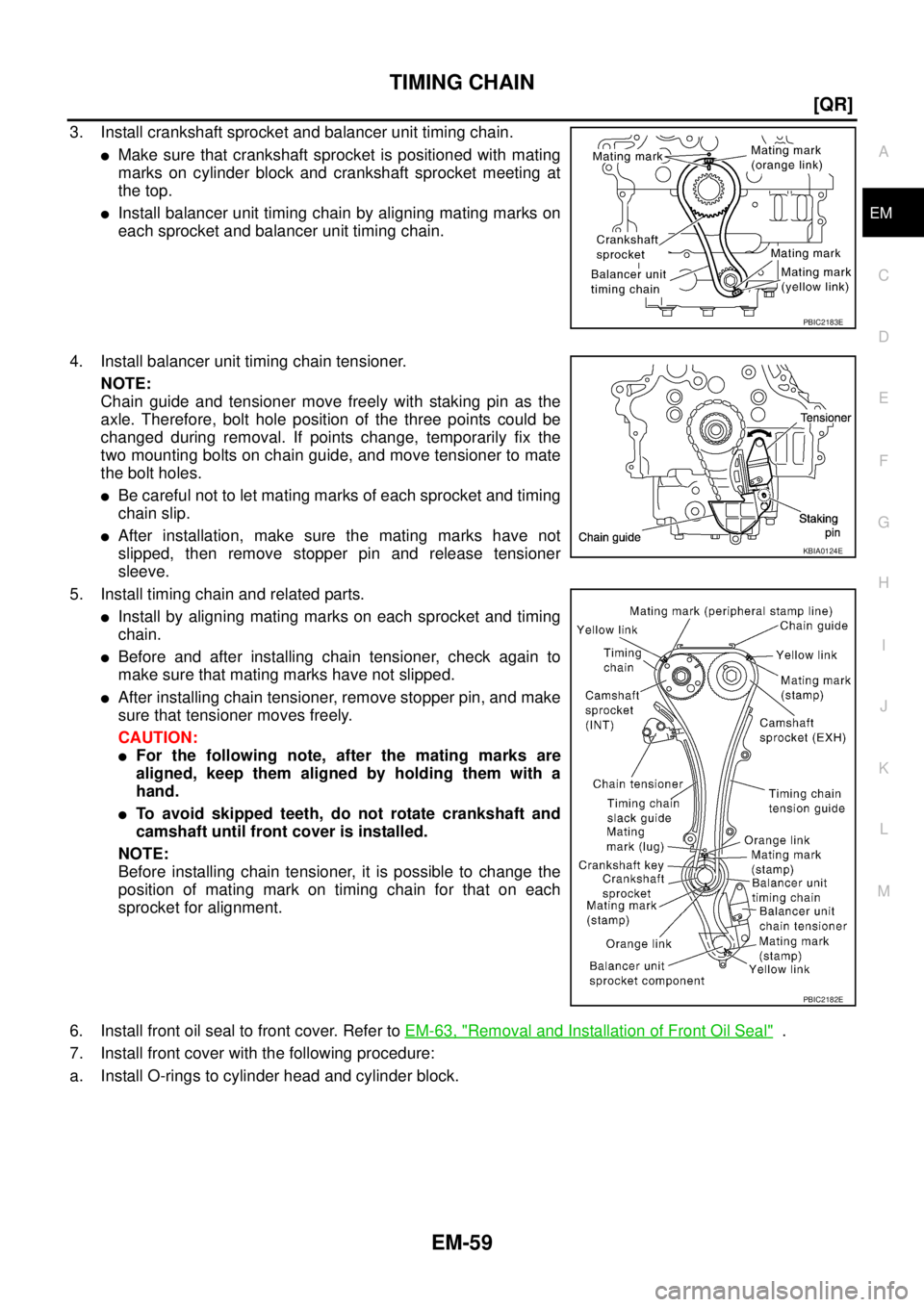

3. Install crankshaft sprocket and balancer unit timing chain.

Make sure that crankshaft sprocket is positioned with mating
marks on cylinder block and crankshaft sprocket meeting at
the top.

Install balancer unit timing chain by aligning mating marks on
each sprocket and balancer unit timing chain.
4. Install balancer unit timing chain tensioner.
NOTE:
Chain guide and tensioner move freely with staking pin as the
axle. Therefore, bolt hole position of the three points could be
changed during removal. If points change, temporarily fix the
two mounting bolts on chain guide, and move tensioner to mate
the bolt holes.

Be careful not to let mating marks of each sprocket and timing
chain slip.

After installation, make sure the mating marks have not
slipped, then remove stopper pin and release tensioner
sleeve.
5. Install timing chain and related parts.

Install by aligning mating marks on each sprocket and timing
chain.

Before and after installing chain tensioner, check again to
make sure that mating marks have not slipped.

After installing chain tensioner, remove stopper pin, and make
sure that tensioner moves freely.
CAUTION:

For the following note, after the mating marks are
aligned, keep them aligned by holding them with a
hand.

To avoid skipped teeth, do not rotate crankshaft and
camshaft until front cover is installed.
NOTE:
Before installing chain tensioner, it is possible to change the
position of mating mark on timing chain for that on each
sprocket for alignment.
6. Install front oil seal to front cover. Refer to EM-63, "
Removal and Installation of Front Oil Seal" .
7. Install front cover with the following procedure:
a. Install O-rings to cylinder head and cylinder block.
PBIC2183E
KBIA0124E
PBIC2182E

EM-60
[QR]
TIMING CHAIN

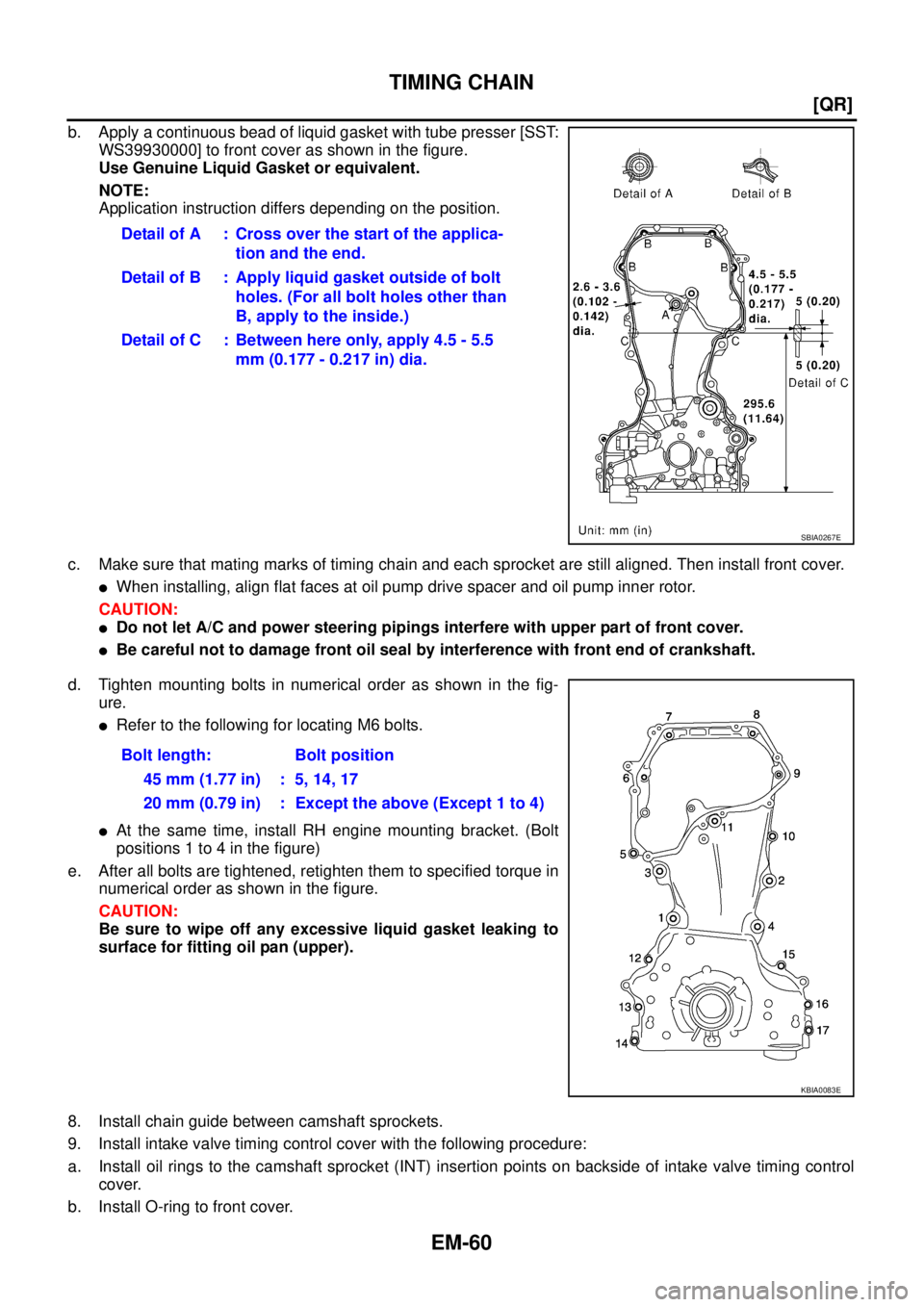

b. Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000] to front cover as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
NOTE:
Application instruction differs depending on the position.
c. Make sure that mating marks of timing chain and each sprocket are still aligned. Then install front cover.

When installing, align flat faces at oil pump drive spacer and oil pump inner rotor.
CAUTION:

Do not let A/C and power steering pipings interfere with upper part of front cover.

Be careful not to damage front oil seal by interference with front end of crankshaft.
d. Tighten mounting bolts in numerical order as shown in the fig-
ure.

Refer to the following for locating M6 bolts.

At the same time, install RH engine mounting bracket. (Bolt
positions 1 to 4 in the figure)
e. After all bolts are tightened, retighten them to specified torque in
numerical order as shown in the figure.
CAUTION:
Be sure to wipe off any excessive liquid gasket leaking to
surface for fitting oil pan (upper).
8. Install chain guide between camshaft sprockets.
9. Install intake valve timing control cover with the following procedure:
a. Install oil rings to the camshaft sprocket (INT) insertion points on backside of intake valve timing control
cover.
b. Install O-ring to front cover.Detail of A : Cross over the start of the applica-
tion and the end.
Detail of B : Apply liquid gasket outside of bolt
holes. (For all bolt holes other than
B, apply to the inside.)
Detail of C : Between here only, apply 4.5 - 5.5
mm (0.177 - 0.217 in) dia.
SBIA0267E
Bolt length: Bolt position
45 mm (1.77 in) : 5, 14, 17
20 mm (0.79 in) : Except the above (Except 1 to 4)
KBIA0083E
