2003 NISSAN TEANA engine mechanical

BL-72
INTELLIGENT KEY SYSTEM

Hazard Reminder Function
The hazard lamps are flashed when the door lock is locked or unlocked by remote controller button.
When ignition switch ON or any door is opened, key reminder function is not operate.
List of Operation Related Parts
Parts marked with × are the parts related to operation.
ENGINE START FUNCTION
Operation Description

When ignition knob is pressed, Intelligent Key unit sends request signal from inside key antenna, key-ID
verification is performed with Intelligent Key using two-way communication, and if verification is success-
ful, an ignition rotation prohibition latch release signal is sent to steering lock unit. Steering lock unit
releases ignition knob rotation prohibition latch. (Ignition knob can now be turned.)

When it becomes possible to rotate the ignition knob, “KEY” warning lamp in combination meter lights up
green to notify driver that ignition knob can be turned.
NOTE:
When it becomes impossible to rotate the ignition knob, “KEY” warning lamp in combination meter lights
up red.

When key-ID verification is successful, Intelligent Key unit uses CAN communication to send engine start
permission signal to BCM.

When BCM receives engine start permission signal, it uses CAN communication to sent starter request
signal to IPDM E/R so that the engine will start when ignition knob is rotated to START position.
Operation Range
Engine can be started when Intelligent Key is in the vehicle. However, sometimes engine might not start when
Intelligent Key is on instrument panel, rear parcel shelf, trunk room or in glove box.
Unlock
Remove mechanical key from ignition key cylinder (key switch: OFF)

Ignition knob is not press (ignition knob switch: OFF)
Trunk open

Remove mechanical key from ignition key cylinder (key switch: OFF)

Ignition knob is not press (ignition knob switch: OFF)

When trunk button pressed more than 0.5 seconds Remote controller button operation Operating condition
Vehicle operation Hazard lamp
Door unlocking operation Twice
Door locking operation Once
Remote keyless entry functions
Intelligent Key
Key switch
Ignition knob switch
Door unlock sensor
Door switch
Trunk room lamp switch
Door lock actuator
Trunk lid opener actuator
Intelligent Key unit
CAN communication system
BCM
Combination meter
Hazard warning lamp
Door lock function by the remote control button××××× × ×××
Trunk open function by the remote control button××× × ××××
Hazard reminder function (Door lock)×××××

INTELLIGENT KEY SYSTEM
BL-73
C
D
E
F
G
H
J
K
L
MA
B
BL

Active Check Function
Confirm whether or not ignition knob can be rotated by checking the color of warning lamp in combination
meter.
List of Operation Related Parts
Parts marked with × are the parts related to operation.
WARNING AND ALARM FUNCTION
Operation Description
The warnings and alarms are as follows and are given to the user as warning information and warnings using
combinations of Intelligent Key warning buzzer (in driver door and passenger door), inside vehicle buzzer (in
combination meter), and warning lamps “KEY” and “LOCK.”

Ignition switch return forgotten warning
With the ignition in OFF or ACC position, if the driver door is opened, this warning is issued.

Key left in ignition warning (when mechanical key used)
With the mechanical key in the ignition knob and the ignition switch is in the OFF, ACC, or LOCK position,
if the driver door is opened, this warning is issued.

Ignition switch OFF position warning (for inside car: when door closed)
This warning is issued when the user forgets to return the ignition knob to the LOCK position.

Ignition switch OFF position warning (for outside car: when door opened/closed)
This warning is issued when the user leaves the car without returning the ignition knob to the LOCK posi-
tion.

Warning for removal of Intelligent Key to outside the car (when door open/closed)
This warning is issued if the Intelligent Key is taken outside the car while the engine is running.

Warning for removal of Intelligent Key to outside the car (from window)
This warning is issued if the Intelligent Key is taken outside the car through a window while the engine is
running.

Door lock non-operation warning
This warning is issued if the door lock (lock) operation by a door request switch is not effected.

Intelligent Key low battery warning
This warning is issued when it is detected that the battery in the Intelligent Key has been used up.
Condition Operation
Ignition knob rotation possible “KEY” warning lamp in combination meter is lit up green.
Ignition knob rotation not possible “KEY” warning lamp in combination meter is lit up red.
Engine start functions
Intelligent Key
Key switch
Ignition knob switch
Inside key antenna
Intelligent Key unit
CAN communication system
BCM
Combination meter
IPDM E/R
NATS antenna amp.
Steering lock unit
Engine start function by the Intelligent Key××××××××× ×
Engine start function by the mechanical key× ×××××××
Active check function× ×××× ×

BL-98
INTELLIGENT KEY SYSTEM

HAZARD REMINDER FUNCTION MALFUNCTION
NOTE:

Before performing the diagnosis in the following table, check “Diagnosis Procedure”. Refer to BL-91,
"Diagnosis Procedure" .

Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis,
and check each symptom.

If the following “symptoms” are detected, check systems shown in the “Diagnoses service procedure” col-
umn in this order.
Conditions of Vehicle (Operating Conditions)

Intelligent key function (I-KEY FUNCTION) is ON when setting on CONSULT-II.

Key reminder function (ANSWER BACK FUNCTION) is ON when setting on CONSULT-II.

Mechanical key is not inserted into ignition knob.

Ignition knob is not depressed.

All doors are closed.
ENGINE START FUNCTION MALFUNCTION
Intelligent Key Operation Inspection
NOTE:

Before performing the diagnosis in the following table, check “Diagnosis Procedure”. Refer to BL-91,
"Diagnosis Procedure" .

Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis,
and check each symptom.

If the following “symptoms” are detected, check systems shown in the “Diagnoses service procedure” col-
umn in this order.
Conditions of Vehicle (Operating Conditions)

Intelligent key function (I-KEY FUNCTION) is ON when setting on CONSULT-II.

Mechanical key is not inserted into ignition knob.

There is one or more registered Intelligent Key in the detection area of inside key antenna.
Mechanical Key Operation Inspection
NOTE:

Before performing the diagnosis in the following table, check “Diagnosis Procedure”. Refer to BL-91,
"Diagnosis Procedure" .

Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis,
and check each symptom.
Symptom Diagnoses service procedure Reference page
Hazard lamps do not flash during door lock
operation using Intelligent Key. (regardless of
whether Intelligent Key remote controller button
or request switch operation is used)1. Check key reminder settingBL-94
2. Replace BCMBCS-16
3. Replace Intelligent Key unitBL-117
Symptom Diagnoses service procedure Reference page
Ignition knob can not turn
This illuminate KEY warning lamp on com-
bination meter in red when ignition knob is
pressed.1. Check inside key antennaBL-114
2. Replace Intelligent Key unitBL-117
This illuminate KEY warning lamp on com-
bination meter in green when ignition knob
is pressed.Check steering lock unitBL-115
Ignition knob turns even without both Intelli-
gent Key and mechanical key.Replace steering lock unit —
This is not illuminate KEY warning lamp on
combination meter when ignition knob is
pressed.1. Check ignition knob switchBL-103
2. Check key switch (Intelligent Key unit input)BL-101
3. Replace Intelligent Key unitBL-117

BL-140
NATS(NISSAN ANTI-THEFT SYSTEM)

NOTE:
If customer reports a “NO START” condition, request ALL ignition key (without intelligent key system) or
mechanical key (with intelligent key system) to be brought to the dealer to check for a NATS malfunction.
System DescriptionBIS000YC
DESCRIPTION
NATS (Nissan Anti-Theft System) has the following immobilizer functions:

Engine immobilizer shows high anti-theft performance to prevent engine start by other than the owner
(registered key: ignition key, mechanical key and Intelligent Key).

Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft perfor-
mance to prevent key from being copied or stolen.

In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position.

In the vehicle with Intelligent Key system, security indicator always flashes with mechanical key removed
condition (key switch OFF) and ignition knob released condition on LOCK position (ignition knob switch
OFF).

Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.

If system detects malfunction, it turns on security indicator in ignition switch ON position.

If the owner requires, mechanical key ID can be registered for up to 5 keys.

During trouble diagnosis or when the following parts have been replaced, and if ignition key or mechanical
key is added, registration* is required.
*: All keys kept by the owner of the vehicle should be registered with ignition key or mechanical key.
–ECM
–BCM
–Ignition key (models without Intelligent Key system)
–Mechanical key (models with Intelligent Key system)

NATS trouble diagnoses, system initialization and additional registration of other NATS ignition key or
mechanical key IDs must be performed using CONSULT-II hardware and CONSULT-II NATS software.
When NATS initialization has been completed, the ID of the inserted ignition key or mechanical key IDs
can be performed.
Regarding the procedures of NATS initialization and ignition key or mechanical key ID registration, refer to
CONSULT-II Operation Manual, NATS.

NATS(NISSAN ANTI-THEFT SYSTEM)
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL

SECURITY INDICATOR

Warns that the vehicle has NATS.

In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position. In the vehicle with Intelligent Key system, security indicator always flashes
with mechanical key removed condition (key switch OFF) and ignition knob released condition on LOCK
position (ignition knob switch OFF).
NOTE:
Because security indicator is highly efficient, the battery is barely affected.
Condition of Security Indicator
WITHOUT INTELLIGENT KEY SYSTEM
WITH INTELLIGENT KEY SYSTEM

In ignition knob operation with Intelligent Key, it always turns off with pushing ignition knob, and always
flashes with ignition knob released (ignition knob switch OFF) condition on ignition knob “LOCK” position.

In ignition knob operation with mechanical key, it turns off on the condition that mechanical key is inserted
in key cylinder, and always flashes with ignition knob released (ignition knob switch OFF) condition on
mechanical key removed condition.
System CompositionBIS000YD
The immobilizer function of the NATS consists of the following:

Ignition key (models without Intelligent Key system)

Mechanical key (models with Intelligent Key system)

NATS antenna amp.

Steering lock unit. (models with Intelligent Key system)

BCM

Intelligent Key unit (models with Intelligent Key system)

Engine control module (ECM)

Security indicator
Security indicator
conditionIgnition keyOperation or condition of ignition key
Ignition switch:
ON positionIgnition switch:
ACC positionIgnition switch:
OFF position
(Key is inserted.)Ignition switch:
OFF position
(Remove key.)
Register key OFF Flashing Flashing Flashing
Ignition key not
registeredON Flashing Flashing Flashing

NATS(NISSAN ANTI-THEFT SYSTEM)
BL-149
C
D
E
F
G
H
J
K
L
MA
B
BL

8. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual,
NATS.
CONSULT-II DIAGNOSTIC TEST MODE FUNCTION
NOTE:
When any initialization is performed, all ID numbers previously registered will be erased and all ignition key or
mechanical key must be registered again. The engine cannot be started with an unregistered key. The system
will show “DIFFERENCE OF KEY” or “LOCK MODE” as a self-diagnostic result on the CONSULT-II screen.

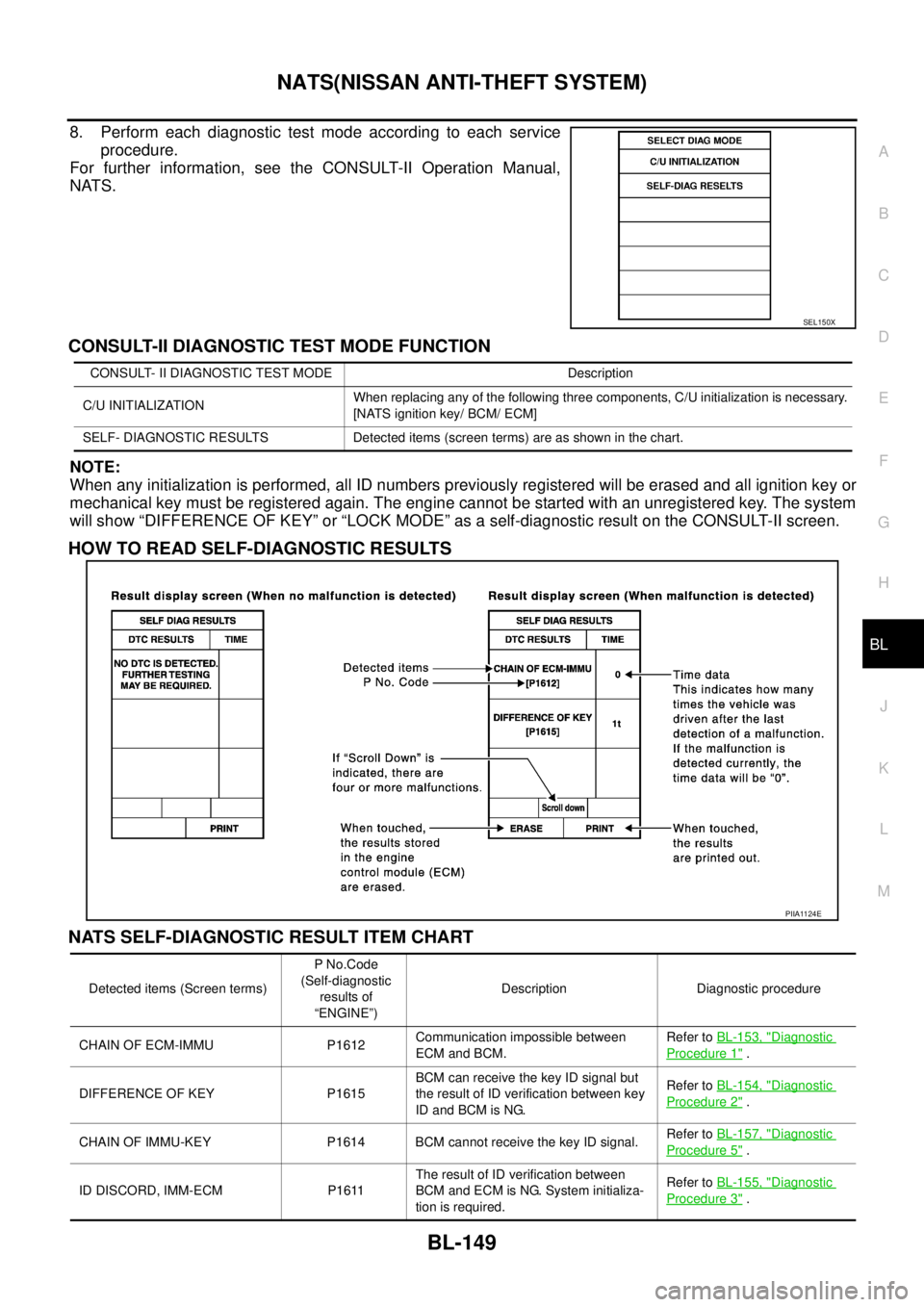

HOW TO READ SELF-DIAGNOSTIC RESULTS
NATS SELF-DIAGNOSTIC RESULT ITEM CHART
SEL150X
CONSULT- II DIAGNOSTIC TEST MODE Description
C/U INITIALIZATIONWhen replacing any of the following three components, C/U initialization is necessary.
[NATS ignition key/ BCM/ ECM]
SELF- DIAGNOSTIC RESULTS Detected items (screen terms) are as shown in the chart.
PIIA1124E
Detected items (Screen terms)P No.Code
(Self-diagnostic
results of
“ENGINE”)Description Diagnostic procedure
CHAIN OF ECM-IMMU P1612Communication impossible between
ECM and BCM.Refer to BL-153, "
Diagnostic
Procedure 1" .
DIFFERENCE OF KEY P1615BCM can receive the key ID signal but
the result of ID verification between key
ID and BCM is NG.Refer to BL-154, "
Diagnostic
Procedure 2" .
CHAIN OF IMMU-KEY P1614 BCM cannot receive the key ID signal.Refer to BL-157, "
Diagnostic
Procedure 5" .
ID DISCORD, IMM-ECM P1611The result of ID verification between
BCM and ECM is NG. System initializa-
tion is required.Refer to BL-155, "
Diagnostic
Procedure 3" .

NATS(NISSAN ANTI-THEFT SYSTEM)
BL-155
C
D
E
F
G
H
J
K
L
MA
B
BL

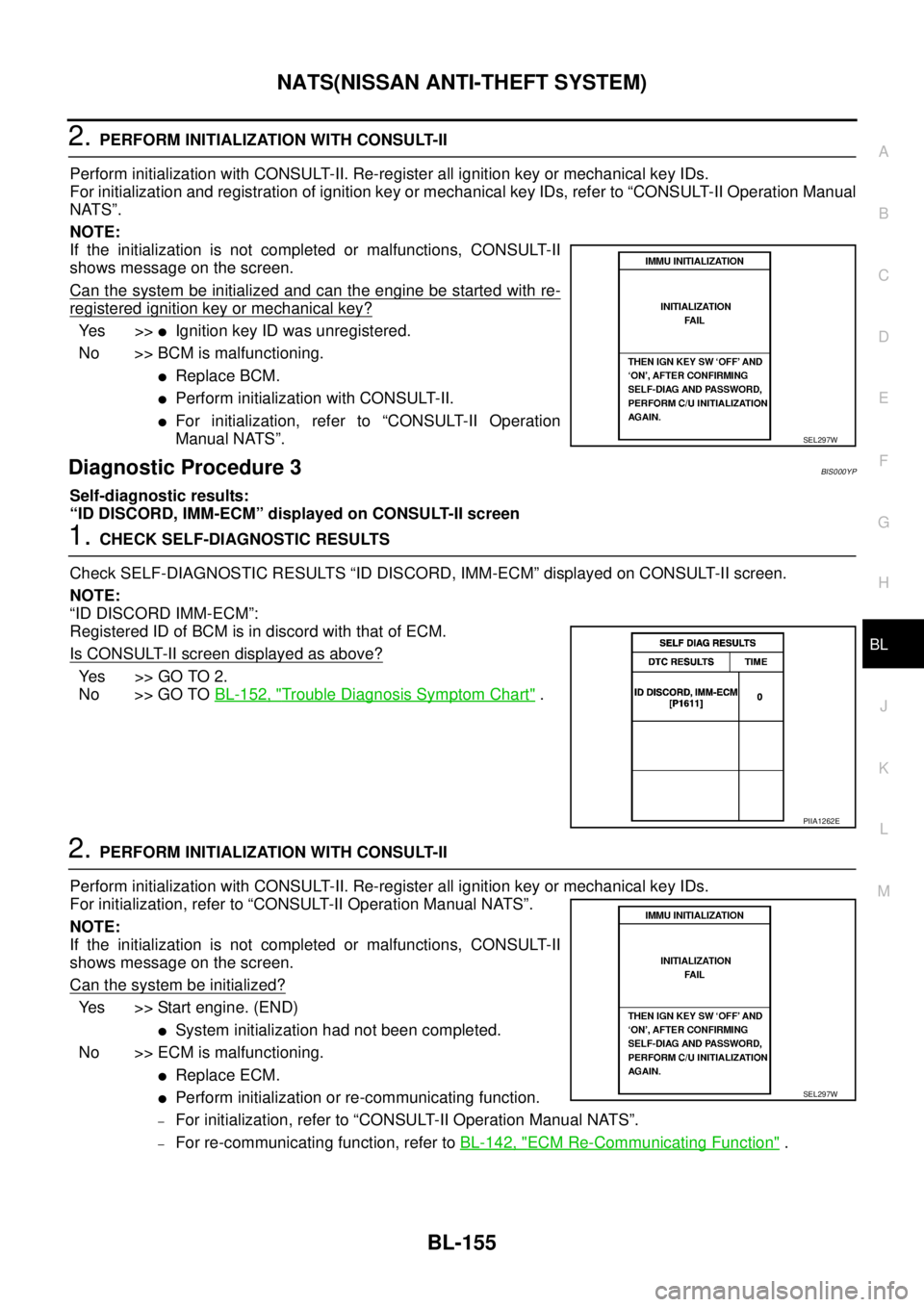

2. PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II. Re-register all ignition key or mechanical key IDs.
For initialization and registration of ignition key or mechanical key IDs, refer to “CONSULT-II Operation Manual
NATS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows message on the screen.
Can the system be initialized and can the engine be started with re-
registered ignition key or mechanical key?
Ye s > >
Ignition key ID was unregistered.
No >> BCM is malfunctioning.

Replace BCM.

Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II Operation
Manual NATS”.
Diagnostic Procedure 3BIS000YP
Self-diagnostic results:
“ID DISCORD, IMM-ECM” displayed on CONSULT-II screen
1. CHECK SELF-DIAGNOSTIC RESULTS
Check SELF-DIAGNOSTIC RESULTS “ID DISCORD, IMM-ECM” displayed on CONSULT-II screen.
NOTE:
“ID DISCORD IMM-ECM”:
Registered ID of BCM is in discord with that of ECM.
Is CONSULT-II screen displayed as above?
Ye s > > G O T O 2 .
No >> GO TO BL-152, "
Trouble Diagnosis Symptom Chart" .
2. PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II. Re-register all ignition key or mechanical key IDs.
For initialization, refer to “CONSULT-II Operation Manual NATS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows message on the screen.
Can the system be initialized?
Yes >> Start engine. (END)

System initialization had not been completed.
No >> ECM is malfunctioning.

Replace ECM.

Perform initialization or re-communicating function.
–For initialization, refer to “CONSULT-II Operation Manual NATS”.
–For re-communicating function, refer to BL-142, "ECM Re-Communicating Function" .
SEL297W
PIIA1262E
SEL297W

NATS(NISSAN ANTI-THEFT SYSTEM)
BL-157
C
D
E
F
G
H
J
K
L
MA
B
BL

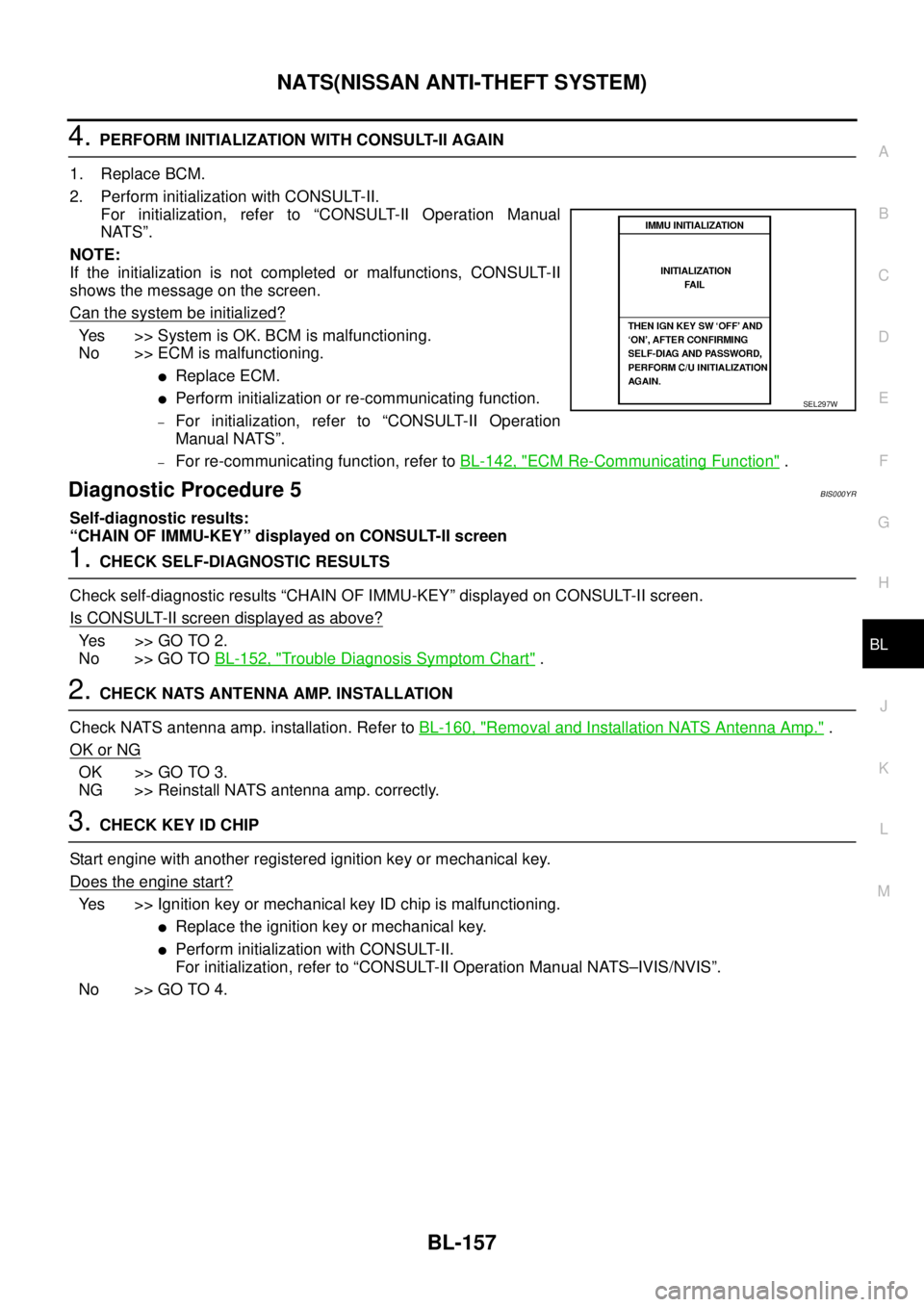

4. PERFORM INITIALIZATION WITH CONSULT-II AGAIN
1. Replace BCM.
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual
NATS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows the message on the screen.
Can the system be initialized?
Yes >> System is OK. BCM is malfunctioning.
No >> ECM is malfunctioning.

Replace ECM.

Perform initialization or re-communicating function.
–For initialization, refer to “CONSULT-II Operation
Manual NATS”.
–For re-communicating function, refer to BL-142, "ECM Re-Communicating Function" .
Diagnostic Procedure 5BIS000YR
Self-diagnostic results:
“CHAIN OF IMMU-KEY” displayed on CONSULT-II screen
1. CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagnostic results “CHAIN OF IMMU-KEY” displayed on CONSULT-II screen.
Is CONSULT-II screen displayed as above?
Ye s > > G O T O 2 .
No >> GO TO BL-152, "
Trouble Diagnosis Symptom Chart" .
2. CHECK NATS ANTENNA AMP. INSTALLATION
Check NATS antenna amp. installation. Refer to BL-160, "
Removal and Installation NATS Antenna Amp." .
OK or NG
OK >> GO TO 3.
NG >> Reinstall NATS antenna amp. correctly.
3. CHECK KEY ID CHIP
Start engine with another registered ignition key or mechanical key.
Does the engine start?
Yes >> Ignition key or mechanical key ID chip is malfunctioning.

Replace the ignition key or mechanical key.

Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS–IVIS/NVIS”.
No >> GO TO 4.
SEL297W
