2003 NISSAN TEANA AT device harness connector

DTC P0826 MANUAL MODE SWITCH CIRCUIT
CVT-113
D
E
F
G
H
I
J
K
L
MA
B
CVT

DTC P0826 MANUAL MODE SWITCH CIRCUITPFP:34901
DescriptionBCS001JN
Manual mode switch is installed in CVT control device. The manual mode switch sends shift up and shift down
switch signals to TCM.
TCM sends the switch signals to unified meter and A/C amp via CAN communication line. Then manual mode
switch position is indicated on the shift position indicator. For inspection, refer to CVT-159, "
Diagnostic Proce-
dure" .
CONSULT-II Reference ValueBCS001JO
On Board Diagnosis LogicBCS001JP
Diagnostic trouble code “P0826 MANUAL MODE SWITCH” with CONSULT-II is detected when TCM monitors
Manual mode, Non manual mode, Up or Down switch signal, and then detects irregular with impossible input
pattern for 1 second or more.
Possible CauseBCS001JQ

Harness or connectors
(These switches circuit is open or shorted.)
(TCM, and unified meter and A/C amp circuit are open or shorted.)
(CAN communication line is open or shorted.)

Manual mode select switch (Built into CVT control device)

Manual mode position select switch (Built into CVT control device)
DTC Confirmation ProcedureBCS001JR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine.
4. Move selector lever to “M” position.
5. Drive vehicle for at least 2 consecutive seconds.
6. If DTC is detected, go to CVT-115, "
Diagnostic Procedure" .
Item name Condition Display value
MMODEManual shift gate position (neutral) ON
Other than the above OFF
NON MMODEManual shift gate position (neutral, +side, -side) OFF
Other than the above ON
UPLVRSelector lever: + side ON
Other than the above OFF
DOWNLVRSelector lever: - side ON
Other than the above OFF
BCIA0031E

CVT-116
DTC P0826 MANUAL MODE SWITCH CIRCUIT

5. CHECK SELF-DIAGNOSTIC RESULTS (COMBINATION METER)
Perform self-diagnosis check. Refer to DI-13, "
Self-Diagnosis Mode of Combination Meter" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 6.
6. CHECK MANUAL MODE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT device connector and unified meter and A/C amp connector.
3. Check continuity between CVT device harness connector termi-
nals and unified meter and A/C amp harness connector termi-
nals.
4. Check continuity between CVT device harness connector termi-
nal and ground.
5. If OK, check harness for short to ground and short to power.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
7. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-113, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signal. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
CVT device harness connector M92 3
Ye s
Unified meter and A/C amp
harness connectorM41 3
CVT device harness connector M92 7
Ye s
Unified meter and A/C amp
harness connectorM41 14
CVT device harness connector M92 8
Ye s
Unified meter and A/C amp
harness connectorM41 4
CVT device harness connector M92 12
Ye s
Unified meter and A/C amp
harness connectorM41 13
SCIA4589E
Item Connector Terminal Continuity
CVT device harness connector M92 11 Yes
SCIA4590E

DTC P0826 MANUAL MODE SWITCH CIRCUIT
CVT-117
D
E
F
G
H
I
J
K
L
MA
B
CVT

Component InspectionBCS001JV
MANUAL MODE SWITCH
Check continuity between CVT device harness connector terminals.
Item Position Connector Terminal Continuity
Manual mode
select switchAuto
M9212 - 11
Ye s Manual 3 - 11
Manual mode
position select
switchUp 8 - 11
Down 7 - 11
SCIA4591E

SHIFT CONTROL SYSTEM
CVT-177
D
E
F
G
H
I
J
K
L
MA
B
CVT

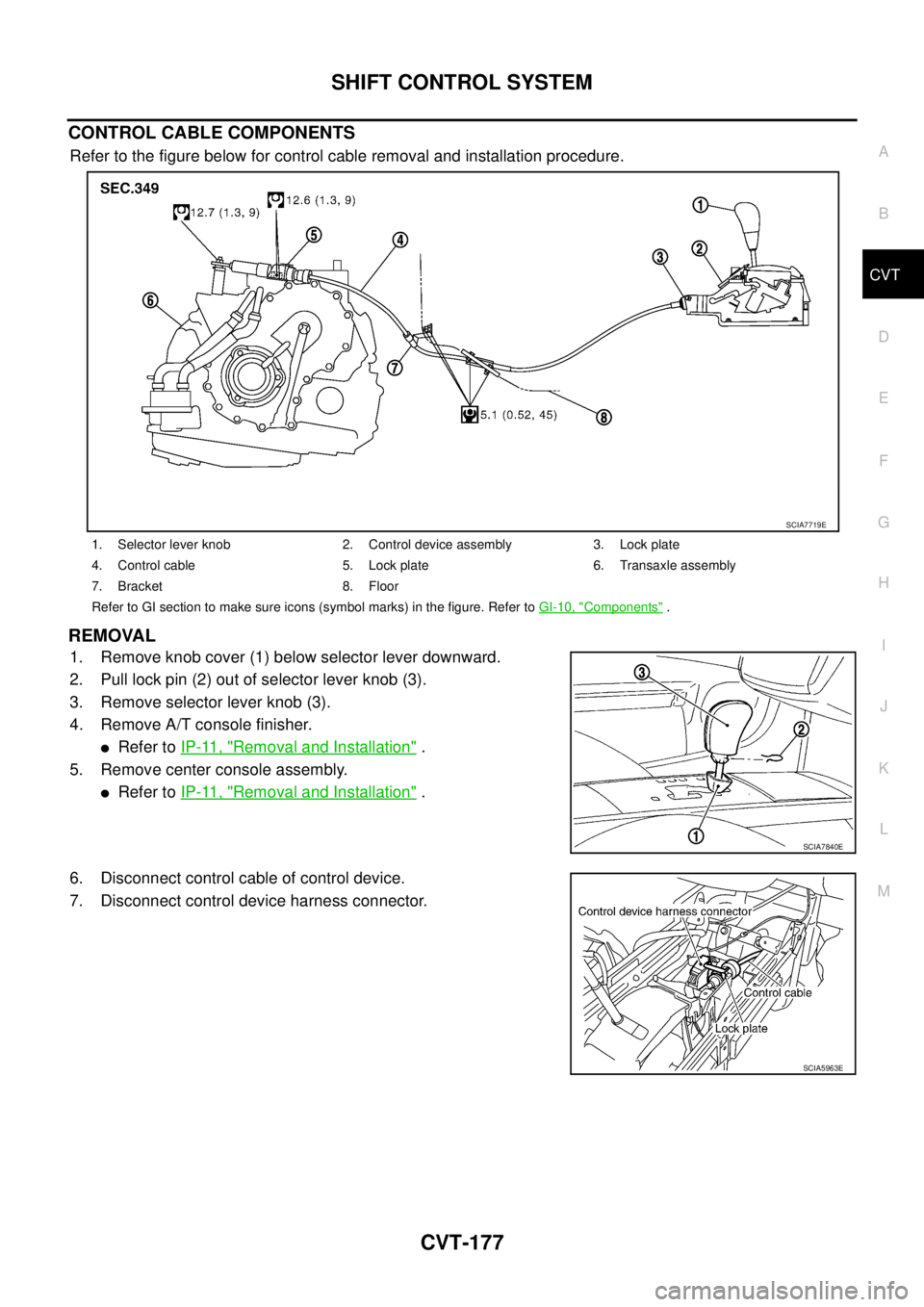

CONTROL CABLE COMPONENTS
Refer to the figure below for control cable removal and installation procedure.
REMOVAL
1. Remove knob cover (1) below selector lever downward.
2. Pull lock pin (2) out of selector lever knob (3).
3. Remove selector lever knob (3).
4. Remove A/T console finisher.

Refer to IP-11, "Removal and Installation" .
5. Remove center console assembly.

Refer to IP-11, "Removal and Installation" .
6. Disconnect control cable of control device.
7. Disconnect control device harness connector.
1. Selector lever knob 2. Control device assembly 3. Lock plate
4. Control cable 5. Lock plate 6. Transaxle assembly
7. Bracket 8. Floor
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
SCIA7719E
SCIA7840E
SCIA5963E

CVT-184
CVT SHIFT LOCK SYSTEM

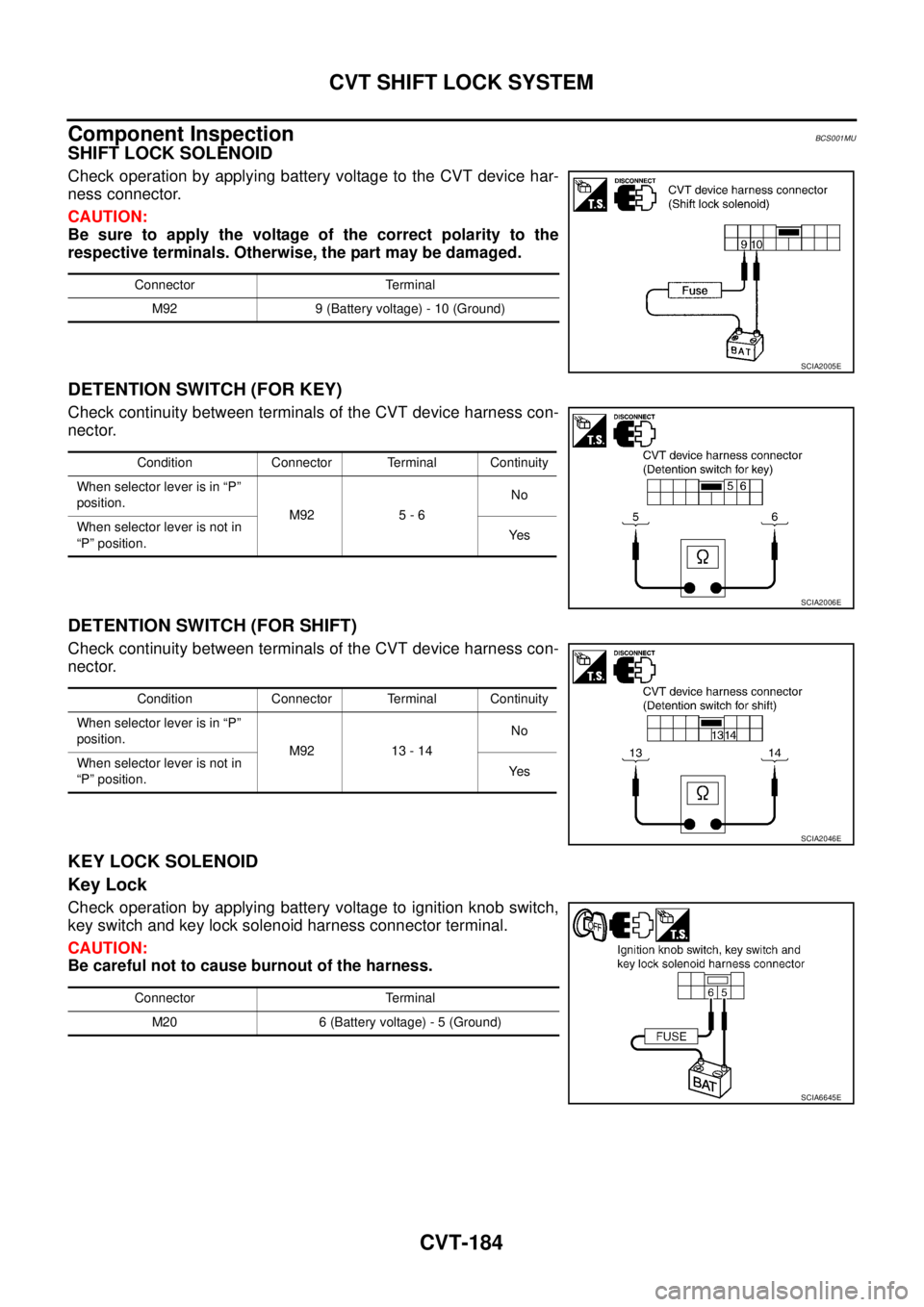

Component InspectionBCS001MU
SHIFT LOCK SOLENOID
Check operation by applying battery voltage to the CVT device har-
ness connector.
CAUTION:
Be sure to apply the voltage of the correct polarity to the
respective terminals. Otherwise, the part may be damaged.
DETENTION SWITCH (FOR KEY)
Check continuity between terminals of the CVT device harness con-
nector.
DETENTION SWITCH (FOR SHIFT)
Check continuity between terminals of the CVT device harness con-
nector.
KEY LOCK SOLENOID
Key Lock
Check operation by applying battery voltage to ignition knob switch,
key switch and key lock solenoid harness connector terminal.
CAUTION:
Be careful not to cause burnout of the harness.
Connector Terminal
M92 9 (Battery voltage) - 10 (Ground)
SCIA2005E
Condition Connector Terminal Continuity
When selector lever is in “P”
position.
M92 5 - 6No
When selector lever is not in
“P” position.Ye s
SCIA2006E
Condition Connector Terminal Continuity
When selector lever is in “P”
position.
M92 13 - 14No
When selector lever is not in
“P” position.Ye s
SCIA2046E
Connector Terminal
M20 6 (Battery voltage) - 5 (Ground)
SCIA6645E

EC-5
C
D
E
F
G
H
I
J
K
L
M
ECA
PREPARATION ....................................................... 355
Special Service Tools ........................................... 355
Commercial Service Tools .................................... 356
ENGINE CONTROL SYSTEM ................................ 357
System Diagram ................................................... 357
Multiport Fuel Injection (MFI) System .................. 358
Electronic Ignition (EI) System ............................. 360
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................. 361
AIR CONDITIONING CUT CONTROL ................... 362
Input/Output Signal Chart ..................................... 362
System Description .............................................. 362

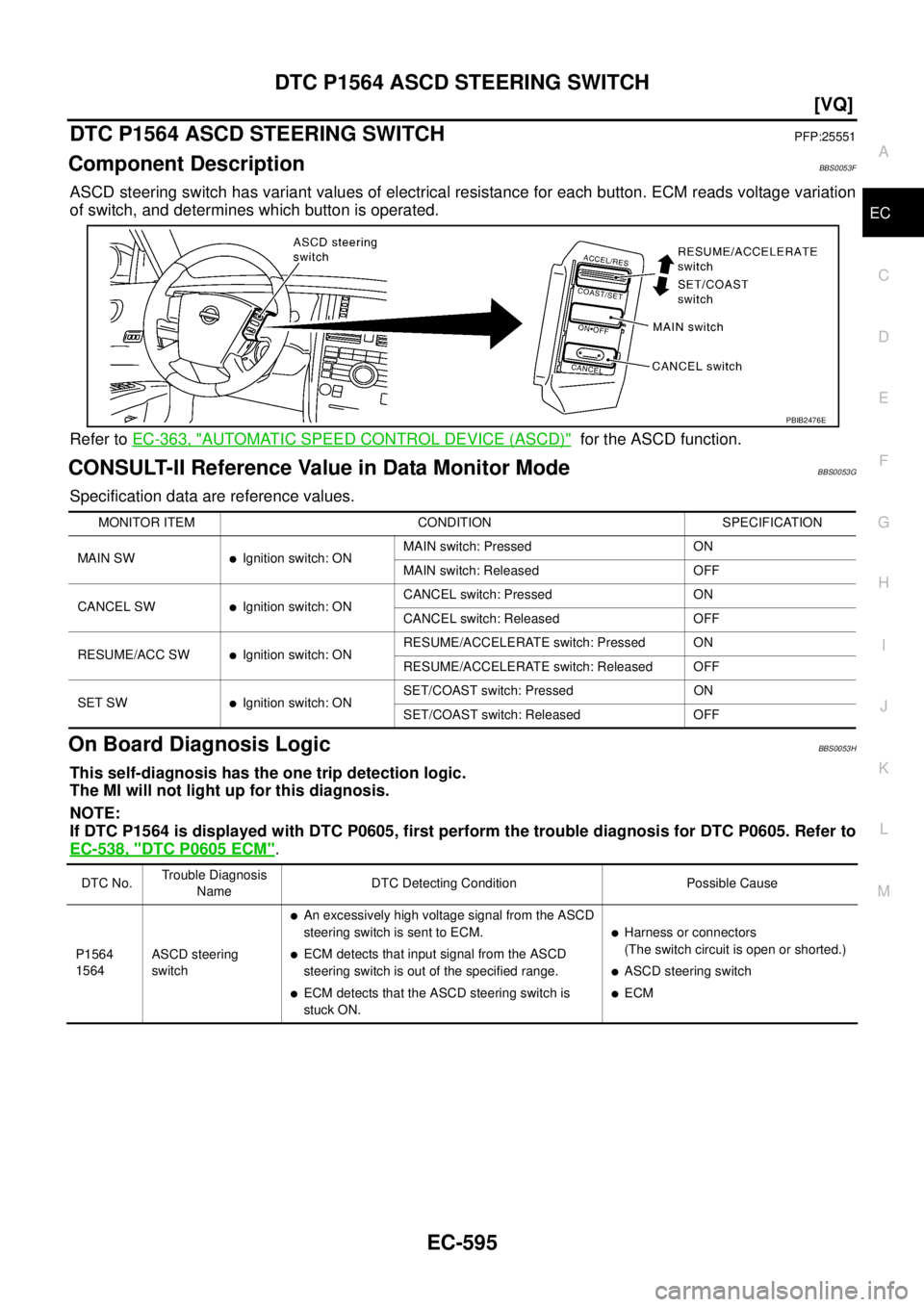

AUTOMATIC SPEED CONTROL DEVICE (ASCD) . 363
System Description .............................................. 363
Component Description ........................................ 364
CAN COMMUNICATION ........................................ 365
System Description .............................................. 365
EVAPORATIVE EMISSION SYSTEM ..................... 366
Description ........................................................... 366
Component Inspection ......................................... 369
POSITIVE CRANKCASE VENTILATION ............... 370
Description ........................................................... 370
Component Inspection ......................................... 370
NATS (NISSAN ANTI-THEFT SYSTEM) ................ 372
Description ........................................................... 372
ON BOARD DIAGNOSTIC (OBD) SYSTEM .......... 373
Introduction .......................................................... 373
Two Trip Detection Logic ...................................... 373
Emission-related Diagnostic Information .............. 373
Malfunction Indicator (MI) ..................................... 377
BASIC SERVICE PROCEDURE ............................ 381
Basic Inspection ................................................... 381
Idle Speed and Ignition Timing Check .................. 387
Procedure After Replacing ECM .......................... 389
Accelerator Pedal Released Position Learning .... 389
Throttle Valve Closed Position Learning .............. 389
Idle Air Volume Learning ...................................... 389
Fuel Pressure Check ............................................ 392
TROUBLE DIAGNOSIS .......................................... 394
Trouble Diagnosis Introduction ............................. 394
DTC Inspection Priority Chart .............................. 400
Fail-Safe Chart ..................................................... 401
Symptom Matrix Chart ......................................... 402
Engine Control Component Parts Location .......... 406
Vacuum Hose Drawing ......................................... 412
Circuit Diagram .................................................... 413
ECM Harness Connector Terminal Layout ........... 415
ECM Terminals and Reference Value .................. 415
CONSULT-II Function (ENGINE) ......................... 425
CONSULT-II Reference Value in Data Monitor Mode
. 434
Major Sensor Reference Graph in Data Monitor
Mode .................................................................... 438
TROUBLE DIAGNOSIS - SPECIFICATION VALUE . 440
Description ........................................................... 440
Testing Condition .................................................. 440
Inspection Procedure ........................................... 440
Diagnostic Procedure ........................................... 441
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-DENT .......................................................................450
Description ............................................................450
Diagnostic Procedure ...........................................450
POWER SUPPLY AND GROUND CIRCUIT ...........451
Wiring Diagram .....................................................451
Diagnostic Procedure ...........................................452
Ground Inspection ................................................457
DTC U1000, U1001 CAN COMMUNICATION LINE .458
Description ............................................................458
On Board Diagnosis Logic ....................................458
DTC Confirmation Procedure ...............................458
Wiring Diagram .....................................................459
Diagnostic Procedure ...........................................460
DTC P0011, P0021 IVT CONTROL ........................461
Description ............................................................461
CONSULT-II Reference Value in Data Monitor Mode
.461
On Board Diagnosis Logic ....................................462
DTC Confirmation Procedure ...............................462
Overall Function Check ........................................463
Diagnostic Procedure ...........................................464
Component Inspection ..........................................465
Removal and Installation ......................................465
DTC P0102, P0103 MAF SENSOR ........................466
Component Description ........................................466
CONSULT-II Reference Value in Data Monitor Mode
.466
On Board Diagnosis Logic ....................................466
DTC Confirmation Procedure ...............................467
Wiring Diagram .....................................................468
Diagnostic Procedure ...........................................469
Component Inspection ..........................................472
Removal and Installation ......................................473
DTC P0117, P0118 ECT SENSOR .........................474
Component Description ........................................474
On Board Diagnosis Logic ....................................474
DTC Confirmation Procedure ...............................475
Wiring Diagram .....................................................476
Diagnostic Procedure ...........................................477
Component Inspection ..........................................478
Removal and Installation ......................................478
DTC P0122, P0123 TP SENSOR ............................479
Component Description ........................................479
CONSULT-II Reference Value in Data Monitor Mode
.479
On Board Diagnosis Logic ....................................479
DTC Confirmation Procedure ...............................480
Wiring Diagram .....................................................481
Diagnostic Procedure ...........................................482
Component Inspection ..........................................485
Removal and Installation ......................................485
DTC P0132, P0152 HO2S1 .....................................486
Component Description ........................................486
CONSULT-II Reference Value in Data Monitor Mode
.486
On Board Diagnosis Logic ....................................486
DTC Confirmation Procedure ...............................487
Wiring Diagram .....................................................488
Diagnostic Procedure ...........................................491

DTC P1564 ASCD STEERING SWITCH
EC-595
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionBBS0053F
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeBBS0053G
Specification data are reference values.
On Board Diagnosis LogicBBS0053H
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-538, "
DTC P0605 ECM".
PBIB2476E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW

Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch: Pressed ON
RESUME/ACCELERATE switch: Released OFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1564
1564ASCD steering
switch

An excessively high voltage signal from the ASCD
steering switch is sent to ECM.

ECM detects that input signal from the ASCD
steering switch is out of the specified range.

ECM detects that the ASCD steering switch is
stuck ON.

Harness or connectors
(The switch circuit is open or shorted.)

ASCD steering switch

ECM

EC-602
[VQ]
DTC P1572 ASCD BRAKE SWITCH

DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionBBS0053M
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeBBS0053N
Specification data are reference values.
On Board Diagnosis LogicBBS0053O
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:

If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-538, "
DTC P0605 ECM" .

This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2469E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)

Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1572
1572ASCD brake switchA)When the vehicle speed is above 30km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are sent
to ECM at the same time.

Harness or connectors
(The stop lamp switch circuit is shorted.)

Harness or connectors
(The ASCD brake switch circuit is shorted.)

Stop lamp switch

ASCD brake switch

Incorrect stop lamp switch installation

Incorrect ASCD brake switch installation

ECM B)ASCD brake switch signal is not sent to
ECM for extremely long time while the vehi-
cle is driving
