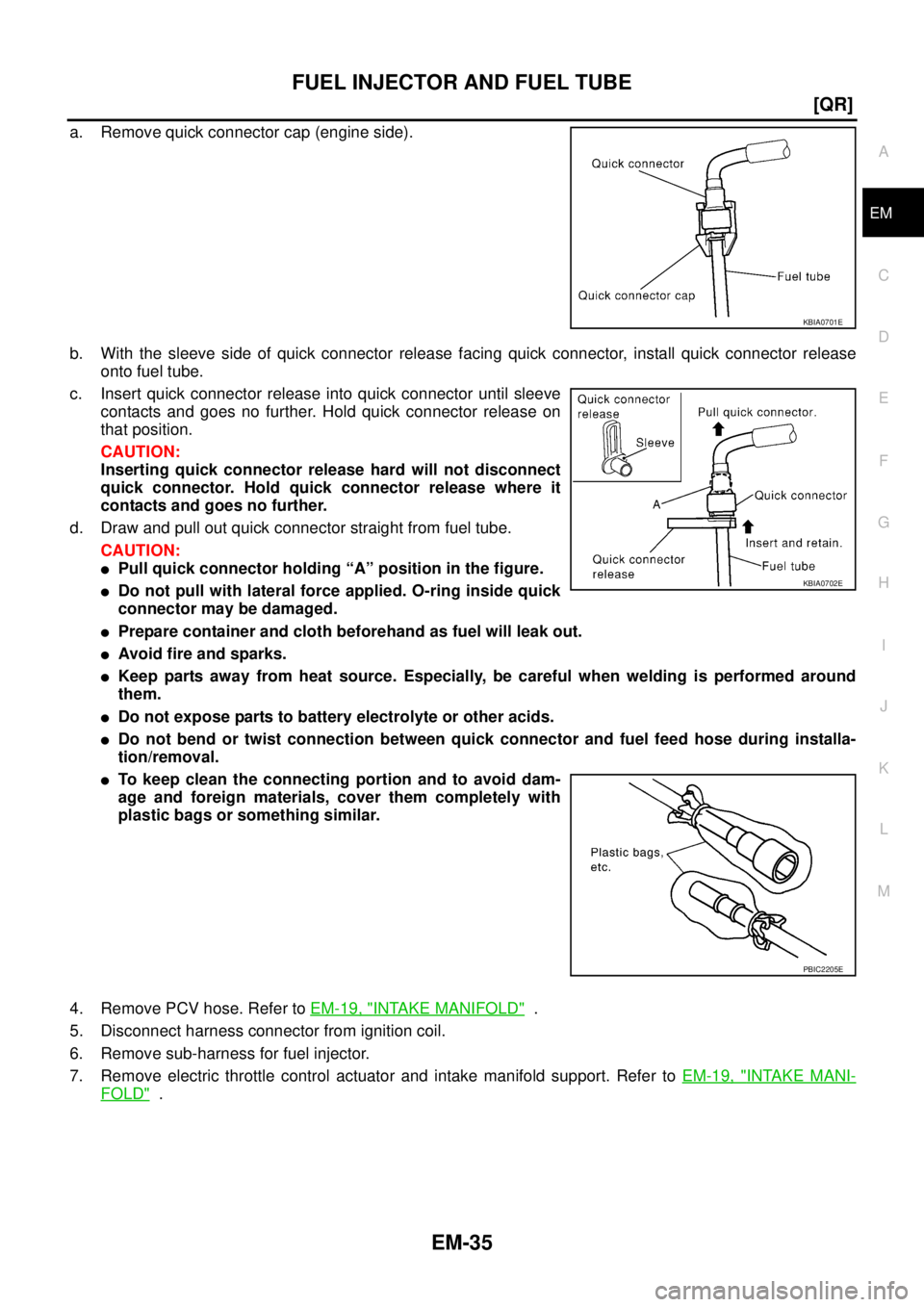

a. Remove quick connector cap (engine side).
b. With the sleeve side of quick connector release facing quick connector, install quick connector release
onto fuel tube.
c. Insert quick connector release into quick connector until sleeve
contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
d. Draw and pull out quick connector straight from fuel tube.
CAUTION:

Pull quick connector holding “A” position in the figure.

Do not pull with lateral force applied. O-ring inside quick
connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose during installa-
tion/removal.

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
4. Remove PCV hose. Refer to EM-19, "
INTAKE MANIFOLD" .
5. Disconnect harness connector from ignition coil.
6. Remove sub-harness for fuel injector.
7. Remove electric throttle control actuator and intake manifold support. Refer to EM-19, "
INTAKE MANI-
FOLD" .
KBIA0701E
KBIA0702E
PBIC2205E

EM-58
[QR]
TIMING CHAIN

INSTALLATION
NOTE:
The figure shows the relationship between the mating mark on each
timing chain and that on the corresponding sprocket, with the com-
ponents installed.
1. Make sure that crankshaft key points straight up.
2. Tighten mounting bolts in numerical order as shown in the figure
with the following procedure to install balancer unit.
CAUTION:
If mounting bolts are re-used, check their outer diameter
before installation. Refer to EM-57, "
Balancer Unit Mounting
Bolt Outer Diameter" .
a. Apply new engine oil to threads and seat surfaces of mounting
bolts.
b. Tighten all bolts.
c. Turn all bolts 90 degrees clockwise (angle tightening).
CAUTION:
Check tightening angle with angle wrench (SST) or a pro-
tractor. Do not make judgment by visual check alone.
d. Completely loosen.
CAUTION:
In this step, loosen bolts in reverse order as shown in the
figure.
e. Tighten all bolts.
f. Turn them another 90 degrees clockwise (angle tightening).
PBIC2182E
: 48.1 N·m (4.9 kg-m, 35 ft-lb)KBIA0122E
: 0 N·m (0 kg-m, 0 ft-lb)
: 48.1 N·m (4.9 kg-m, 35 ft-lb)
KBIA0080E

EM-66
[QR]
CYLINDER HEAD


If the engine speed is out of specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.

If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.

If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug
hole of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, piston rings may be worn out or damaged. Check
piston rings and replace if necessary.
–If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.

If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, cylinder head gasket is leaking. In such a case, replace cylin-
der head gasket.
9. After inspection is completed, install removed parts.
10. Start engine, and confirm that engine runs smoothly.
11. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-52, "
TROUBLE DIAGNOSIS" .
Removal and InstallationBBS0059C
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" .
2. Drain engine coolant and engine oil. Refer to CO-10, "
Changing Engine Coolant" and LU-9, "Changing
Engine Oil" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant and engine oil on drive belt.
3. Remove the following components and related parts.

Exhaust manifold and three way catalyst assembly; Refer to EM-23, "EXHAUST MANIFOLD AND
THREE WAY CATALYST" .

Intake manifold and fuel tube assembly; Refer to EM-19, "INTAKE MANIFOLD" .

Water control valve and housing (water outlet); Refer to CO-24, "THERMOSTAT AND WATER CON-
TROL VALVE" .
1. Cylinder head assembly 2. Cylinder head gasket 3. Engine cover bracket (rear)
4. Cylinder head bolt
PBIC2424E

EM-84
[QR]
CYLINDER BLOCK

9. Remove pilot converter using pilot bushing puller (SST) or suit-
able tool.
10. Remove piston and connecting rod assembly with the following procedure:

Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer
to EM-99, "
CONNECTING ROD SIDE CLEARANCE" .
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
b. Remove connecting rod cap.
c. Using hammer handle or similar tool, push piston and connect-
ing rod assembly out to the cylinder head side.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod big
end.
11. Remove connecting rod bearings.
CAUTION:
Identify installation positions, and store them without mixing them up.
12. Remove piston rings form piston.

Before removing piston rings, check the piston ring side clearance. Refer to EM-100, "PISTON RING
SIDE CLEARANCE" .

Use piston ring expander (commercial service tool).
CAUTION:

When removing piston rings, be careful not to damage
piston.

Be careful not to damage piston rings by expanding
them excessively.
13. Remove piston from connecting rod with the following procedure:
SBIA0274E
PBIC0259E
PBIC0087E

CYLINDER BLOCK
EM-89
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Assemble so that the front mark on the piston head and the oil
holes and the cylinder number on connecting rod are posi-
tioned as shown in the figure.
c. Install new snap ring to the groove of the piston front side.

Insert it fully into groove to install.

After installing, make sure that connecting rod moves
smoothly.
9. Using piston ring expander (commercial service tool), install piston rings.
CAUTION:

Be careful not to damage piston.

Be careful not to damage piston rings by expanding them excessively.

Position each ring with the gap as shown in the figure refer-
ring to the piston front mark.

Install second ring with the stamped surface facing upward.
NOTE:
If there is no stamped mark on piston ring, no specific orienta-
tion is required for installation.
10. Inspect outer diameter of connecting rod bolts. Refer to EM-107, "
CONNECTING ROD BOLT OUTER
DIAMETER" .
11. Install connecting rod bearings to connecting rod and connecting rod cap.

When installing connecting rod bearings, apply new engine oil to the bearing surface (inside). Do not
apply new engine oil to the back surface, but thoroughly clean it.

When installing, align the connecting rod bearing stopper pro-
trusion with the cutout of connecting rod and connecting rod
cap to install.

Ensure the oil hole on connecting rod and that on the corre-
sponding bearing are aligned.
12. Install piston and connecting rod assembly to crankshaft.

Position crankshaft pin corresponding to connecting rod to be installed onto the bottom dead center.

Apply new engine oil sufficiently to the cylinder bore, piston and crankshaft pin journal.

Match the cylinder position with the cylinder number on connecting rod to install.
PBIC2194E
Stamped mark:
To p r i n g : —
Second ring : 2F
PBIC2195E
PBIC2067E

CYLINDER BLOCK
EM-95
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAUTION:
In grinding crankshaft pin to use undersize bearings, keep the
fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].
Bearing undersize table
Unit: mm (in)
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft are Used
1. “Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear left side of cylinder block.

If there is a corrected stamp mark on cylinder block, use it as
a correct reference.
2. Apply main journal diameter grade stamped on crankshaft front
side to column in the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
CAUTION:
There are two main bearing selection tables. One is for odd-numbered journals (No. 1, 3 and 5) and
the other is for even-numbered journals (No. 2 and 4). Make certain to use the appropriate table.
This is due to differences in the specified clearances.
4. Apply the symbol obtained to the “Main Bearing Grade Table” to select main bearing.
NOTE:
Service part is available as a set of both upper and lower.
When Cylinder Block and Crankshaft are Reused
1. Measure the dimensions of the cylinder block main bearing housing inner diameter and crankshaft main
journal diameter individually. Refer to EM-103, "
MAIN BEARING HOUSING INNER DIAMETER" and
EM-104, "
CRANKSHAFT MAIN JOURNAL DIAMETER" .
2. Apply the measured dimension to the “Main Bearing Selection Table”.
PBIC2200E
Size Thickness
US 0.25 (0.0098) 1.624 - 1.632 (0.0639 - 0.0643)
SBIA0283E
PBIC2198E

EM-156
[VQ]
FUEL INJECTOR AND FUEL TUBE

4. Remove air duct (inlet), air cleaner case (upper) with mass air flow sensor and air duct assembly. Refer to
EM-131, "
AIR CLEANER AND AIR DUCT" .
5. Remove intake manifold collectors (upper and lower). Refer to EM-133, "
INTAKE MANIFOLD COLLEC-
TOR" .
6. Remove fuel feed hose (with damper) from fuel tube.
CAUTION:

While hose disconnected, plug it to prevent fuel from
draining.

Do not separate fuel damper and fuel feed hose.
7. When separating fuel feed hose (with damper) and centralized under-floor piping connection, disconnect
quick connector as follows:
a. Remove quick connector cap from quick connector.
b. Disconnect quick connector from centralized under-floor piping as follows:
CAUTION:
Disconnect quick connector by using quick connector release (SST), not by picking out retainer
tabs.
i. With the sleeve side of quick connector release facing to quick connector, install quick connector release
onto fuel tube.
ii. Insert quick connector release into quick connector until sleeve
contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
iii. Draw and pull out quick connector straight from centralized
under-floor piping.
CAUTION:

Pull quick connector holding “A” position as shown in
the figure.

Do not pull with lateral force applied. O-ring inside quick connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose (with damper) dur-
ing installation/removal.

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
PBIC2468E
PBIC1898E
PBIC1899E

EM-184
[VQ]
TIMING CHAIN

a. Push plunger of chain tensioner (secondary) and keep it
pressed in with stopper pin.
b. Install timing chain (secondary) and camshaft sprockets (INT
and EXH).

Align the mating marks on timing chain (secondary) (gold link)
with the ones on camshaft sprockets (INT and EXH)
(punched), and install them.
NOTE:

Mating marks for camshaft sprocket (INT) are on the back
side of camshaft sprocket (secondary).

There are two types of mating mark, circle and oval types.
They should be used for the right and left banks, respec-
tively.

Align dowel pin and pin hole on camshafts with the groove
and dowel pin on sprockets, and install them.

On the intake side, align pin hole on the small diameter side of
the camshaft front end with dowel pin on the back side of
camshaft sprocket, and install them.

On the exhaust side, align dowel pin on camshaft front end
with pin groove on camshaft sprocket, and install them.

In case that positions of each mating mark and each dowel
pin are not fit on mating parts, make fine adjustment to the position holding the hexagonal portion on
camshaft with wrench or equivalent.

Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is
enough to prevent the dislocation of dowel pins.

It may be difficult to visually check the dislocation of mating
marks during and after installation. To make the matching
easier, make a mating mark on the top of sprocket teeth and
its extended line in advance with paint.
SEM430G
Right bank : Use circle type.
Left bank : Use oval type.
PBIC2981E
PBIC0891E
