HOW TO USE THIS MANUAL

14 Wire color

This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light GreenBR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description

This shows a description of the option abbreviation used on the page.
16 Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch

This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line

The line enclosed by broken line circle shows shield wire.
23Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name

This shows the name of a component.
25 Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views

This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details. Num-
berItem Description

SQUEAK AND RATTLE TROUBLE DIAGNOSES
GW-5
C
D
E
F
G
H
J
K
L
MA
B
GW

SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowBIS000YZ

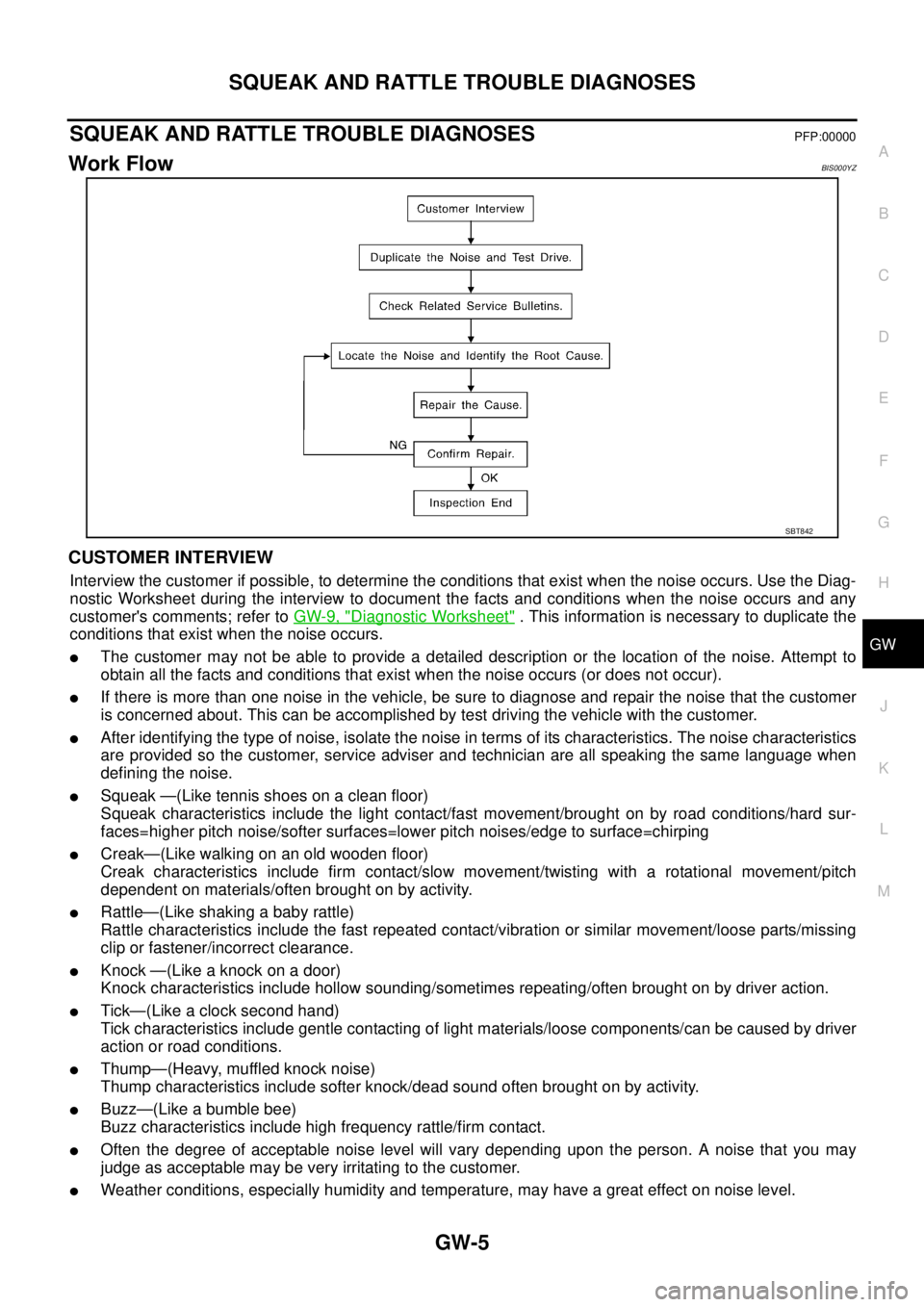

CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to GW-9, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

DOOR MIRROR
GW-79
C
D
E
F
G
H
J
K
L
MA
B
GW

9. Separate the power unit from the door mirror actuator.
ASSEMBLY
1. Connect power unit connector, and install power unit to door mirror actuator.
2. Install door mirror actuator assembly and base to the housing.
3. Set power unit and mirror body assembly in a horizontal position.
4. Warm the lower tabs with a dryer or equivalent.
NOTE:
Warm the lower tabs sufficiently before installing the mirror body. The tabs may be broken if it is cold. Be
careful especially in winter.
5. Engage upper tabs of mirror glass with power unit. Then, press
lower part of mirror glass down until the lower part snaps to
allow engagement of lower tabs.
NOTE:
After installation, visually check that the lower tabs are securely
engaged when viewed from the bottom of mirror surface.
6. Insert the harness terminals into the connector.
NOTE:
Make sure to insert the harness terminals into the correct con-
nector. Do not confuse the locations.
PIIA6332E

IP-4
SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowBIS00123
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to IP-8, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

LT-32
HEADLAMP - XENON TYPE -

General Information for Xenon Headlamp Trouble DiagnosisBKS001NC
In most cases, malfunction of xenon headlamp - “does not illuminate”, “flickers” or “dark” - is caused by an
abnormal xenon bulb. An abnormal HID control unit or lamp housing, however, may be a cause. Be sure to
perform trouble diagnosis following the steps described below.
Caution:BKS001ND

Installation or removal of the connector must be done with the lighting switch OFF.

When the lamp is illuminated (when the lighting switch is ON), never touch the harness, HID control unit,
inside of the lamp, or the lamp metal parts.

To check illumination, temporarily install lamp in the vehicle. Be sure to connect power at the vehicle side
connector.

If the error can be traced directly to the electrical system, first check for items such as burned-out fuses
and fusible links, broken wires or loose connectors, pulled-out terminals, and improper connections.

Never work with wet hands.

Using a tester for HID control unit circuit trouble diagnosis is prohibited.

Disassembling the HID control unit or harnesses (bulb socket harness, ECM harness) is prohibited.

Immediately after illumination, the light intensity and color will fluctuate, but there is nothing wrong.

When the bulb has reached the end of its lifetime, the brightness may drop significantly, it may flash
repeatedly, or the light may turn a reddish color.
Xenon Headlamp Trouble DiagnosisBKS001NE
1. CHECK 1: XENON HEADLAMP LIGHTING
Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon bulb.
NG >> GO TO 2.
2. CHECK 2: XENON HEADLAMP LIGHTING
Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace HID control unit.
NG >> GO TO 3.
3. CHECK 3: XENON HEADLAMP LIGHTING
Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon headlamp housing assembly.
NG >> INSPECTION END

LT-96
HEADLAMP AIMING CONTROL (AUTO)

System DescriptionBKS002BA
The height sensor is located on the right side of the rear suspension member. With the lighting switch in the
1ST or 2ND position, the height sensor detects vehicle height change by sensing the displacement of the sus-
pension arm. And the height sensor transmits a corresponding signal to the headlamp aiming motors. The sig-
nal drives the headlamp aiming motors, which adjusts the low beam reflector of each headlamp to an angle
appropriate for the vehicle height.
The aiming motor drive signal level retains when the following conditions are not met.

When the stopped vehicle changes the height and keeps it for more than 10 seconds, the height sensor
outputs a aiming motor drive signal. And height sensor keeps signal voltage to headlamp aiming motor.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.

When the vehicle is running (excluded when accelerating/decelerating), the height sensor transmits aim-
ing motor drive signal to headlamp aiming motors at the predetermined intervals. The voltage level of
every signal input is maintained unchanged until the next signal is input.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.

When the vehicle is accelerating or decelerating, the height sensor keeps the same aiming motor drive
signal voltage level rather than changing it, so that the low beam reflectors of both headlamps do not
operate.
When the lighting switch is turned OFF position, the height sensor retains the aiming motor drive signal level
at that moment and stops transmitting the signal.
OUTLINE
Power is supplied at all times

to ignition relay [located in IPDM E/R (Intelligent Power Distribution Module Engine Room)], from battery
direct,

through 15A fuse (No. 71, located in IPDM E/R)

to tail lamp relay (located in IPDM E/R) and

to CPU (central processing unit) in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU in IPDM E/R,

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 17, located in fuse block (J/B)]

to BCM terminal 42.
With the ignition switch in the ON or START position, power is supplied

to ignition relay (located in IPDM E/R),

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in fuse block (J/B)]

to height sensor terminal 2.
With the ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M71 and M72,

to IPDM E/R terminals 38 and 60

through grounds E1 and E31,

to height sensor terminal 1

through grounds B214 and B217.

HEADLAMP AIMING CONTROL (AUTO)
LT-97
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AUTO AIMING CONTROL OPERATION
The height sensor is located on the right side of the rear suspension member and detects vehicle height
change by sensing the displacement of the suspension arm.
When the lighting switch is turned to the 1ST or 2ND position, power is supplied

through IPDM E/R terminal 22

to height sensor terminal 6 and

to front combination lamp RH and LH terminals 3.
At the same time, the vehicle height signal (voltage signal that corresponds to the vehicle height) is applied

through height sensor terminal 7

to front combination lamp RH and LH terminals 6.
Ground is supplied

to front combination lamp RH and LH terminals 4

through grounds E1 and E31.
CAN Communication System DescriptionBKS0041M
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBKS0041N
Refer to LAN-49, "CAN System Specification Chart" .

COMBINATION SWITCH
LT-187
C
D
E
F
G
H
I
J
L
MA
B
LT

3. CHECK HARNESS BETWEEN COMBINATION SWITCH AND BCM
1. Turn ignition switch OFF.
2. Disconnect BCM connector and combination switch connector.
3. Check for continuity between BCM harness connector (A) of the suspect system and the corresponding
combination switch connector (B).
4. Check for continuity between each of BCM harness connector in suspect malfunctioning system and
ground.
OK or NG
OK >> Check BCM input/output signal of malfunctioning input/output.

Input: GO TO 4.

Output: GO TO 5.
NG >> Repair harness or connector.
Sus-
pect
systemAB
Continuity
Connector Terminal Connector Terminal
1
M3Input 1 6
M276
Ye s Output 1 36 1
2Input 2 5 7
Output 2 35 2
3Input 3 4 10
Output 3 34 3
4Input 4 3 9
Output 4 33 4
5Input 5 2 8
Output 5 32 5
Suspect
systemBCM
connectorTerminal
GroundContinuity
1
M3Input 1 6
No Output 1 36
2Input 2 5
Output 2 35
3Input 3 4
Output 3 34
4Input 4 3
Output 4 33
5Input 5 2
Output 5 32
PKID0105E
PKIA7506E
